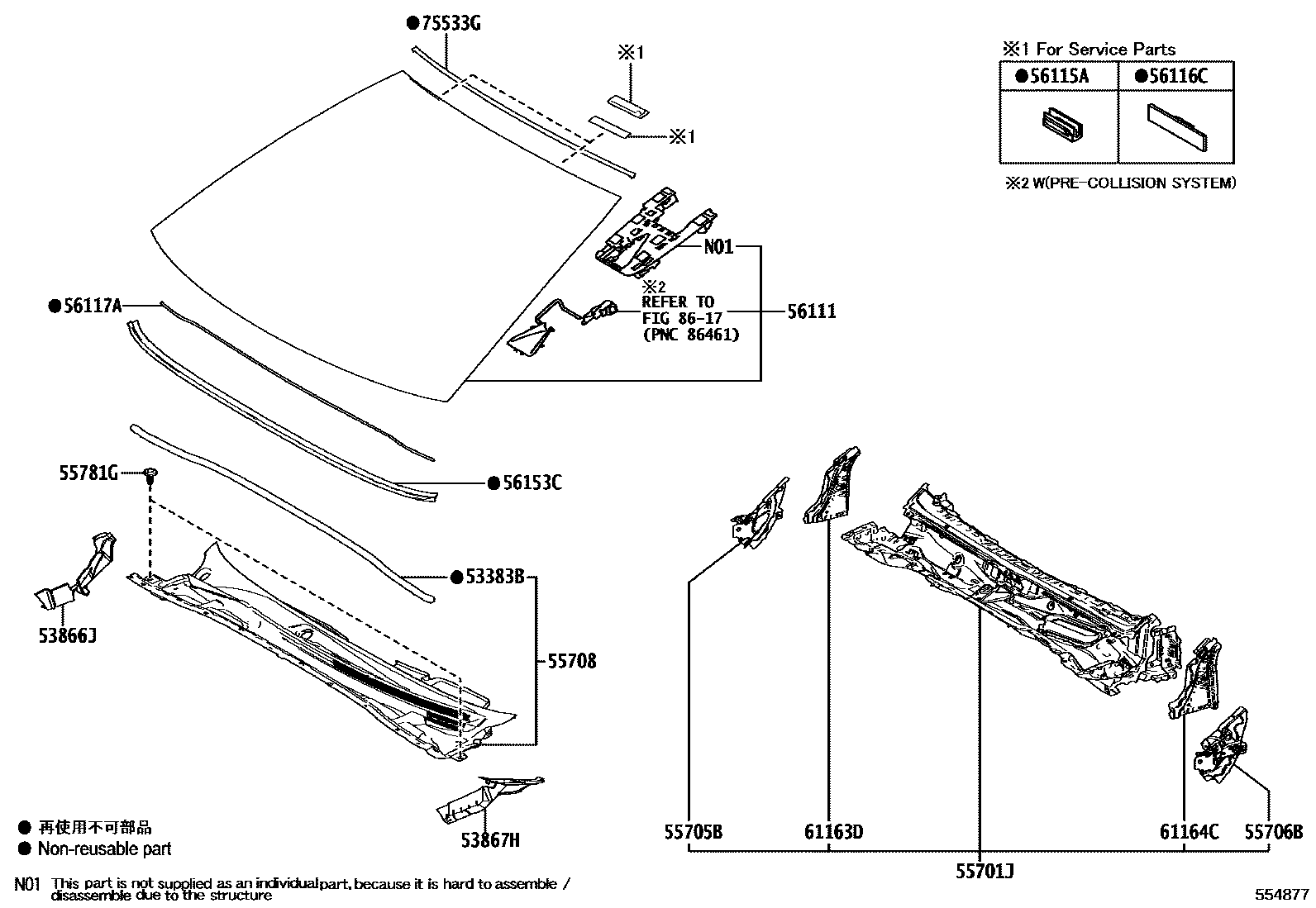

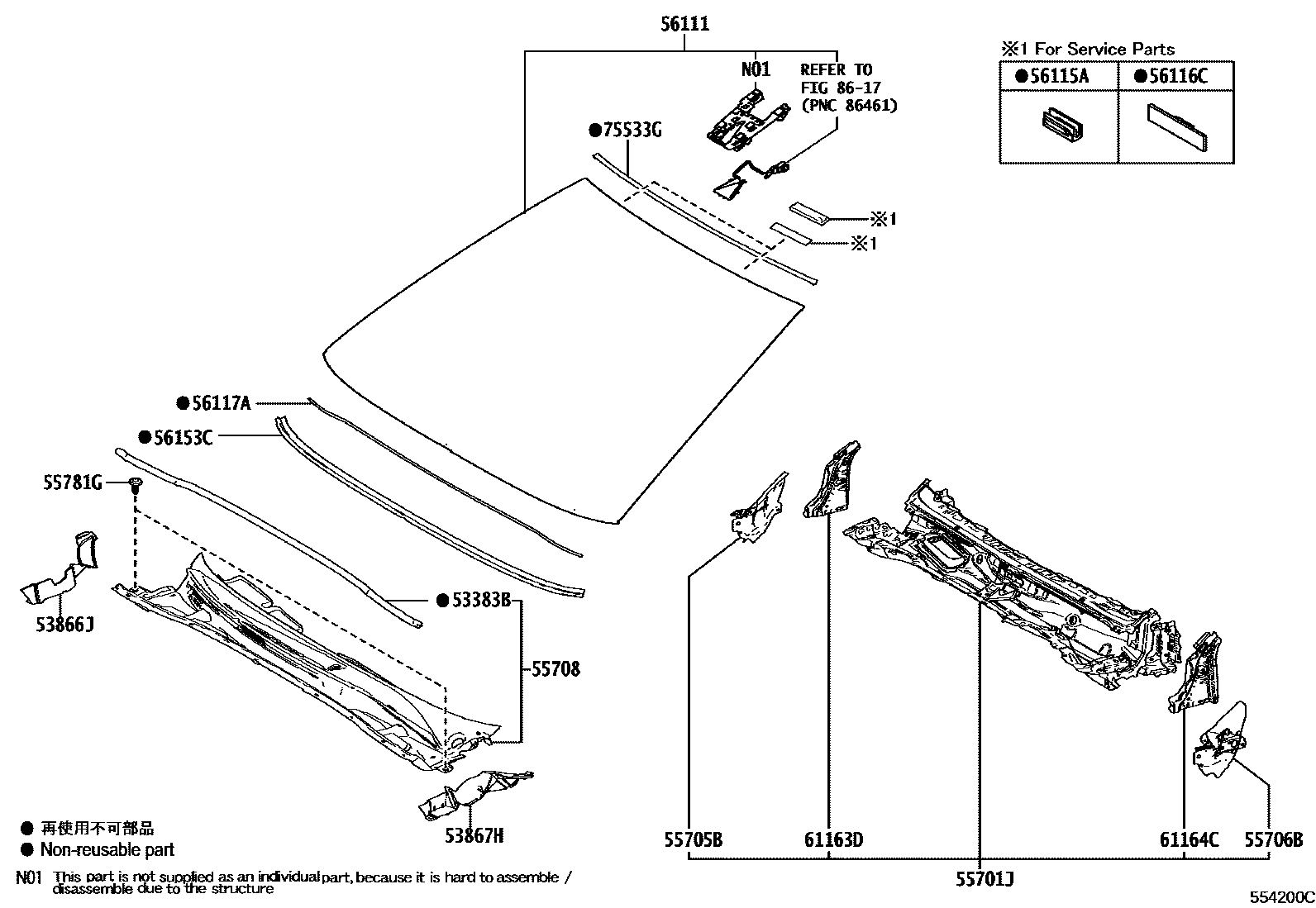

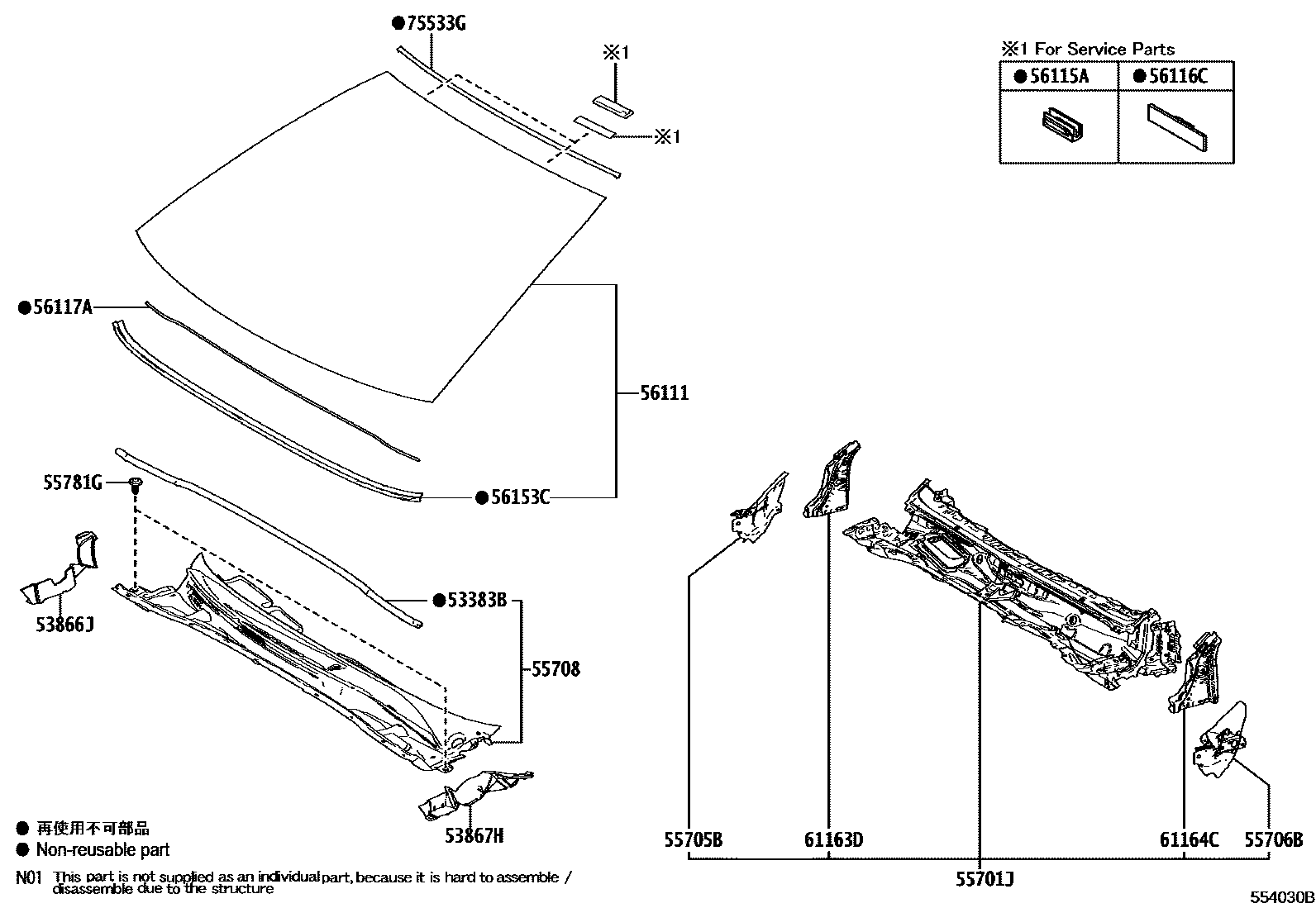

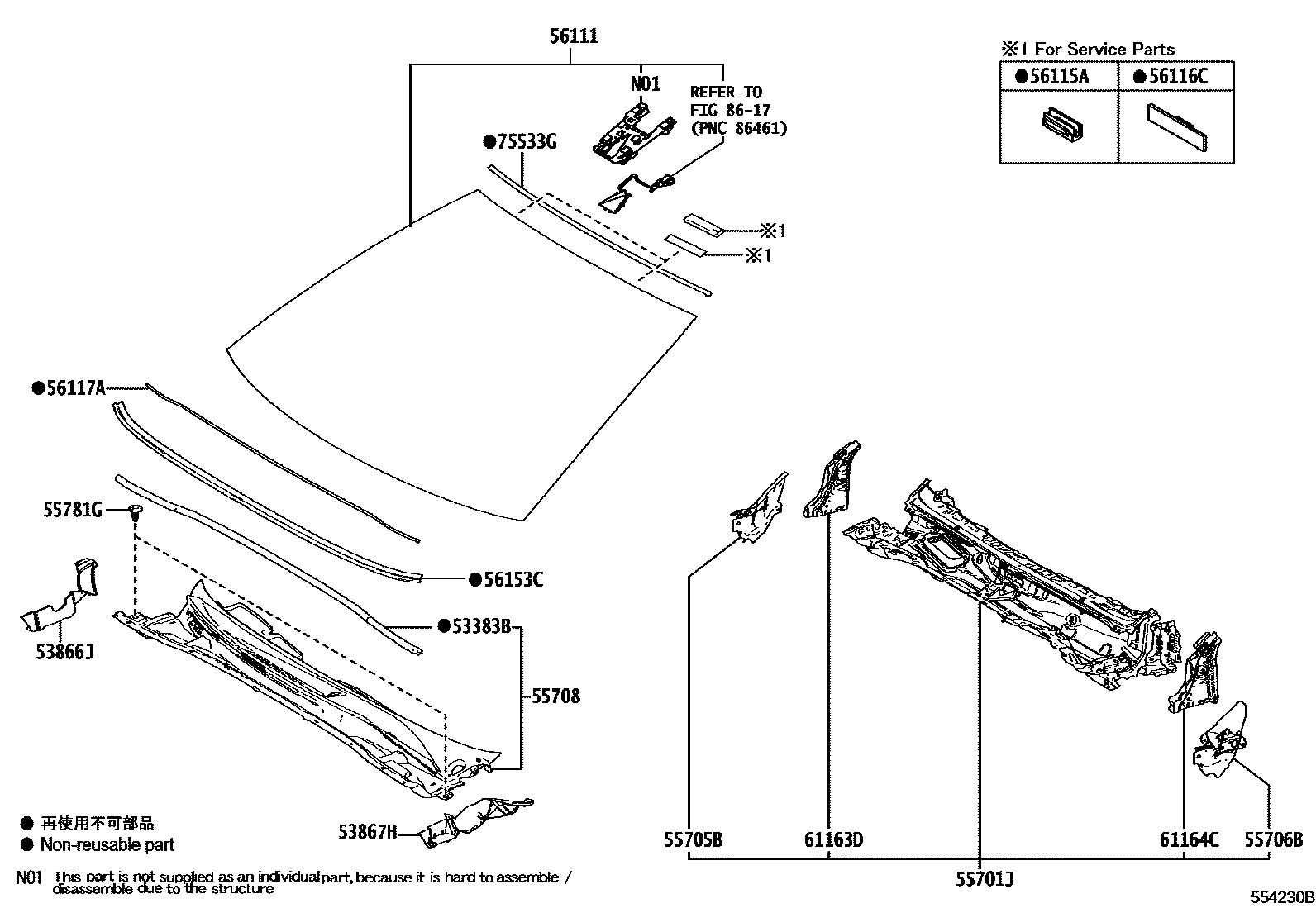

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-33140 |
| 53866J | Right front fender to cowl side seal | 53866-33090 · 53866-33100 |
| 53867H | Left front fender to cowl side seal | 53867-33090 · 53867-33100 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-33250 · 55701-33260 · 55701-33270 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-33040 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-33040 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-33271 · 55708-33280 · 55708-33281 · 55708-33282 · 55708-33300 · 55708-33301 · 55708-33302 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 |
| 56111 | windshield | 56101-3T900 · 56101-3T902 · 56101-3T910 · 56101-3T913 · 56101-3T914 · 56101-3T915 · 56101-3T917 · 56101-3Y903 · 56101-3Y929 · 56101-3Y933 · 56101-3Y934 · 56101-3Y955 · 56101-3Y957 · 56101-3Y958 · 56101-3Y959 · 56101-3Y961 · 56101-3Y971 · 56101-3Y972 · 56101-3Y973 · 56101-3Y974 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56153C | Front center window inner protective strip | 56153-33010 · 56153-33070 |
| 61163D | Right body inner front lower pillar | 61163-33020 · 61163-33030 |
| 61164C | Left side inner front lower pillar | 61164-33020 · 61164-33030 |
| 75533G | Windshield outer protective strip | 75531-33150 |
