Toyota CAMRY Floor stringers — Figure 5305

Toyota CAMRY EPC diagram 5305, Floor stringers, with 2 images and 35 PNC and OE references.

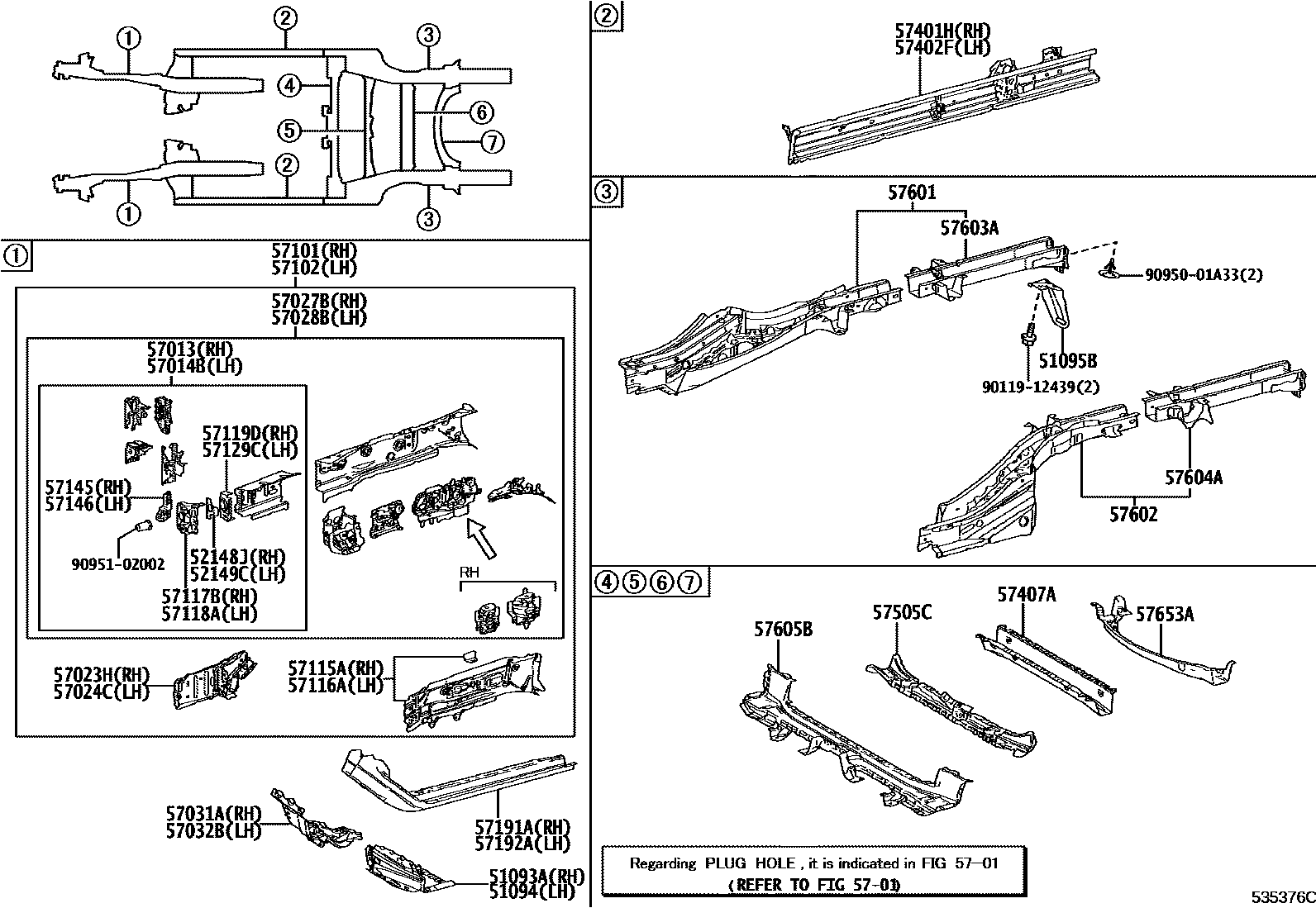

Toyota CAMRY Floor stringers EPC diagram — 535376C
Floor stringers — 535376C (201712 – 999999)

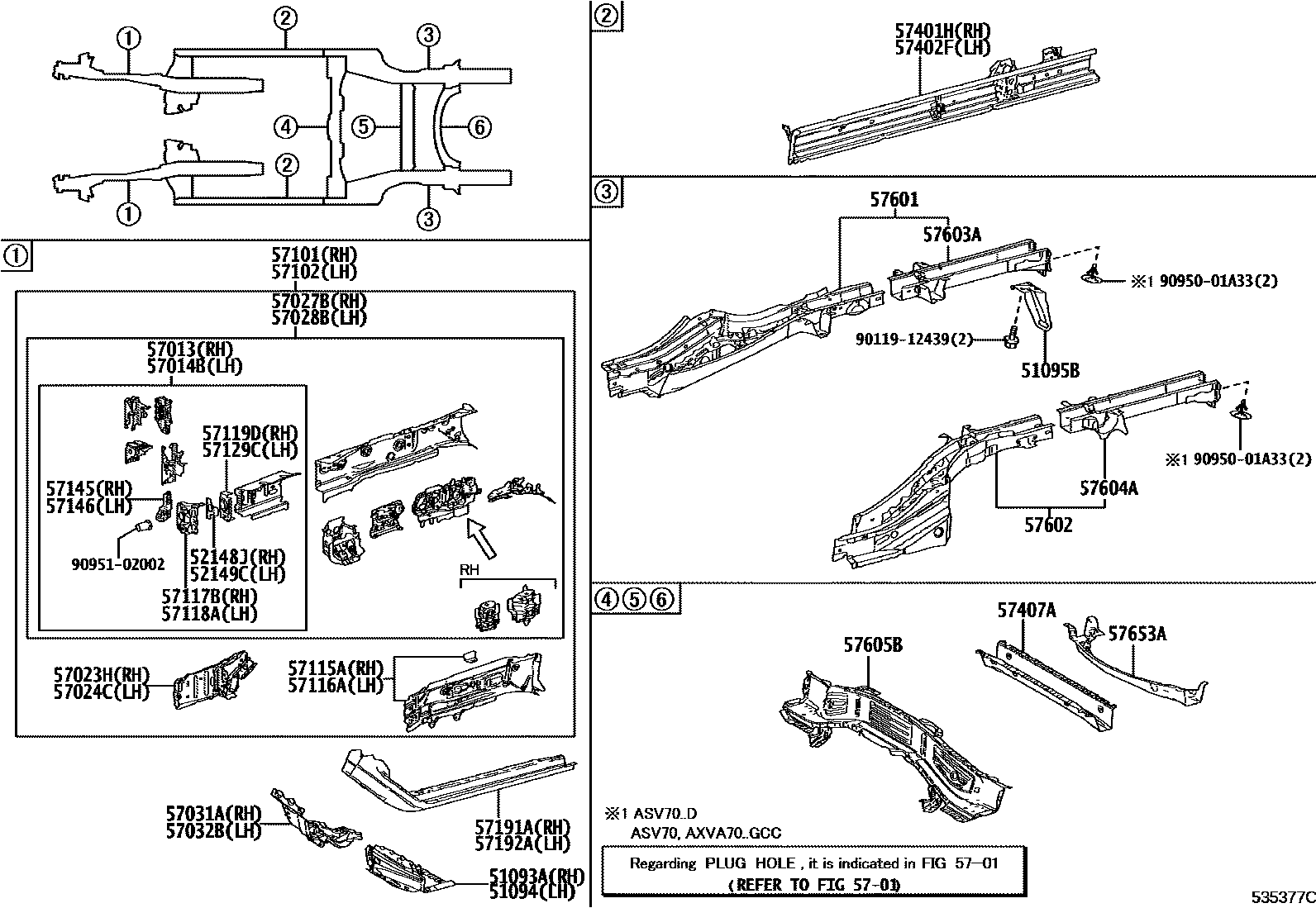

Toyota CAMRY Floor stringers EPC diagram — 535377C
Floor stringers — 535377C (201709 – 999999)

PNC and OE references

PNCPart nameOE numbers
51093ARight front transport hook sub-assembly51093-33010
51094Left front transport hook sub-assembly51094-33010
51095BRight rear transport hook sub-assembly51095-33030
52148JReinforcement block on the right side of the front bumper52148-33030
52149CReinforcement block on the left side of the front bumper52149-33020
57013Right front longitudinal beam bracket sub-assembly57013-33010
57014BLeft front longitudinal beam bracket sub-assembly57014-33010 · 57014-33011
57023HRight body No. 2 mounting bracket sub-assembly57023-33010 · 57023-33020
57024CLeft body No. 2 mounting bracket sub-assembly57024-33010 · 57024-33020
57027BRight front inner longitudinal beam sub-assembly57027-33040 · 57027-33050
57028BLeft front inner longitudinal beam sub-assembly57028-33070 · 57028-33080
57031ANo. 2 right front longitudinal beam reinforcement sub-assembly57031-33020
57032BNo. 2 left front longitudinal beam reinforcement sub-assembly57032-33020
57101Right front longitudinal beam sub-assembly57101-33907 · 57101-33908
57102Left front longitudinal beam sub-assembly57102-33907 · 57102-33908
57115ARight front longitudinal beam outer panel57115-33900
57116ALeft front longitudinal beam outer panel57116-33900
57117BInstall reinforcement on the right side of the front bumper57117-33060
57118AInstall reinforcement on the left side of the front bumper57118-33060
57119DRight front longitudinal beam front panel57119-33030
57129CLeft front longitudinal beam front panel57129-33010
57145Right front longitudinal beam center panel57145-33040 · 57145-33041
57146Left front longitudinal beam center panel57146-33040 · 57146-33041
57191ARight rear longitudinal member inside front floor57191-33020 · 57191-33030
57192ALeft rear longitudinal member inside front floor57192-33020 · 57192-33030
57401HFloor right inner longitudinal beam sub-assembly57401-33160 · 57401-33170
57402FFloor left inner longitudinal beam sub-assembly57402-33150 · 57402-33160
57407ACenter floor beam sub-assembly57407-33010 · 57407-33011
57505CFront underfloor reinforcement sub-assembly57505-33010
57601Rear floor right longitudinal beam sub-assembly57601-33240 · 57601-33250 · 57601-33280
57602Rear floor left longitudinal beam sub-assembly57602-33190 · 57602-33230 · 57602-33260
57603ARear floor right rear longitudinal beam sub-assembly57603-33030 · 57603-33040
57604ARear floor left rear longitudinal beam sub-assembly57604-33030 · 57604-33040
57605BRear floor No. 1 cross member sub-assembly57605-33130 · 57605-33131 · 57605-33140
57653ANo. 2 rear floor cross member57653-33100
