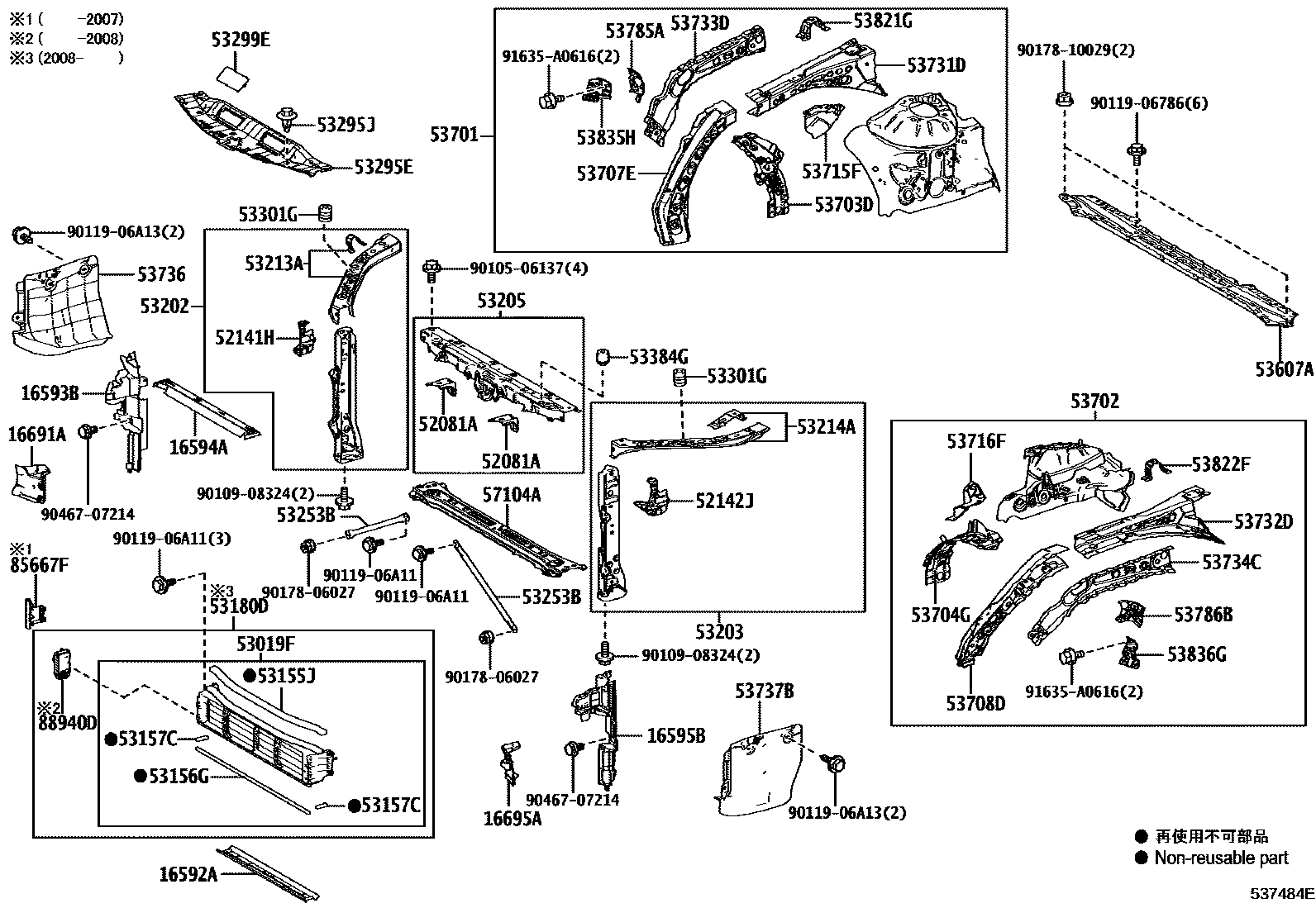

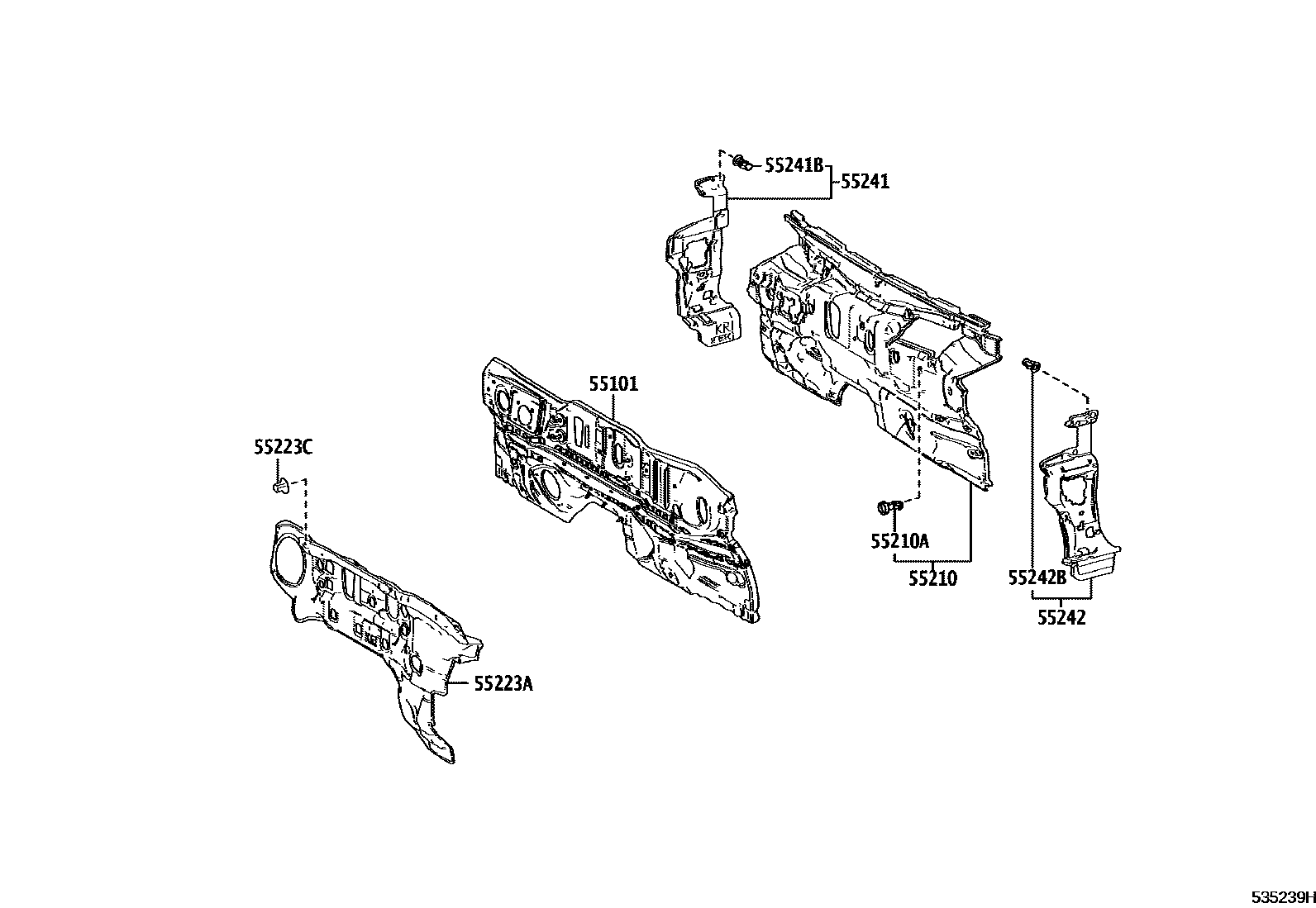

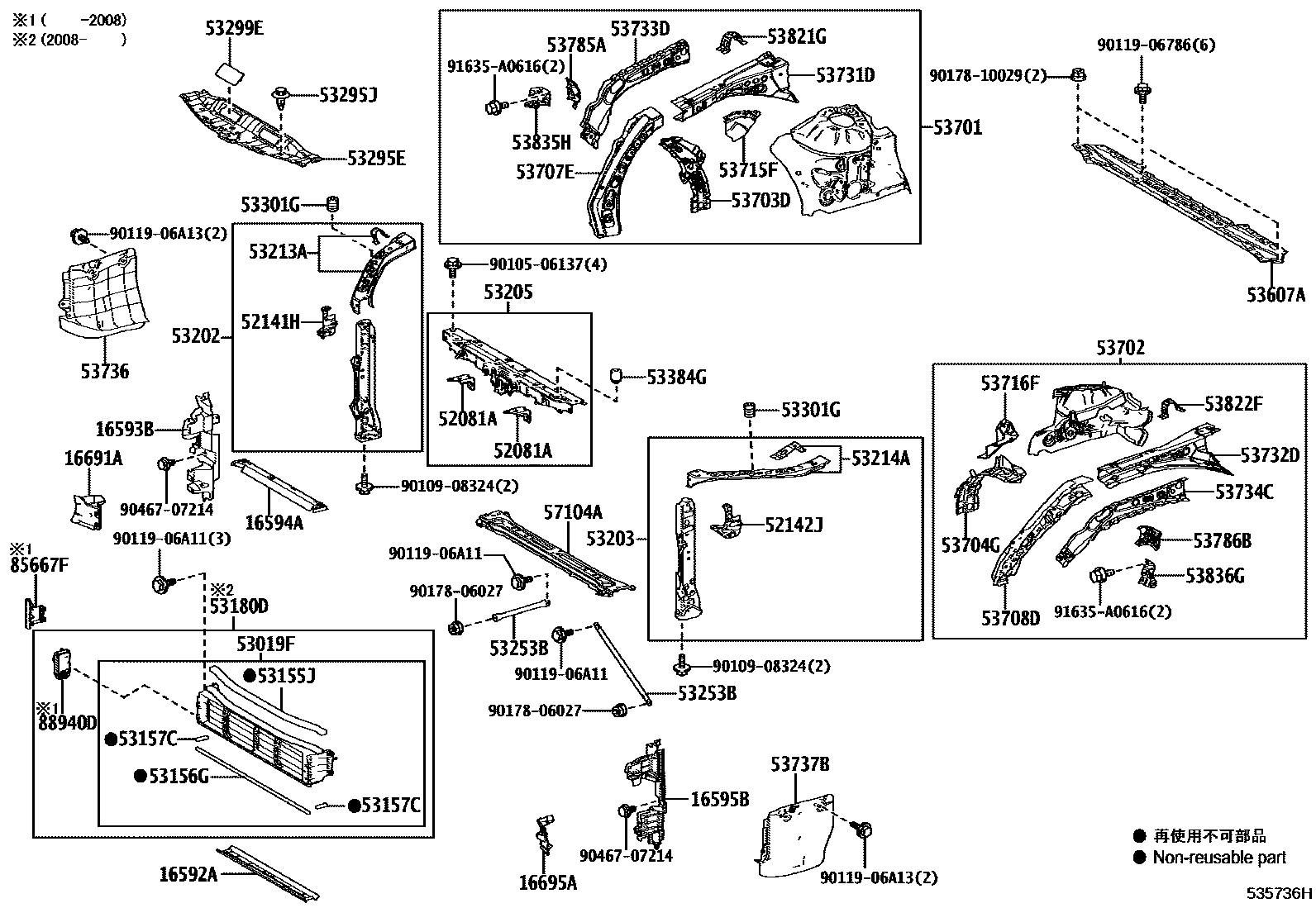

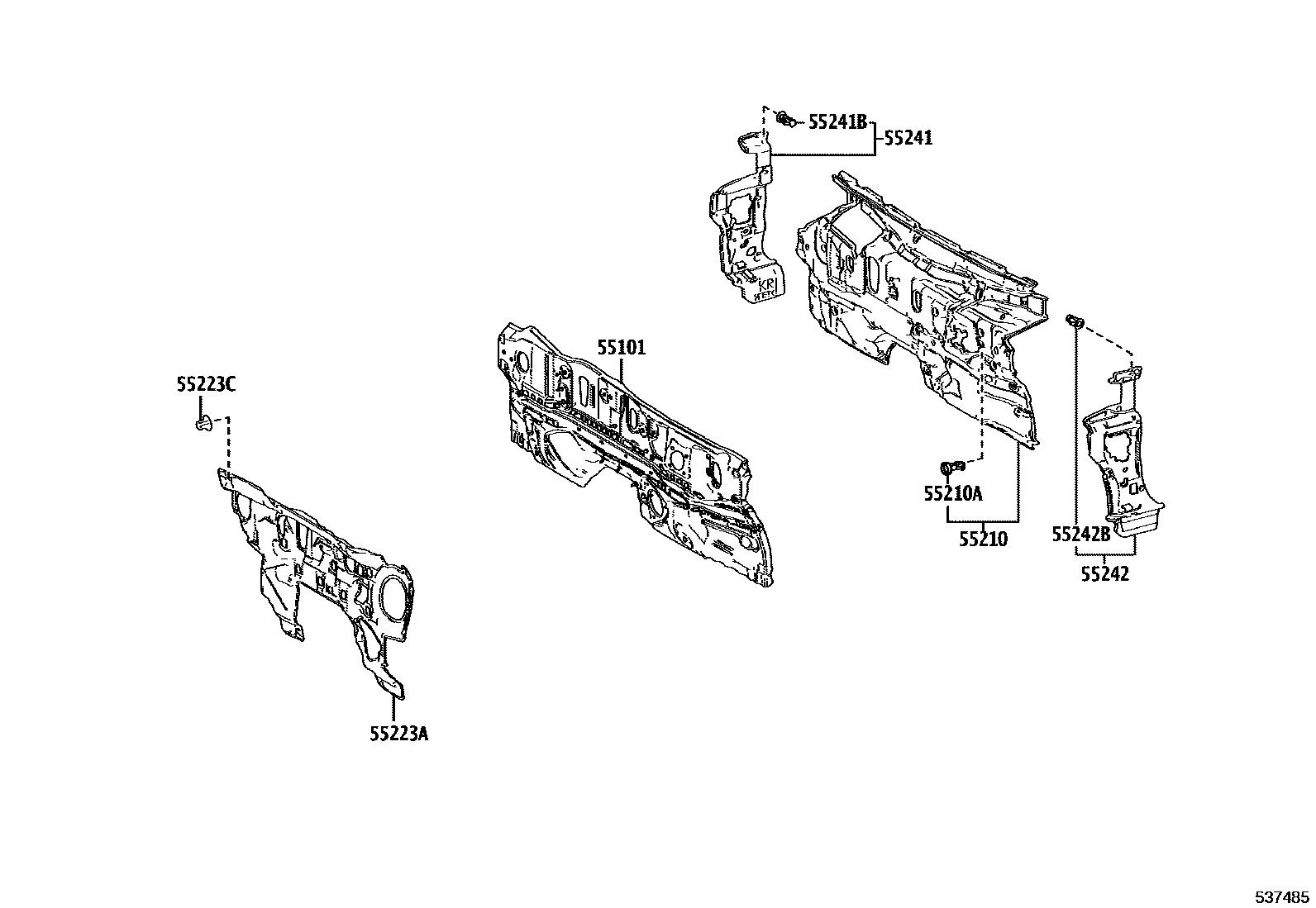

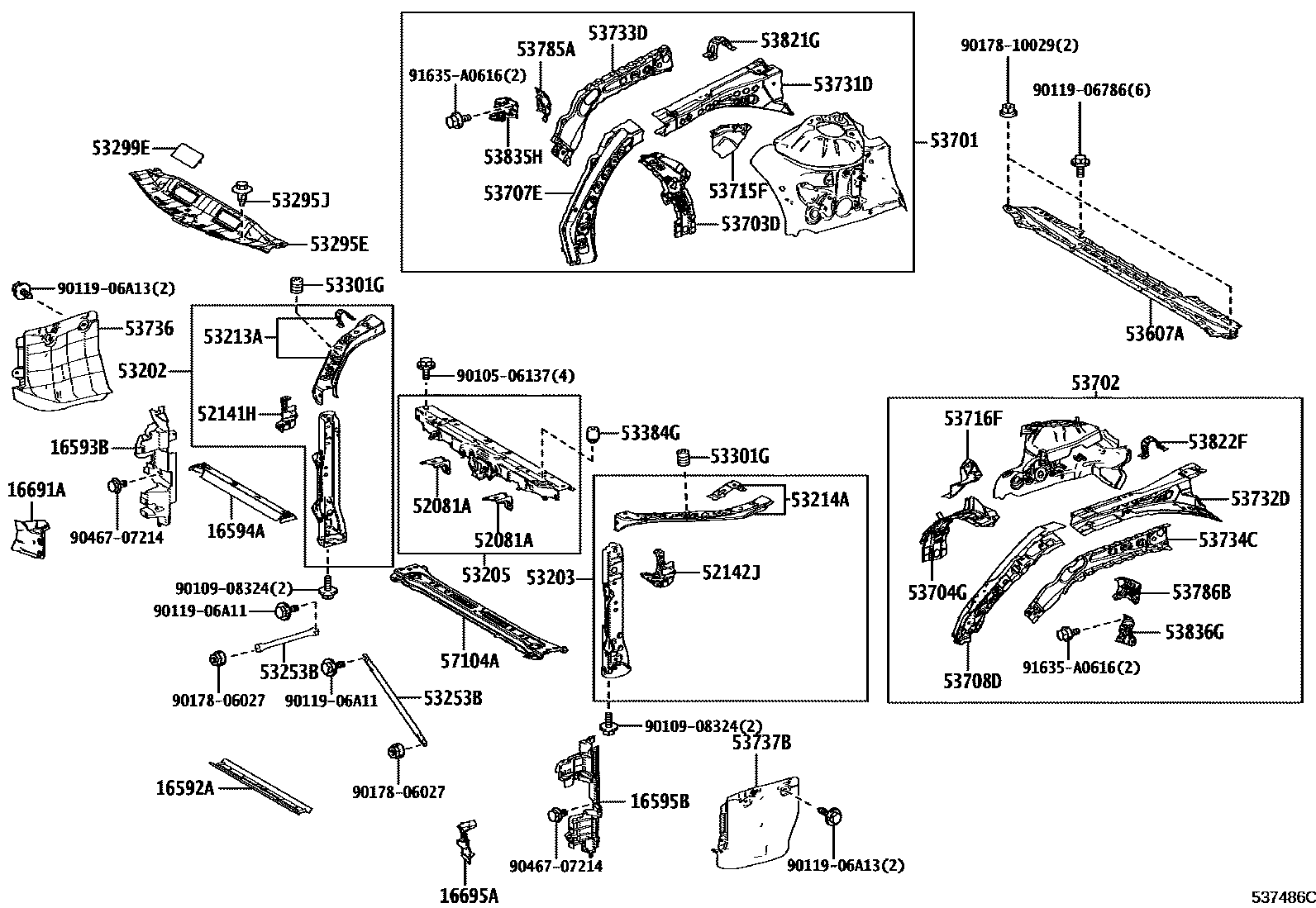

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 58 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-25010 |
| 16593B | No. 1 radiator right deflector | 16593-25010 · 16593-25030 · 16593-25040 · 16593-25050 · 16593-25070 · 16593-25080 · 16593-25180 · 16593-25190 · 16593-31070 · 16593-36010 |
| 16594A | Radiator deflector No. 2 | 16594-25010 |
| 16595B | No. 1 radiator left deflector | 16595-25010 · 16595-25030 · 16595-25040 · 16595-25050 · 16595-25070 · 16595-25180 · 16595-25190 · 16595-25200 · 16595-31060 · 16595-36010 |
| 16691A | Radiator right front side deflector | 16691-25010 · 16691-25020 · 16691-25050 · 16691-25100 · 16691-25110 · 16691-25120 · 16691-31020 · 16691-36120 |
| 16695A | Radiator left front deflector | 16695-25010 · 16695-25020 · 16695-25050 · 16695-25100 · 16695-31020 · 16695-36120 |
| 52081A | Front bumper right side stay sub-assembly | 52081-33030 |
| 52141H | Front bumper right upper arm | 52141-33130 |
| 52142J | Front bumper left upper arm | 52142-33110 |
| 53019F | Radiator louver sub-assembly | 53019-33010 · 53019-33011 · 53019-33020 · 53019-33050 · 53019-33051 |
| 53155J | Radiator grille seal No. 1 | 53155-33070 · 53155-33120 |
| 53156G | Radiator grille seal No. 2 | 53156-33010 |
| 53157C | Radiator grille seal No. 3 | 53157-33010 |
| 53180D | Radiator shutter assembly | 53180-33090 · 53180-33091 · 53180-33092 |
| 53202 | Radiator right side bracket sub-assembly | 53202-33903 |
| 53203 | Radiator left bracket sub-assembly | 53203-33902 |
| 53205 | Radiator upper bracket sub-assembly | 53205-33901 |
| 53213A | Radiator upper right bracket | 53213-33902 |
| 53214A | Radiator upper left bracket | 53214-33902 |
| 53253B | Radiator mounting bracket | 53253-33010 |
| 53295E | Cold air intake pipe seal | 53295-33130 |
| 53295J | Cold air intake pipe clip | 90467-07217 |
| 53299E | Cold air intake tube plate | 53299-33020 |
| 53301G | engine cover cushion | 90541-15033 · 90541-15037 |
| 53384G | Engine cover center cushion | 90541-09145 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-33010 |
| 53701 | Right front fender fender sub-assembly | 53701-33190 |
| 53702 | Left front fender fender sub-assembly | 53702-33150 · 53702-33170 |
| 53703D | No. 2 right front fender fender sub-assembly | 53703-33060 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-33060 |
| 53707E | Fender right fender sub-assembly | 53707-33020 |
| 53708D | Fender left fender sub-assembly | 53708-33010 |
| 53715F | Right fender fender | 53715-33010 |
| 53716F | Left fender fender | 53716-33010 |
| 53731D | Right front fender to cowl side upper beam | 53731-33100 |
| 53732D | Left front fender to cowl side upper beam | 53732-33090 |
| 53733D | Right front fender to cowl side front lower beam | 53733-33060 |
| 53734C | Left front fender to cowl side front lower beam | 53734-33060 |
| 53736 | Right front fender fender seal | 53736-33050 |
| 53737B | Left front fender fender seal | 53737-33030 |
| 53785A | Right front fender corner plate | 53785-33010 |
| 53786B | Left front fender corner plate | 53786-33010 |
| 53821G | Right front fender rear support | 53821-33080 |
| 53822F | Left front fender rear support | 53822-33070 |
| 53835H | Right front fender to extension stay | 53835-33110 |
| 53836G | Left front fender to extension stay | 53836-33120 |
| 55101 | Front apron sub-assembly | 55101-33470 · 55101-33480 · 55101-33540 |
| 55210 | Front wall insulation pad assembly | 55210-33300 · 55210-33310 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-33260 · 55223-33270 · 55223-33310 |
| 55223C | clip | 90467-06197 |
| 55241 | Front panel No. 1 right side silencer | 55241-33020 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-33020 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 57104A | Front cross member sub-assembly | 57104-33080 |
| 85667F | Motor cover | 85667-10010 · 85667-33040 |
| 88940D | Swing grille actuator assembly | 88940-33050 · 88940-33060 · 88940-33070 |
