Toyota CAMRY radiator grille — Figure 5301

Toyota CAMRY EPC diagram 5301, radiator grille, with 6 images and 6 PNC and OE references.

Toyota CAMRY radiator grille EPC diagram — 535366F
radiator grille — 535366F (201709 – 202101)

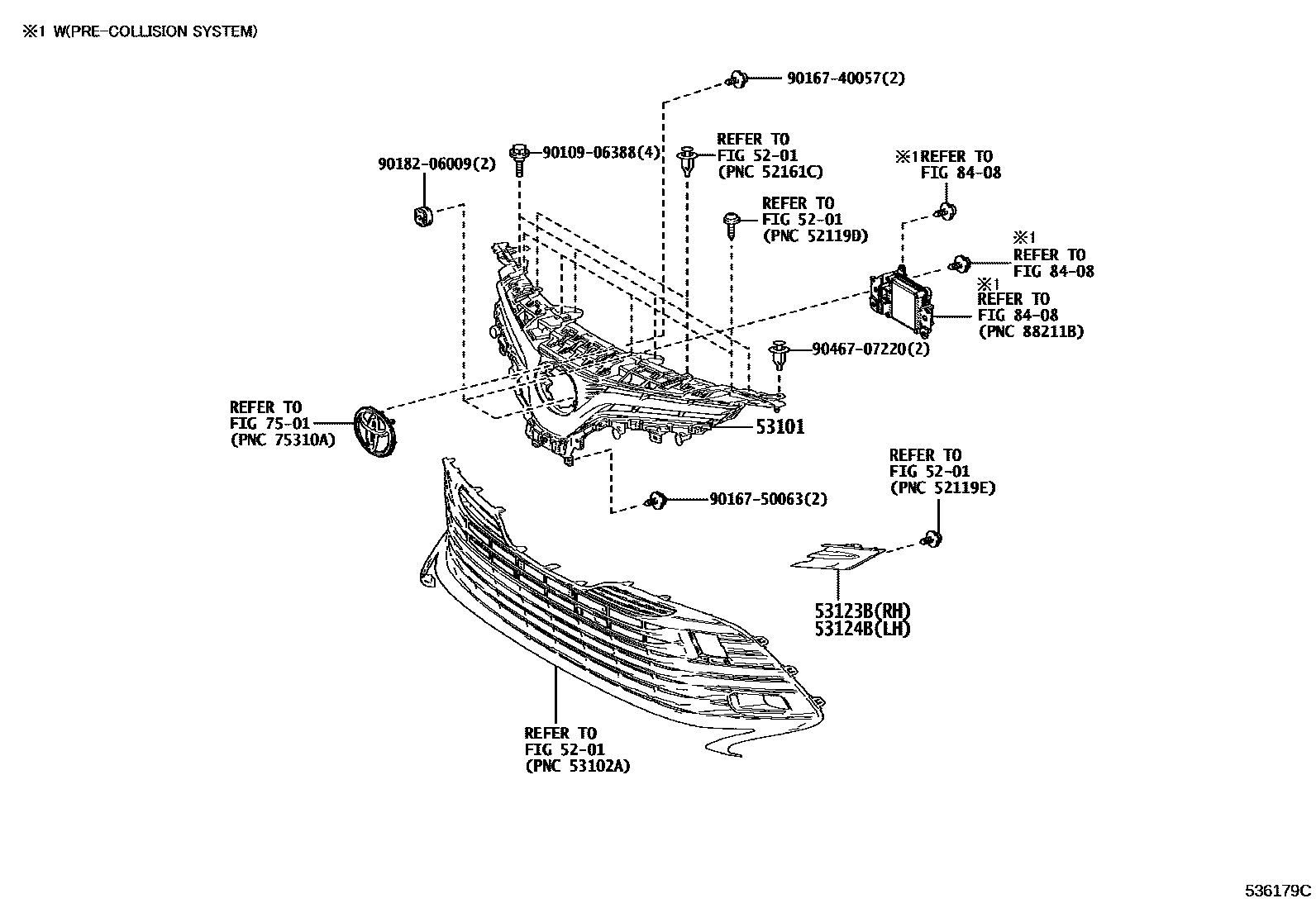

Toyota CAMRY radiator grille EPC diagram — 536179C
radiator grille — 536179C (201712 – 202101)

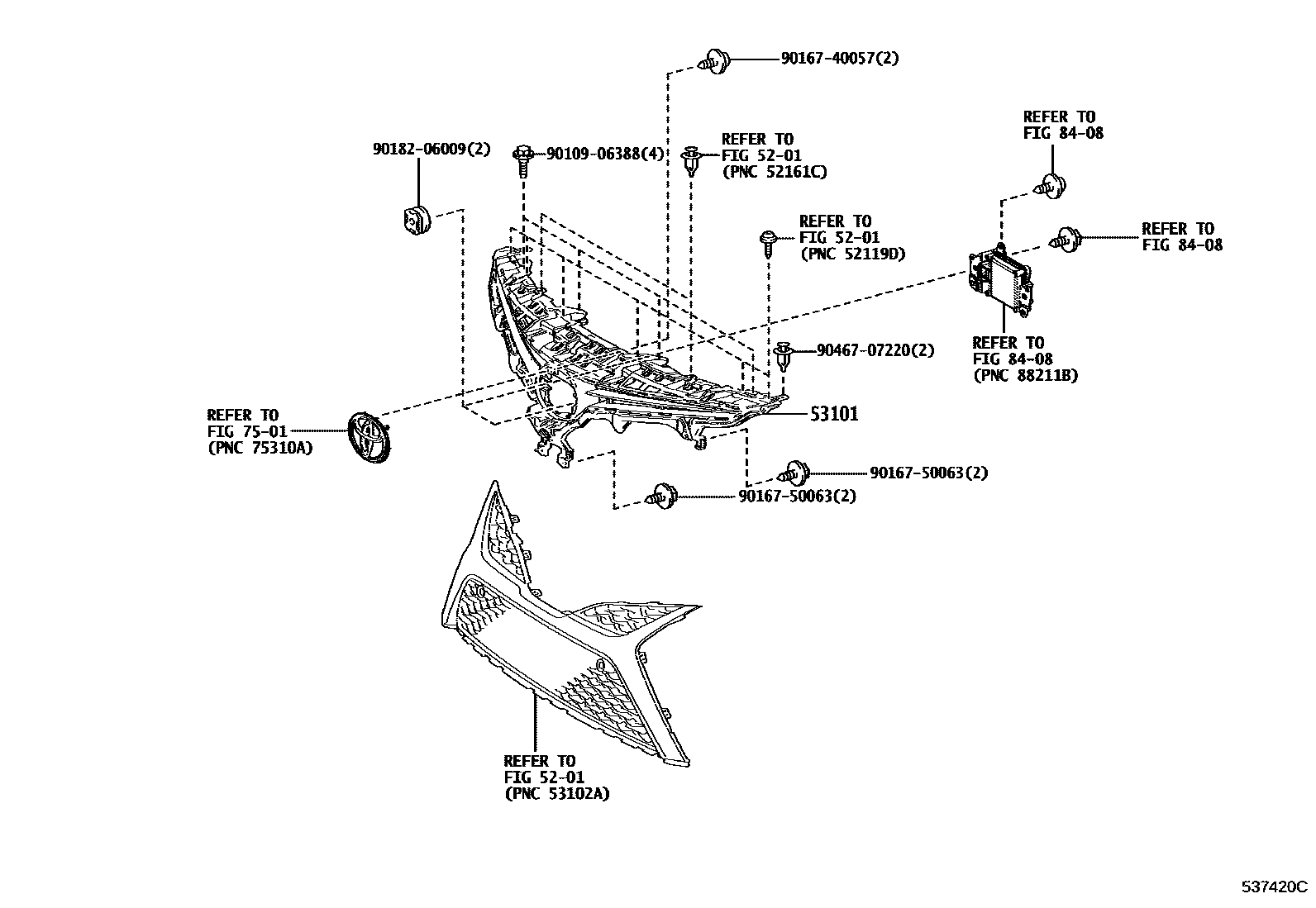

Toyota CAMRY radiator grille EPC diagram — 537420C
radiator grille — 537420C (201712 – 202101)

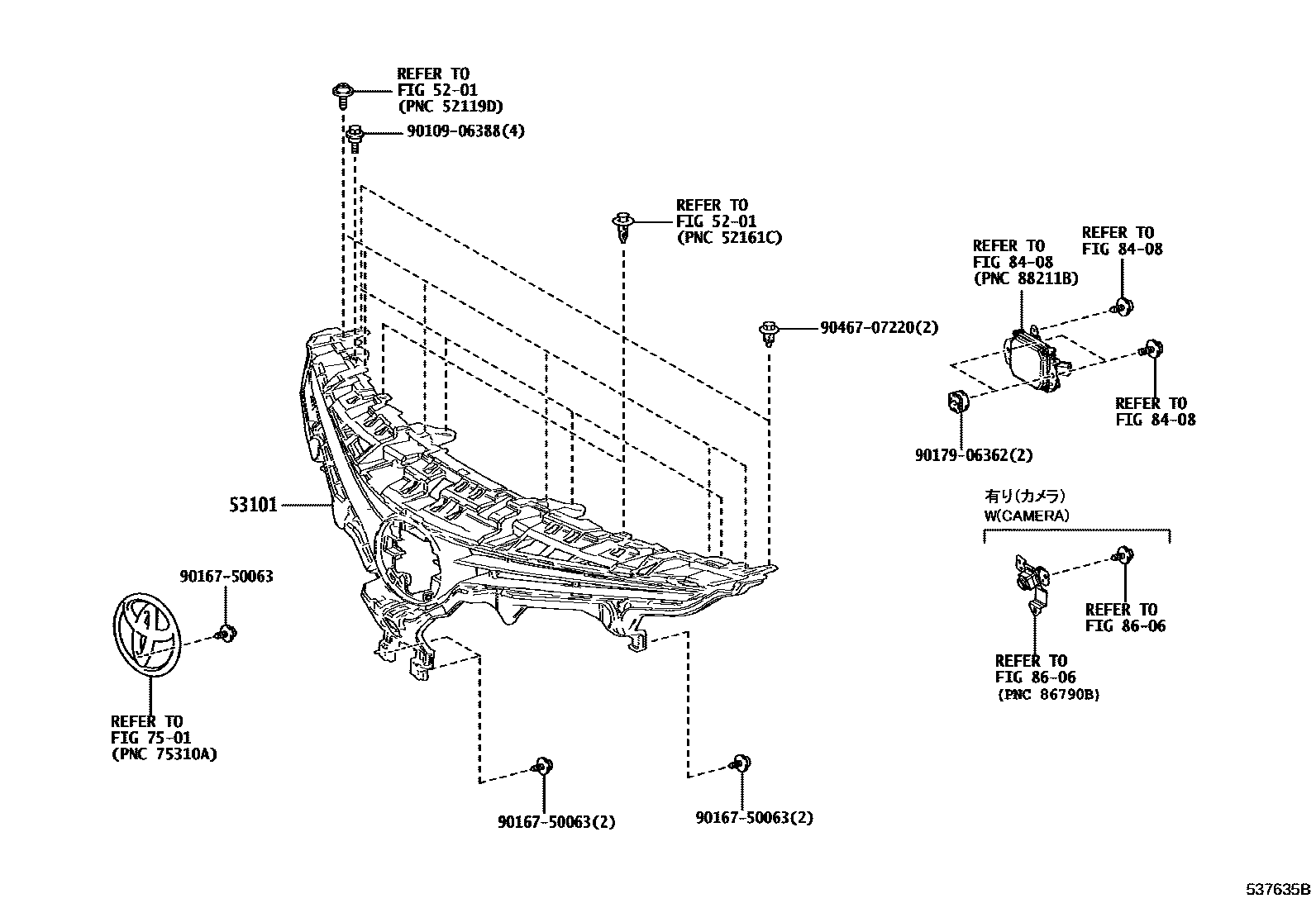

Toyota CAMRY radiator grille EPC diagram — 537635B
radiator grille — 537635B (202102 – 999999)

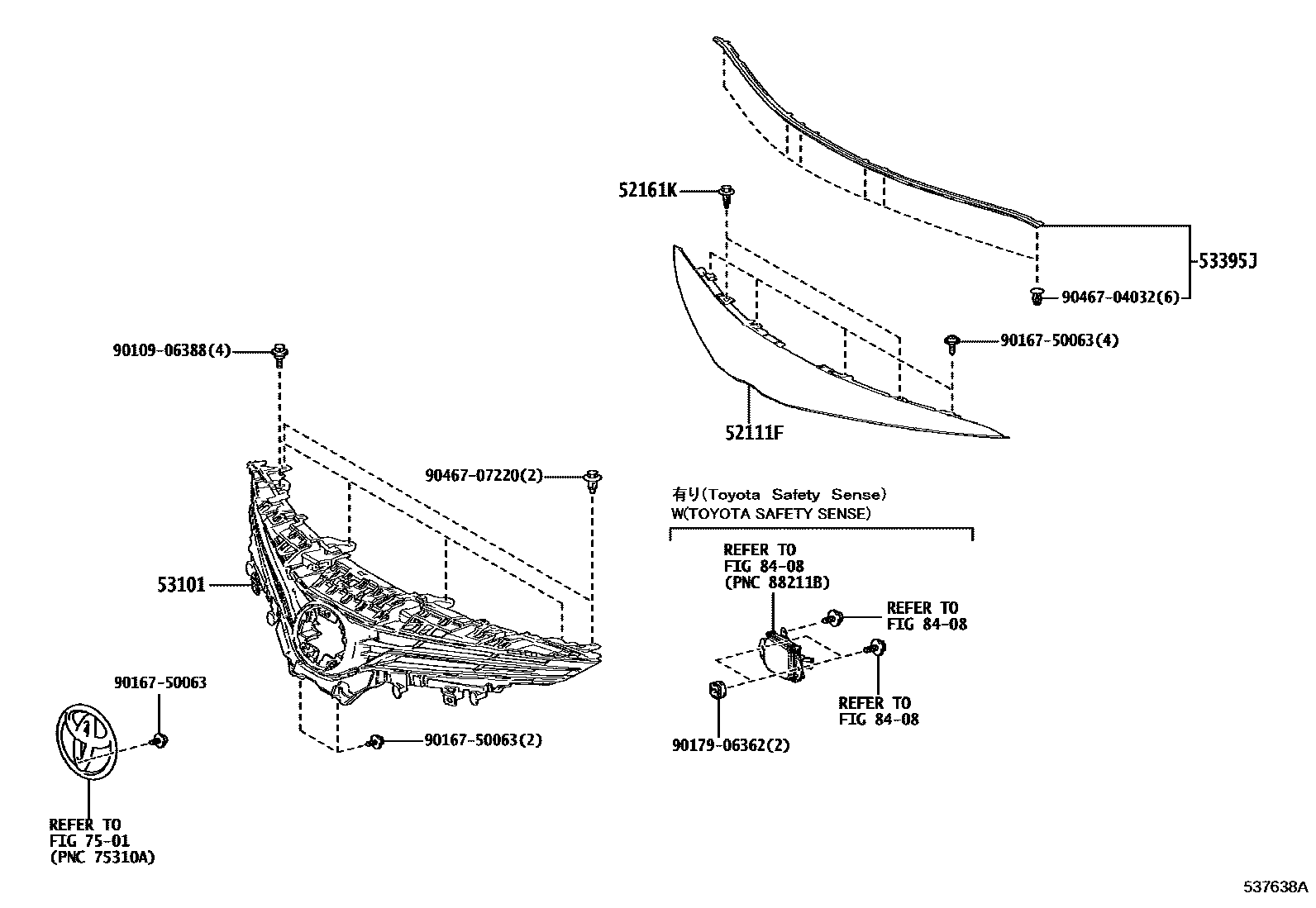

Toyota CAMRY radiator grille EPC diagram — 537638A
radiator grille — 537638A (202102 – 999999)

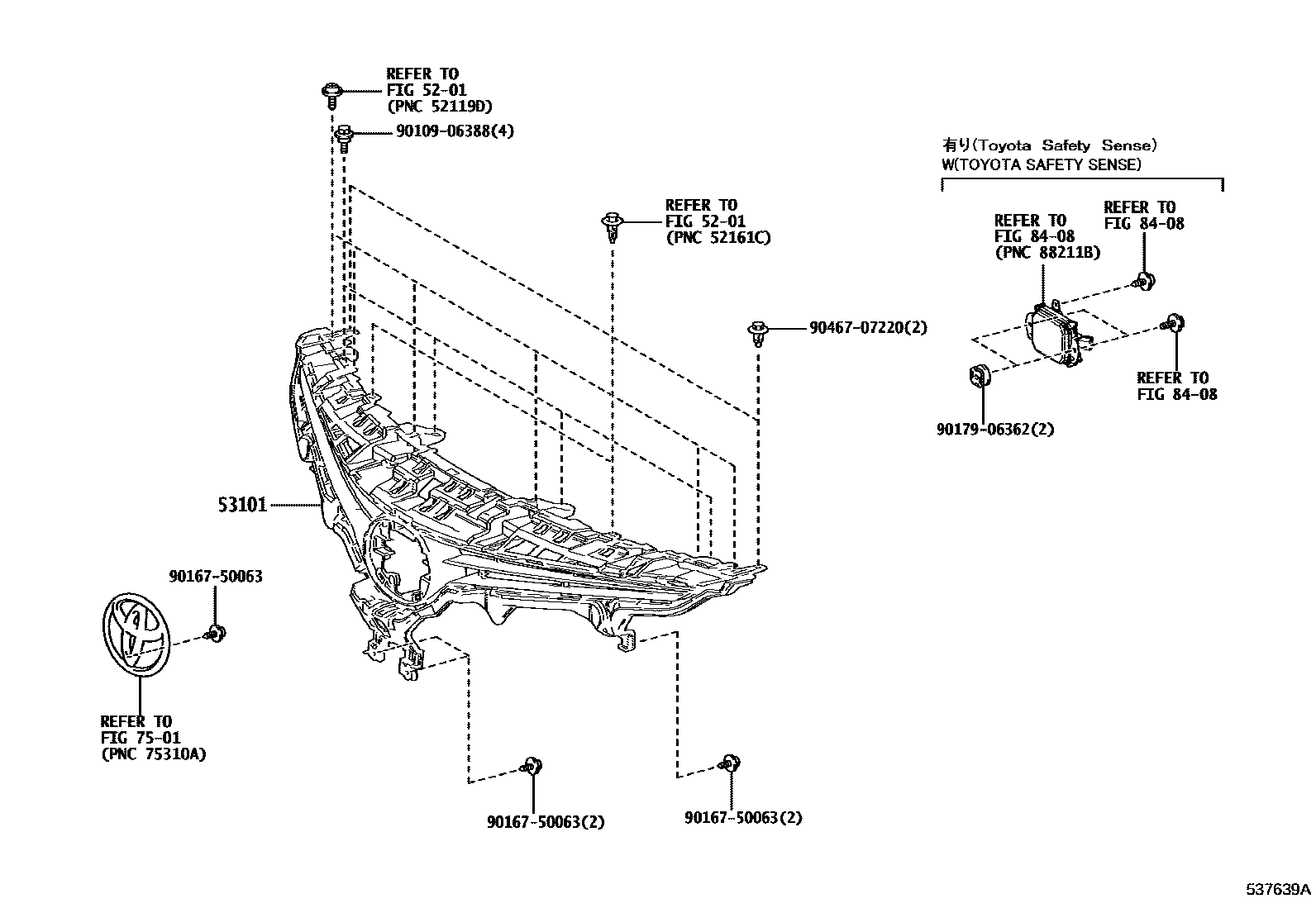

Toyota CAMRY radiator grille EPC diagram — 537639A
radiator grille — 537639A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
52111FFront bumper center stay52111-33900
52161Kfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-33410 · 53101-33540 · 53101-33570 · 53101-33620 · 53101-33640 · 53101-33890 · 53101-33A00
53123BProtective strip on the right side of the radiator grille53123-33050 · 53123-33100 · 53123-33110 · 53123-33120
53124BRadiator grille left protective strip53124-33070 · 53124-33120 · 53124-33130 · 53124-33140
53395JEngine cover to front end plate seal53395-33030
