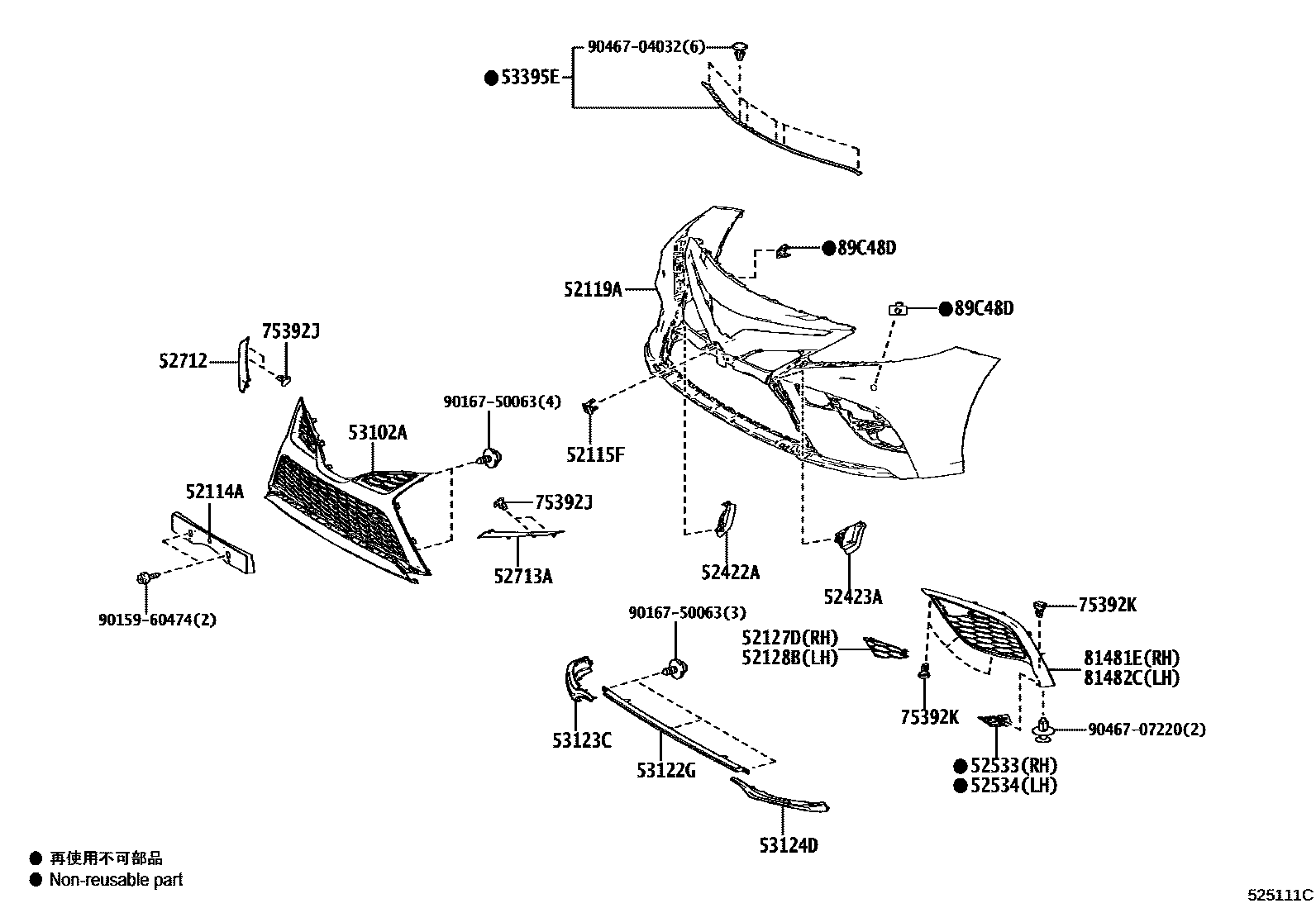

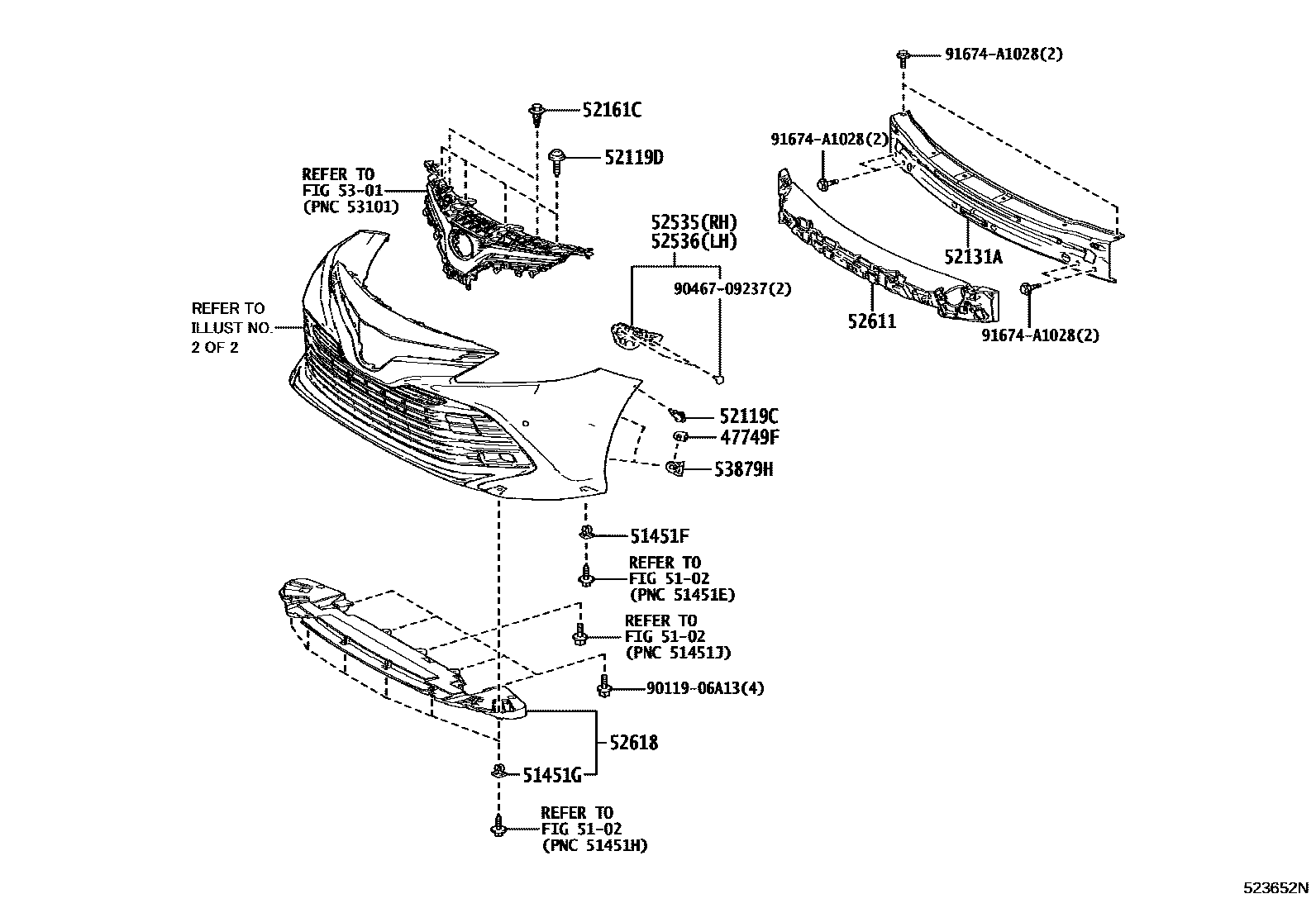

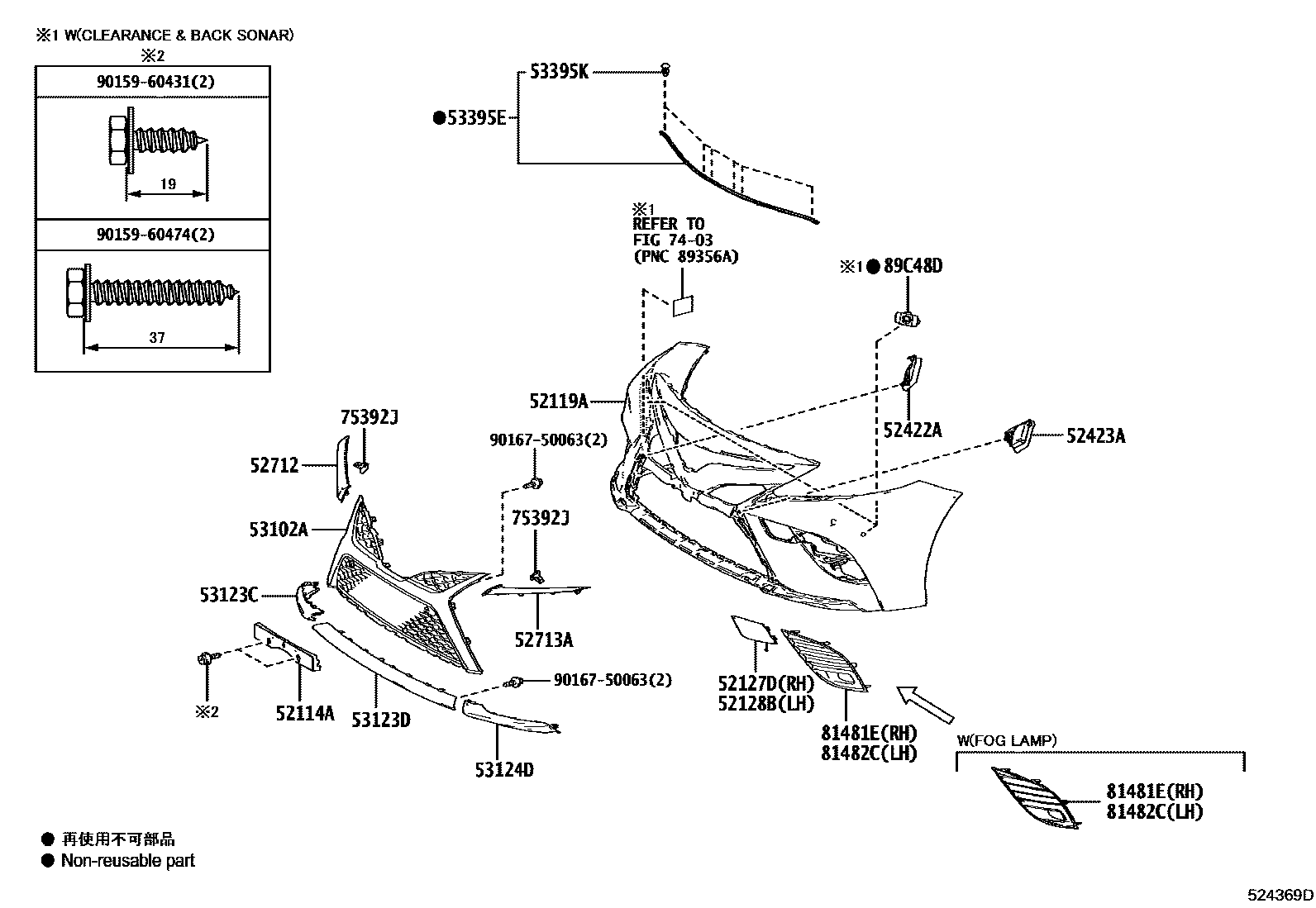

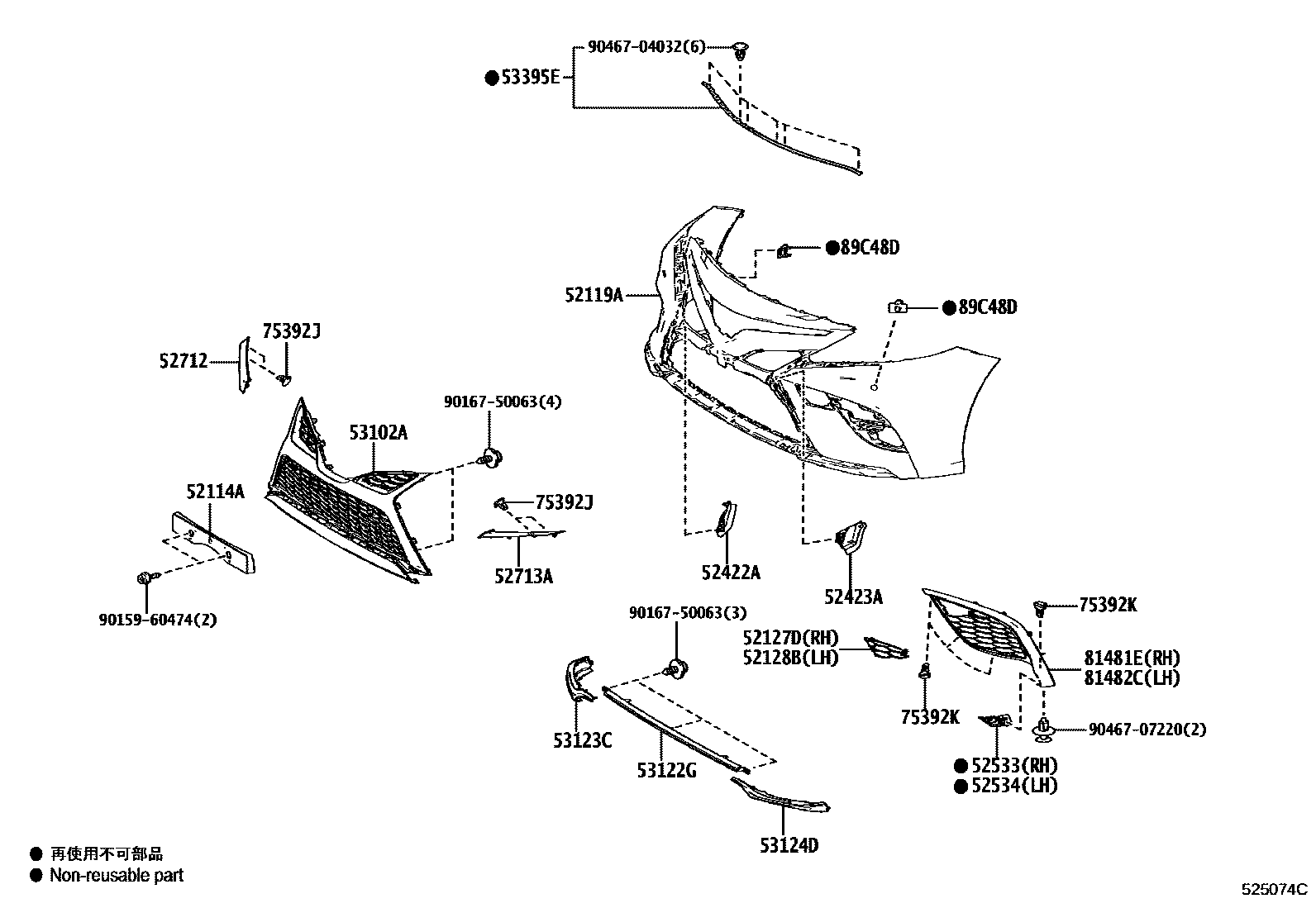

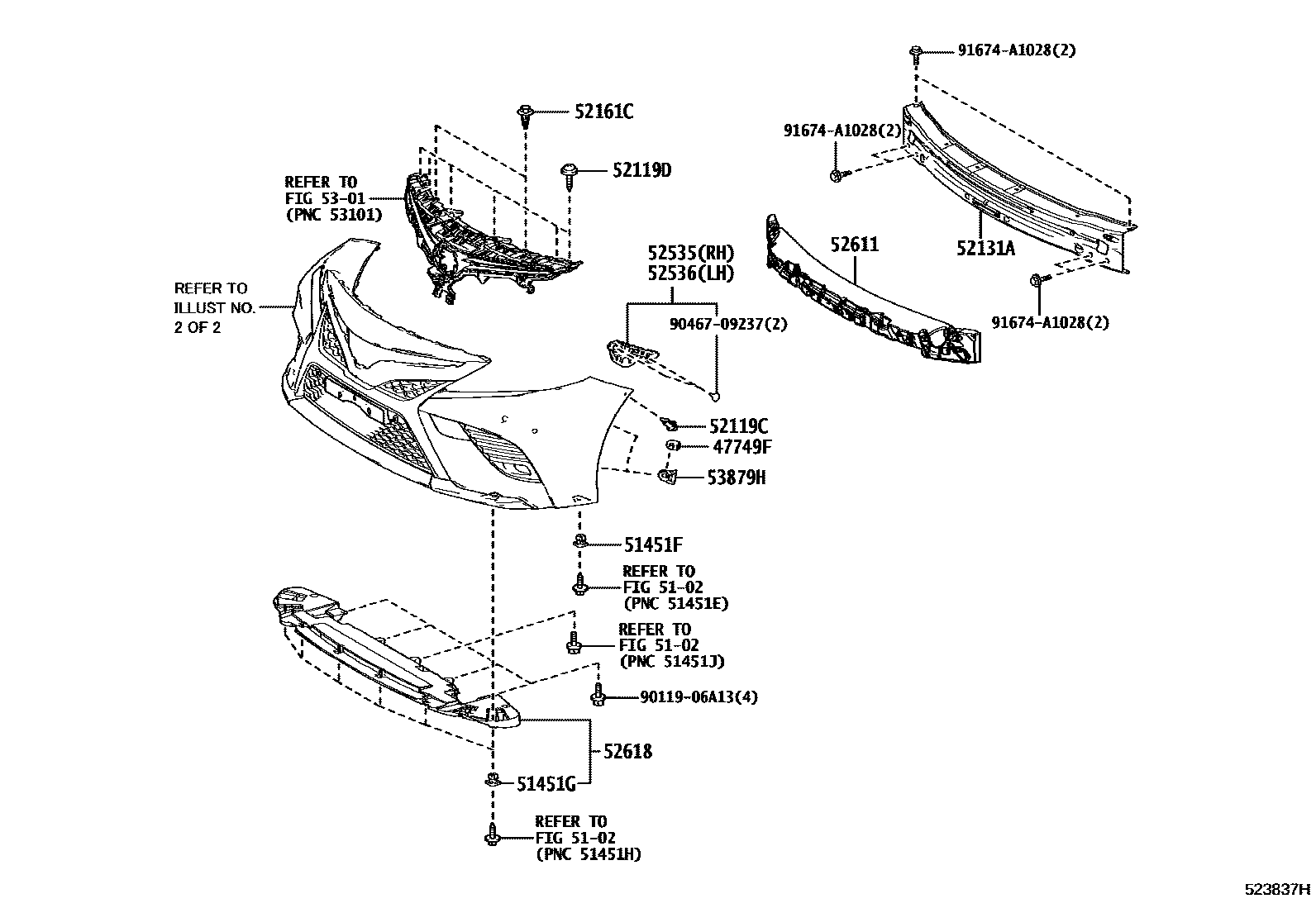

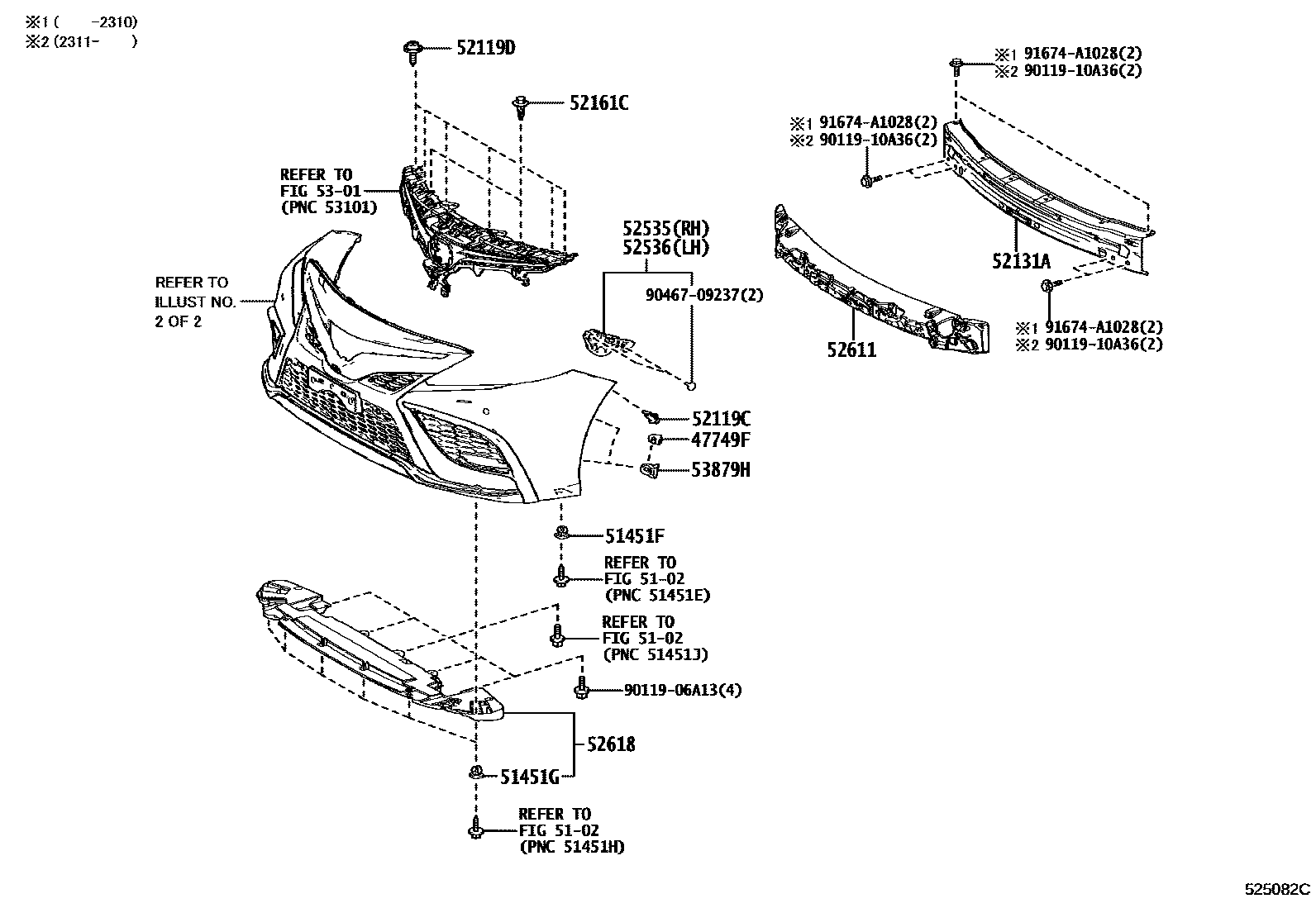

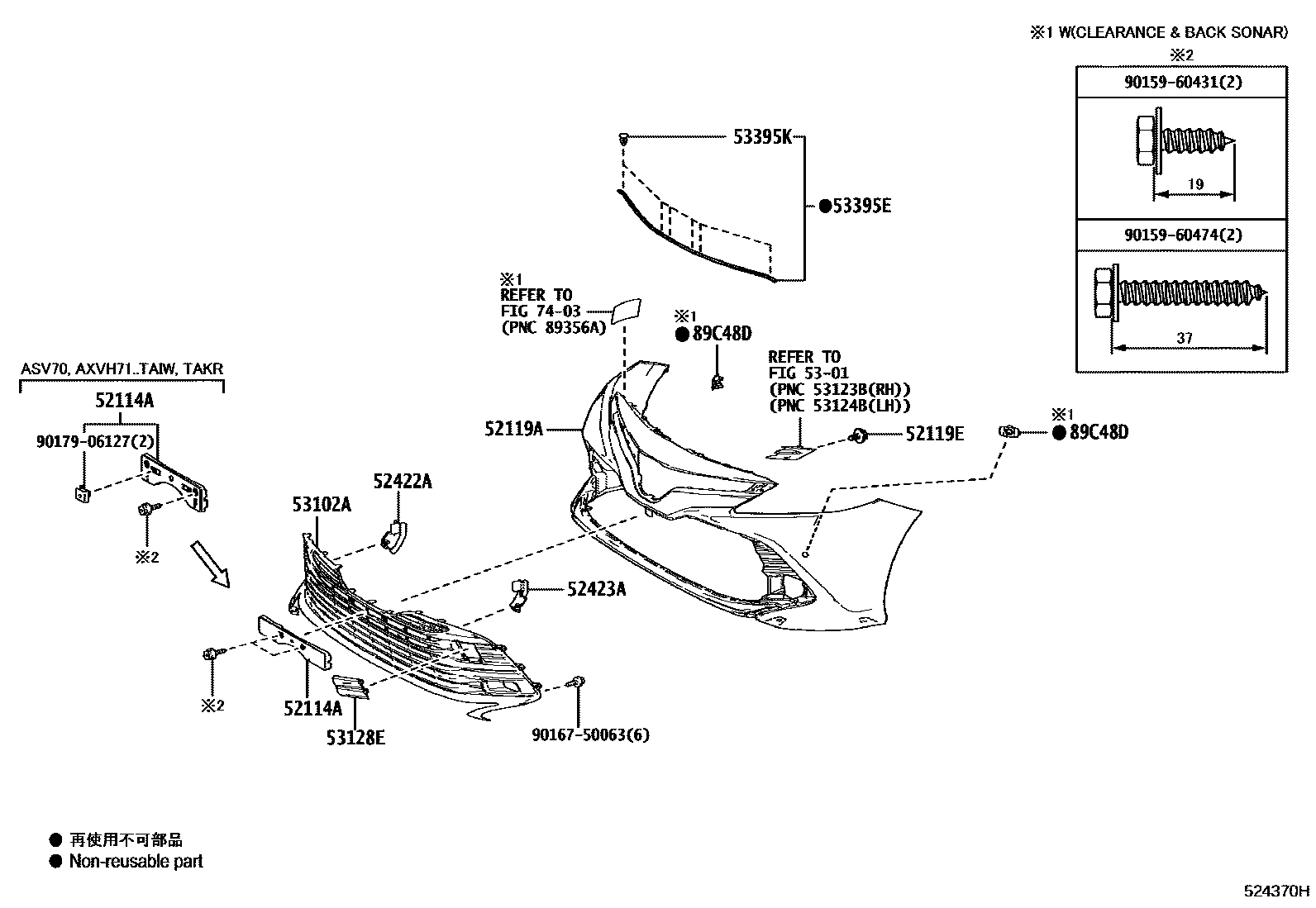

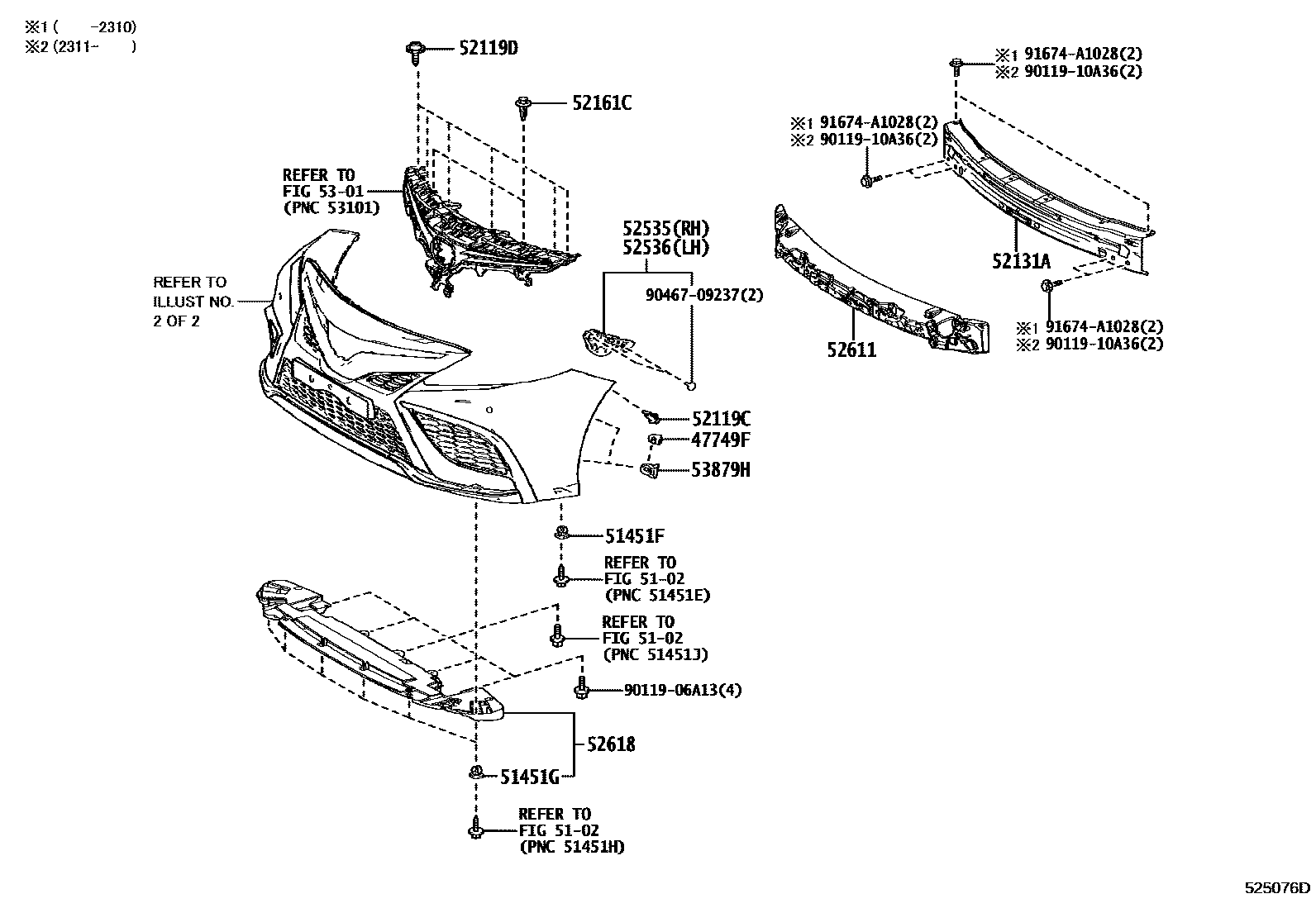

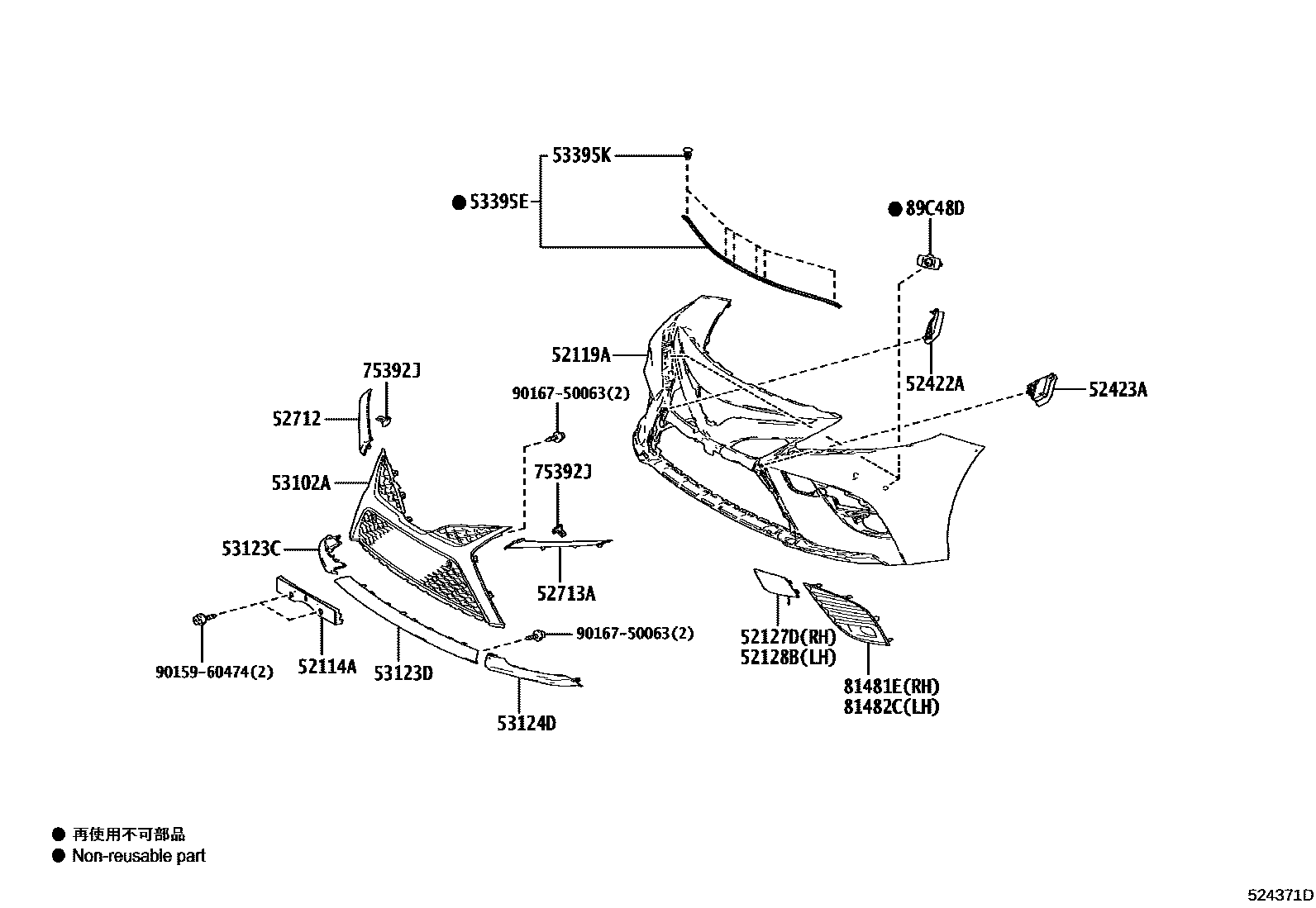

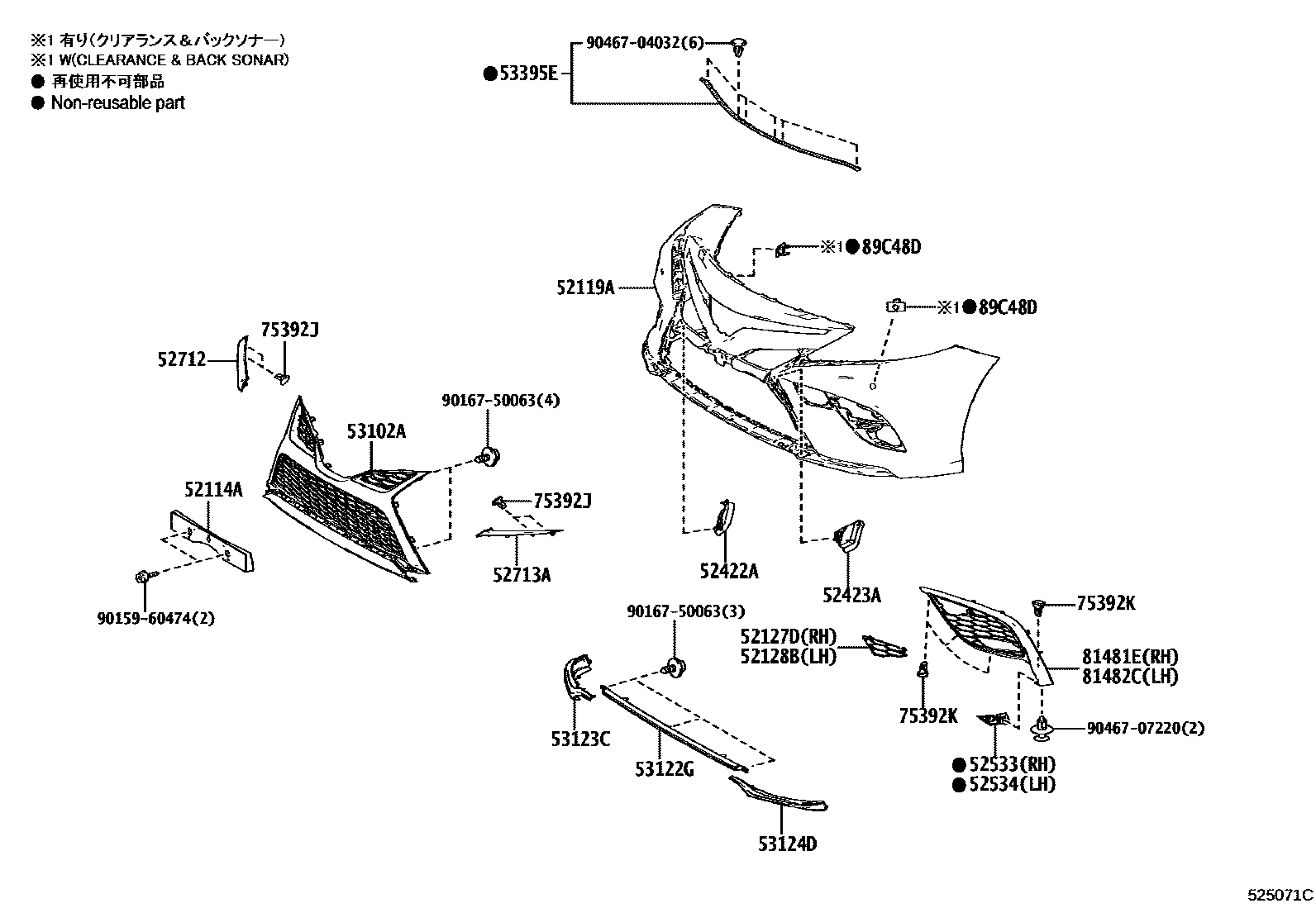

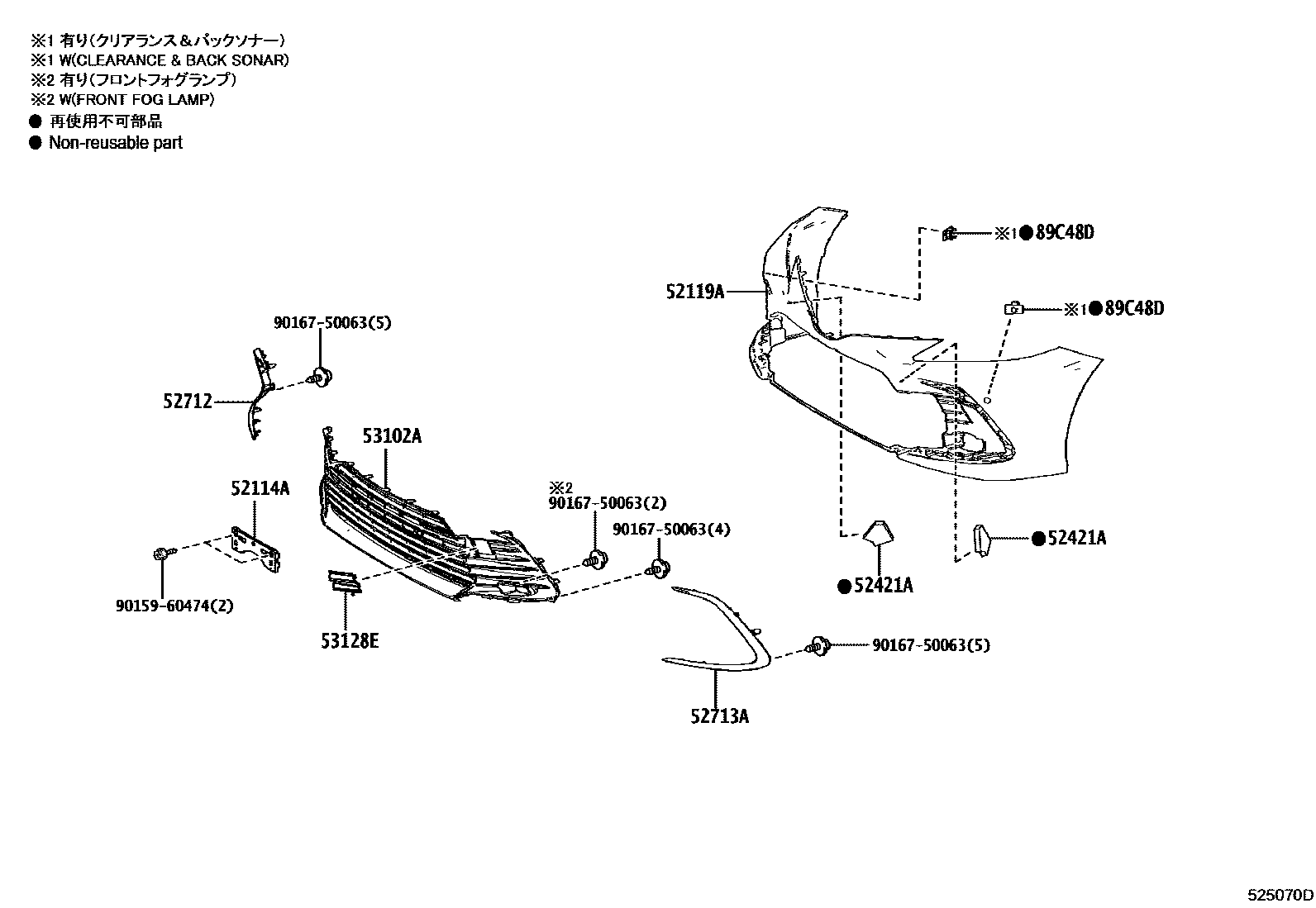

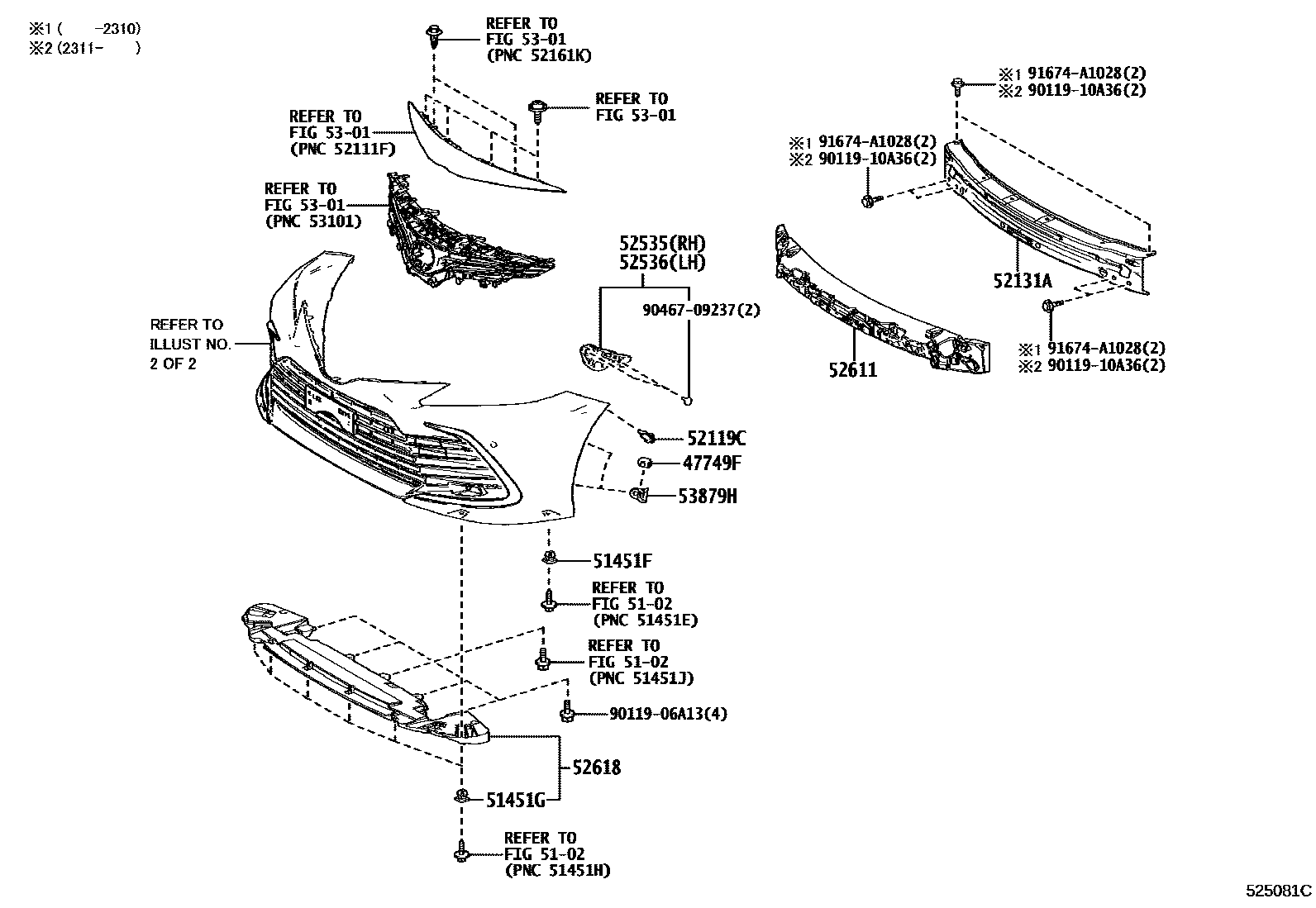

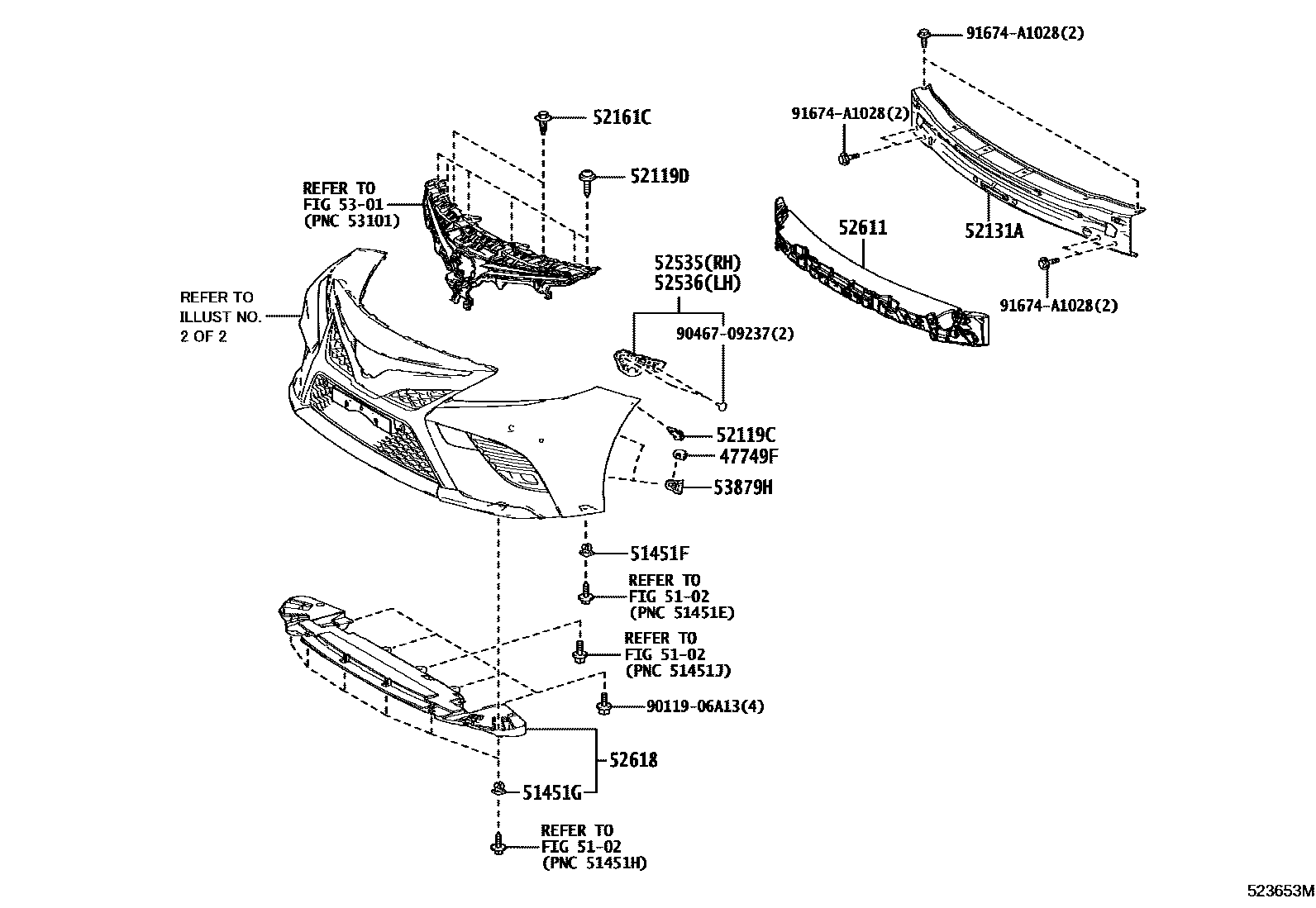

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 13 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 51451G | Gasket No. 2 | 90189-06237 |
| 52114A | Front bumper extension mounting bracket | 52114-33420 · 52114-33430 · 52114-33460 · 52114-33480 · 52114-33500 · 52114-33630 |
| 52119A | front bumper cover | 52119-3T930 · 52119-3T933 · 52119-3T934 · 52119-3T939 · 52119-3T961 · 52119-3T963 · 52119-3T965 · 52119-3T971 · 52119-3T975 |
| 52119C | Front bumper cover clip | 90467-05170 |
| 52119D | Screw No. 1 | 90167-50063 |
| 52119E | No. 2 screw | 90167-50063 |
| 52127D | Front bumper right hole cover | 52127-33120 · 52127-33170 · 52127-33904 |
| 52128B | Front bumper left hole cover | 52128-33200 · 52128-33280 · 52128-33918 |
| 52131A | Front bumper reinforcement | 52131-33180 · 52131-33181 |
| 52161C | front bumper insert | 52161-16010 |
| 52421A | front bumper lining | 52421-33010 |
| 52422A | Front bumper right side lining | 52422-33010 · 52422-33020 |
| 52423A | Front bumper left lining | 52423-33010 · 52423-33020 |
| 52533 | Front bumper No. 1 fixed frame bracket | 52533-33040 |
| 52534 | Front bumper No. 2 fixed frame bracket | 52534-33030 |
| 52535 | Front bumper right side fixing bracket | 52535-33060 |
| 52536 | Front bumper left fixed bracket | 52536-33060 |
| 52611 | front bumper energy absorber | 52611-33300 · 52611-33360 |
| 52618 | Front bumper lower shock absorber | 52618-33060 · 52618-33110 |
| 52712 | Front bumper right side protective strip | 52712-33030 · 52712-33040 · 52712-33070 · 52712-33080 · 52712-33100 |
| 52713A | Front bumper left protective strip | 52713-33030 · 52713-33040 · 52713-33070 · 52713-33080 · 52713-33100 |
| 53102A | Radiator lower grille sub-assembly | 53102-33150 · 53102-33160 · 53102-33170 · 53102-33190 · 53102-33200 · 53102-33220 · 53102-33240 · 53102-33300 · 53102-33320 · 53102-33330 · 53102-33480 · 53102-33490 · 53102-33540 · 53102-33550 · 53102-33590 |
| 53122G | Radiator grille center lower protective strip | 53122-33100 · 53122-33110 |
| 53123C | Radiator grille lower right protective strip | 53123-33030 · 53123-33040 · 53123-33140 · 53123-33150 |
| 53123D | Radiator grille lower protective strip | 53122-33040 · 53122-33050 |
| 53124D | Radiator grille lower left protective strip | 53124-33050 · 53124-33060 · 53124-33160 · 53124-33170 |
| 53128E | Lower left radiator grille | 53128-33030 · 53128-33040 · 53128-33070 · 53128-33130 |
| 53395E | Engine cover to front end plate seal | 53395-33030 · 53395-33040 |
| 53395K | Clip (for hood to front end plate seal) | 90467-04032 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
| 75392K | No. 2 outer protective strip fixings | 75392-35220 |
| 81481E | Right fog light cover | 81481-33090 · 81481-33100 · 81481-33110 · 81481-33130 · 81481-33140 · 81481-33150 |
| 81482C | Left fog light cover | 81482-33090 · 81482-33100 · 81482-33110 · 81482-33120 · 81482-33130 · 81482-33140 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-33210 · 89348-60050 |
