Toyota CAMRY 制动助力器和真空管 — Figure 4703

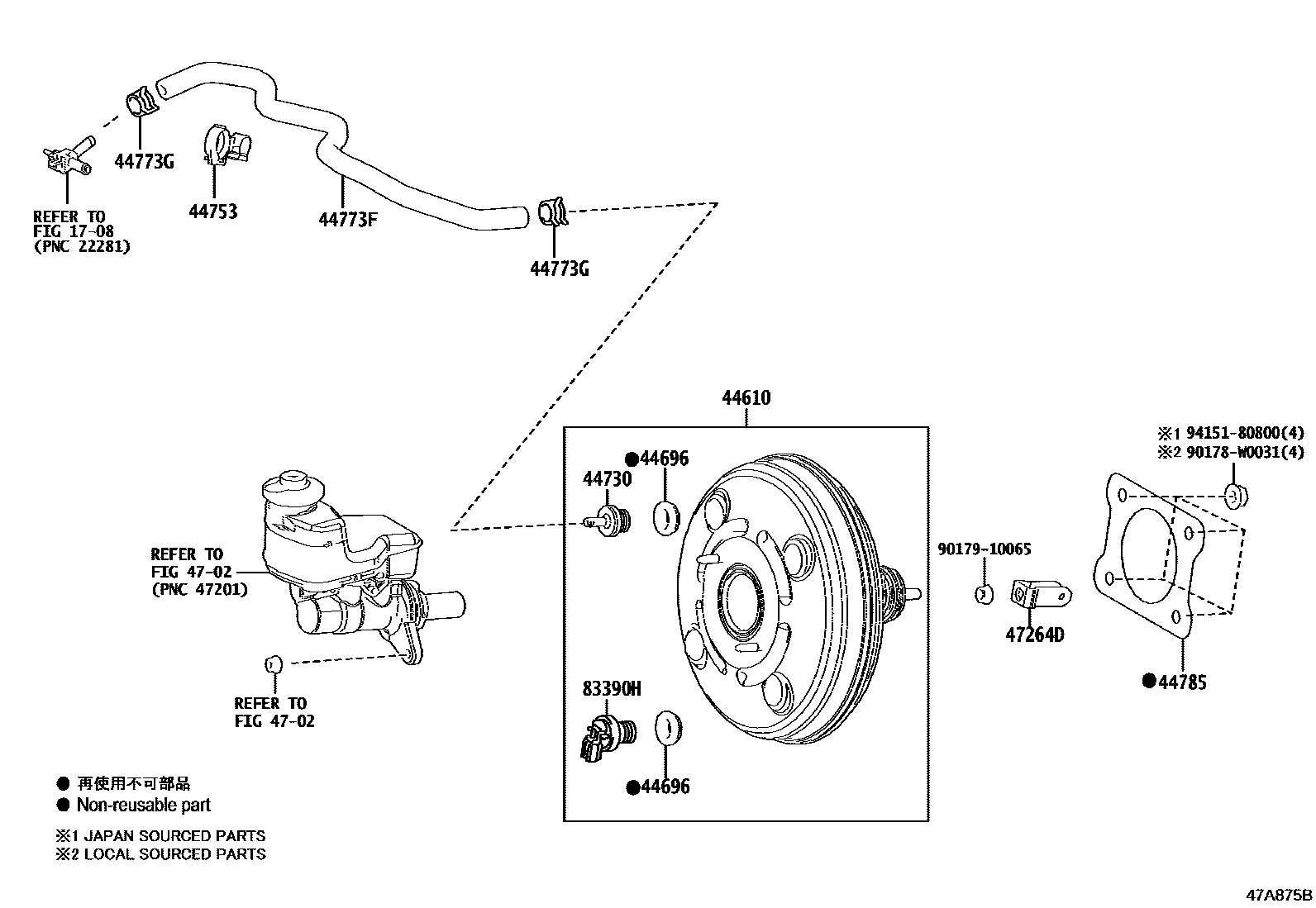

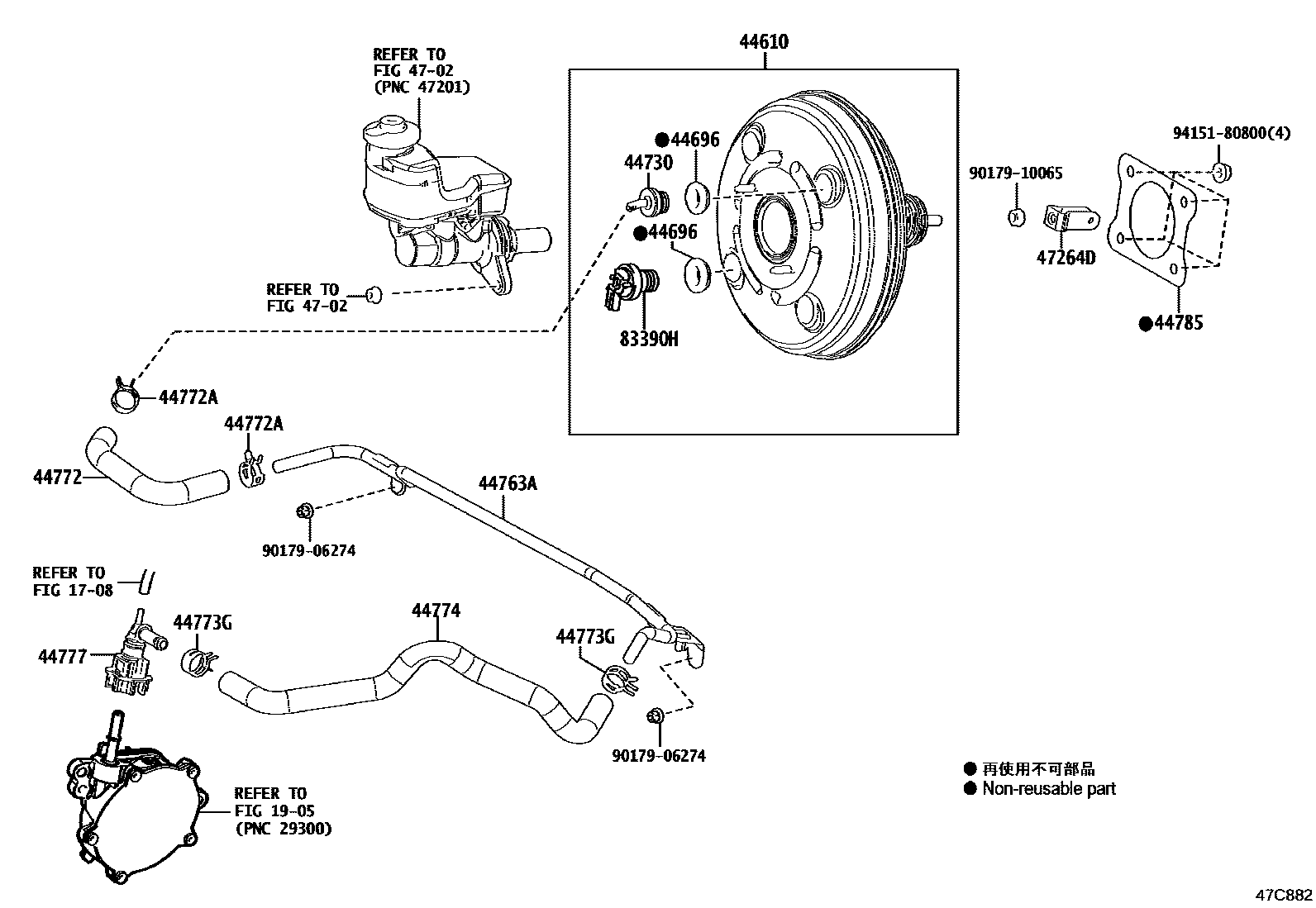

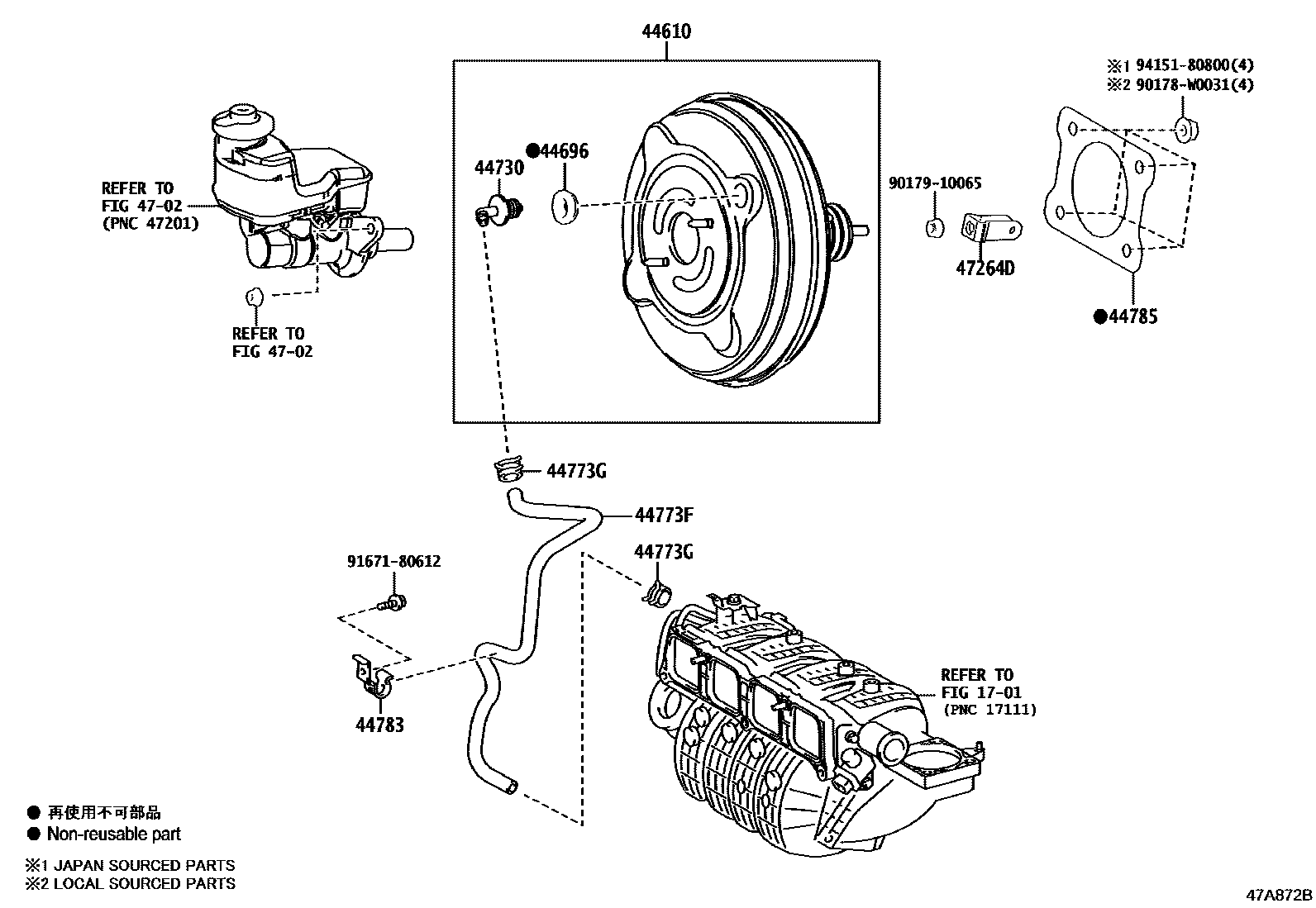

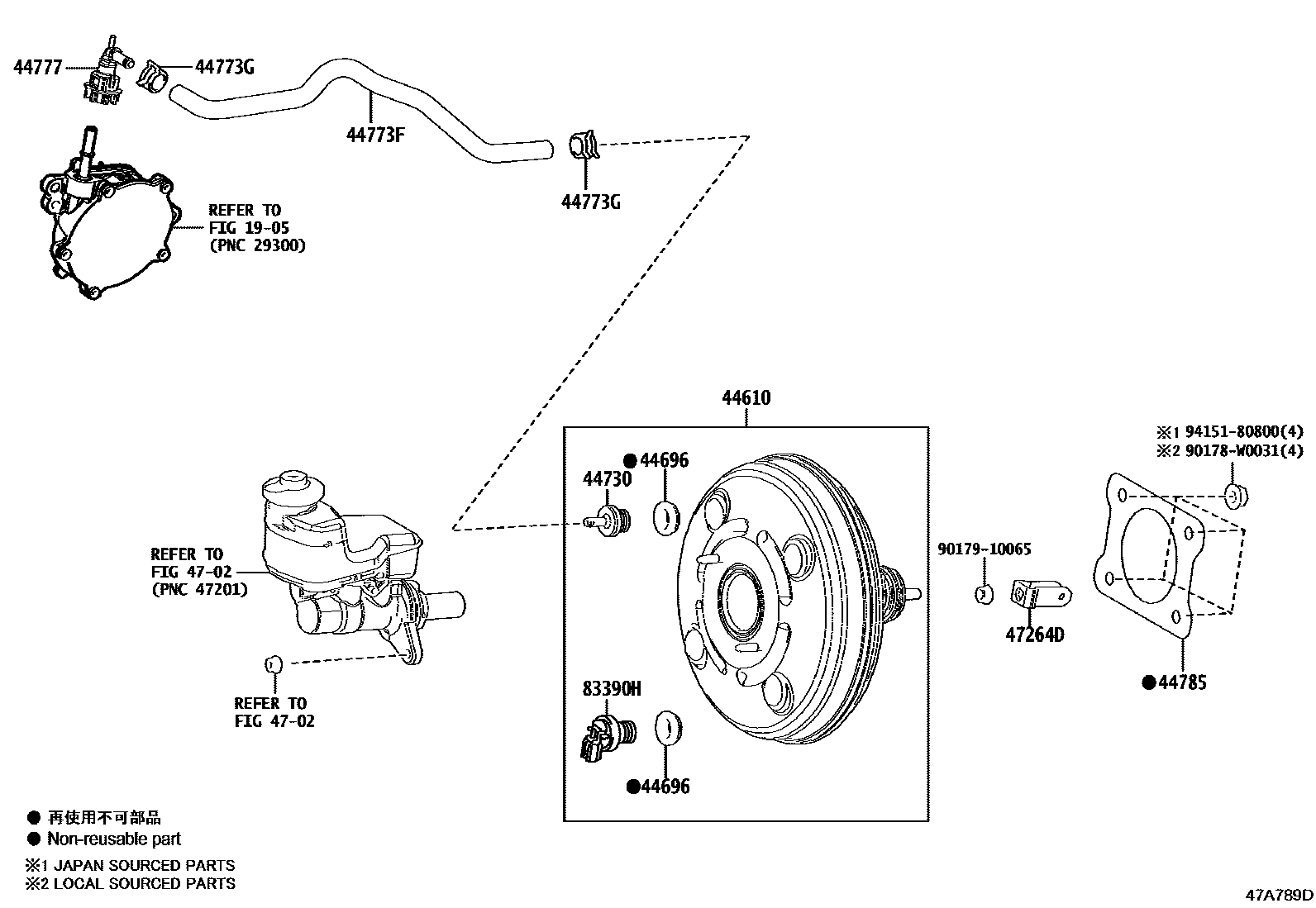

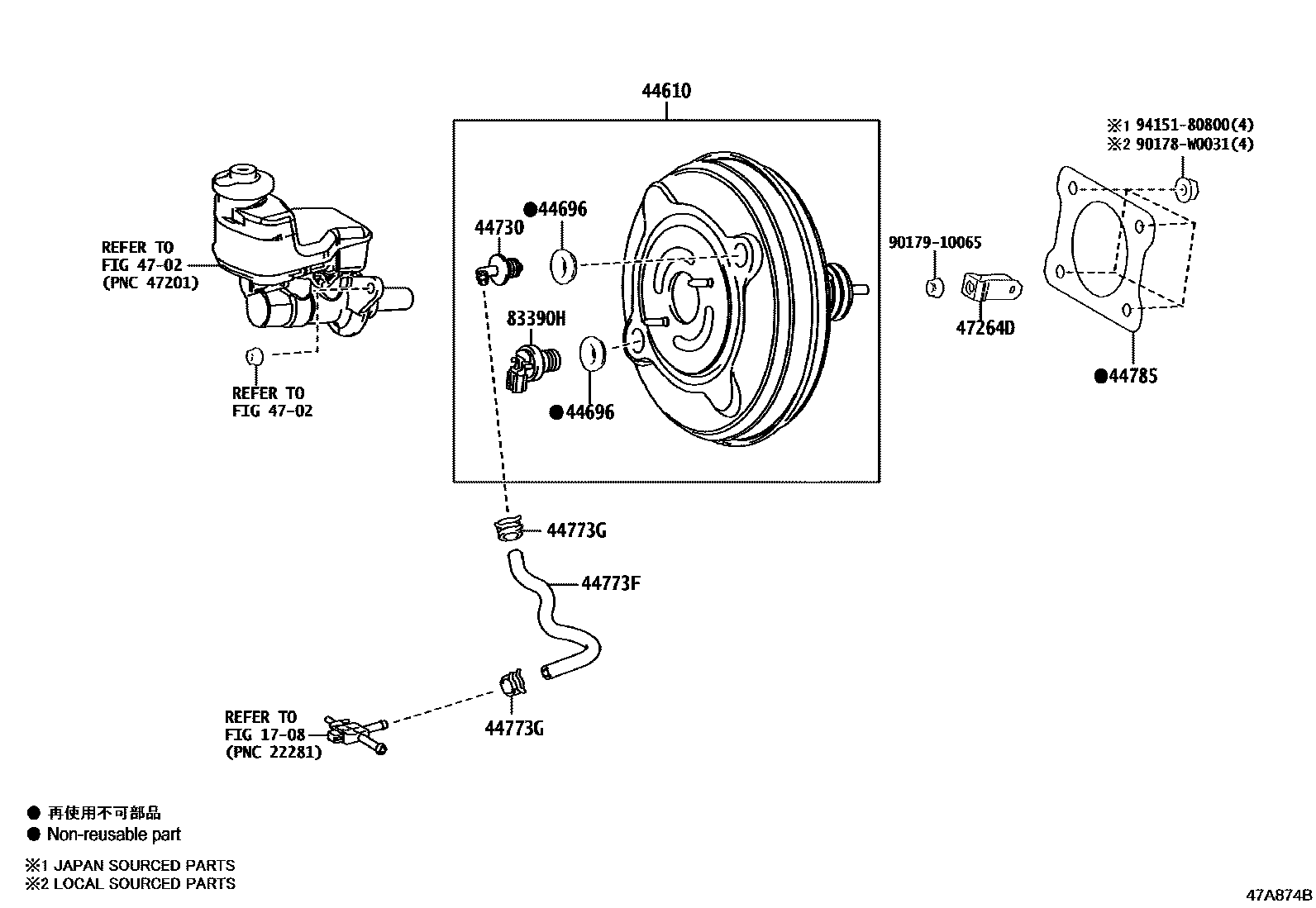

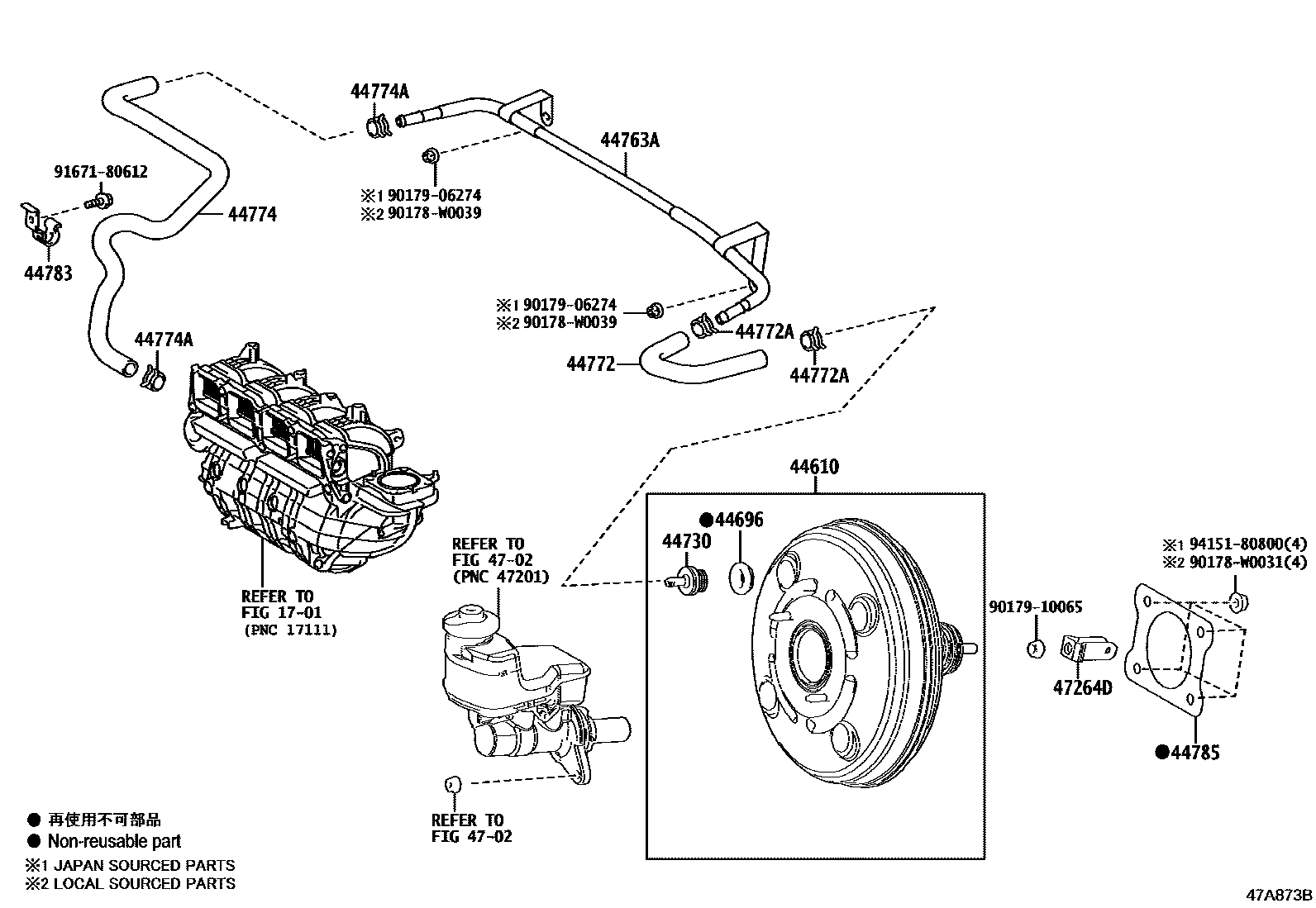

Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-33B20 · 44610-33B30 · 44610-33B40 · 44610-33B50 · 44610-33B60 · 44610-33C30 · 44610-33C50 · 44610-33C60 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12040 · 44730-22150 · 44730-30060 · 44730-60070 |
| 44753 | No. 2 vacuum reservoir clip | 44753-48340 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-33110 · 44763-33120 |
| 44772 | Hoses (check valve to connector tube) | 44772-33230 · 44772-33240 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44773F | Hoses (connector to check valve) | 44773-33180 · 44773-33190 · 44773-33210 · 44773-33220 · 44773-33260 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-33130 · 44774-33140 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-33010 |
| 44783 | Vacuum hose clamp | 44783-42030 |
| 44785 | brake booster pad | 44785-05020 · 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-33030 |
| 83390H | Vacuum warning switch assembly | 83390-28120 |
