Toyota CAMRY 制动总泵 — Figure 4702

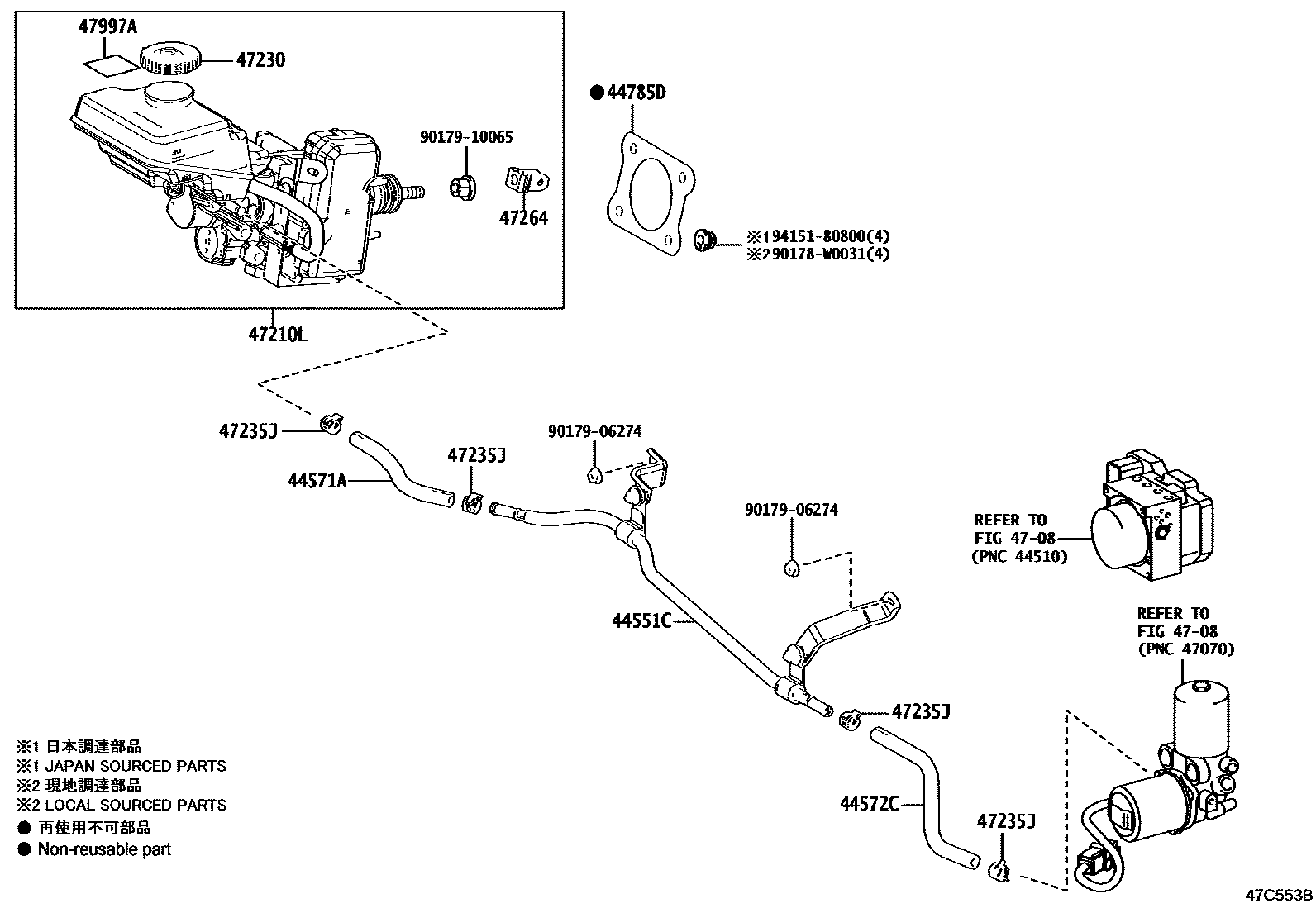

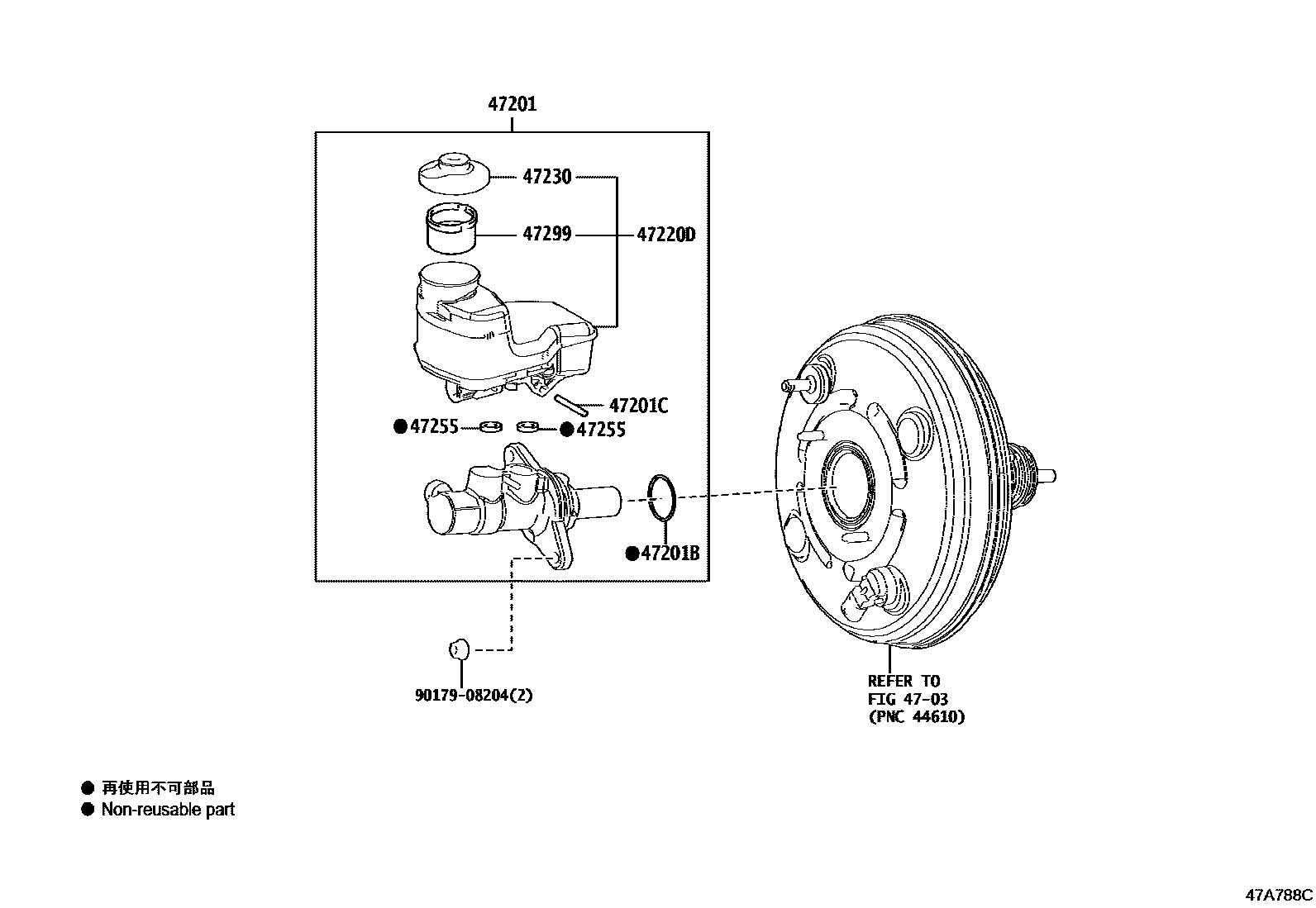

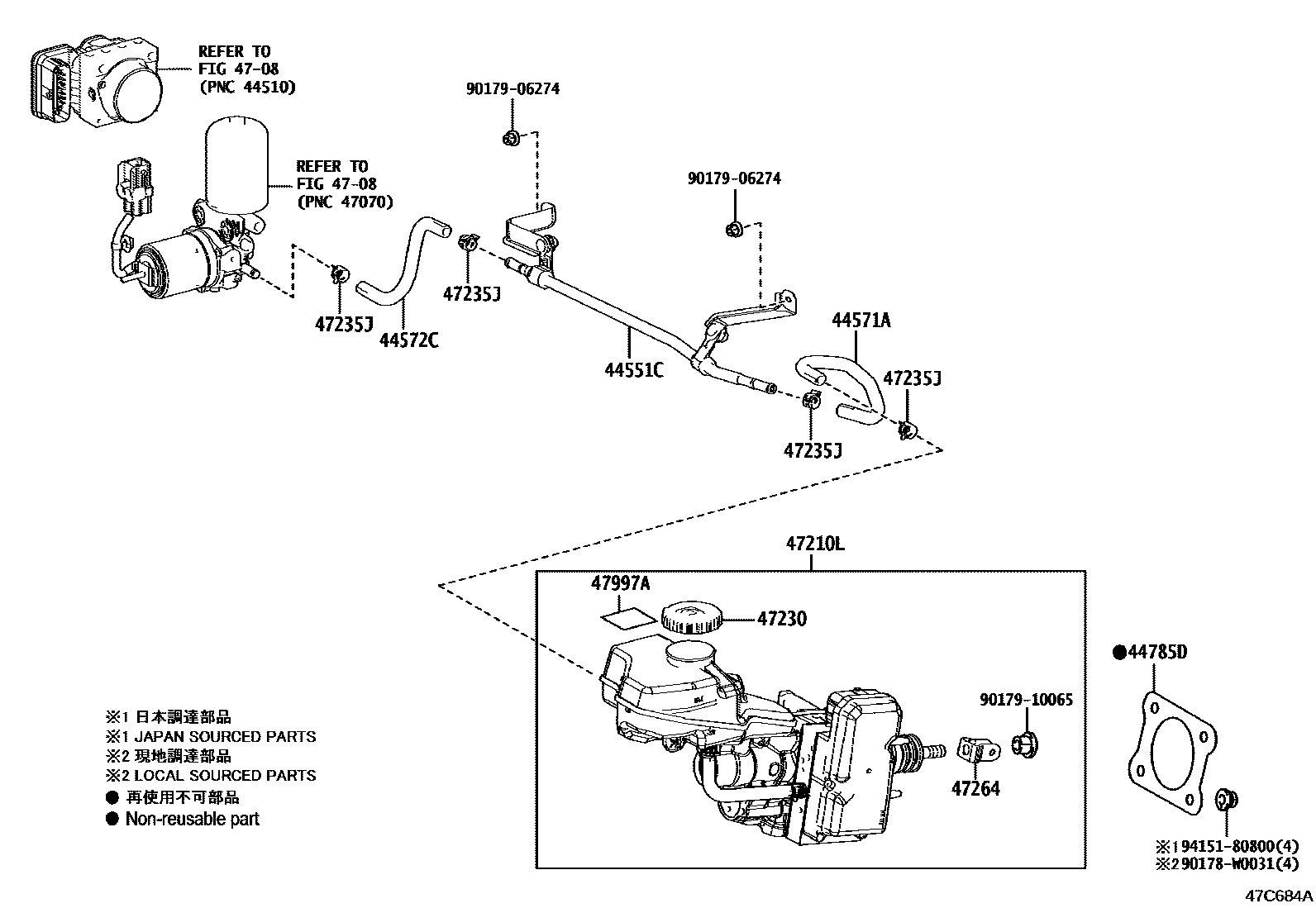

Toyota CAMRY EPC diagram 4702, 制动总泵, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-33080 · 44551-33090 |
| 44571A | No. 1 brake actuator hose | 44571-33150 · 44571-33160 |
| 44572C | No. 2 brake actuator hose | 44572-33010 · 44572-33040 |
| 44785D | brake master cylinder gasket | 44785-05020 · 44785-12040 |
| 47201 | Brake master cylinder sub-assembly | 47201-33610 · 47201-33640 · 47201-33660 · 47201-33670 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-33320 · 47050-33340 · 47050-33400 · 47050-33520 · 47050-33570 · 47050-33590 · 47050-33720 · 47050-33721 · 47050-33740 · 47050-33741 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33340 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33330 · 47230-47090 |
| 47235J | Clamp (for reservoir tank No. 2 hose) | 96137-41501 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47288A | Brake Fluid Caution Label | 47288-33020 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
