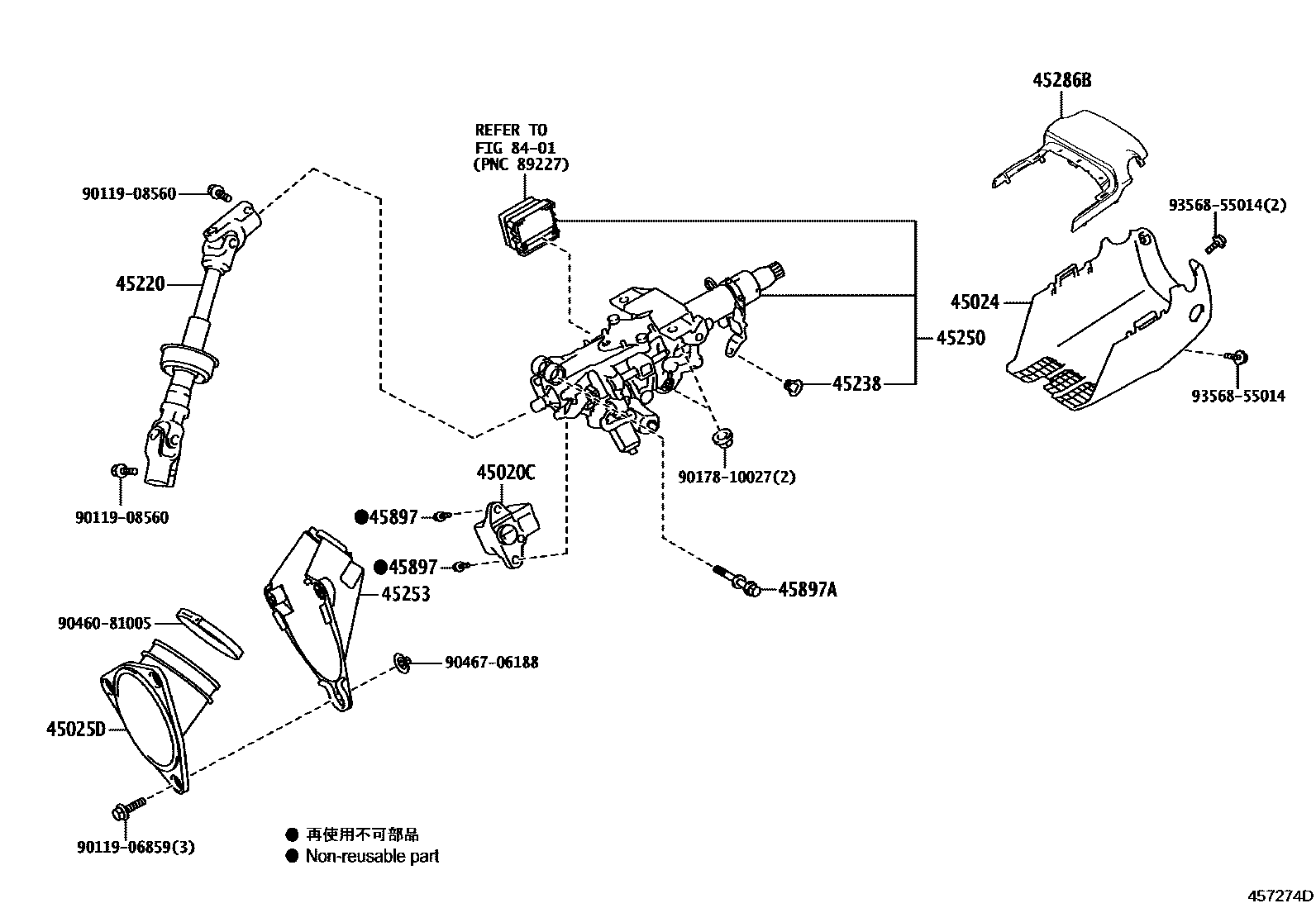

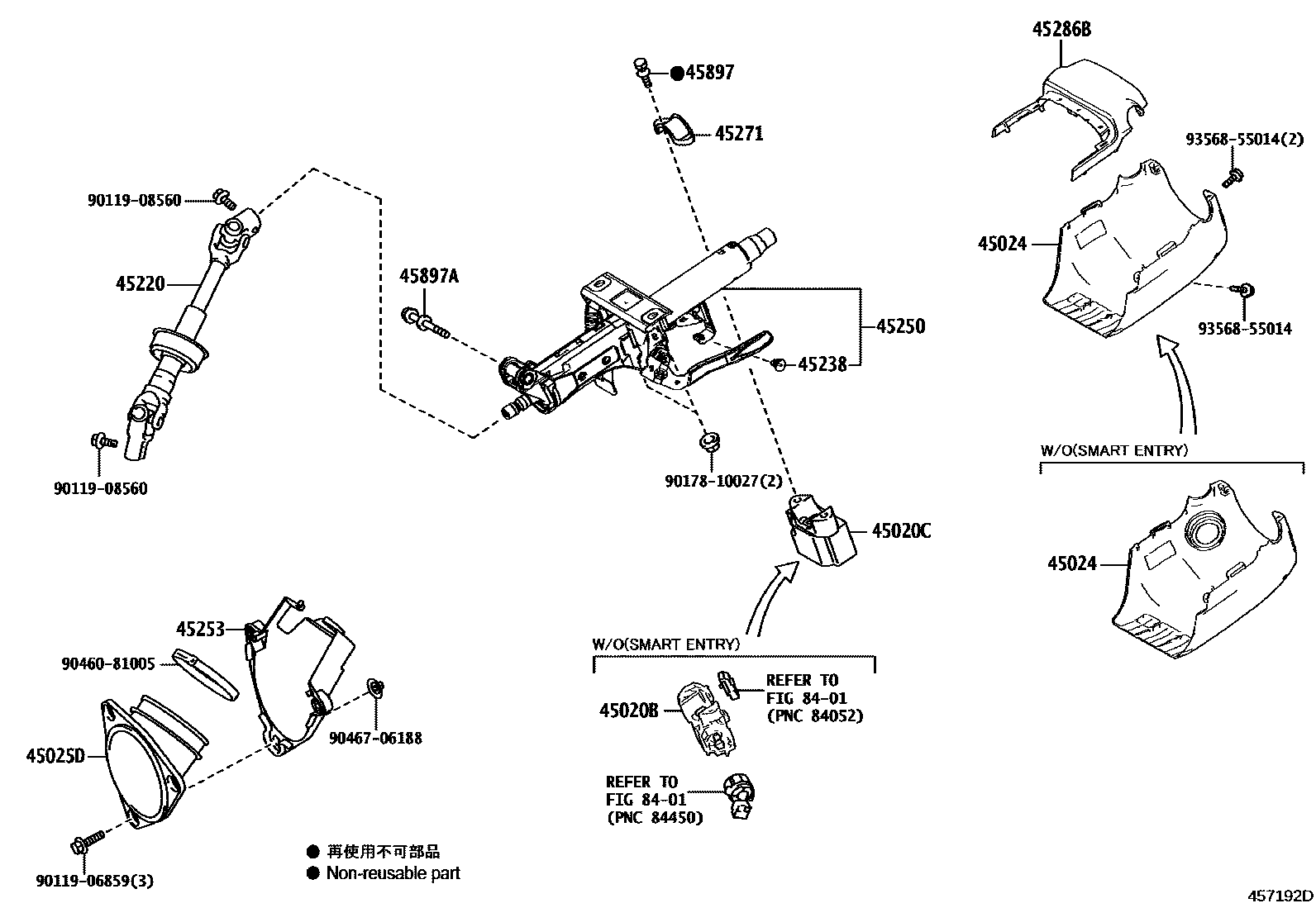

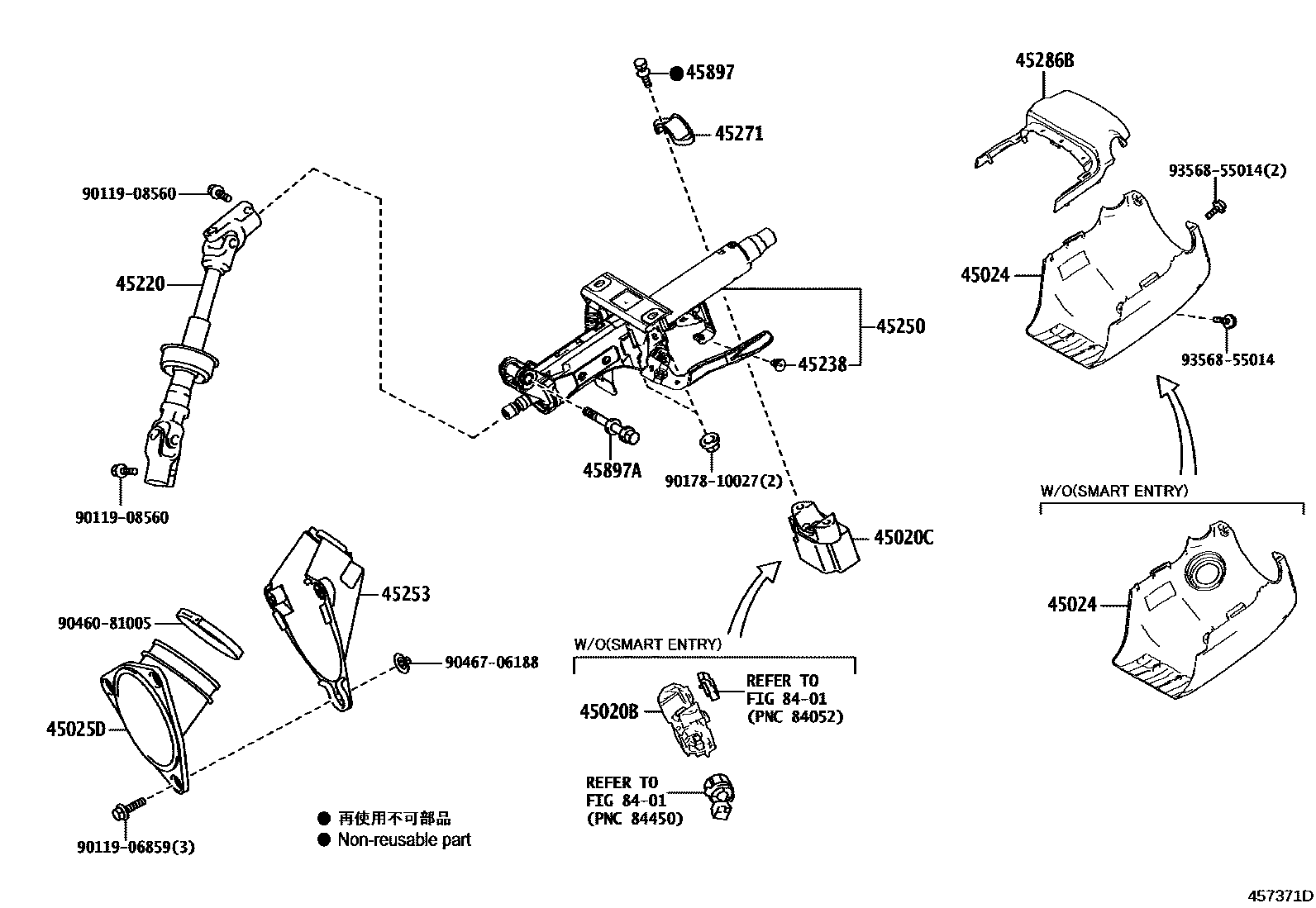

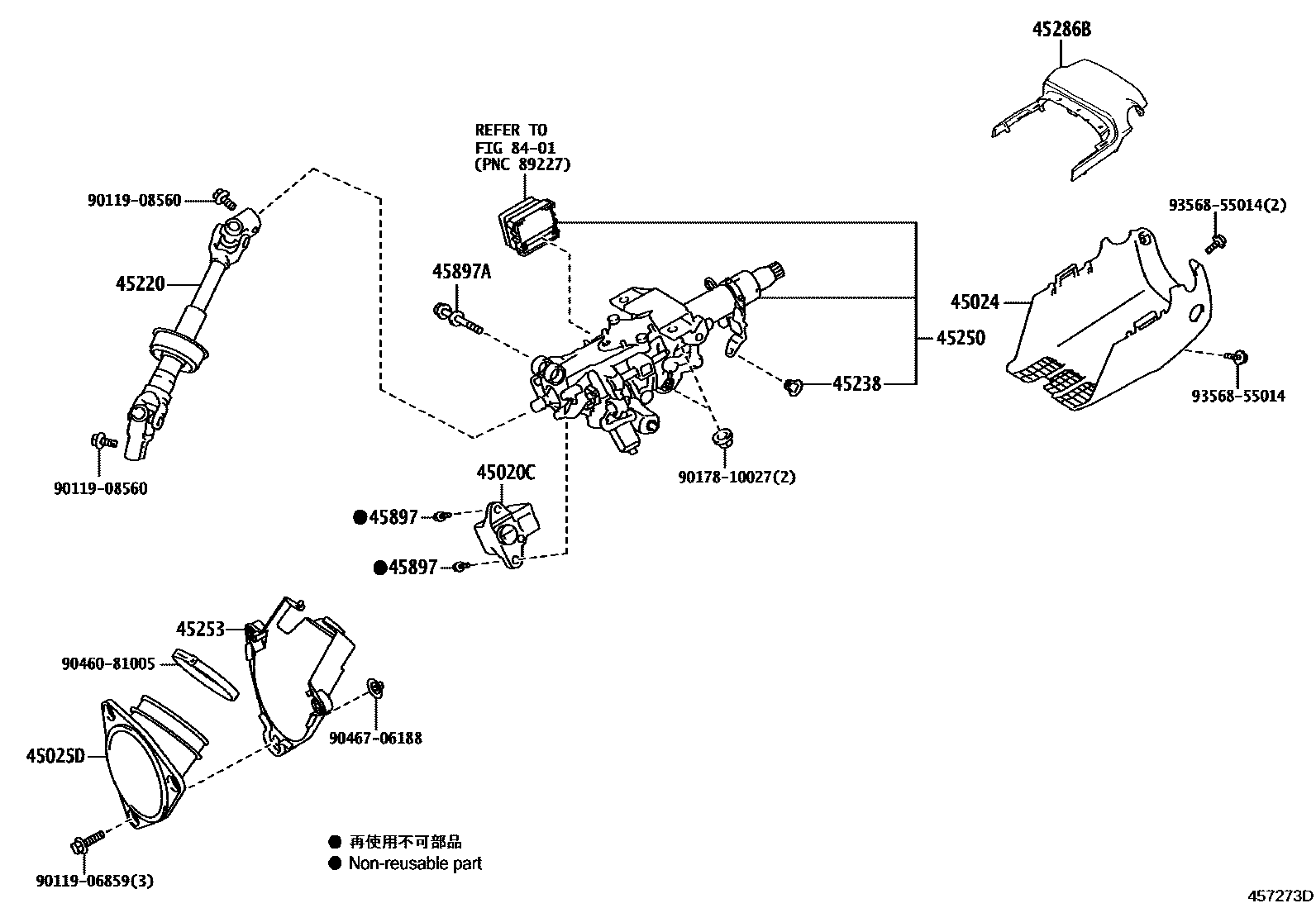

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45280-33180 |
| 45020C | Steering lock actuator assembly with ECU | 45020-33240 · 45020-33260 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-33150 |
| 45220 | Steering intermediate shaft assembly | 45220-33350 · 45220-33351 · 45220-33352 · 45220-33360 · 45220-33361 · 45220-33362 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-11010 · 45238-52010 |
| 45250 | Steering column assembly | 45250-33D20 · 45250-33D30 · 45250-33D40 · 45250-33D60 · 45250-48430 |
| 45253 | Steering column hole cover | 45253-33100 |
| 45271 | Clamp on steering column | 45271-52030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 |
