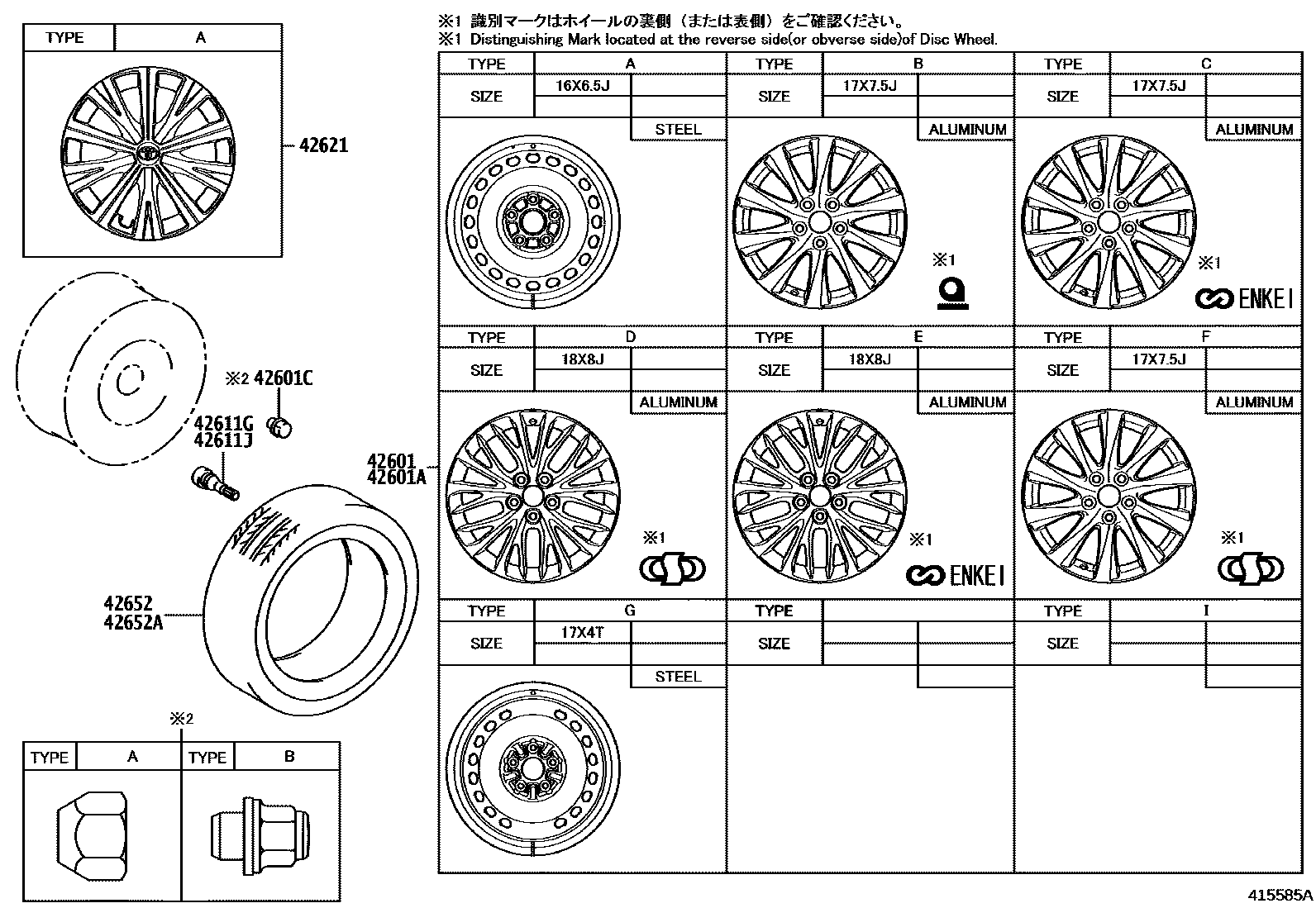

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

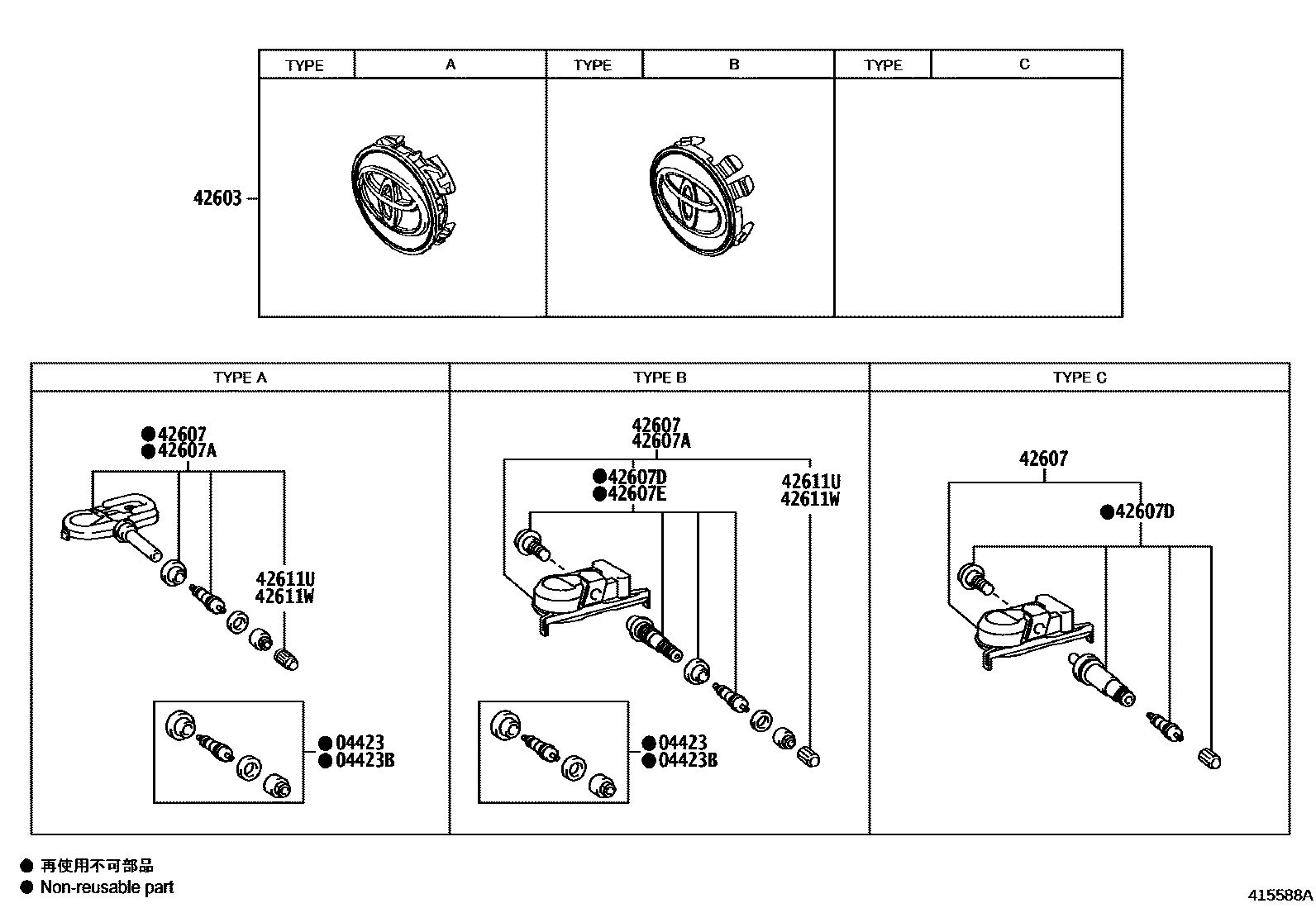

| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-33060 |

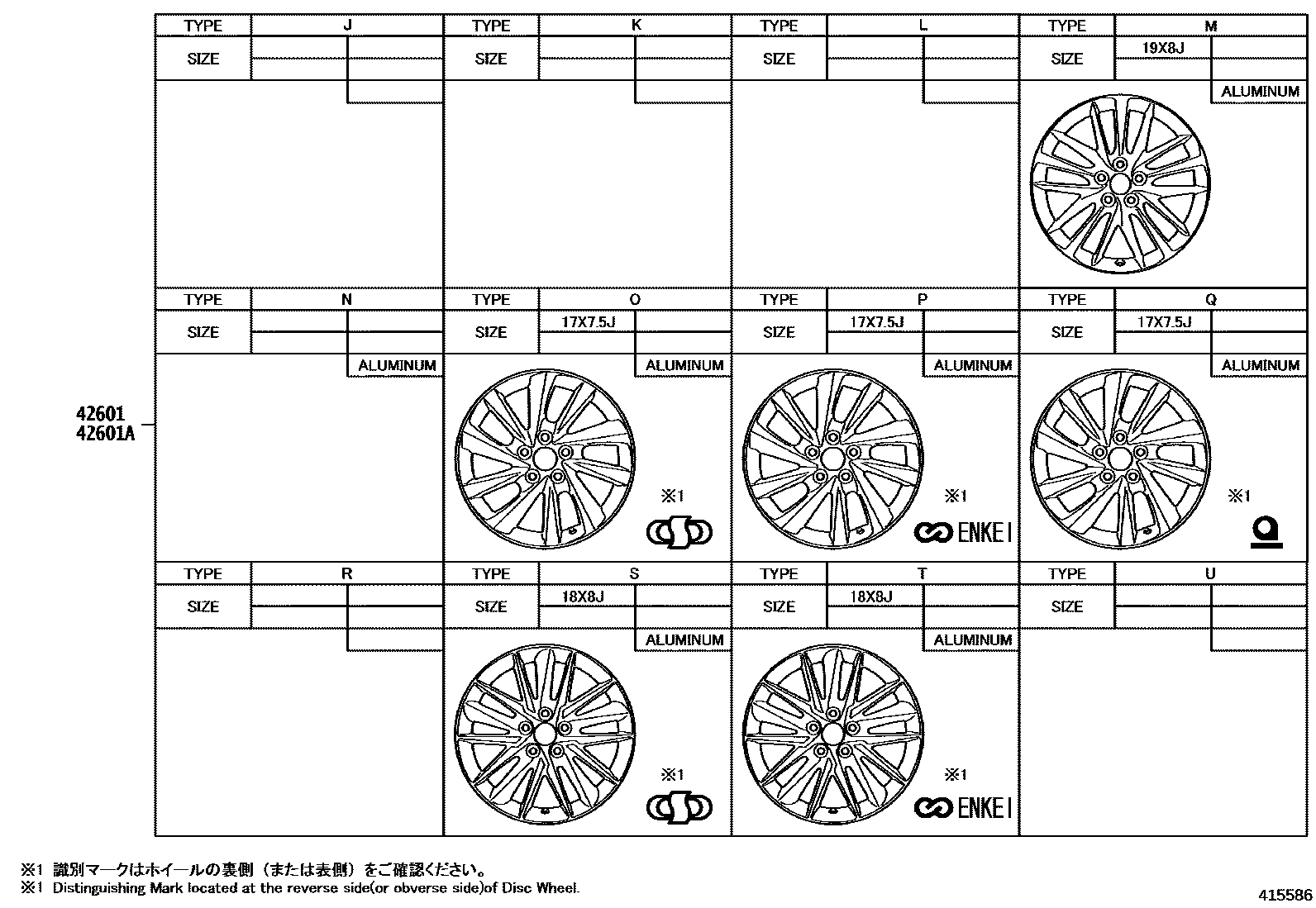

| 42601 | spoke wheel | 42611-33830 · 42611-33B80 · 42611-33B81 · 42611-33C00 · 42611-33C10 · 42611-33C40 · 42611-33C60 · 42611-33C90 · 42611-33D10 · 42611-33D20 · 42611-33D30 · 42611-33E00 · 42611-33E10 · 42611-33F10 · 42611-33F20 · 42611-33F30 · 42611-33F40 · 42611-33F50 · 42611-33J10 |
| 42601A | Spoke wheel (for spare tire) | 42611-33830 · 42611-33B80 · 42611-33B81 · 42611-33C00 · 42611-33C10 · 42611-33C40 · 42611-33C60 · 42611-33C90 · 42611-33D10 · 42611-33D30 · 42611-33E00 · 42611-33E10 · 42611-33E20 · 42611-33F10 · 42611-33F20 · 42611-33F30 · 42611-33F40 · 42611-33J10 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-12020 · 42607-12040 · 42607-33050 · 42607-60010 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-12020 · 42607-60010 |
| 42607D | tire pressure monitoring valve | 90942-05043 · 90942-05044 |
| 42607E | Tire pressure monitoring valve (for septa) | 90942-05044 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-33190 |
| 42652 | tires | 42652-30E41 · 42652-30F50 · 42652-33840 · 42652-33860 · 42652-33890 · 42652-33A00 |
| 42652A | Tire (for Spare Wheel) | 42652-33840 · 42652-33860 · 42652-33890 · 42652-33A00 · 42652-58050 · 42652-58060 |
