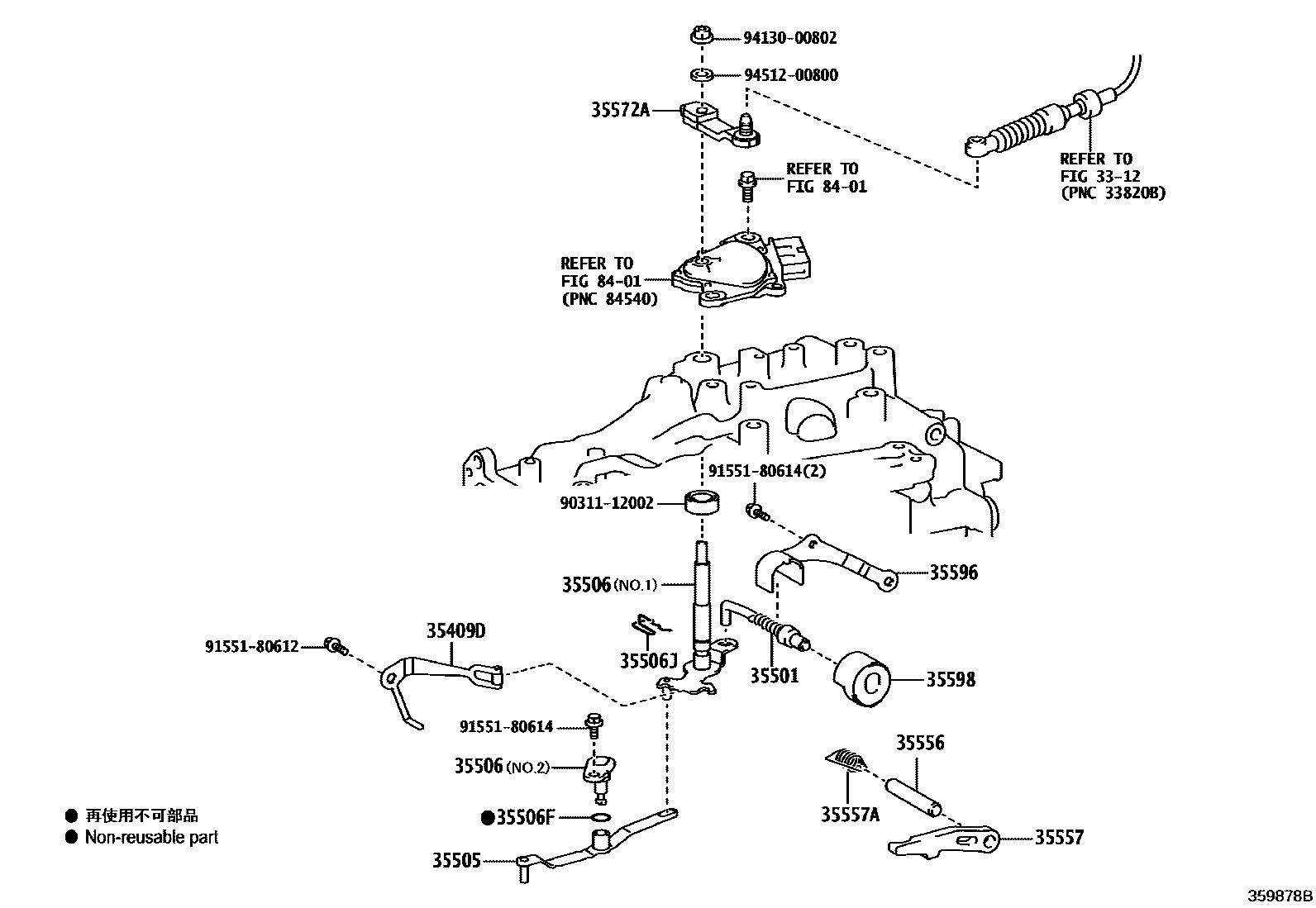

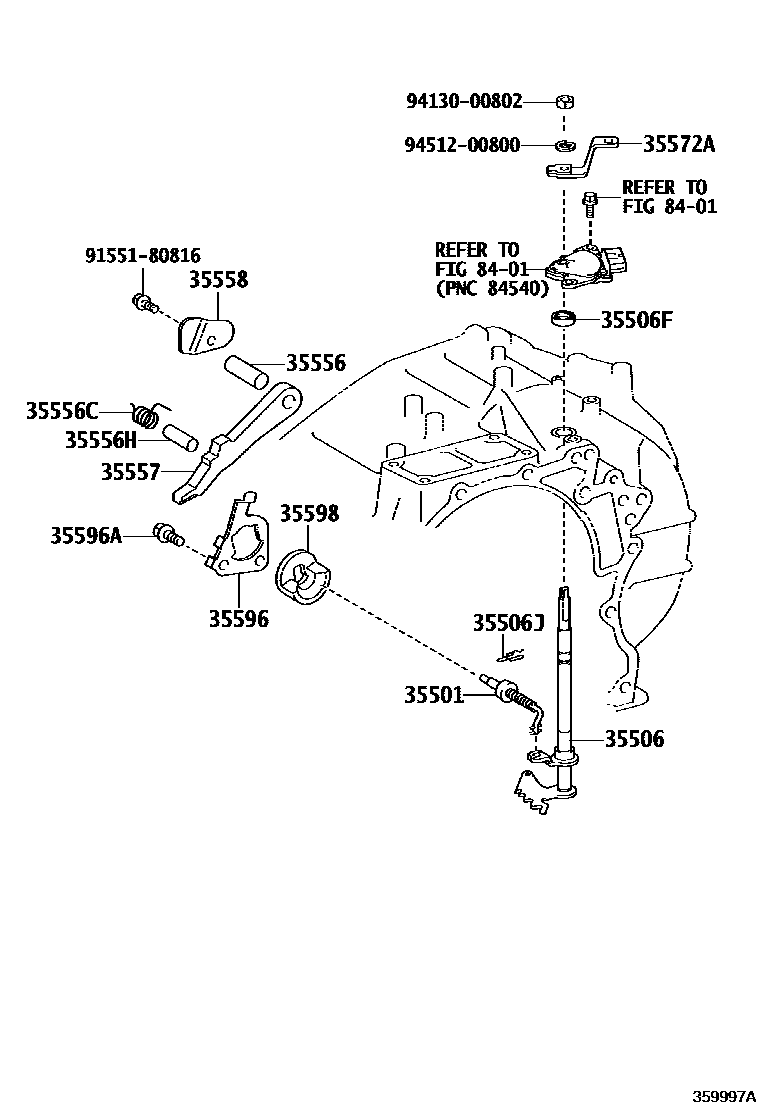

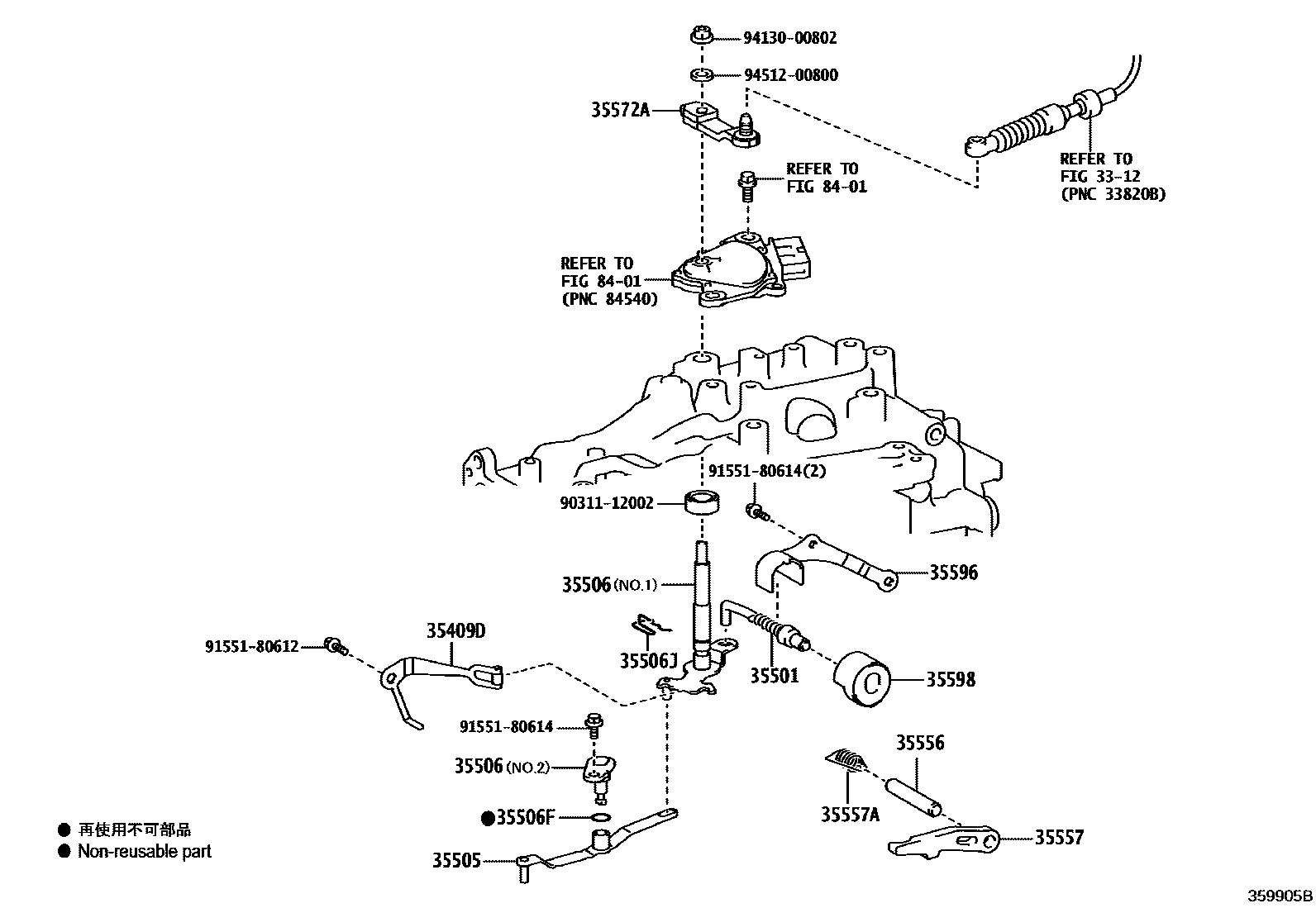

Toyota CAMRY 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota CAMRY EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35409D | Manual lock spring sub-assembly | 35409-48060 |
| 35501 | Parking lock lever sub-assembly | 35501-33020 · 35501-33030 · 35501-48040 |
| 35505 | Manual valve stem sub-assembly | 35502-33010 · 35502-48010 |
| 35506 | Manual valve stem shaft sub-assembly | 35503-48010 · 35506-33011 · 35506-33030 · 35506-33031 · 35506-33040 · 35506-33041 · 35506-48010 · 35506-48011 · 35506-48020 · 35506-48021 · 35506-48022 · 35506-73011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90301-09173 · 90311-12002 |
| 35506J | Stop spring (for manual valve stem shaft) | 90524-09002 · 90524-09004 |
| 35556 | Parking lock pawl shaft | 35556-33010 · 35556-33020 · 35556-48030 · 35556-48040 |
| 35556C | Torsion spring (for parking pawl shaft) | 90508-21008 |
| 35556H | Parking lock pawl shaft | 35556-33030 · 35556-63010 |
| 35557 | Parking pawl | 35557-33040 · 35557-48040 · 35557-73010 |
| 35557A | Torsion spring (for parking pawl) | 90508-29030 |
| 35558 | Claw shaft clamp | 35558-33010 · 35558-33020 |
| 35572A | transmission control lever | 35572-33020 · 35572-48050 · 35572-48051 |
| 35596 | Claw block | 35596-33020 · 35596-48030 · 35596-73010 |
| 35596A | Bolt (for jaw block) | 91551-80816 |
| 35598 | Parking lock cover | 35598-33010 · 35598-48040 |
