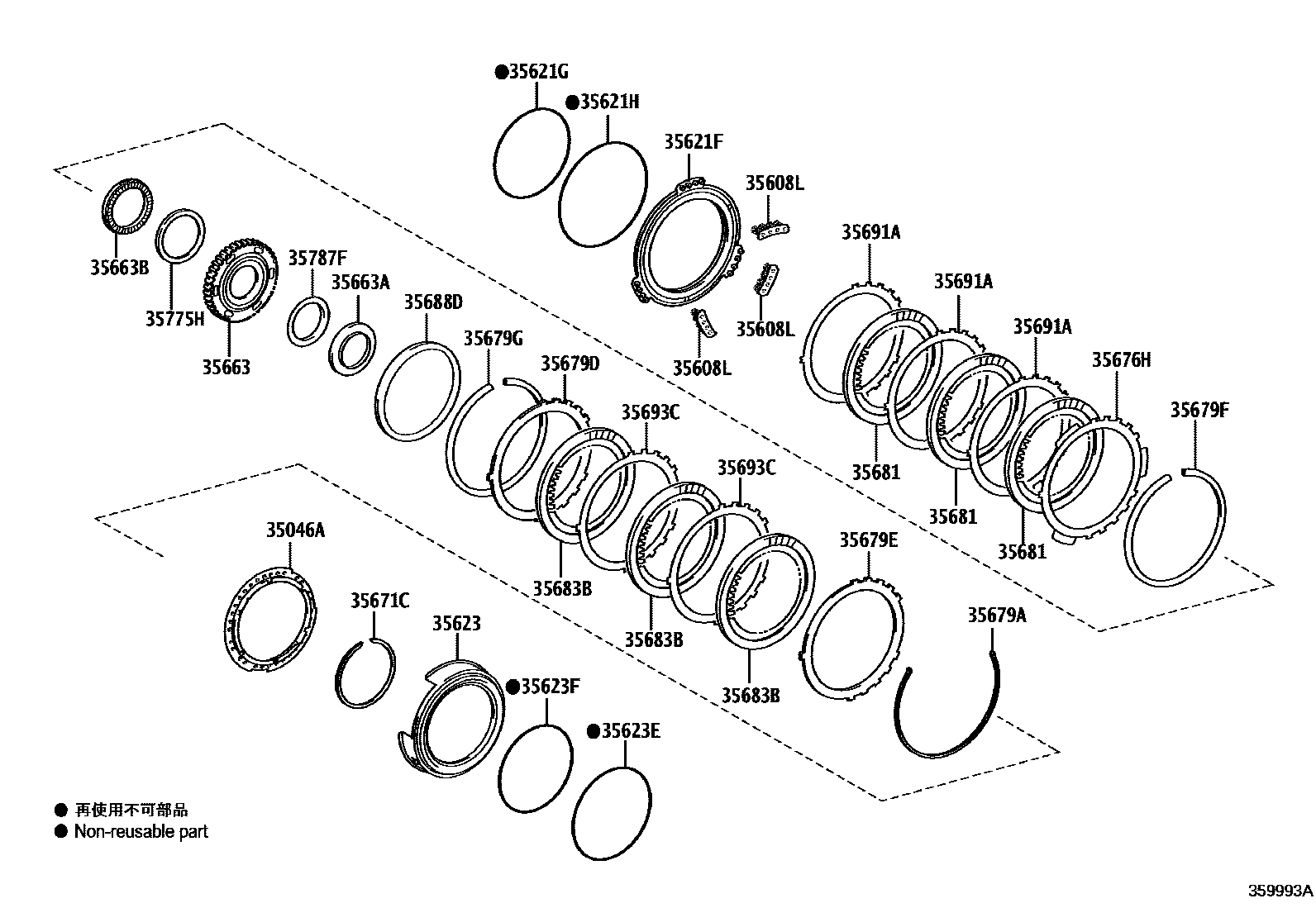

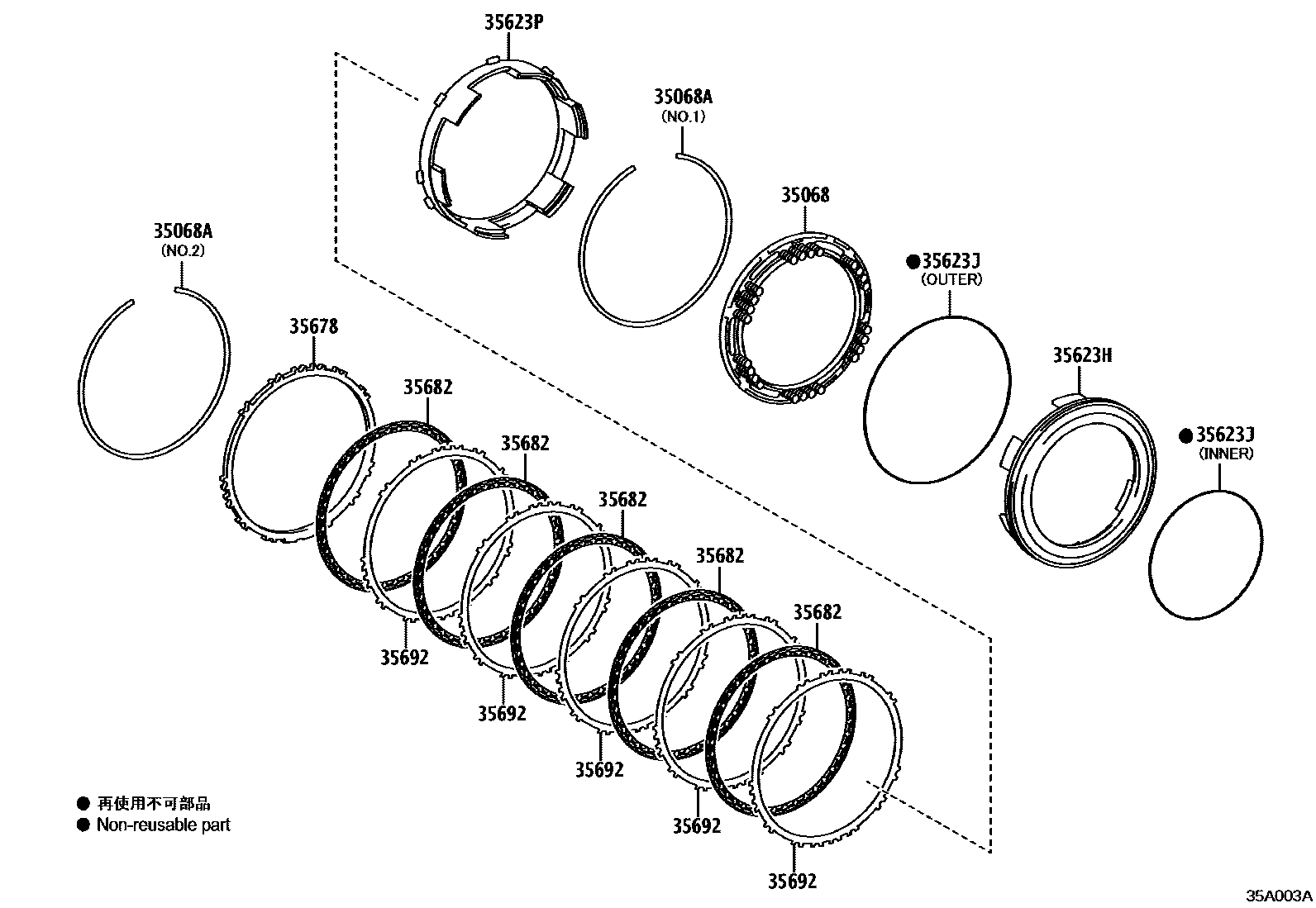

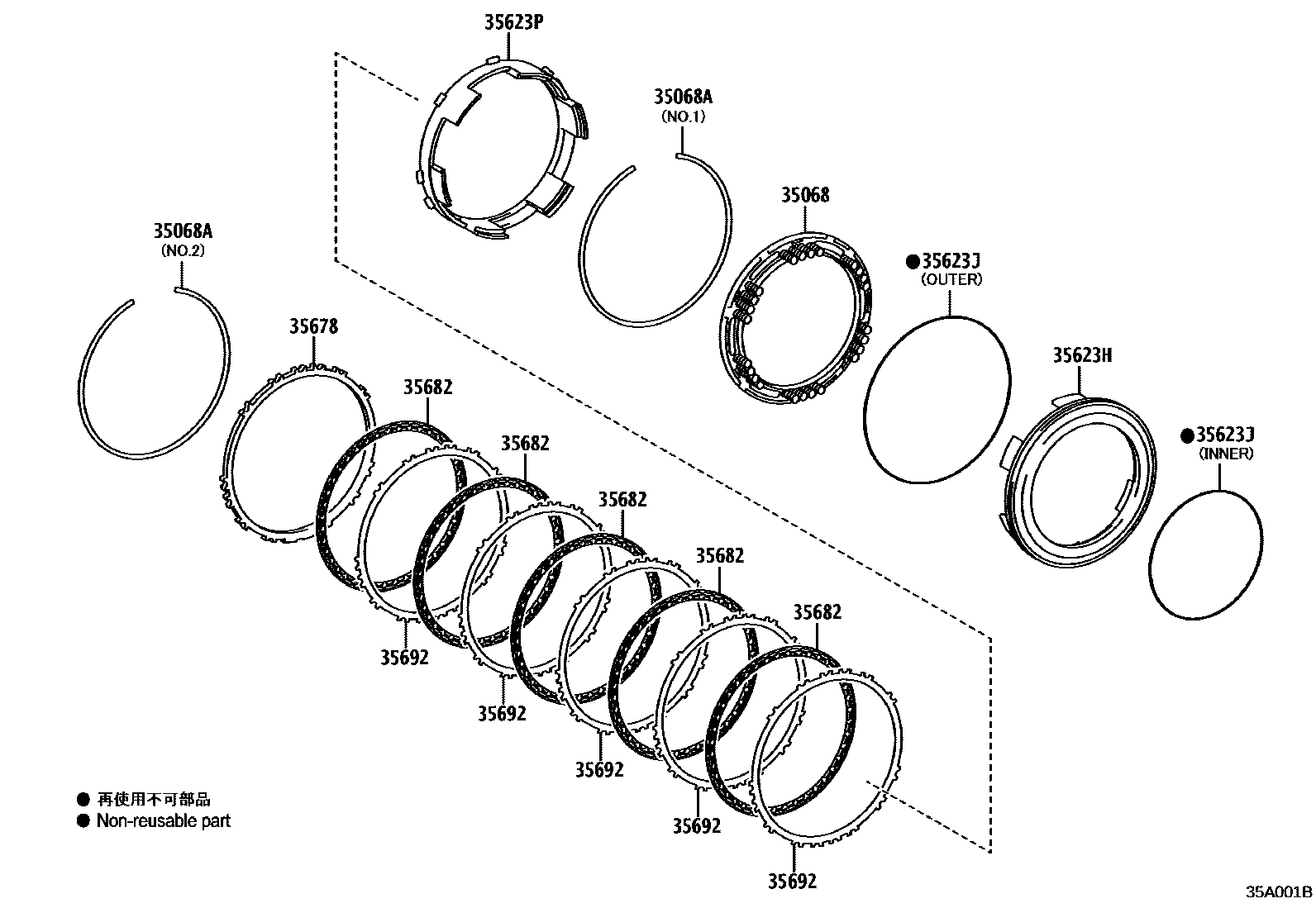

Toyota CAMRY 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota CAMRY EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35046A | No. 3 brake piston return spring sub-assembly | 35046-73010 |
| 35068 | First and reverse brake return spring sub-assembly | 35068-33040 · 35068-48020 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-99174 · 90520-99175 · 90521-99193 · 90521-99198 |
| 35608L | Second gear brake piston return spring sub-assembly | 35608-73010 |
| 35621F | Brake piston No. 1 | 35621-33030 · 35621-73010 |
| 35621G | Inner O-ring (for brake piston) | 90301-99190 |
| 35621H | Outer O-ring (for brake piston) | 90301-99189 |
| 35623 | No. 3 brake piston | 35623-33090 · 35623-73011 |
| 35623E | No. 1 O-ring (for brake piston) | 90301-99190 |
| 35623F | No. 2 O-ring (for brake piston) | 90301-99194 |
| 35623H | First and reverse brake piston | 35623-33100 · 35623-33101 · 35623-33110 · 35623-33111 · 35623-48040 · 35623-48050 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99209 · 90301-99210 · 90301-99220 · 90301-99221 · 90301-99231 |
| 35623P | No. 2 first and reverse brake piston | 35624-33050 · 35624-33060 · 35624-48020 · 35624-48030 |
| 35663 | No. 3 brake hub | 35663-33030 · 35663-73010 |
| 35663A | No. 1 Thrust Needle Roller Bearing | 90374-60001 |
| 35663B | No. 2 thrust needle roller bearing | 90374-62010 |
| 35671C | Snap ring (for brake piston return spring) | 90520-99103 |
| 35676H | No. 1 brake flange | 35676-73010 · 35676-73020 · 35676-73030 · 35676-73040 · 35676-73050 · 35676-73060 · 35676-73070 |
| 35678 | Brake flange (for second gear brake) | 35678-33210 · 35678-33220 · 35678-33230 · 35678-33240 · 35678-33250 · 35678-33260 · 35678-33270 · 35678-33280 · 35678-33290 · 35678-33300 · 35678-33310 · 35678-33320 · 35678-33330 · 35678-33340 · 35678-48040 · 35678-48050 · 35678-48060 · 35678-48070 · 35678-48080 · 35678-48090 · 35678-48100 · 35678-48110 · 35678-48120 · 35678-48130 · 35678-48140 · 35678-48150 · 35678-48160 · 35678-48170 |
| 35679A | Hole snap ring (for brake flange) | 90521-99136 |
| 35679D | No. 2 brake flange | 35679-33080 · 35679-73010 |
| 35679E | No. 3 brake flange | 35679-73020 · 35679-73030 · 35679-73040 · 35679-73050 · 35679-73060 · 35679-73070 · 35679-73080 |
| 35679F | Snap ring (for brake flange) | 90520-99144 |
| 35679G | Snap ring (for brake flange No. 3) | 90520-99136 |
| 35681 | No. 1 brake disc | 35681-73010 |
| 35682 | Brake disc (for second gear brake) | 35682-33040 · 35682-48030 |
| 35683B | No. 3 brake disc | 35683-73010 |
| 35688D | Brake snap ring stop | 35688-73010 |
| 35691A | No. 1 brake pad | 35691-73010 |
| 35692 | Brake pads (for second gear brake) | 35692-33040 · 35692-48020 |
| 35693C | No. 3 brake pad | 35693-73010 |
| 35775H | No. 5 thrust bearing race | 35775-33020 |
| 35787F | No. 2 thrust bearing race | 35787-73010 |
