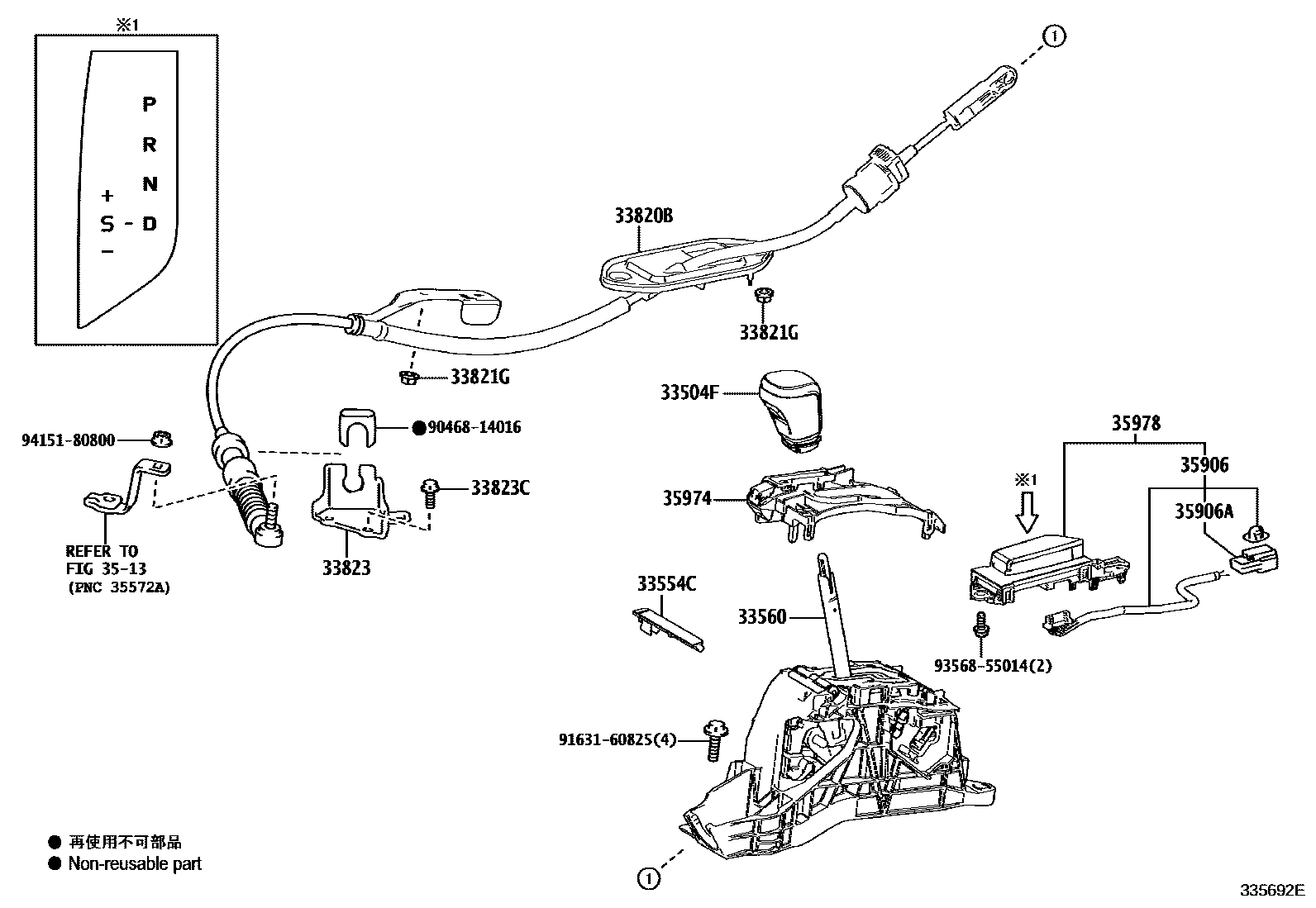

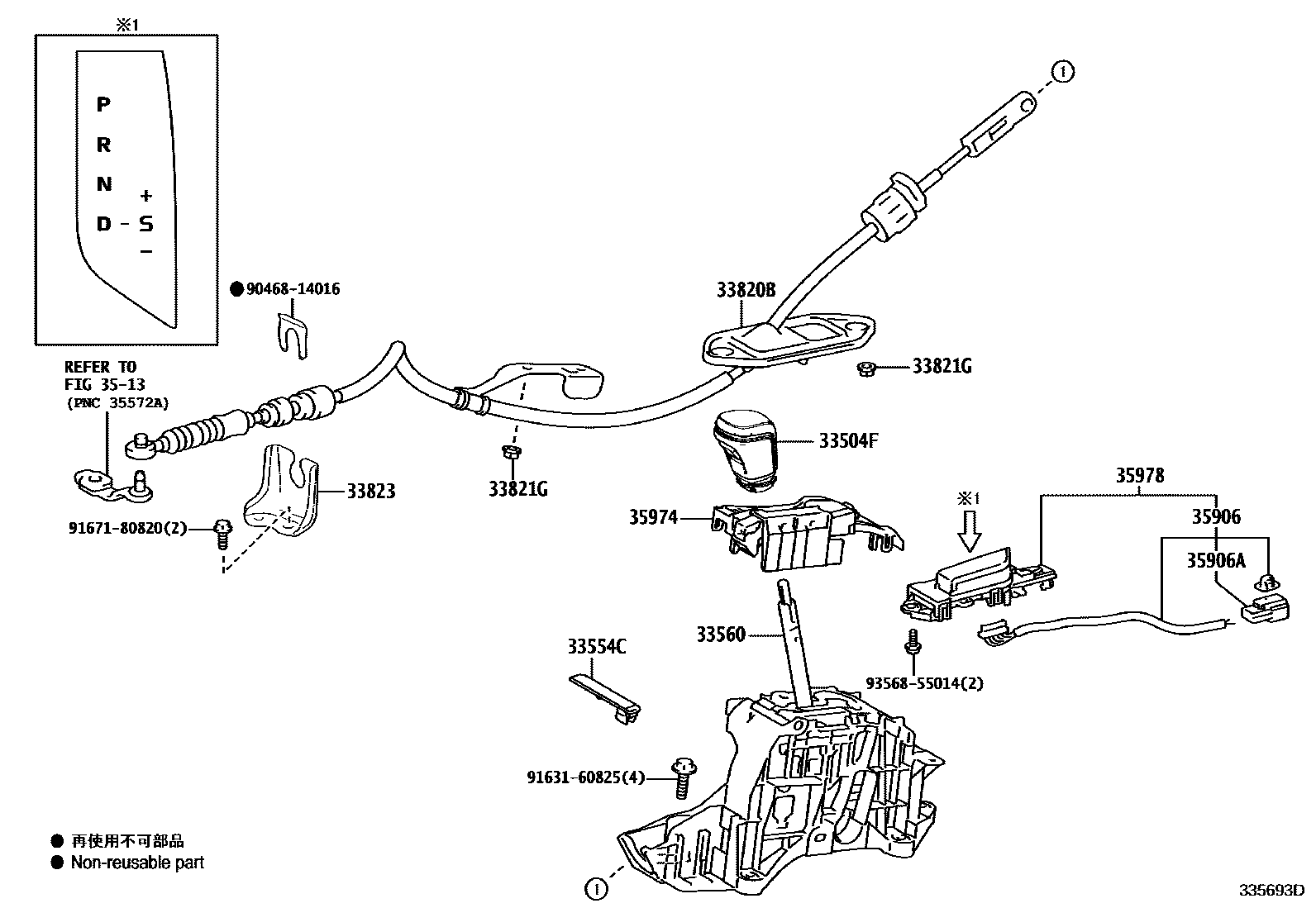

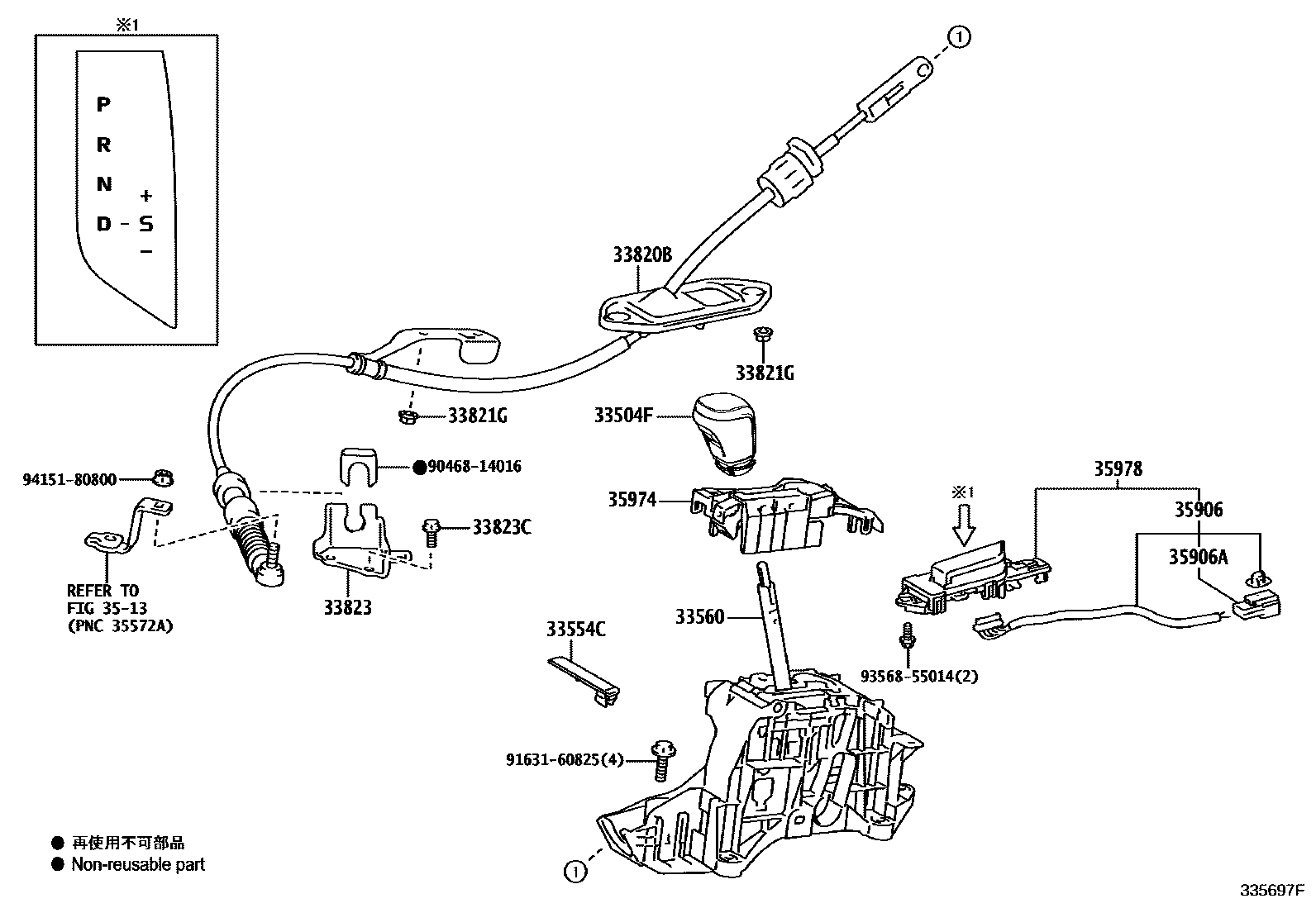

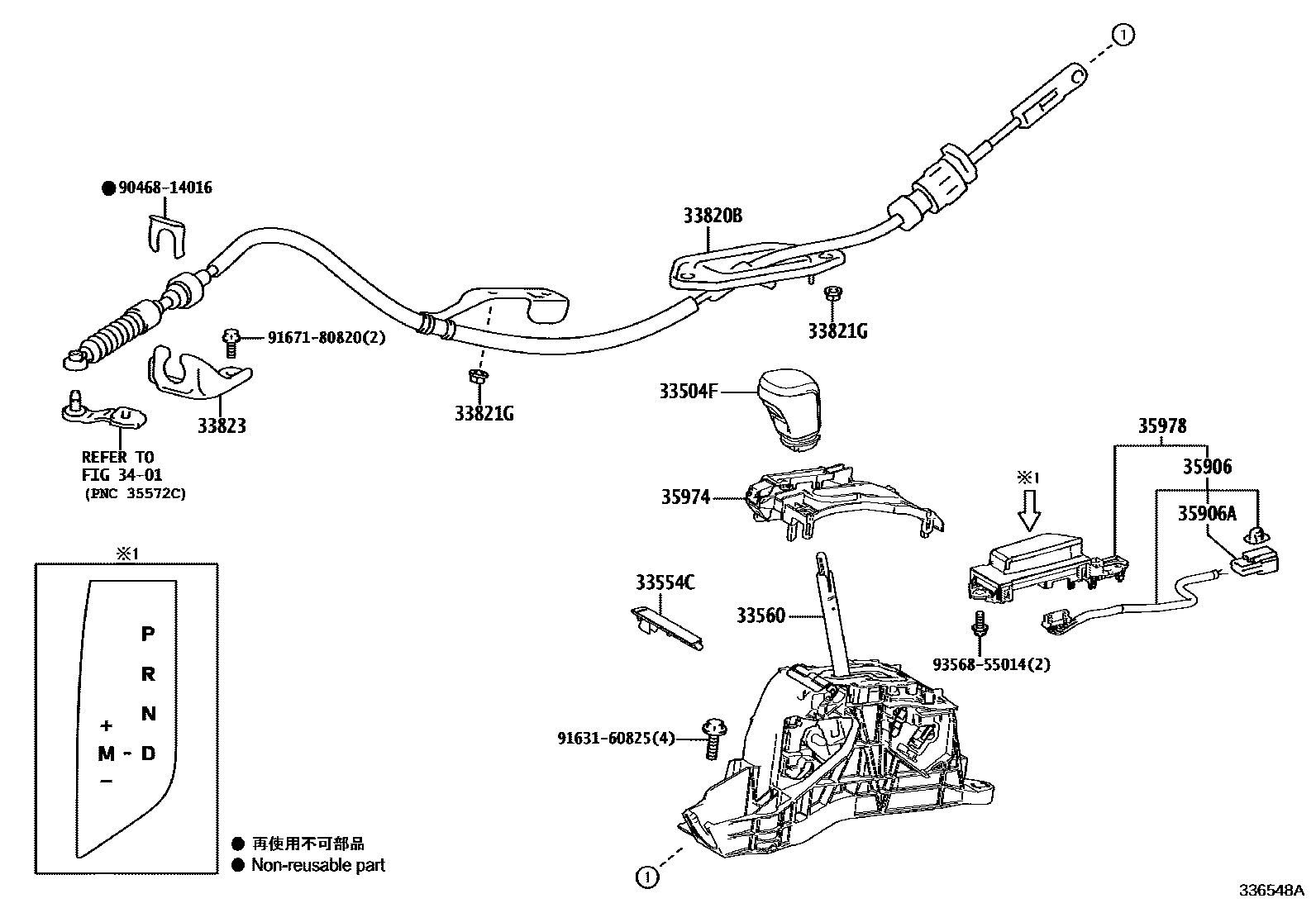

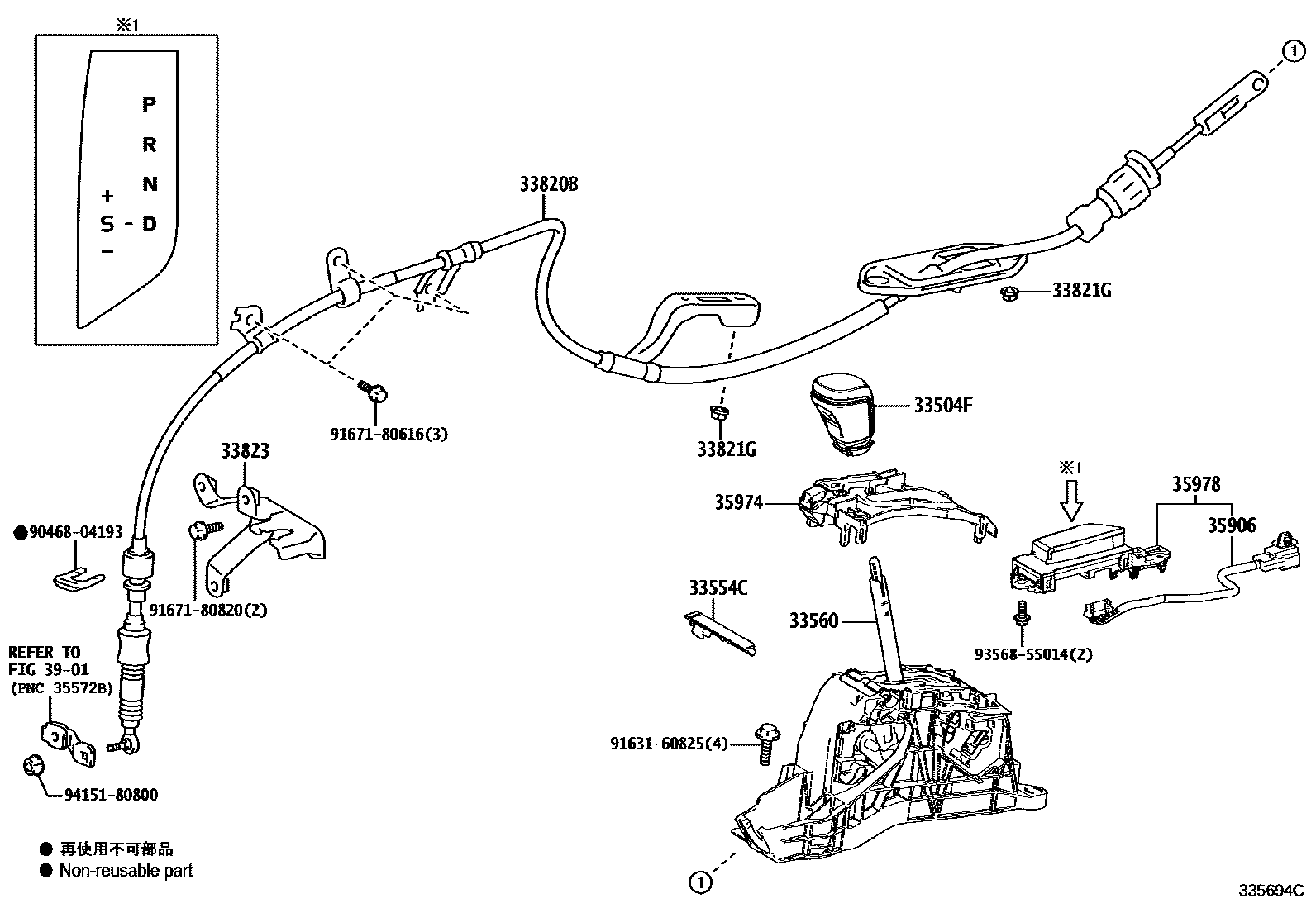

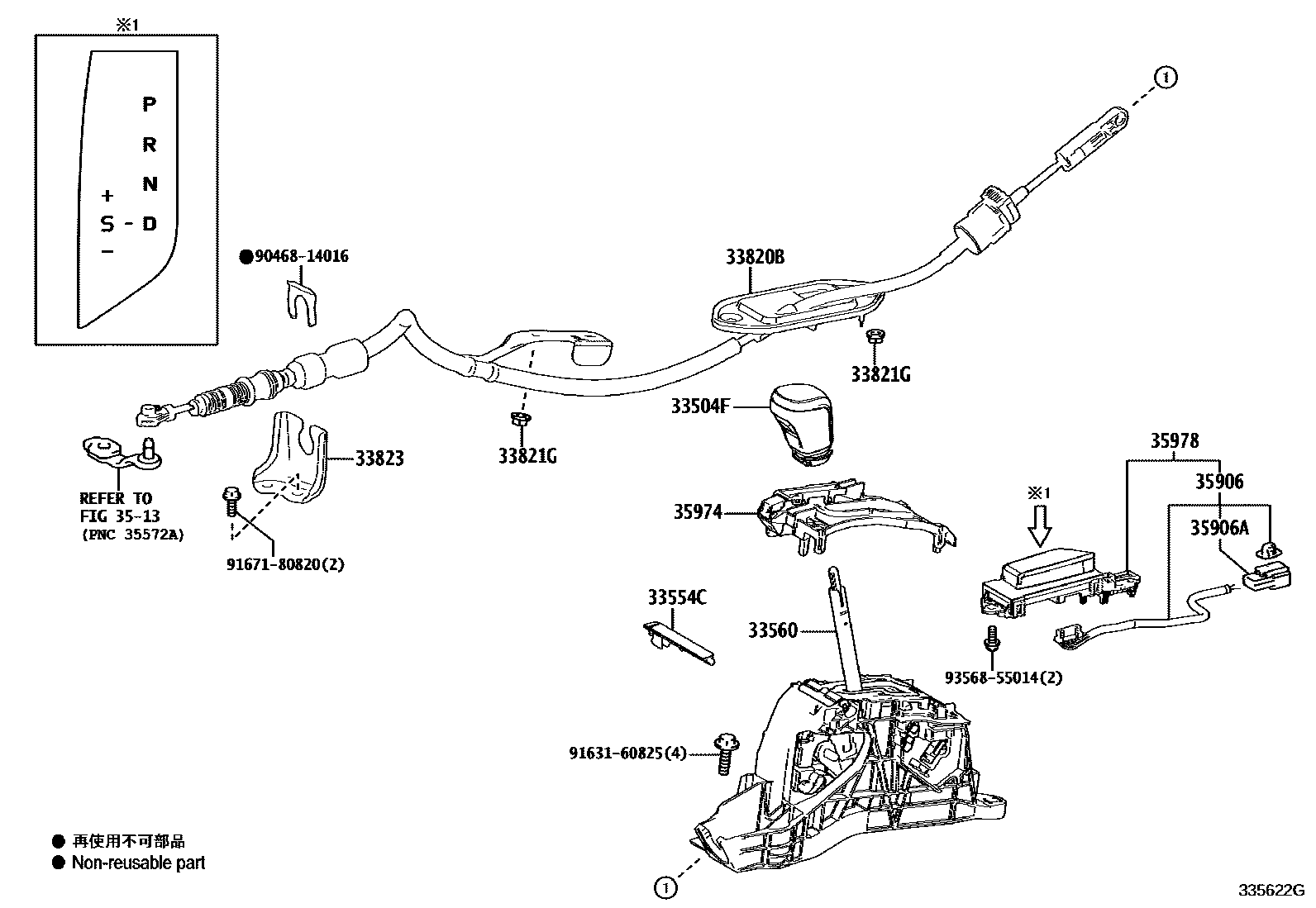

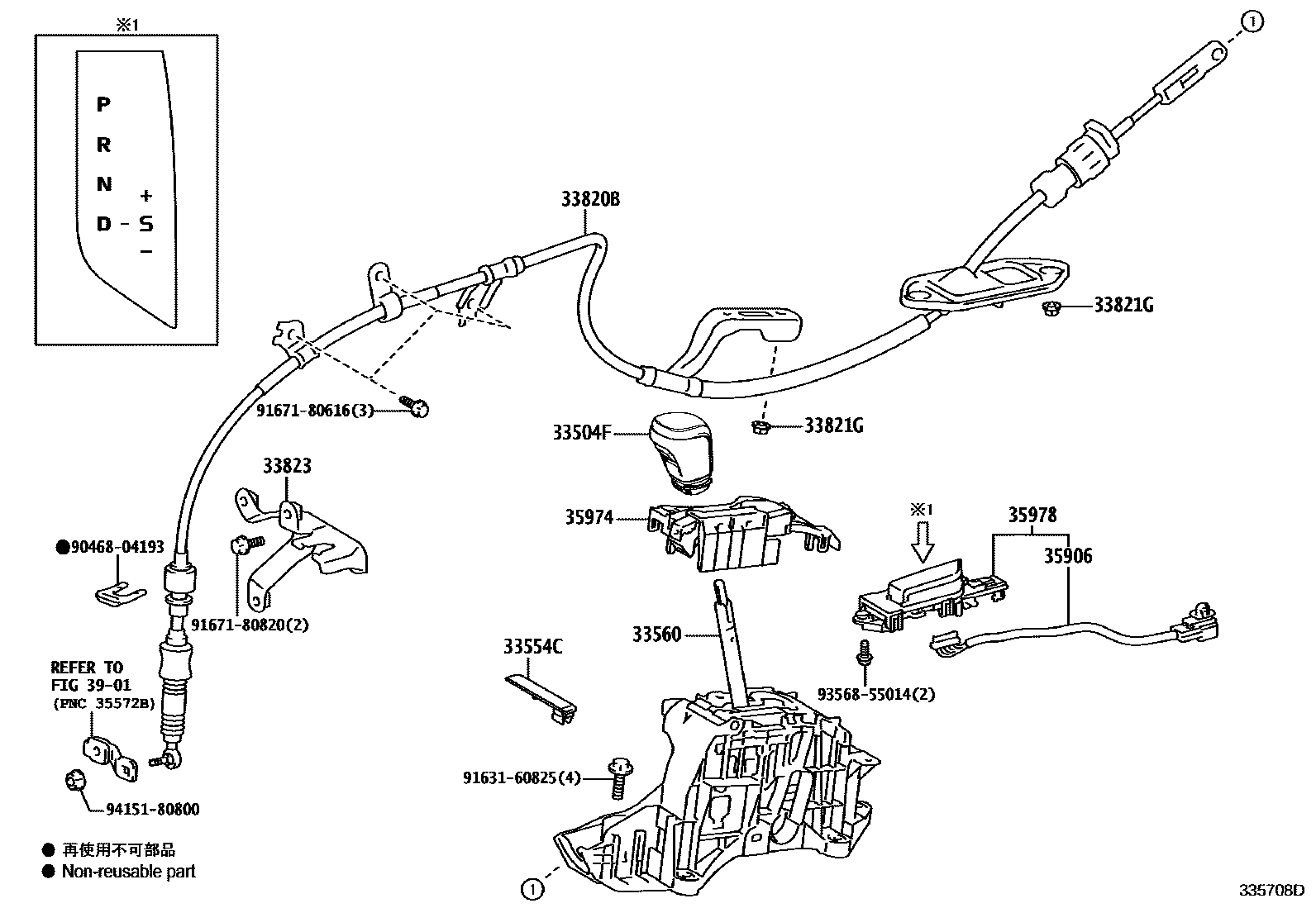

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 7 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554C | Shift lock release button cover | 33554-33130 · 33554-33180 |
| 33560 | Shift lock control unit assembly | 33560-33370 · 33560-33380 · 33560-33390 · 33560-33400 |
| 33820B | Transmission control cable assembly | 33820-33400 · 33820-33410 · 33820-33420 · 33820-33430 · 33820-33440 · 33820-33450 · 33820-33451 · 33820-33470 · 33820-33480 · 33820-33490 · 33820-33500 · 33820-33510 · 33820-33540 · 33820-33560 |
| 33821G | Nut (for transmission control cable) | 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-12310 · 33823-33070 · 33823-33080 · 33823-33110 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08079 · 90119-W0016 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-33180 · 35906-33190 · 35906-33200 · 35906-33210 · 35906-33270 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-33240 · 35974-33250 |
| 35978 | Shift lever position indicator light | 35978-33180 · 35978-33190 · 35978-33200 · 35978-33210 · 35978-33370 |
