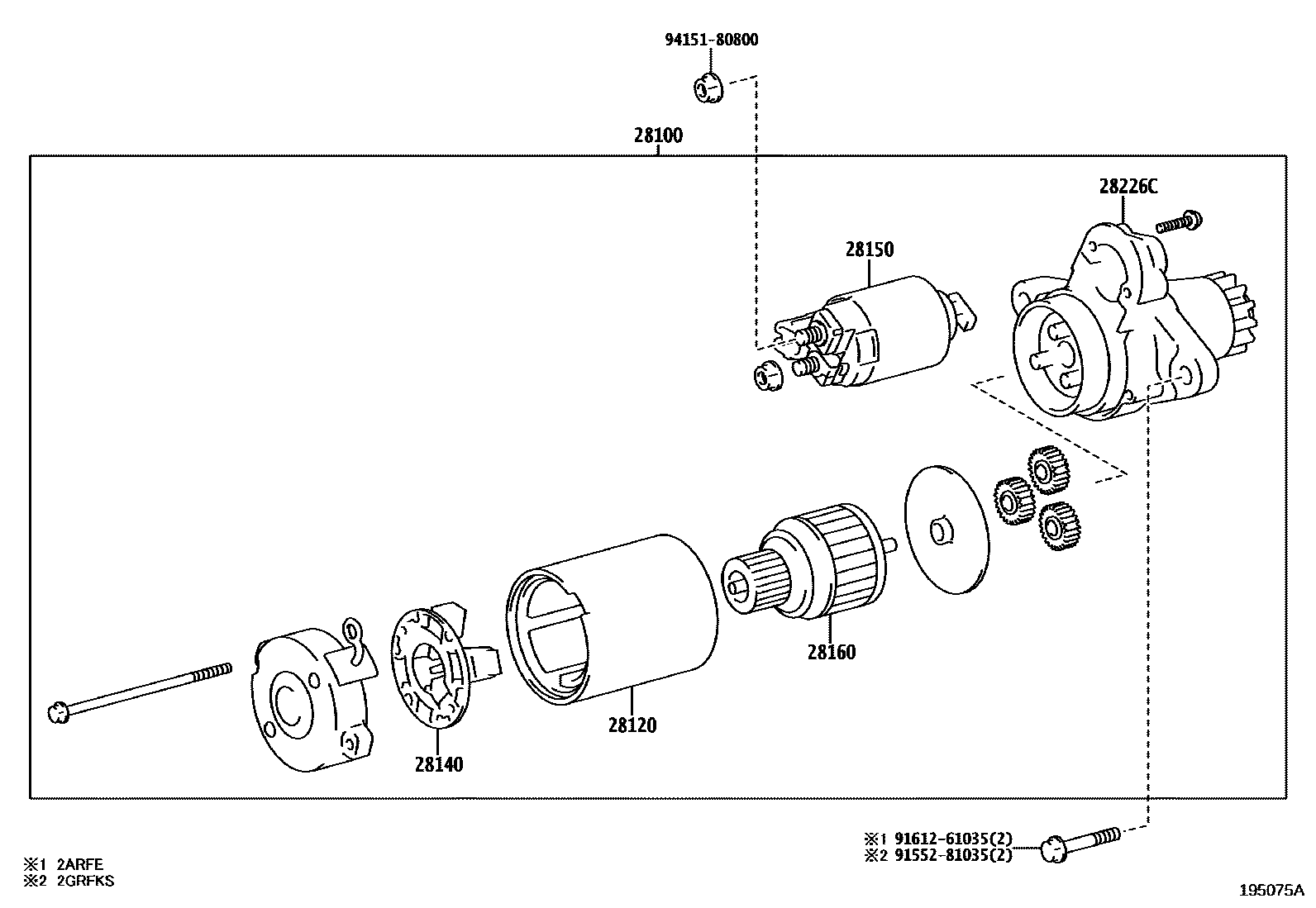

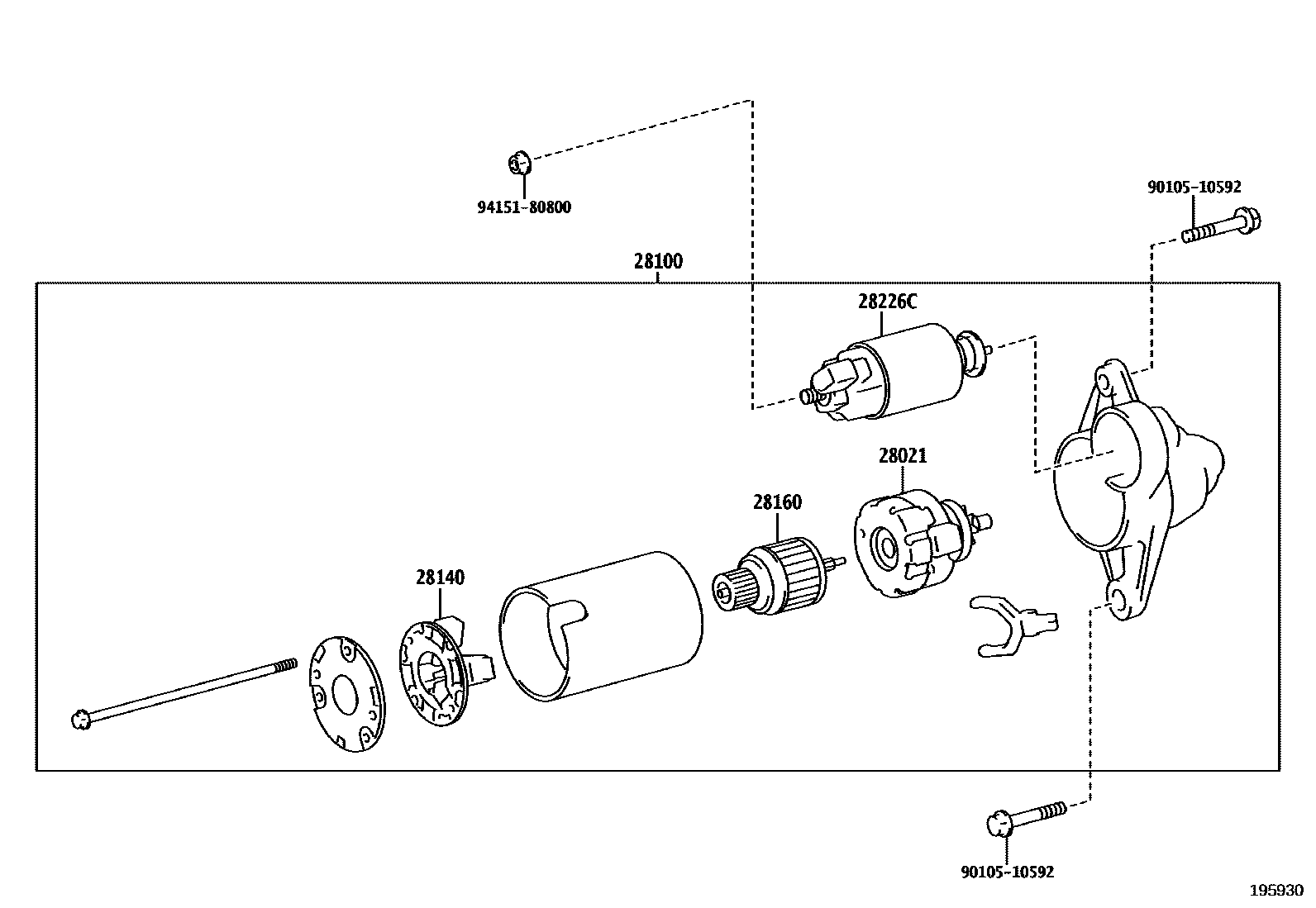

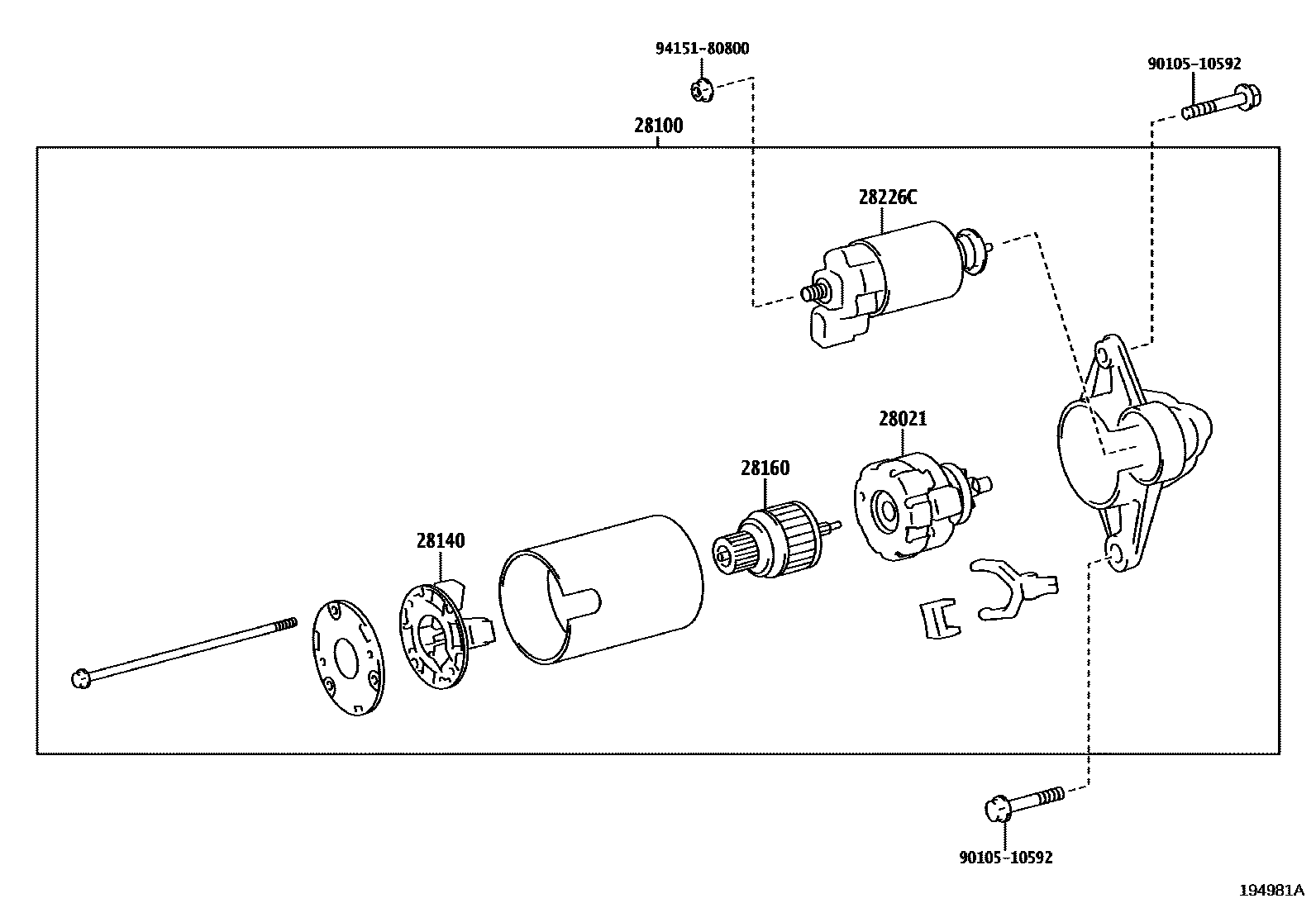

Toyota CAMRY 起动机 — Figure 1904
Toyota CAMRY EPC diagram 1904, 起动机, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-24120 · 28021-25050 · 28021-K0040 |
| 28100 | Starter assembly | 28100-24120 · 28100-25050 · 28100-31240 · 28100-36180 · 28100-K0050 |
| 28120 | Starter yoke assembly | 28120-31090 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-25050 · 28140-31240 |
| 28150 | Starter electromagnetic switch assembly | 28150-40090 |
| 28160 | Starter armature assembly | 28160-21080 · 28160-31240 · 28160-36190 · 28160-36210 |
| 28226C | No. 2 starter magnetic switch | 28226-24120 · 28226-25050 · 28226-31240 · 28226-36180 · 28226-K0040 |
