Toyota CAMRY Alternator — Figure 1903

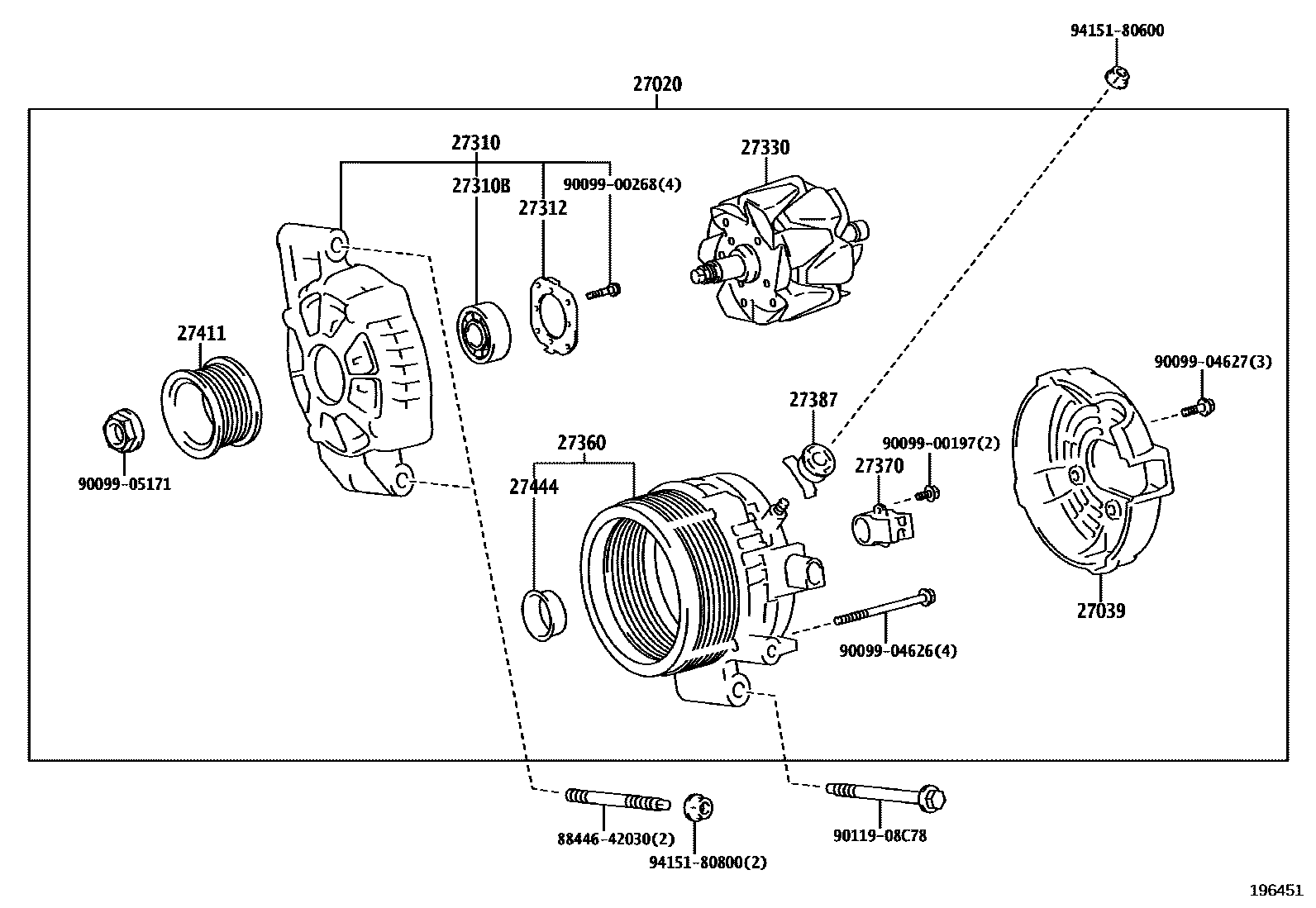

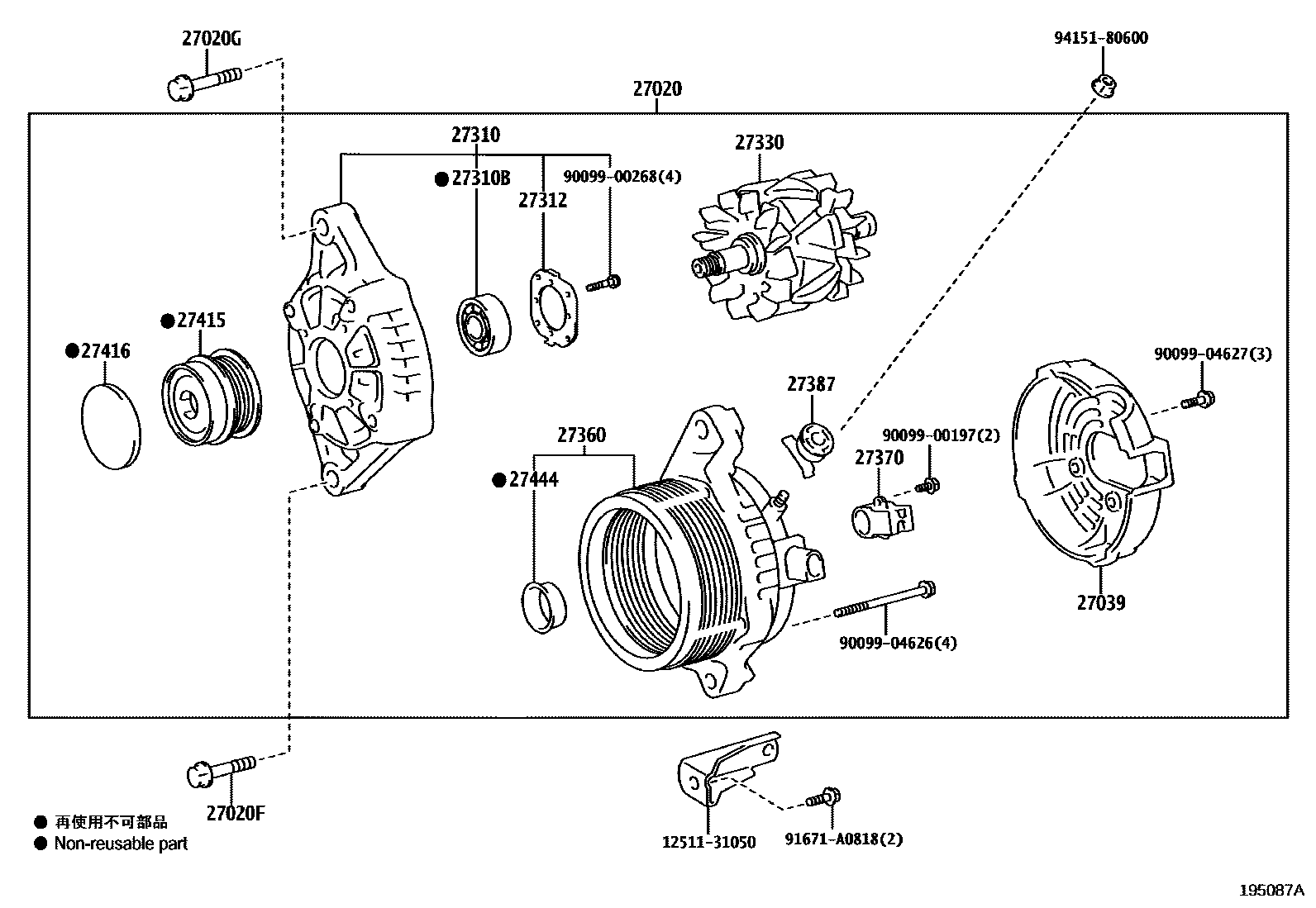

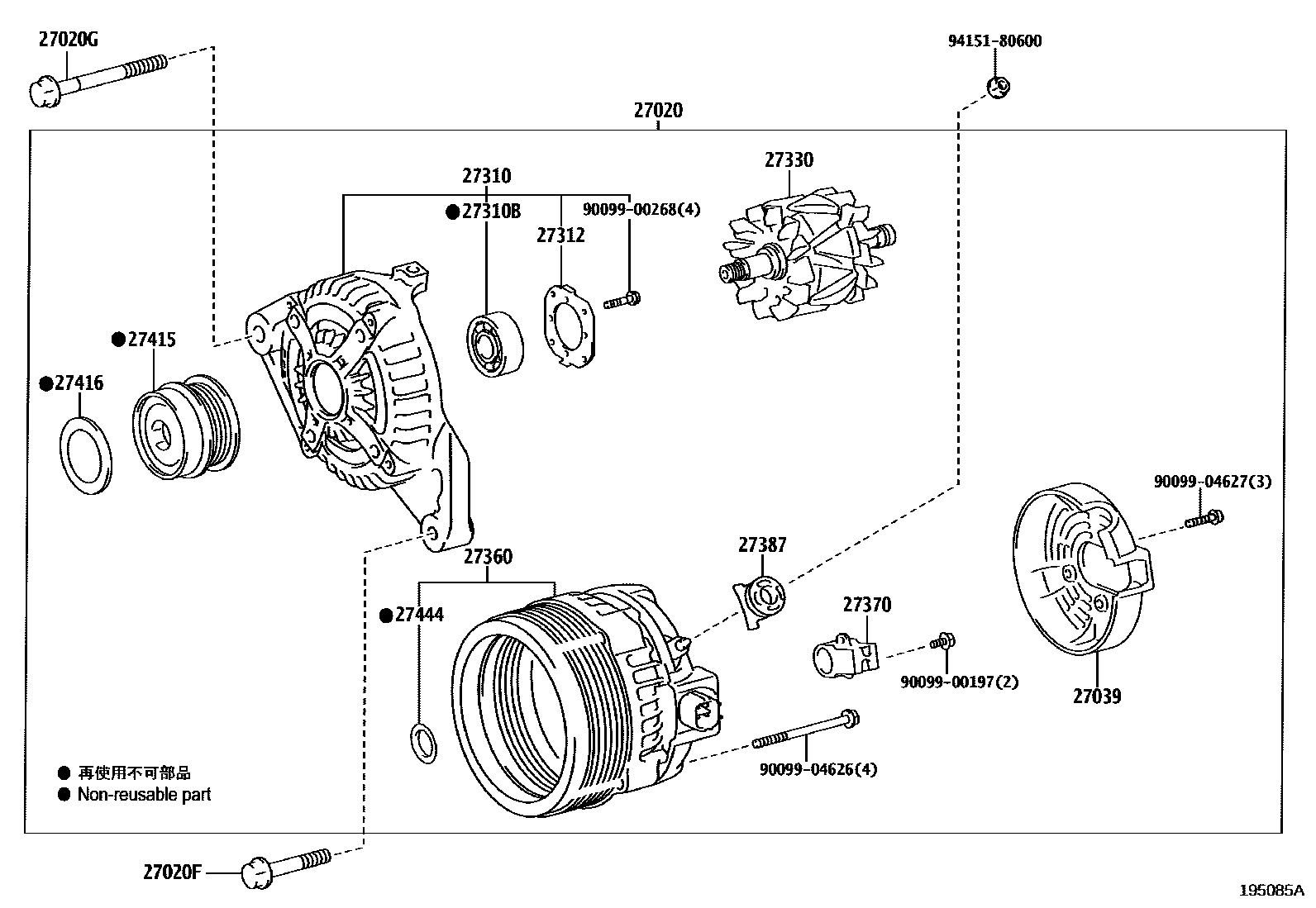

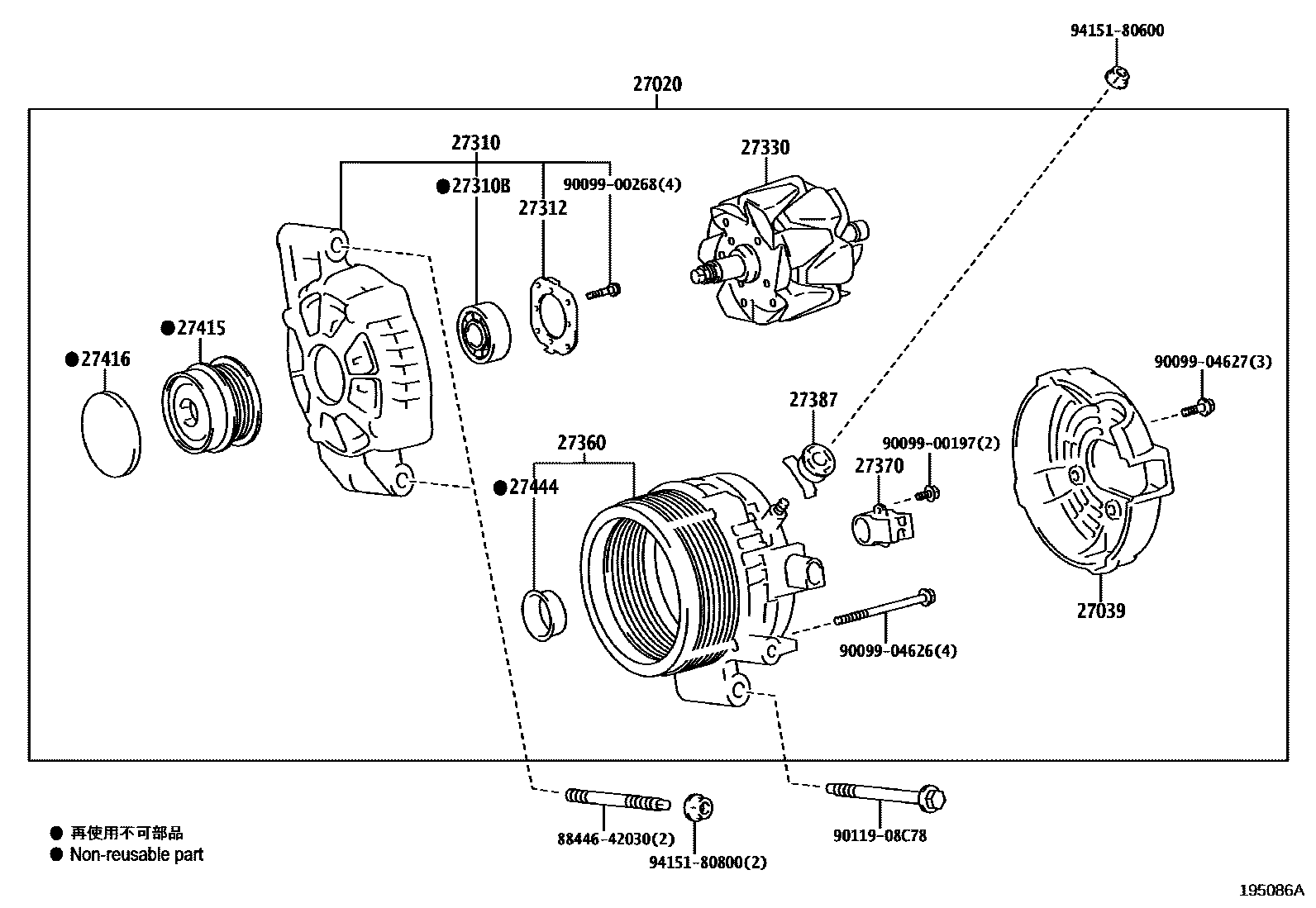

Toyota CAMRY EPC diagram 1903, Alternator, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-24030 · 27060-24080 · 27060-25010 · 27060-31360 · 27060-36140 |
| 27020F | Bolt No. 1 (for generator) | 91552-81040 |
| 27020G | Bolt No. 2 (for generator) | 90105-10562 · 91552-81095 |
| 27039 | Alternator Rear End Cover | 27039-31650 · 27039-37220 |
| 27310 | Alternator Drive End Frame Assembly | 27310-24150 · 27310-25020 · 27310-31590 · 27310-36160 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-47330 |
| 27360 | Alternator Stator Coil Assembly | 27360-24150 · 27360-25020 · 27360-31590 · 27360-31650 · 27360-36220 |
| 27370 | Alternator Brush Holder Assembly | 27370-31220 · 27370-31650 |
| 27387 | Terminal Insulator | 27387-20130 |
| 27411 | Alternator Pulley | 27411-50190 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0P020 · 27415-0W021 · 27415-24010 · 27415-F0010 |
| 27416 | Generator pulley cover | 27416-0W050 · 27416-47010 |
| 27444 | Generator bearing cap seals | 27444-21190 |
