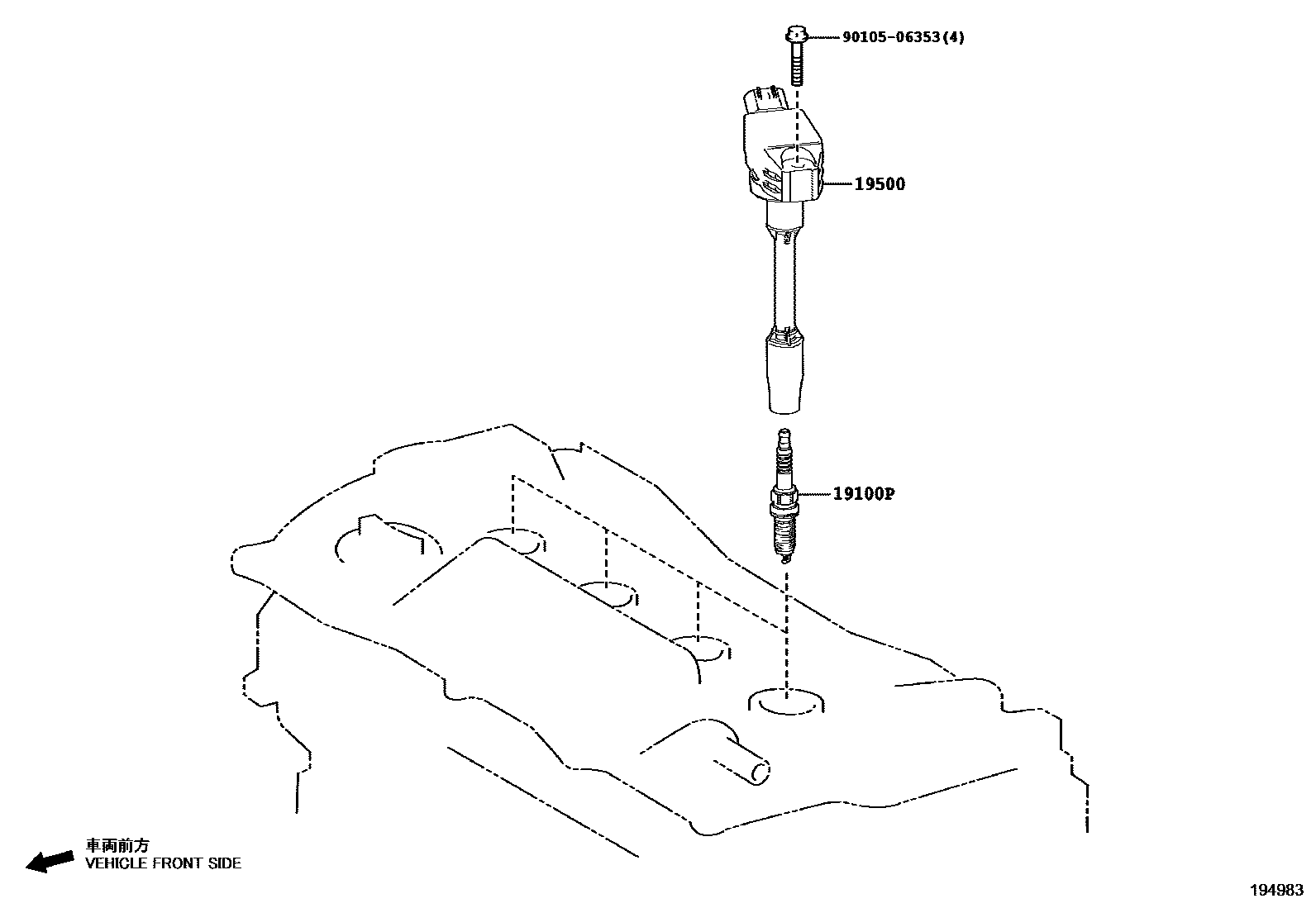

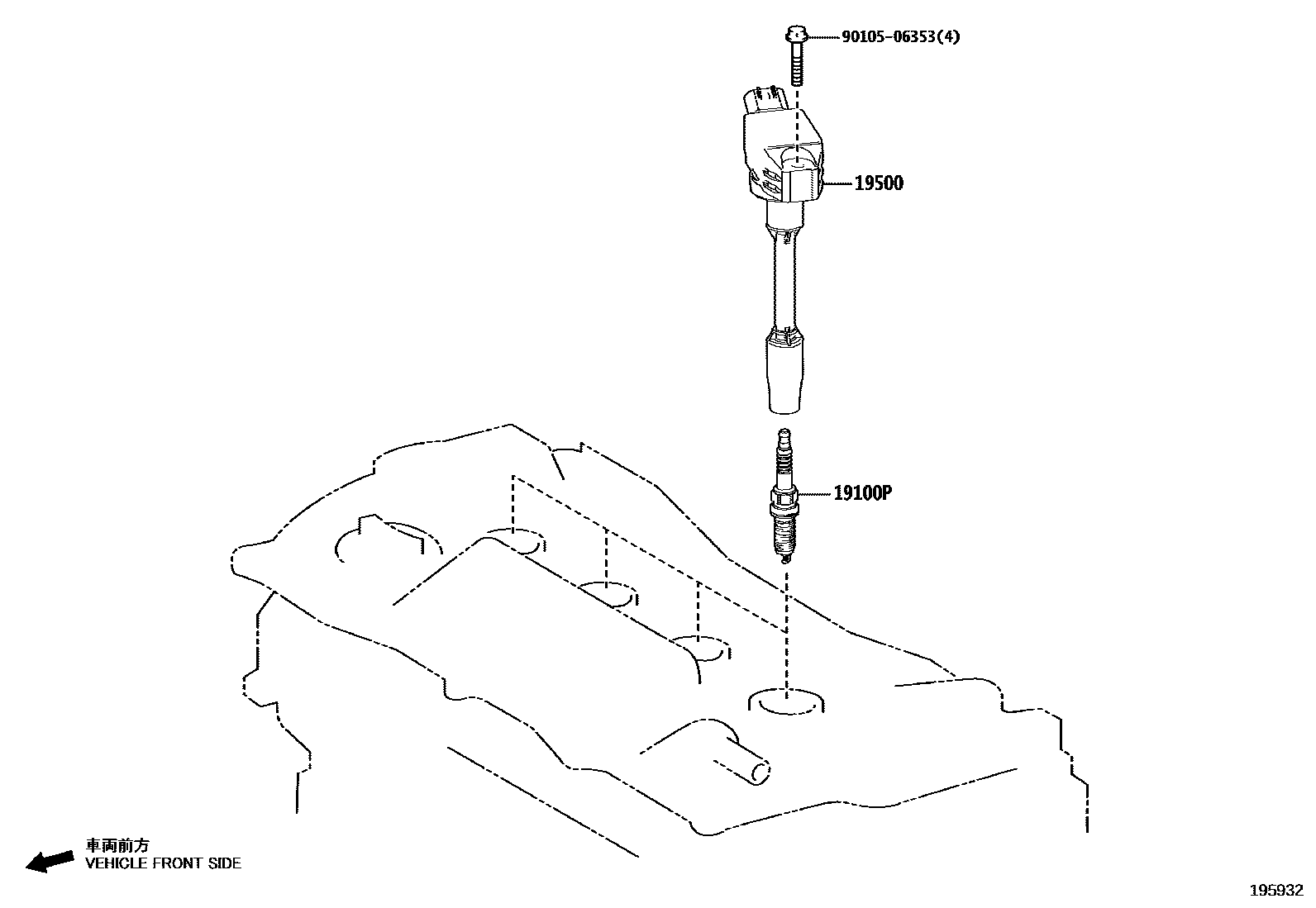

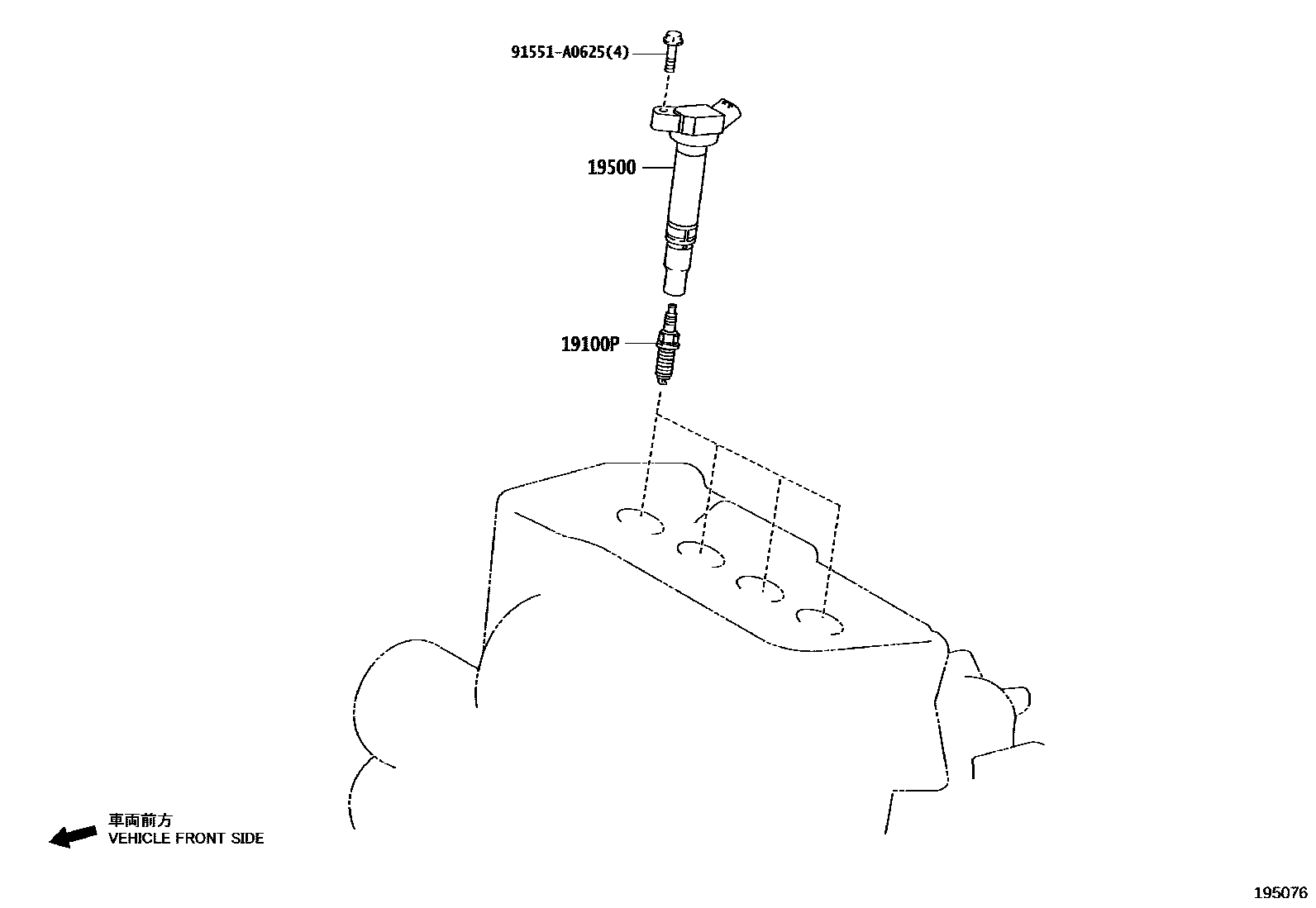

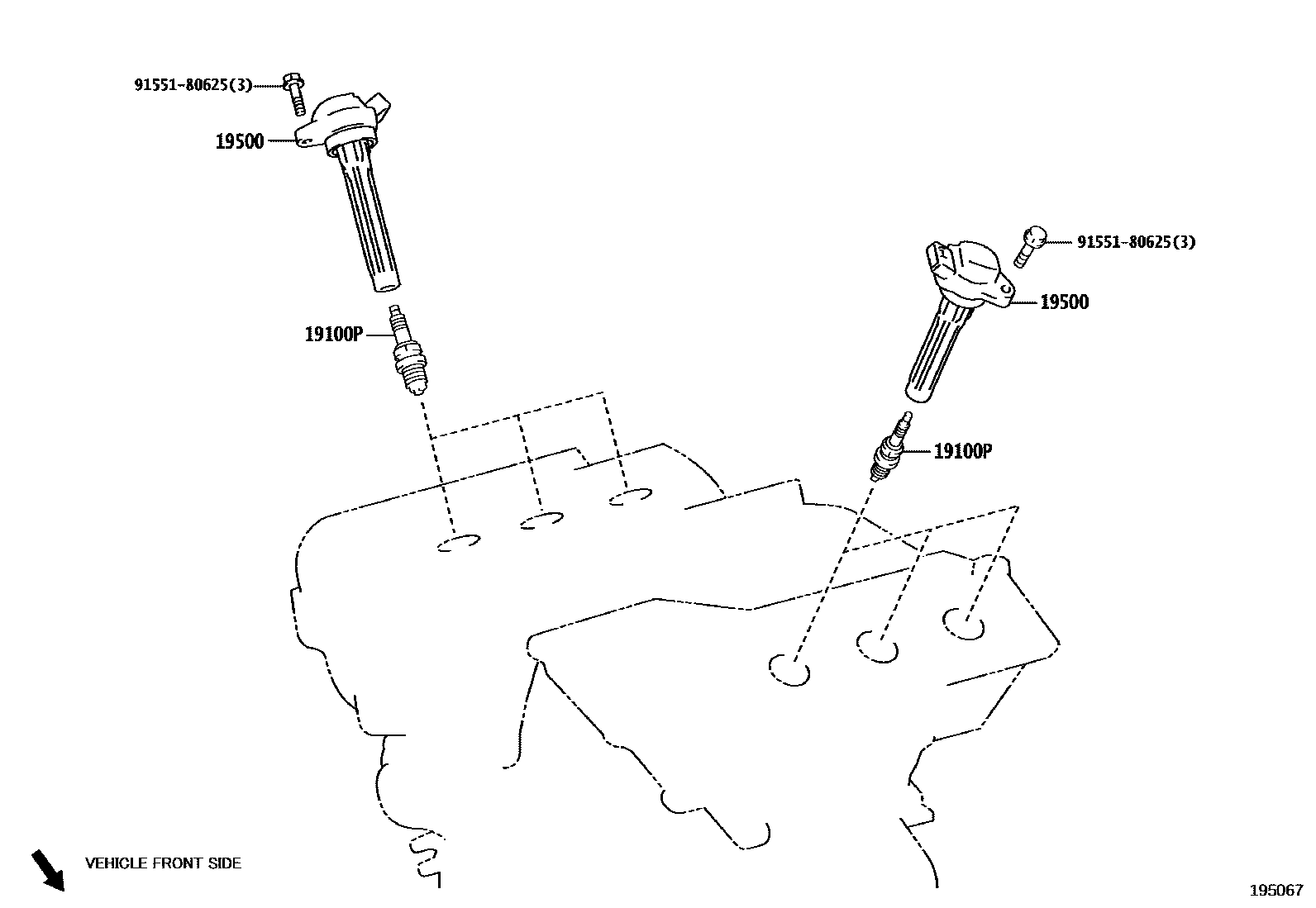

Toyota CAMRY 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota CAMRY EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01233 · 90919-01263 · 90919-01289 · 90919-01297 |
| 19500 | Ignition coil assembly | 90919-02256 · 90919-02273 · 90919-02276 · 90919-02277 · 90919-02280 |
