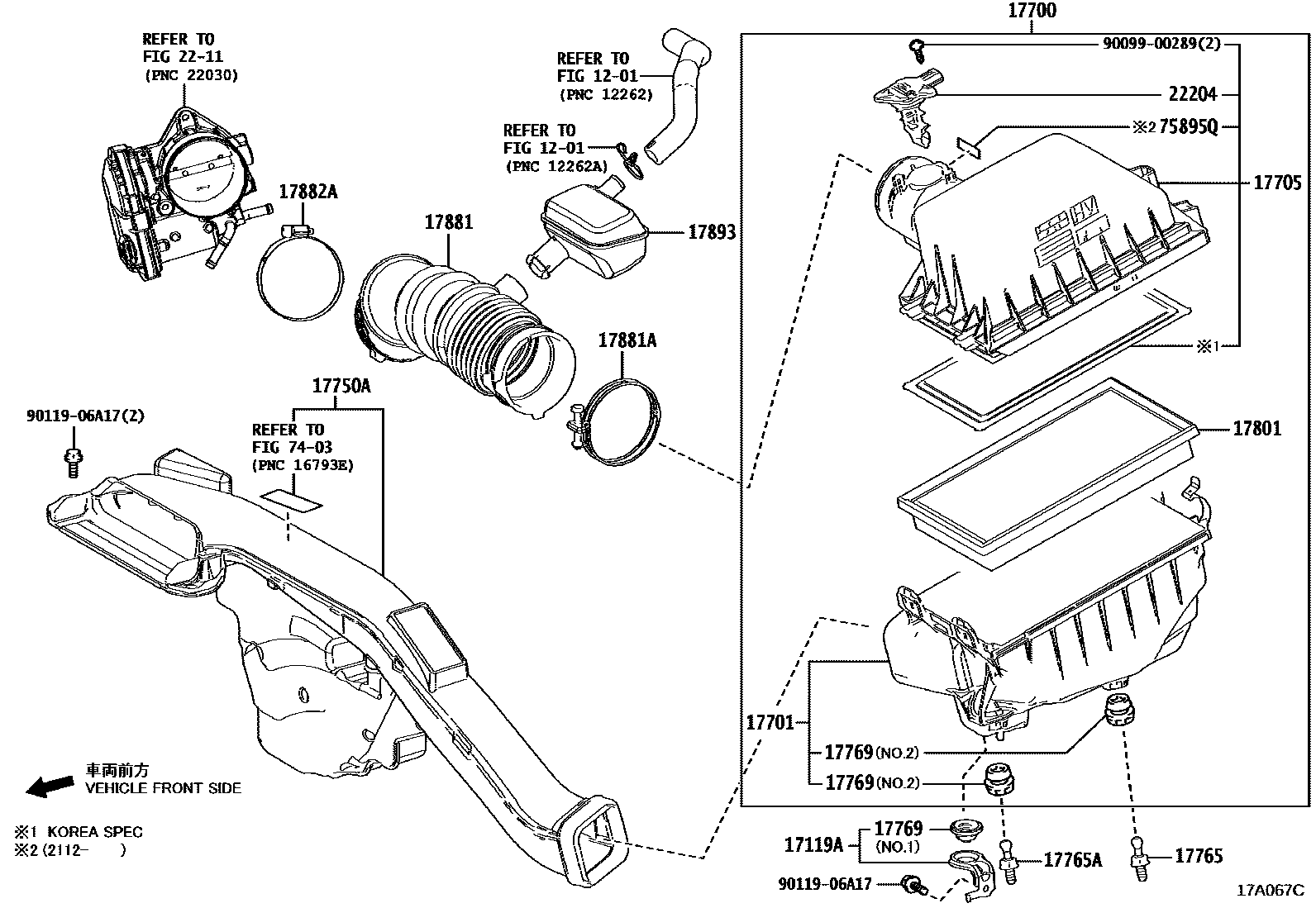

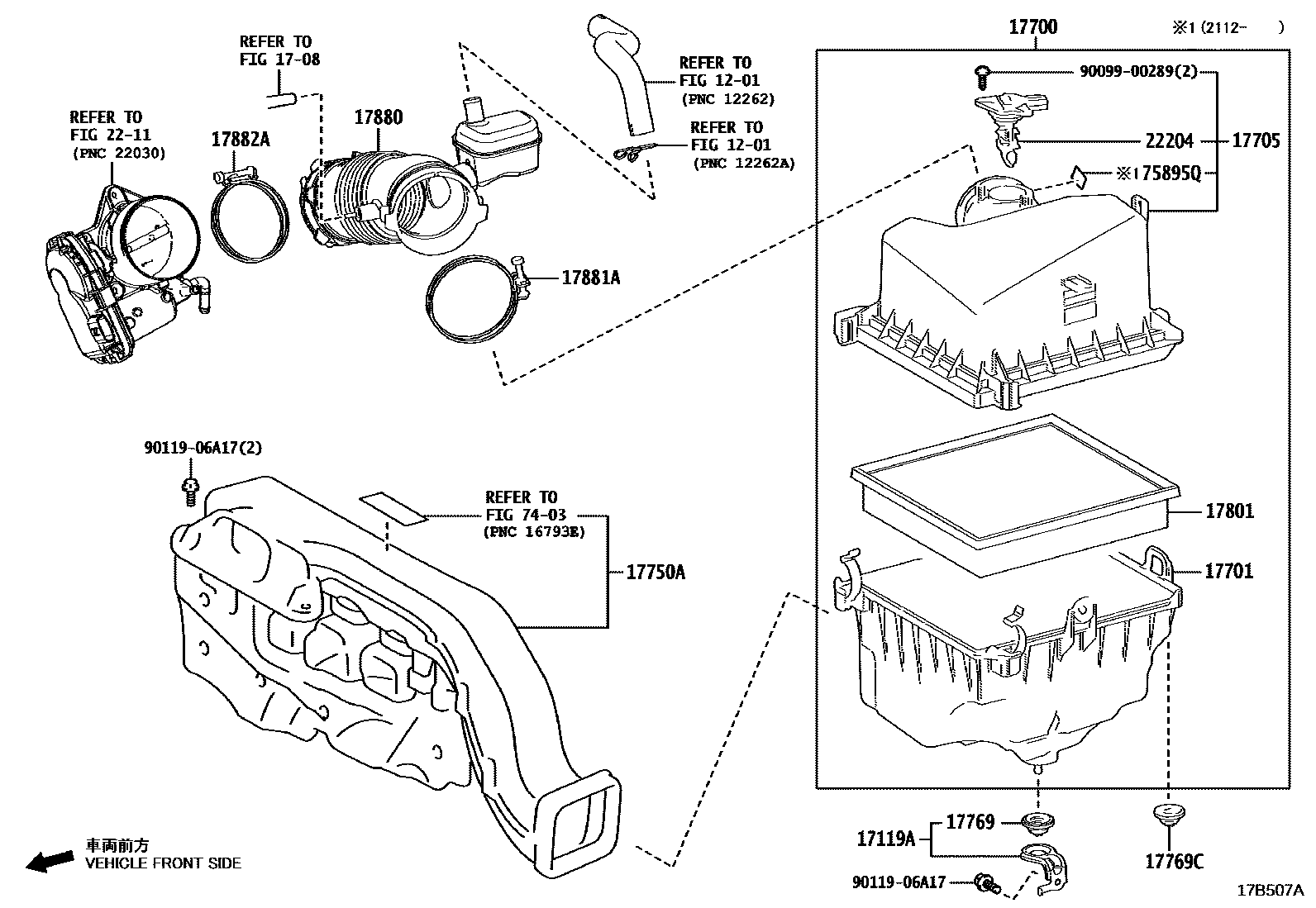

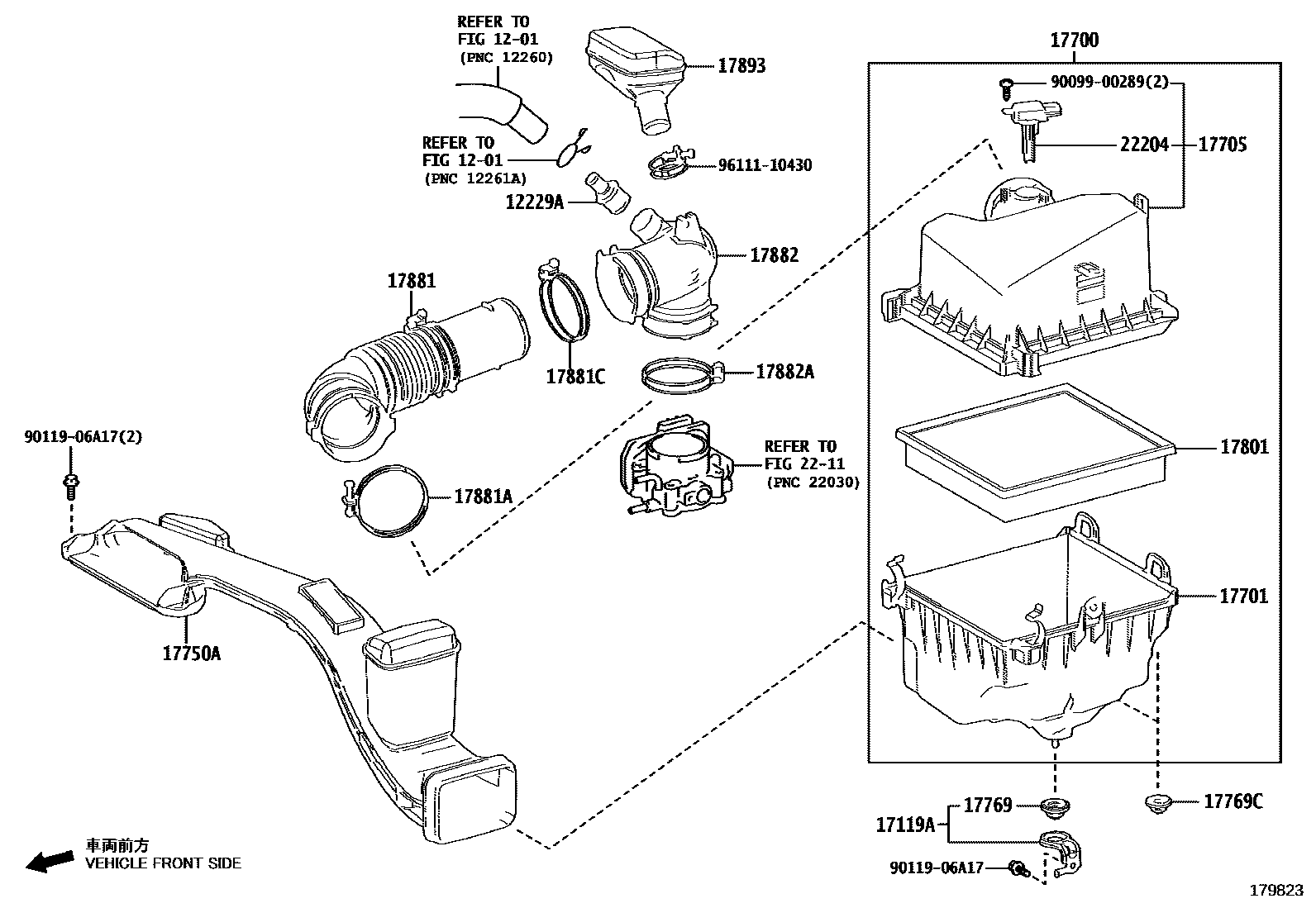

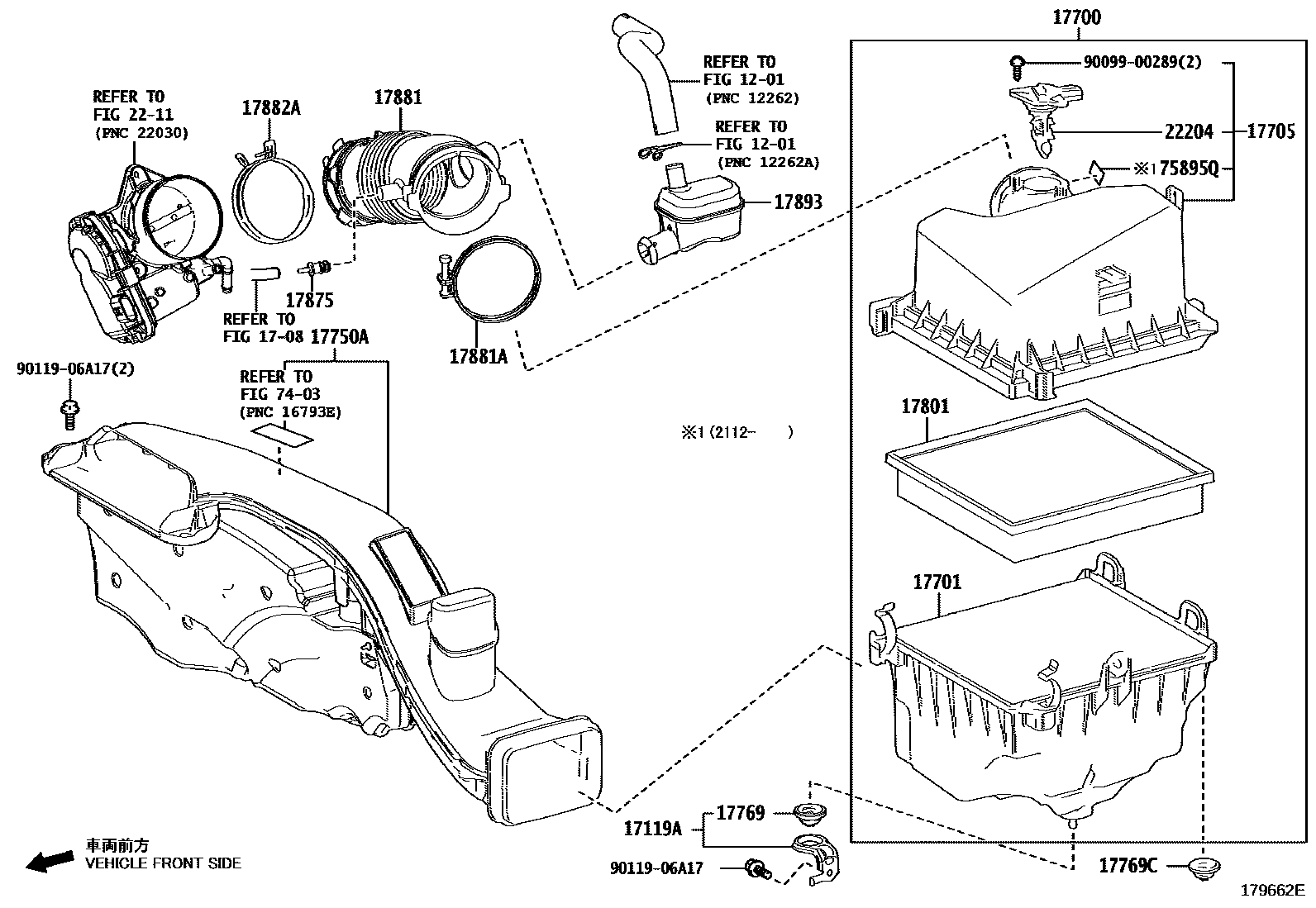

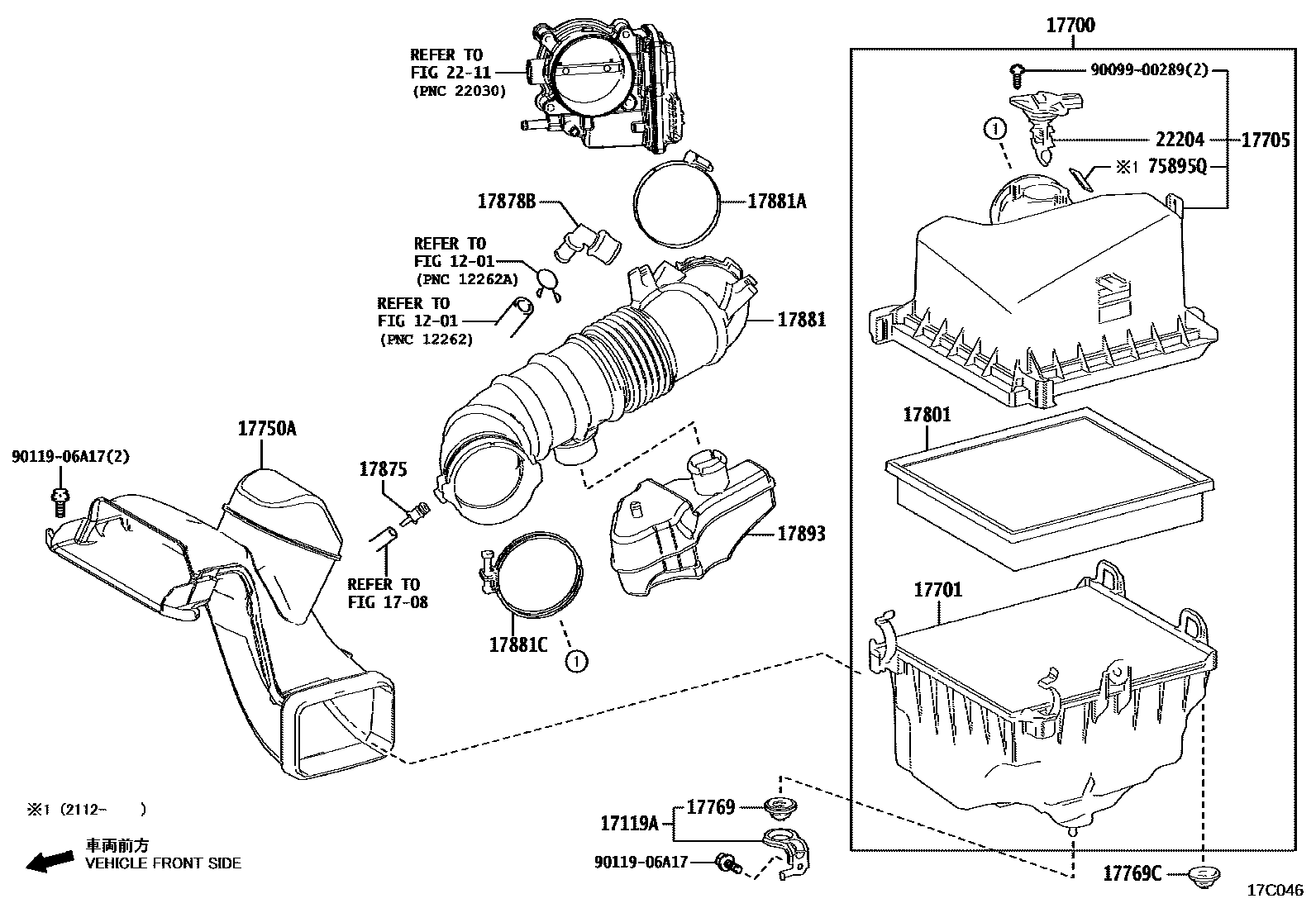

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-33010 |
| 17119A | air filter bracket | 17119-25010 |
| 17700 | air filter assembly | 17700-25080 · 17700-25081 · 17700-25090 · 17700-25091 · 17700-25100 · 17700-25101 · 17700-25110 · 17700-25111 · 17700-25151 |
| 17701 | Air filter housing sub-assembly | 17701-25070 · 17701-25071 · 17701-25080 · 17701-25081 · 17701-25101 |
| 17705 | Air filter cover sub-assembly | 17705-25050 · 17705-25060 · 17705-25070 · 17705-25080 |
| 17750A | Air filter air inlet assembly | 17750-24020 · 17750-25010 · 17750-25020 · 17750-31060 · 17750-36070 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17765A | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25020 · 17769-25030 |
| 17769C | No. 1 air filter bracket | 17769-25020 |
| 17801 | Air filter element sub-assembly | 17801-25020 · 17801-77050 |
| 17875 | Intake connecting pipe | 17875-25010 · 17875-31010 |
| 17878B | ventilation duct | 17878-31020 |
| 17880 | Air cleaner hose assembly | 17880-24020 |
| 17881 | No. 1 air cleaner hose | 17881-25020 · 17881-25030 · 17881-31440 · 17881-36200 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-90005 · 96111-10850 · 96111-10880 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10850 · 96111-10880 |
| 17882 | No. 2 air cleaner hose | 17882-36050 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 17891-31010 · 90466-71001 · 96111-10830 · 96111-20800 |
| 17893 | Intake resonator | 17893-25010 · 17893-25040 · 17893-31190 · 17893-36180 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-75040 |
| 75895Q | No. 1 protective strip tape | 75895-52050 |
