Toyota CAMRY Manifold — Figure 1701

Toyota CAMRY EPC diagram 1701, Manifold, with 8 images and 21 PNC and OE references.

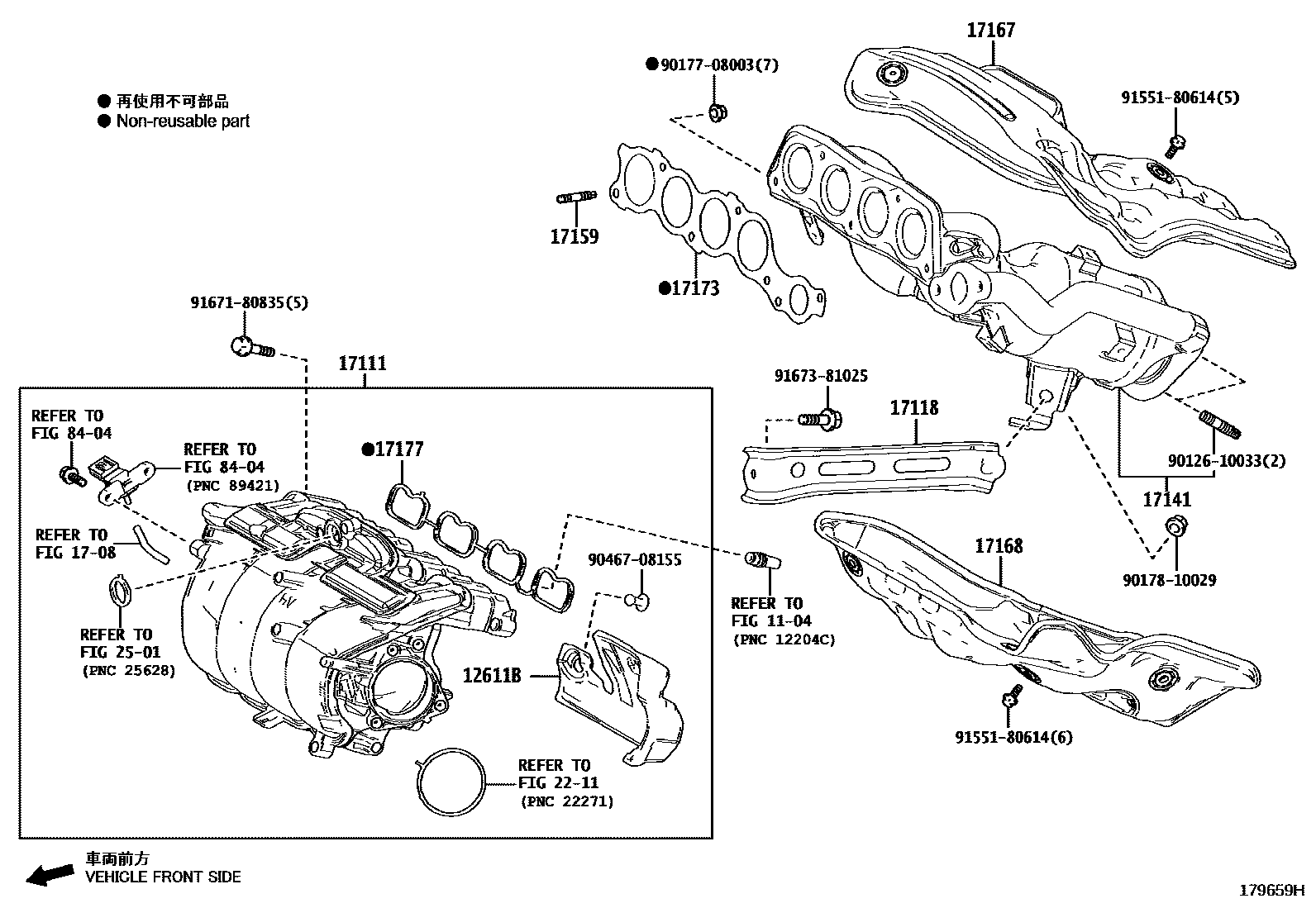

Toyota CAMRY Manifold EPC diagram — 179659H — Manifold — 179659H (201712 – 202009)

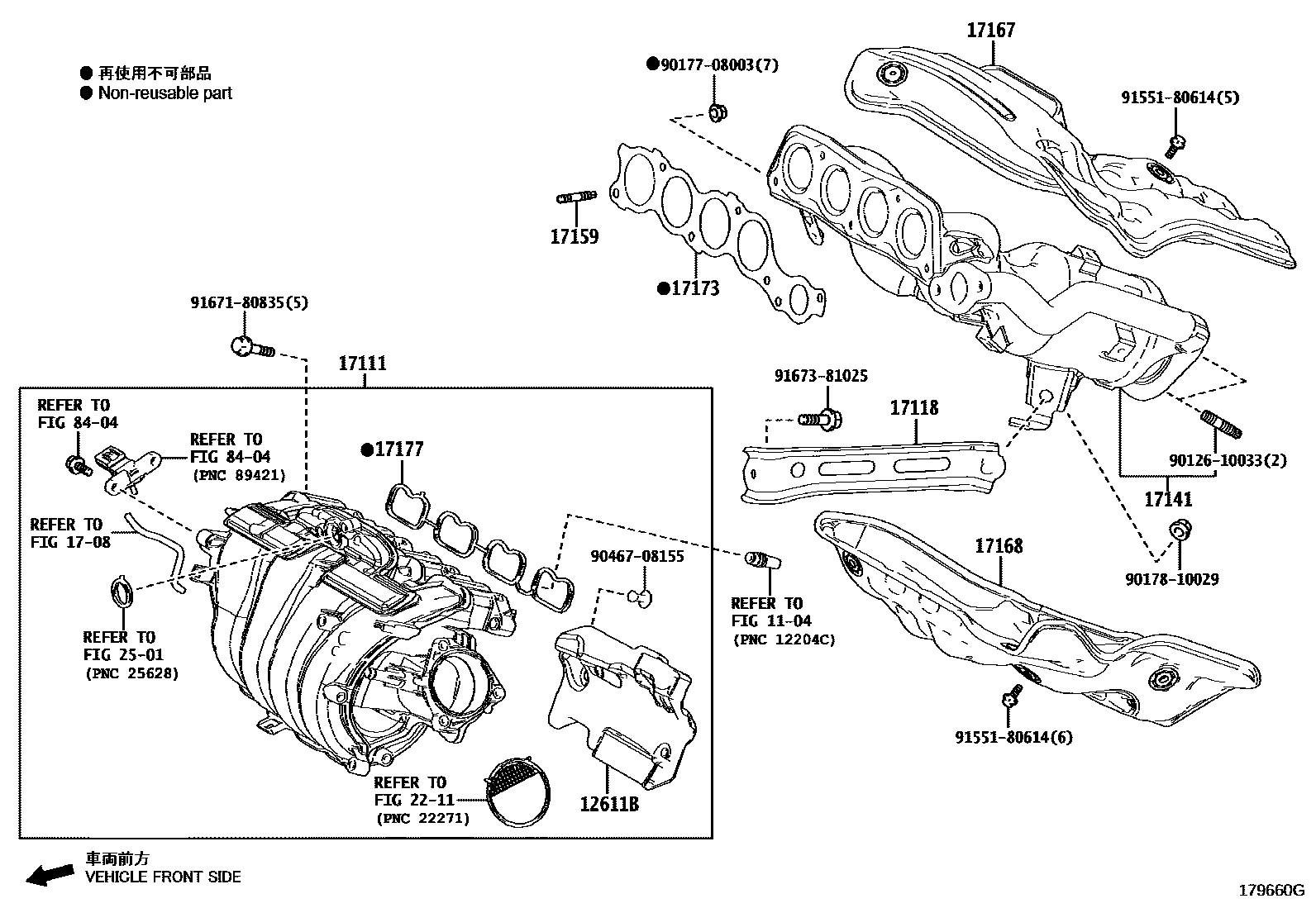

Toyota CAMRY Manifold EPC diagram — 179660G — Manifold — 179660G (201712 – 202009)

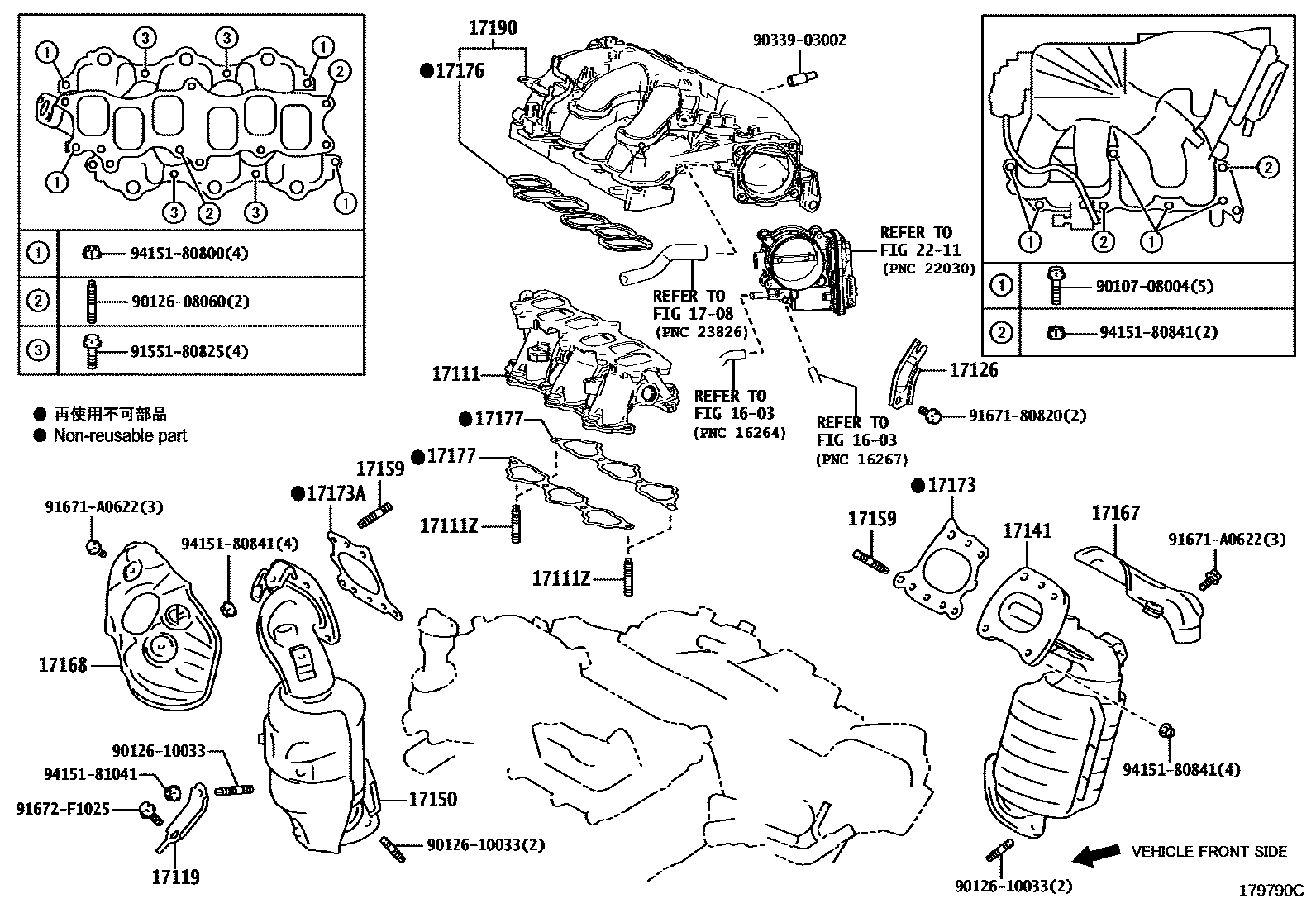

Toyota CAMRY Manifold EPC diagram — 179790C — Manifold — 179790C (201712 – 999999)

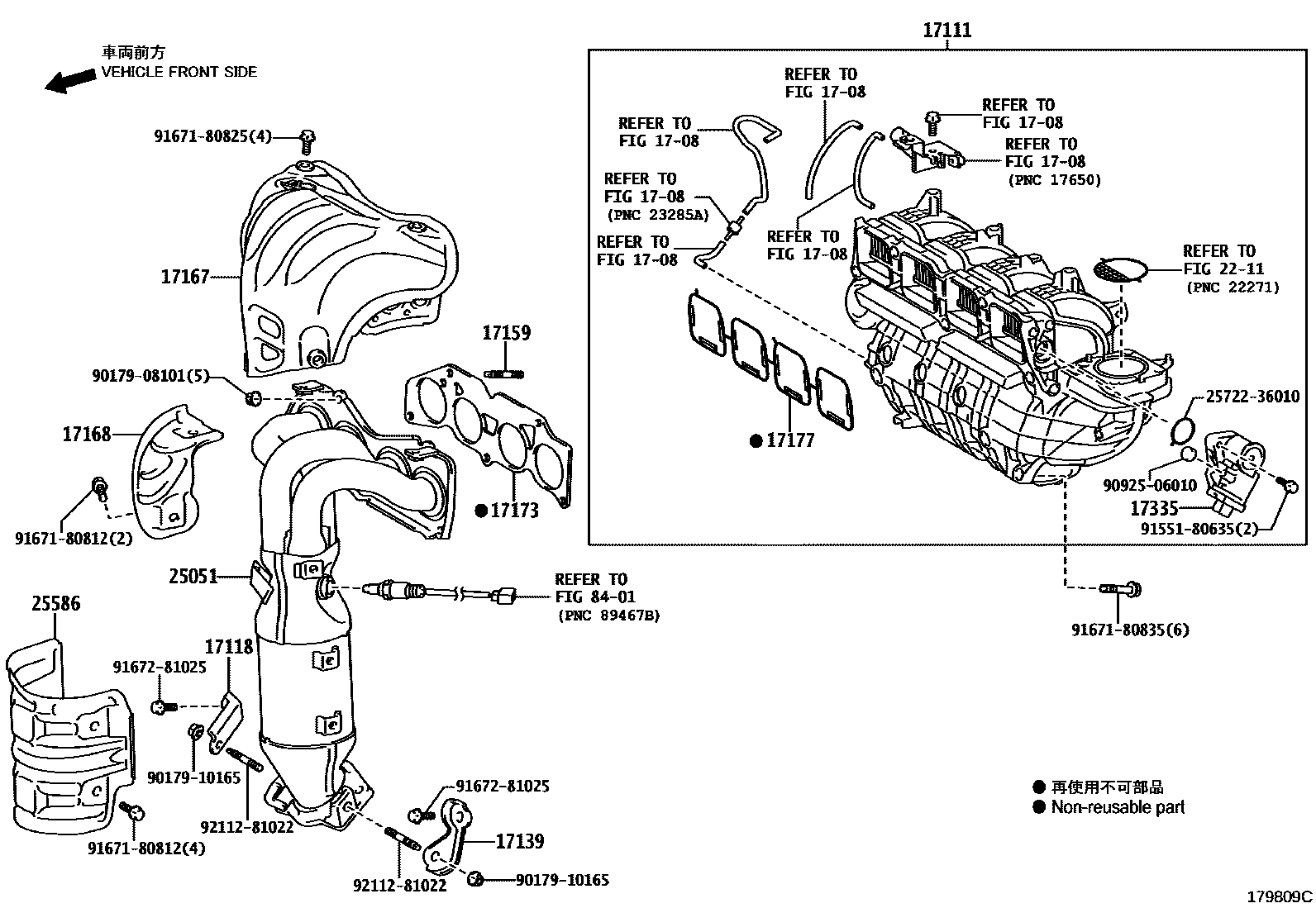

Toyota CAMRY Manifold EPC diagram — 179809C — Manifold — 179809C (201709 – 999999)

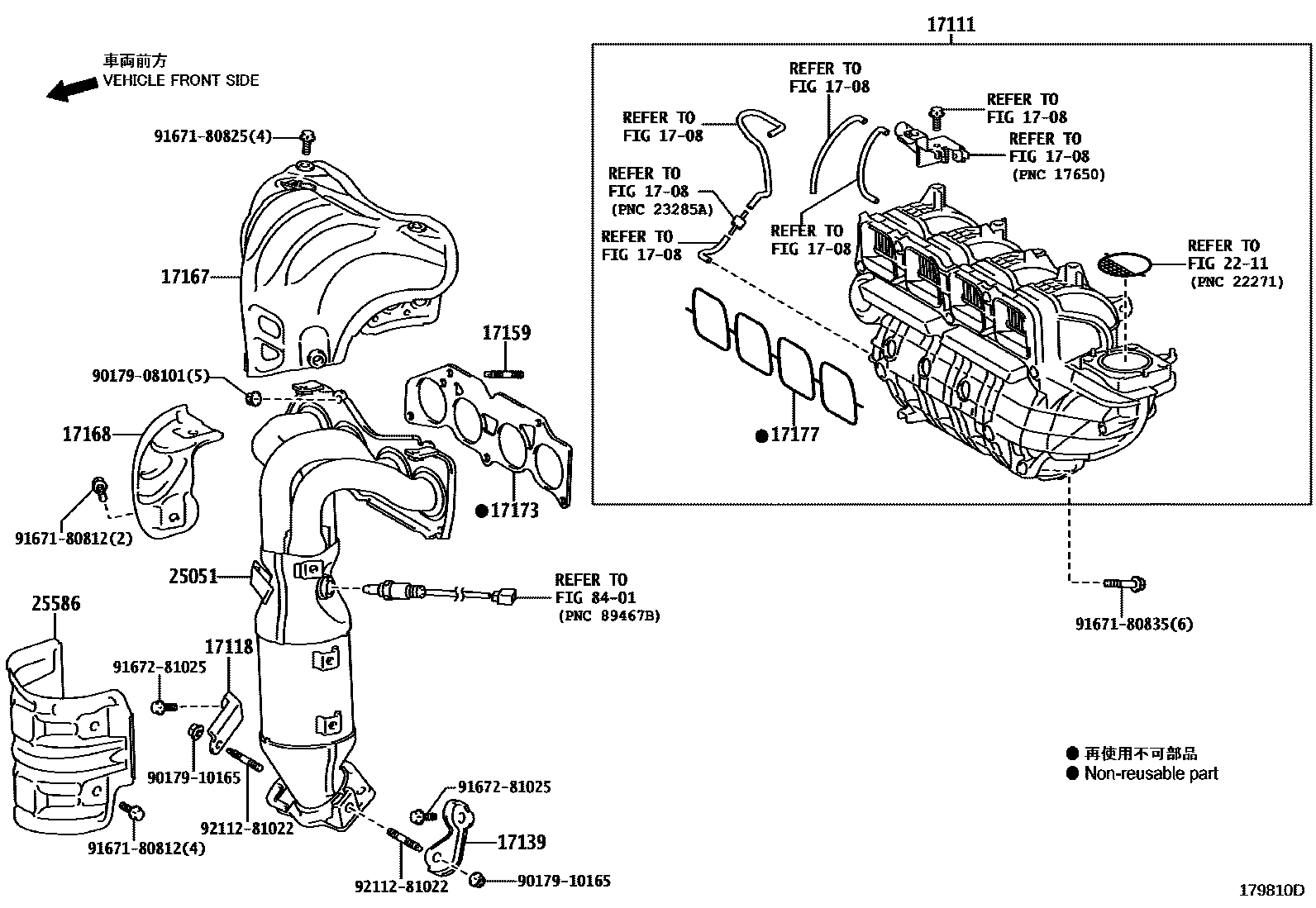

Toyota CAMRY Manifold EPC diagram — 179810D — Manifold — 179810D (201709 – 999999)

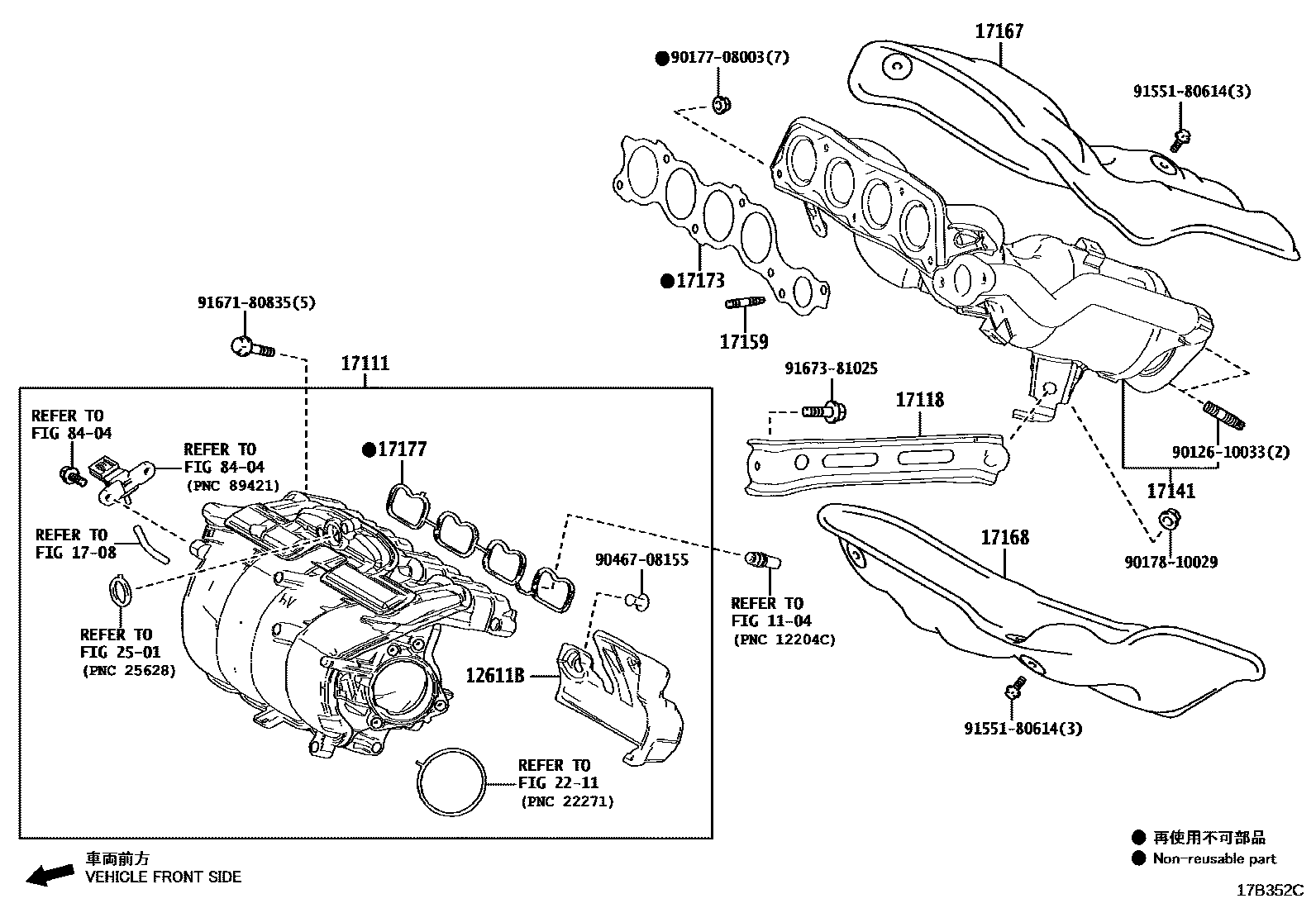

Toyota CAMRY Manifold EPC diagram — 17B352C — Manifold — 17B352C (202009 – 999999)

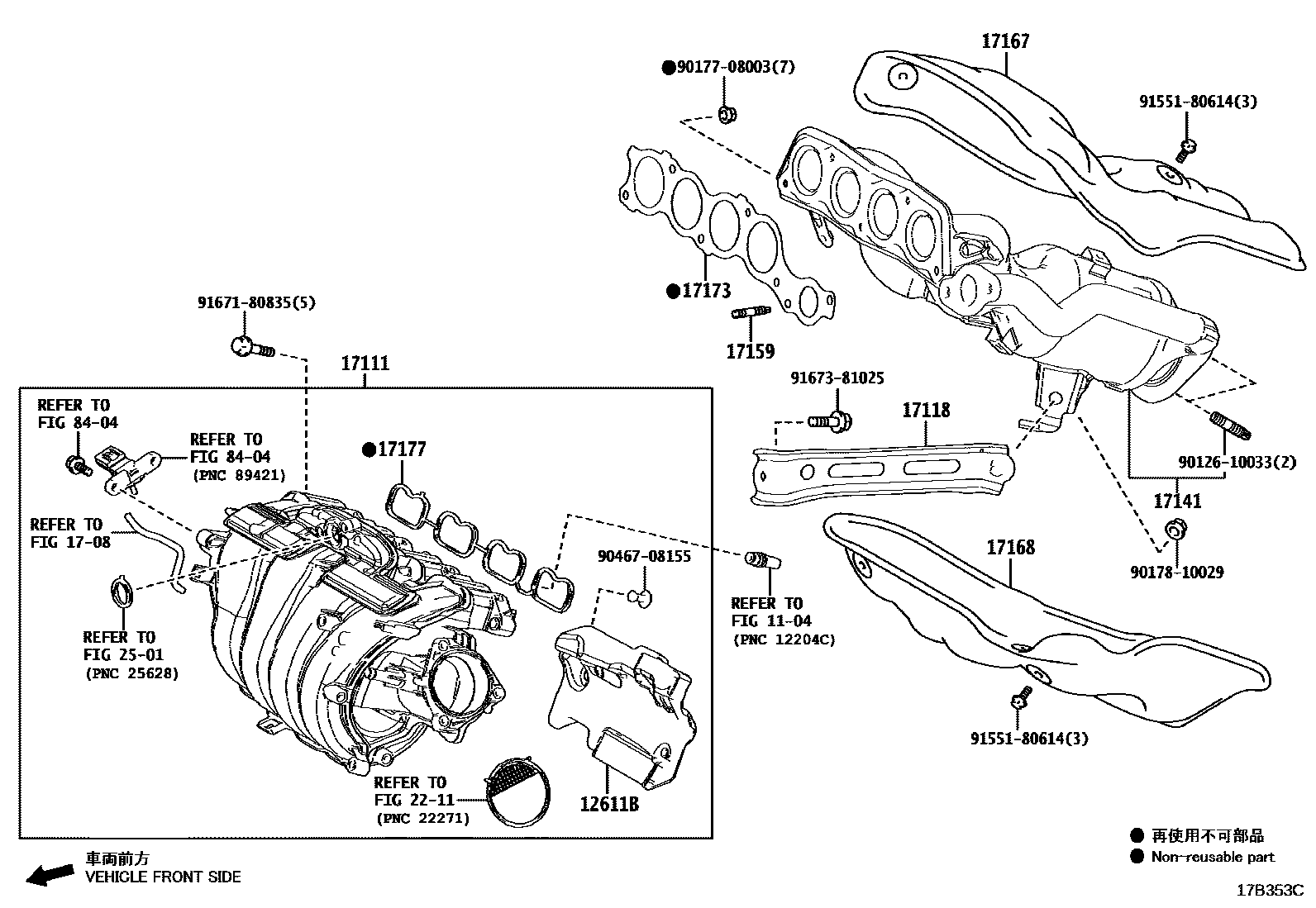

Toyota CAMRY Manifold EPC diagram — 17B353C — Manifold — 17B353C (202009 – 999999)

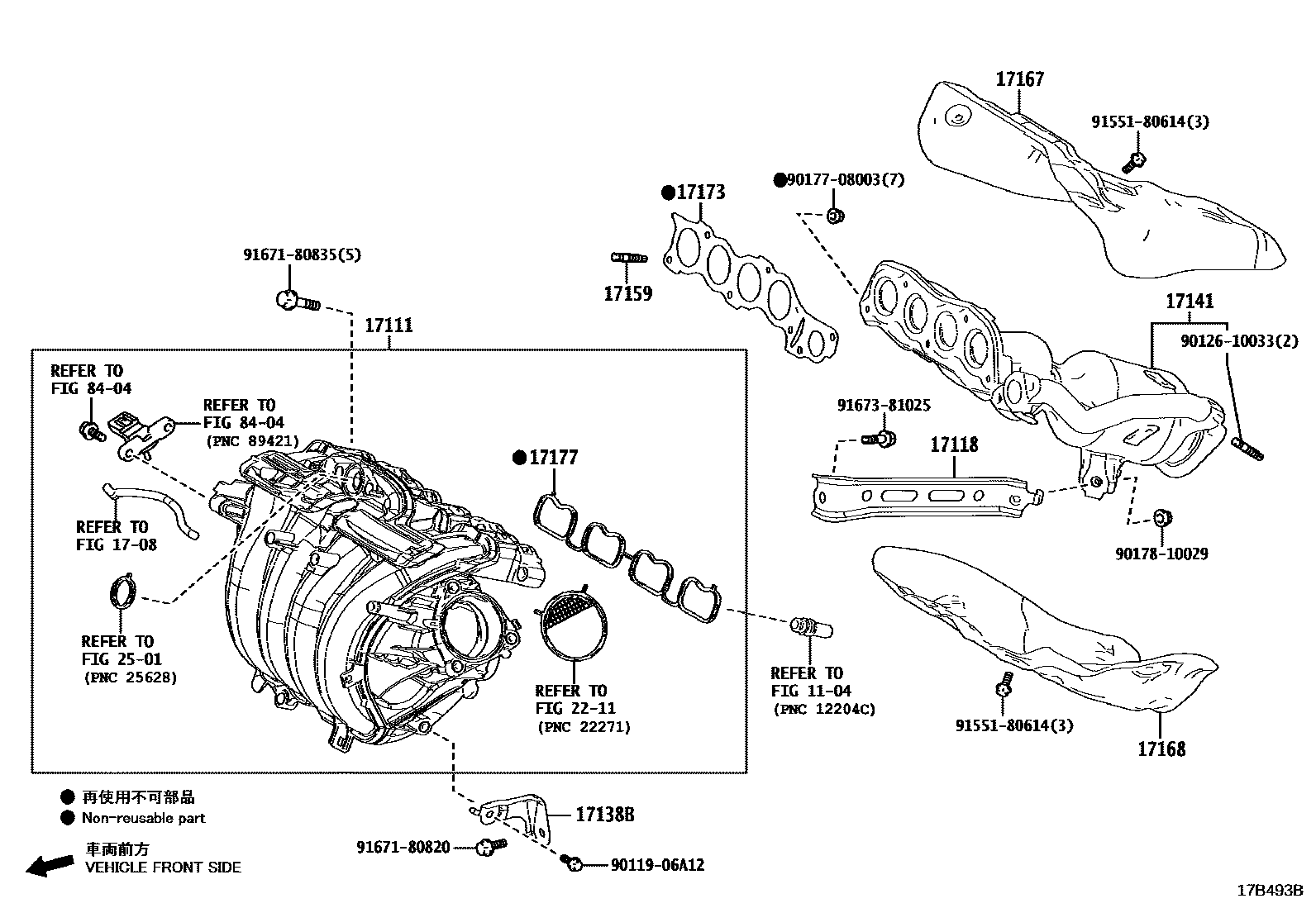

Toyota CAMRY Manifold EPC diagram — 17B493B — Manifold — 17B493B (202102 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12611B	Engine hood No. 1	12613-25010 · 12613-25020
17111	Intake Manifold	17111-31230 · 17120-24010 · 17120-25010 · 17120-25020 · 17120-36011 · 17120-36070
17111Z	Stud bolts (for intake manifold to cylinder head)	90126-08052
17118	Manifold stays	17118-24020 · 17118-25010 · 17118-25030 · 17118-36010
17119	No. 2 manifold stay	17119-31150
17126	No. 2 pressure tank stay	17126-31090
17138B	Intake manifold stay	17138-24010
17139	No. 2 manifold stay	17139-36020
17141	exhaust manifold	17140-31A60 · 17141-24090 · 17141-25030 · 17141-25031 · 17141-25040 · 17141-25041 · 17141-25090 · 17141-25630
17150	Left exhaust manifold assembly	17150-31A60
17159	Studs (for manifold to cylinder head)	90126-08037 · 90126-08052
17167	Exhaust manifold No. 1 heat shield	17167-24040 · 17167-25010 · 17167-25040 · 17167-31100 · 17167-36011
17168	Exhaust manifold No.2 insulation pad	17168-24040 · 17168-25010 · 17168-25040 · 17168-31130 · 17168-36010
17173	Gasket (exhaust manifold to cylinder head)	17173-24010 · 17173-25020 · 17173-31070 · 17173-36020
17173A	Left side gasket (exhaust manifold to cylinder head)	17173-31070
17176	Gasket (intake surge tank to intake manifold)	17176-31130
17177	No. 1 gasket (intake manifold to cylinder head)	17171-24020 · 17171-25010 · 17171-36011 · 17171-36020 · 17177-31070
17190	Intake pressure regulator tank assembly	17190-31270
17335	Intake control valve actuator	17335-36010
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-36290
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-36010
