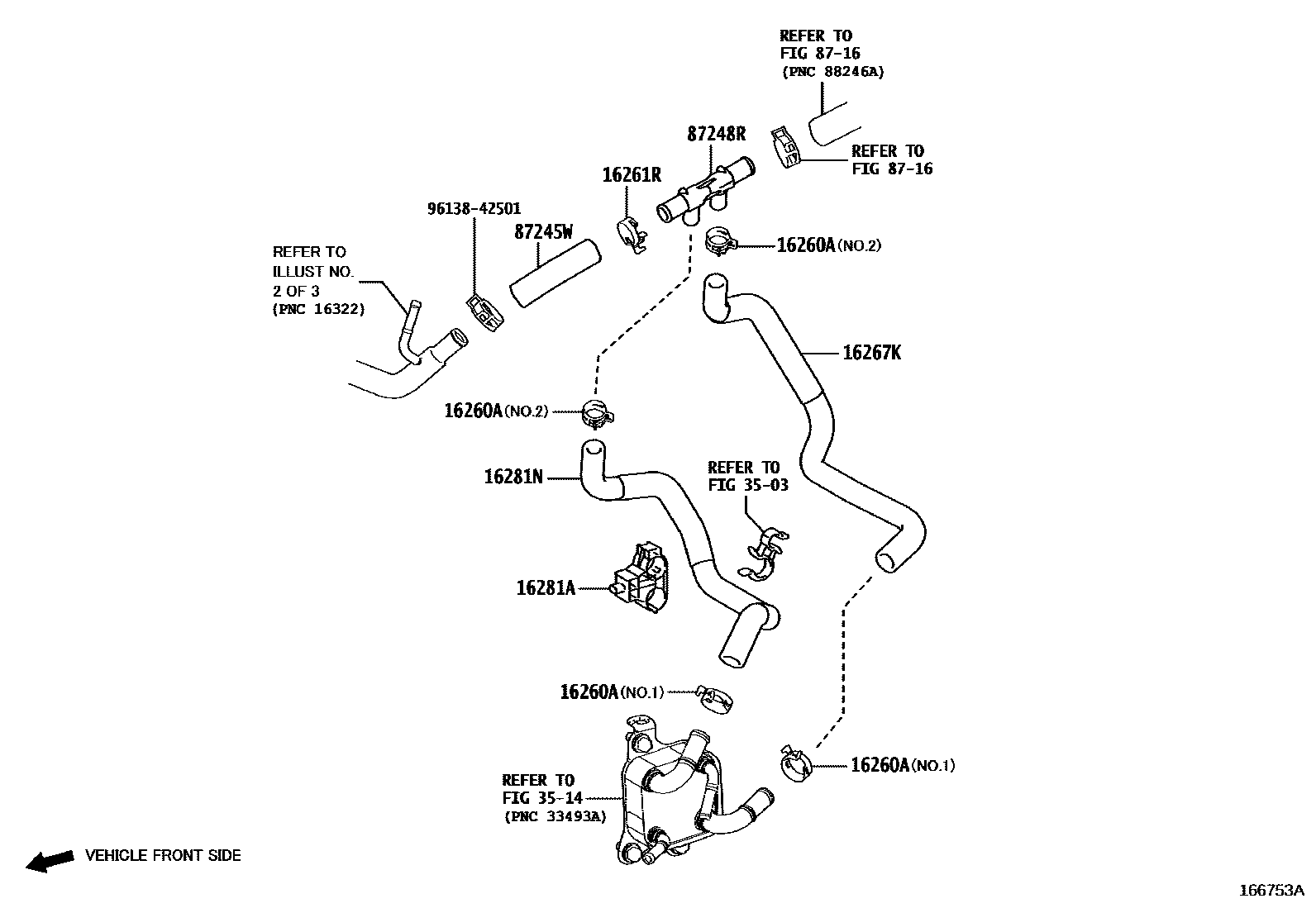

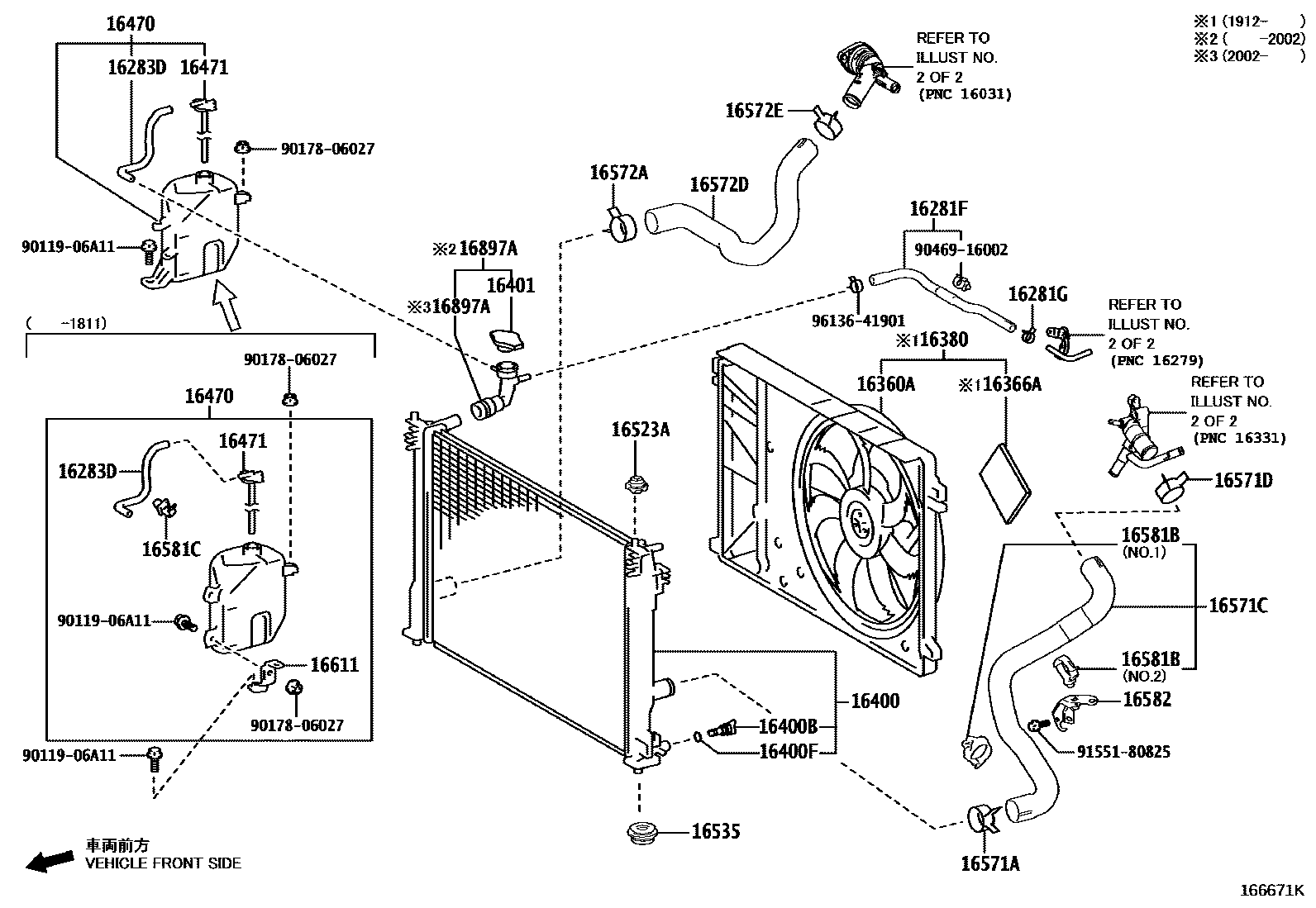

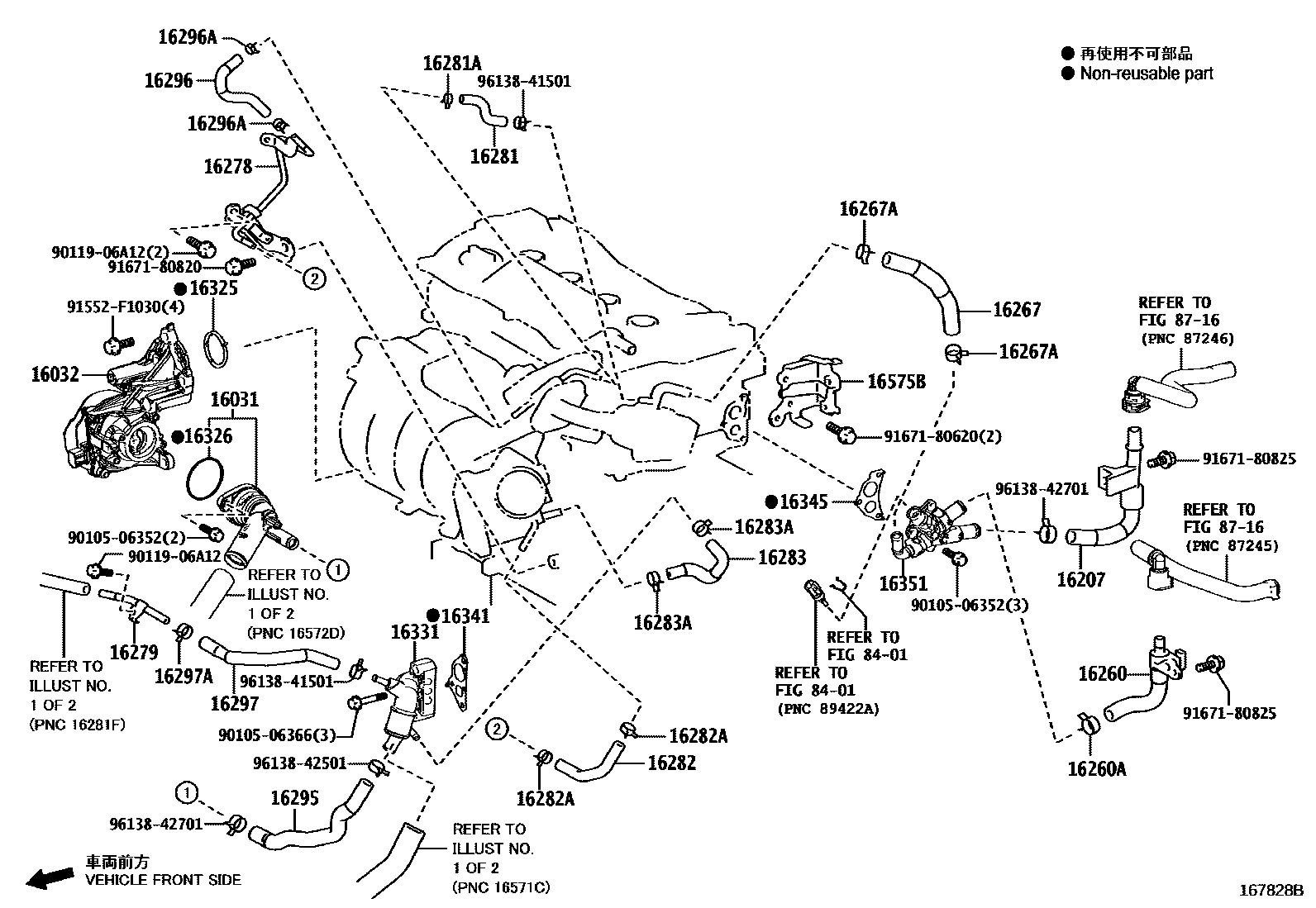

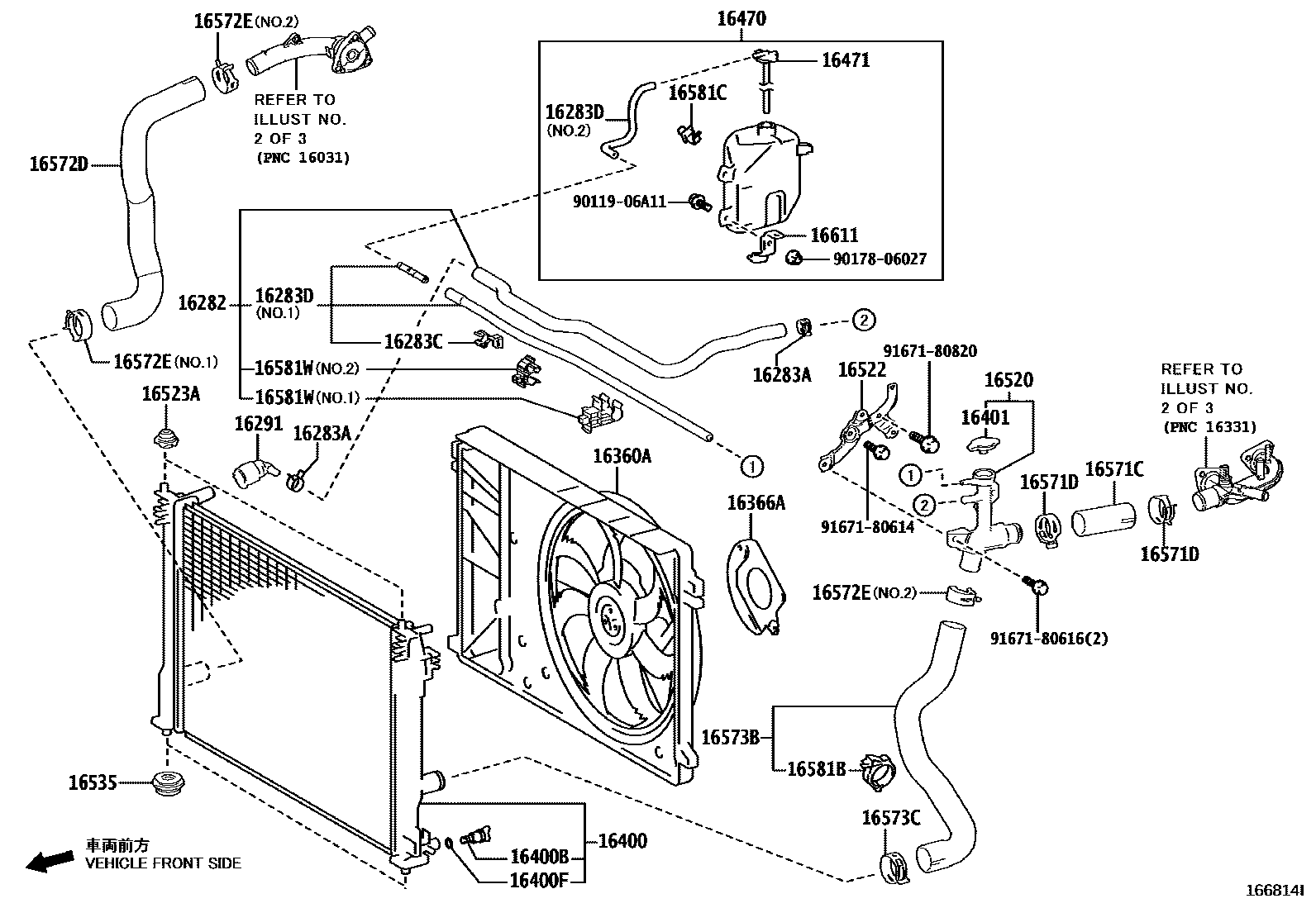

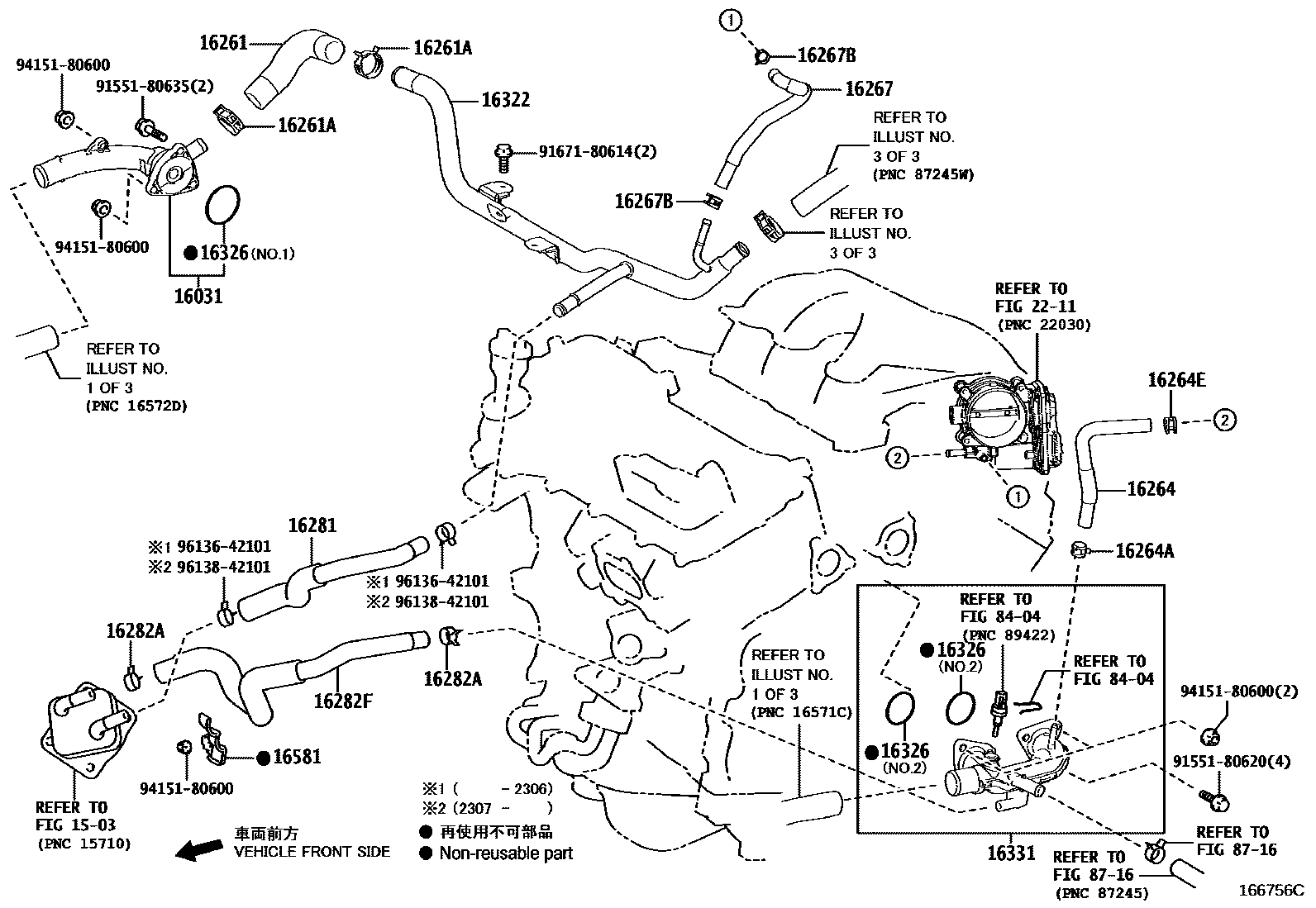

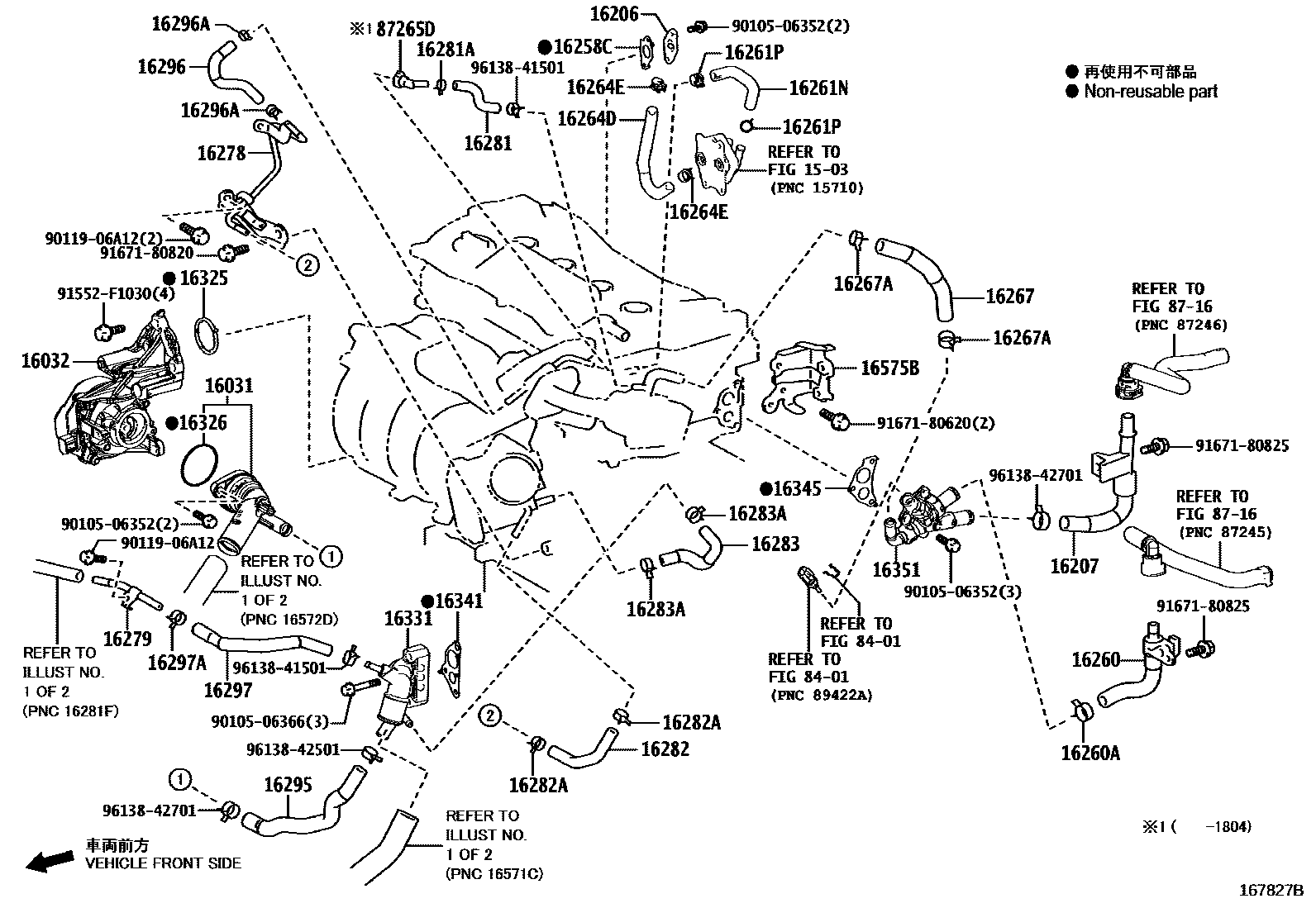

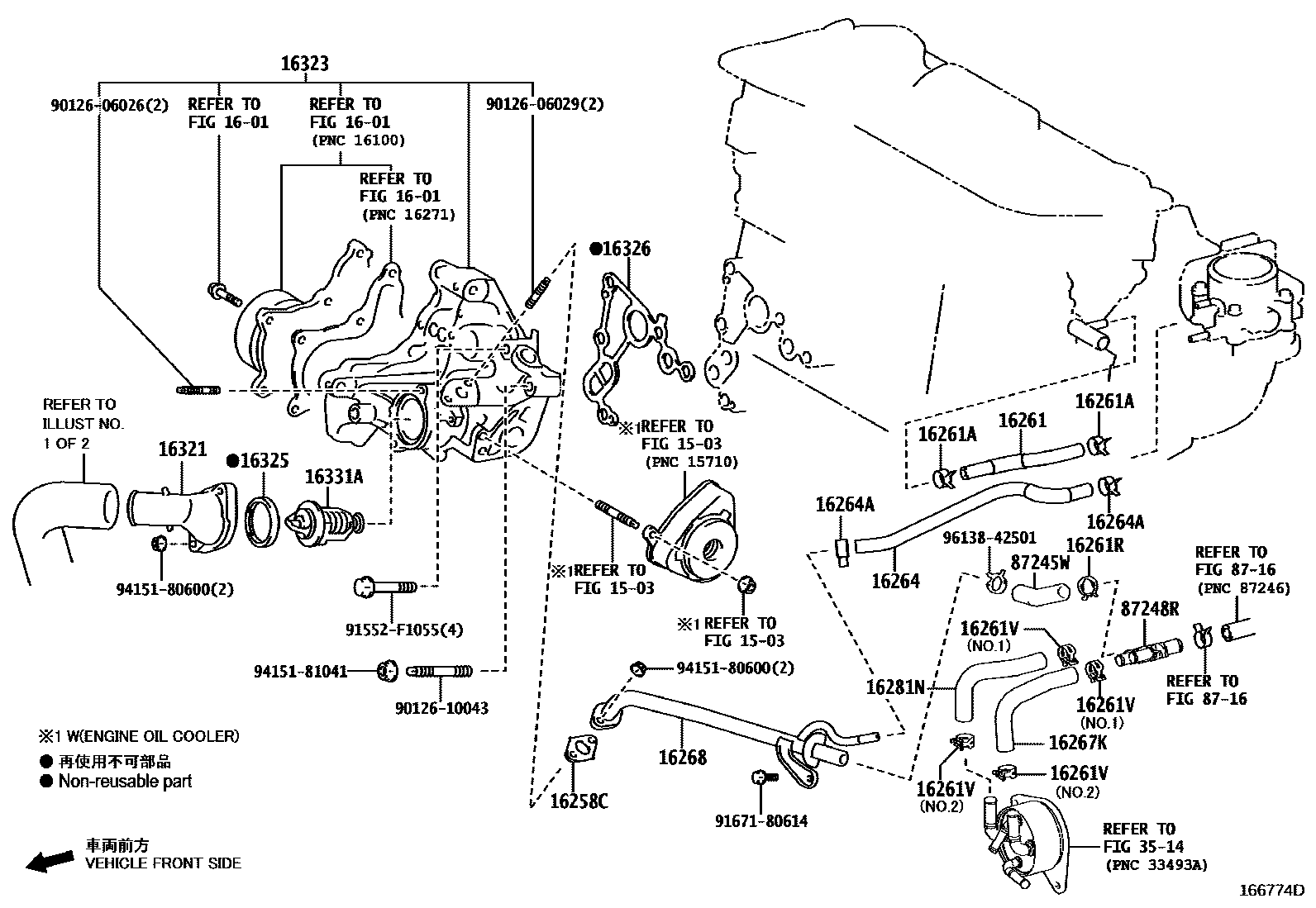

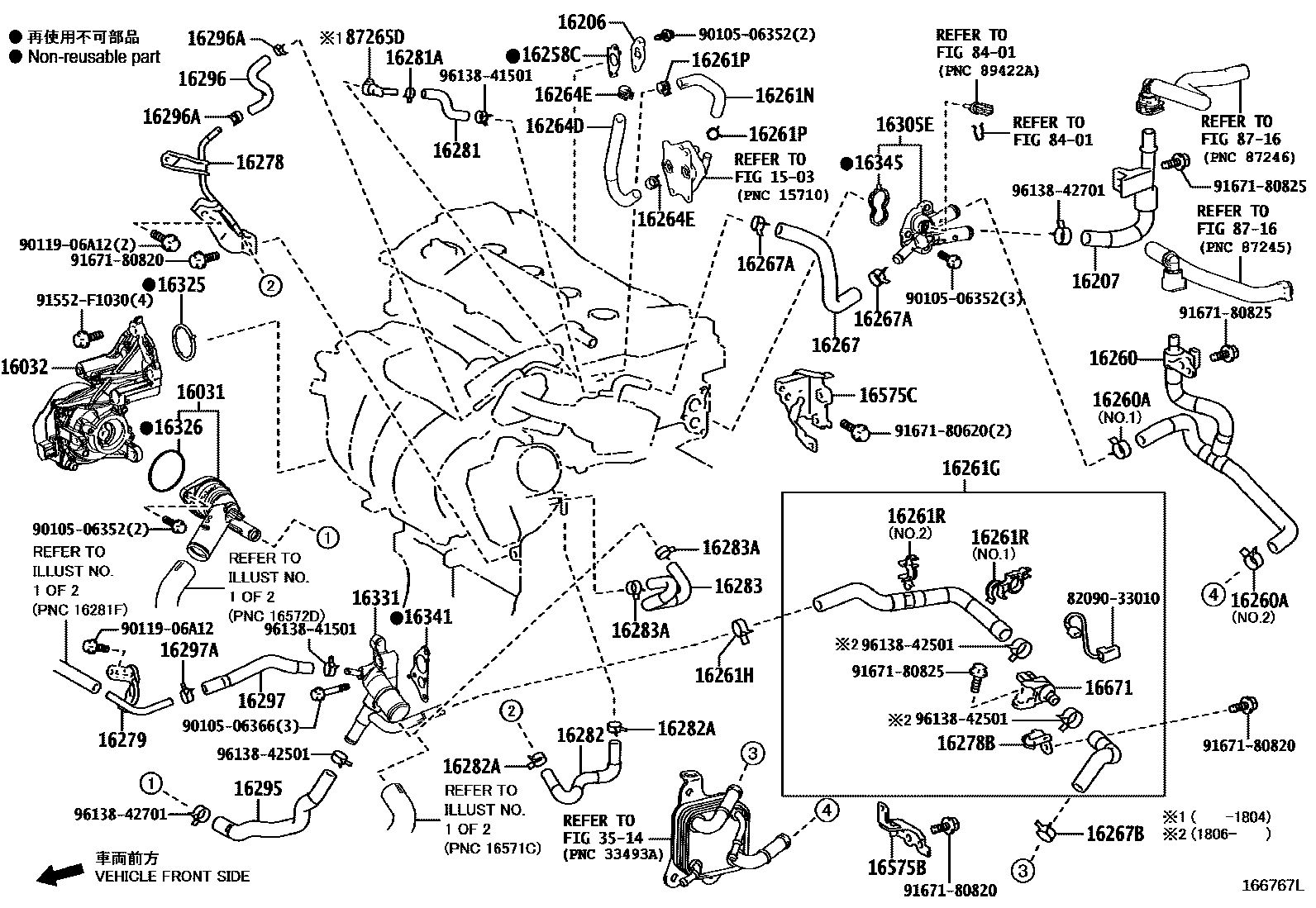

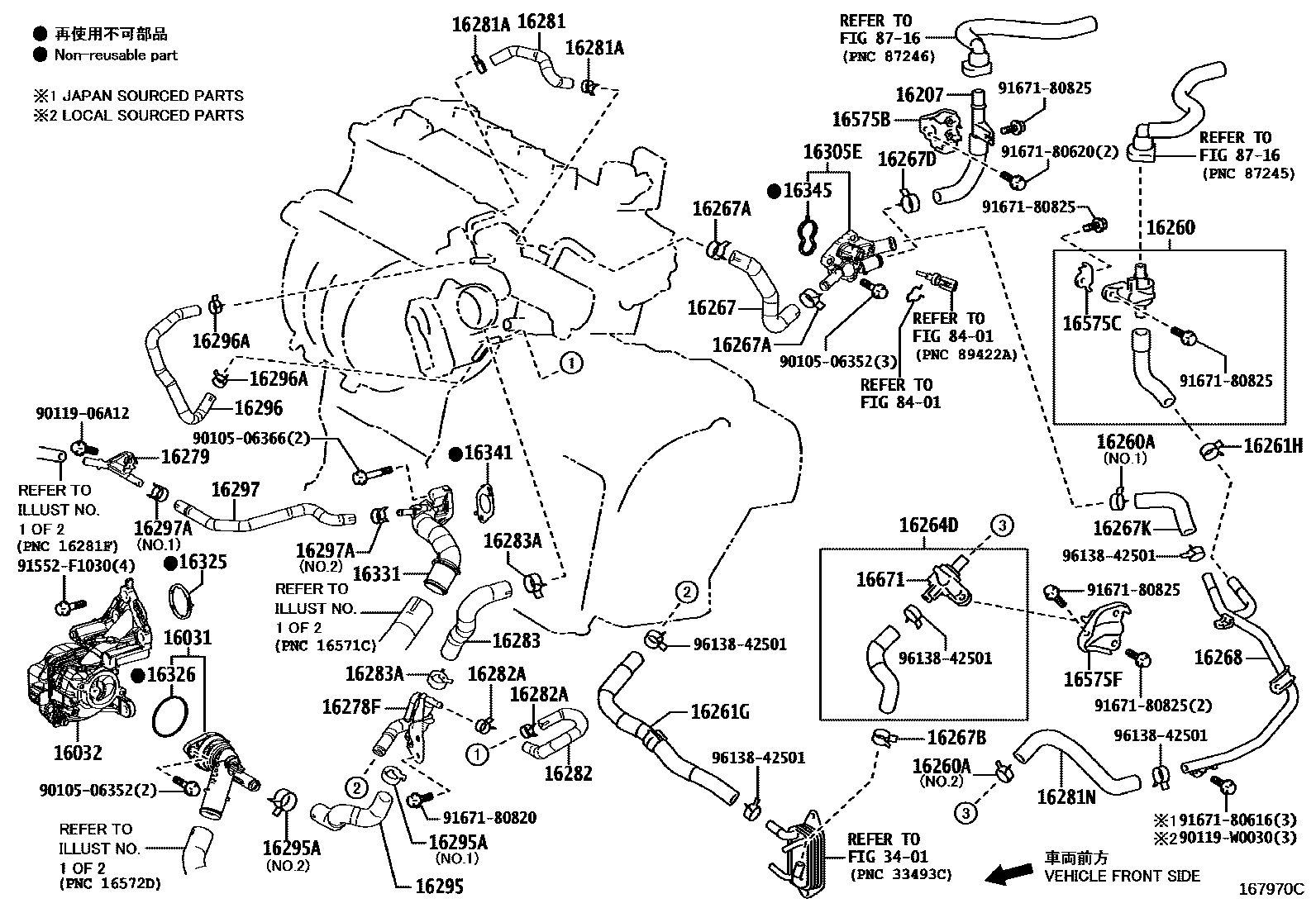

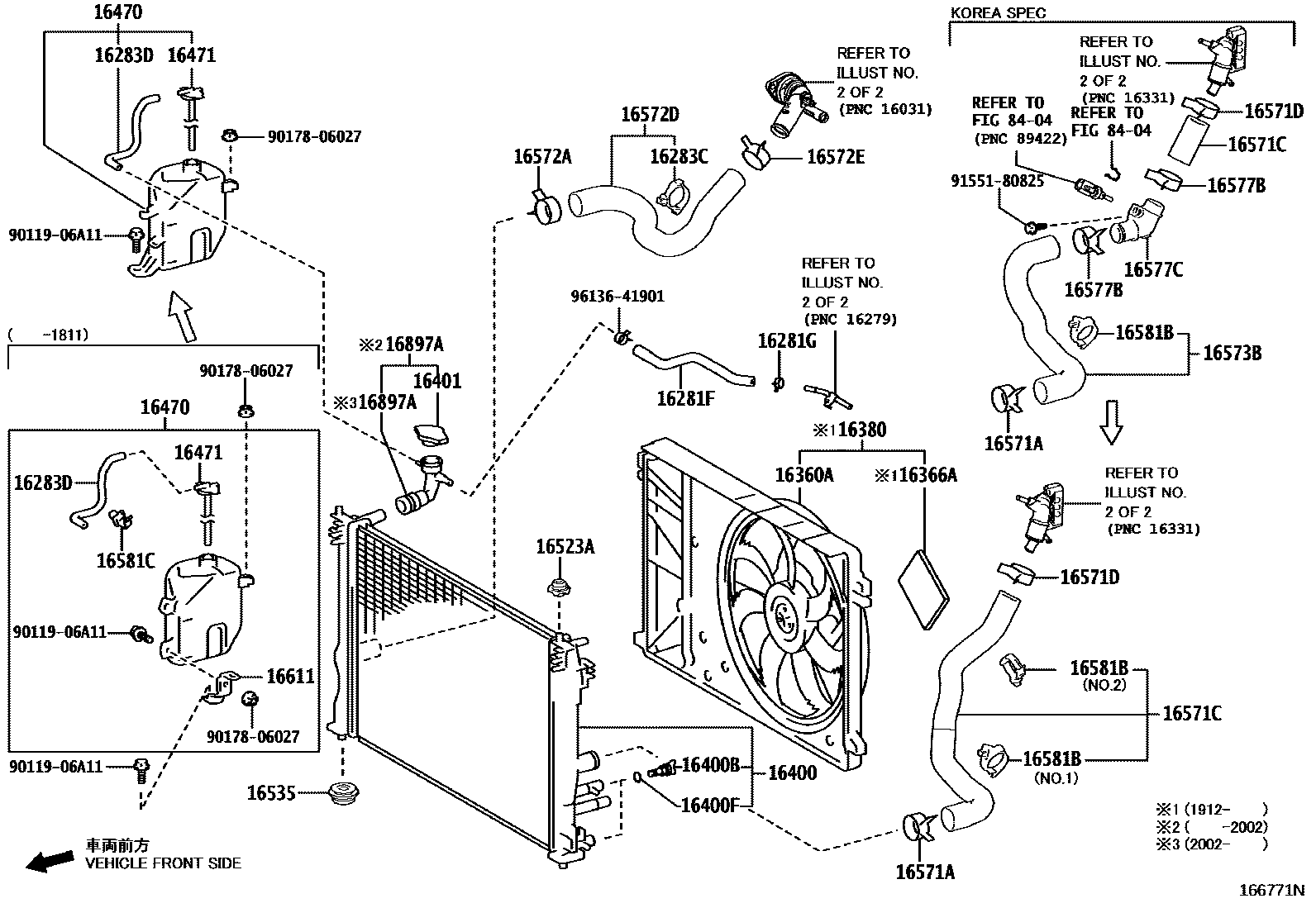

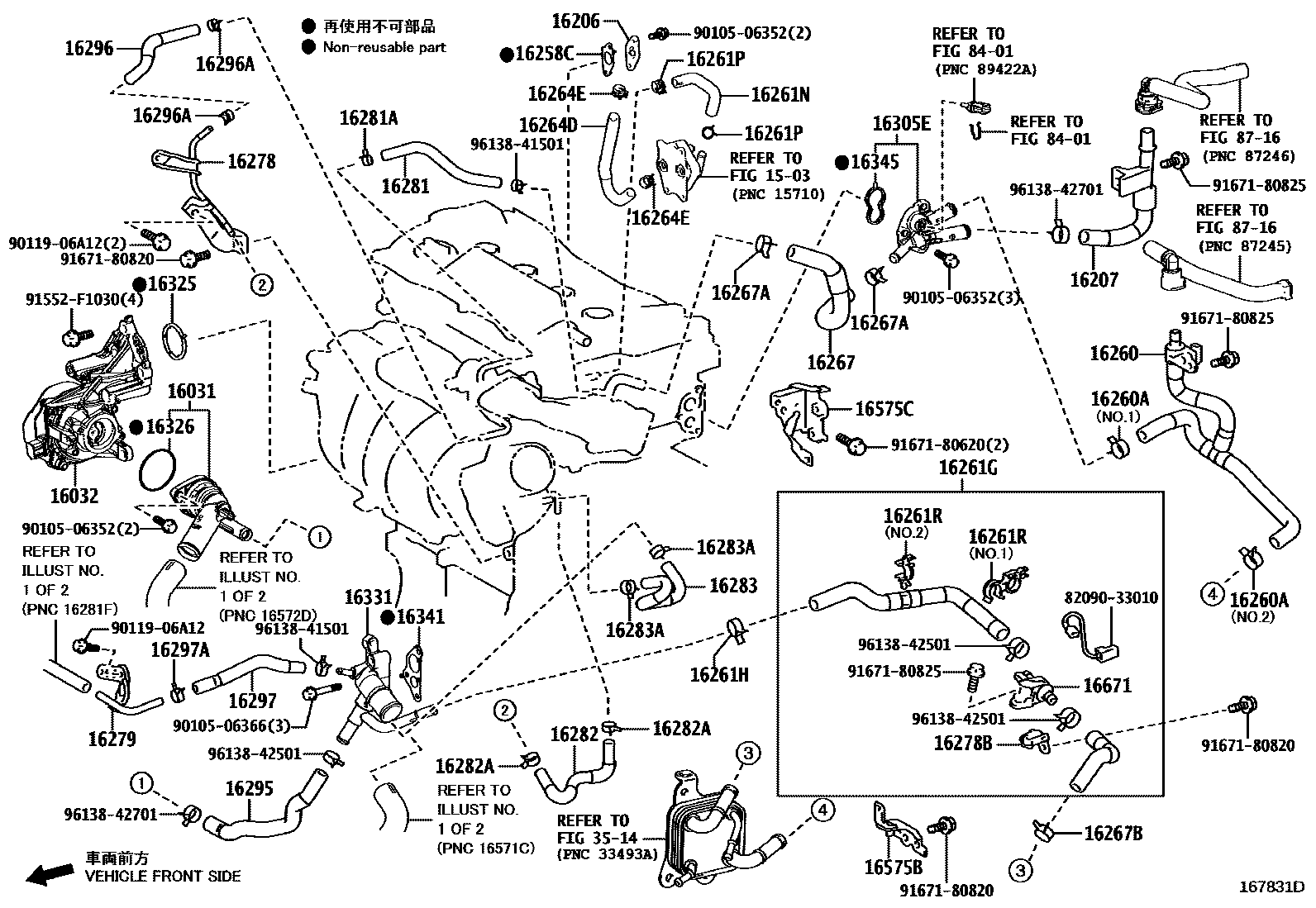

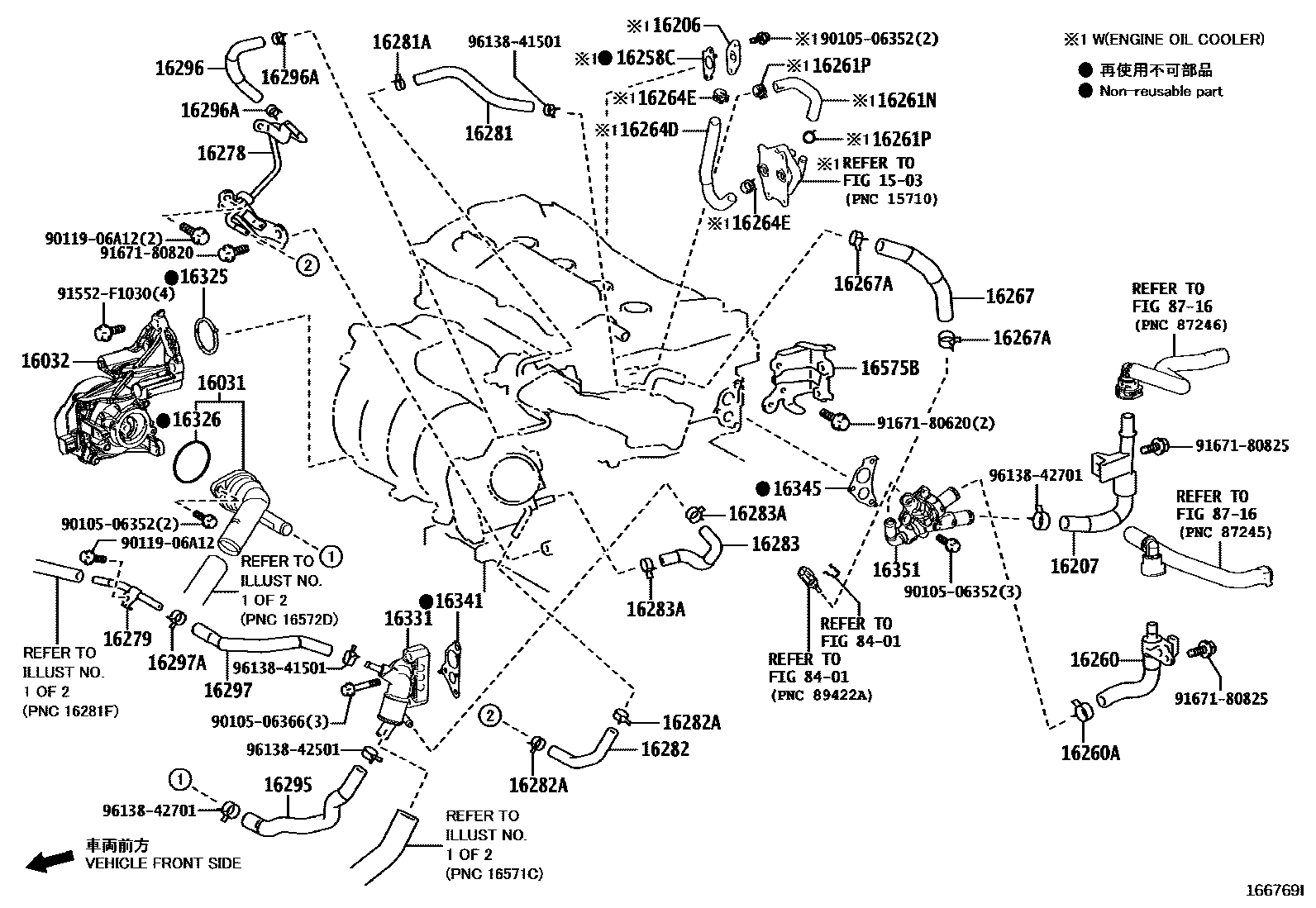

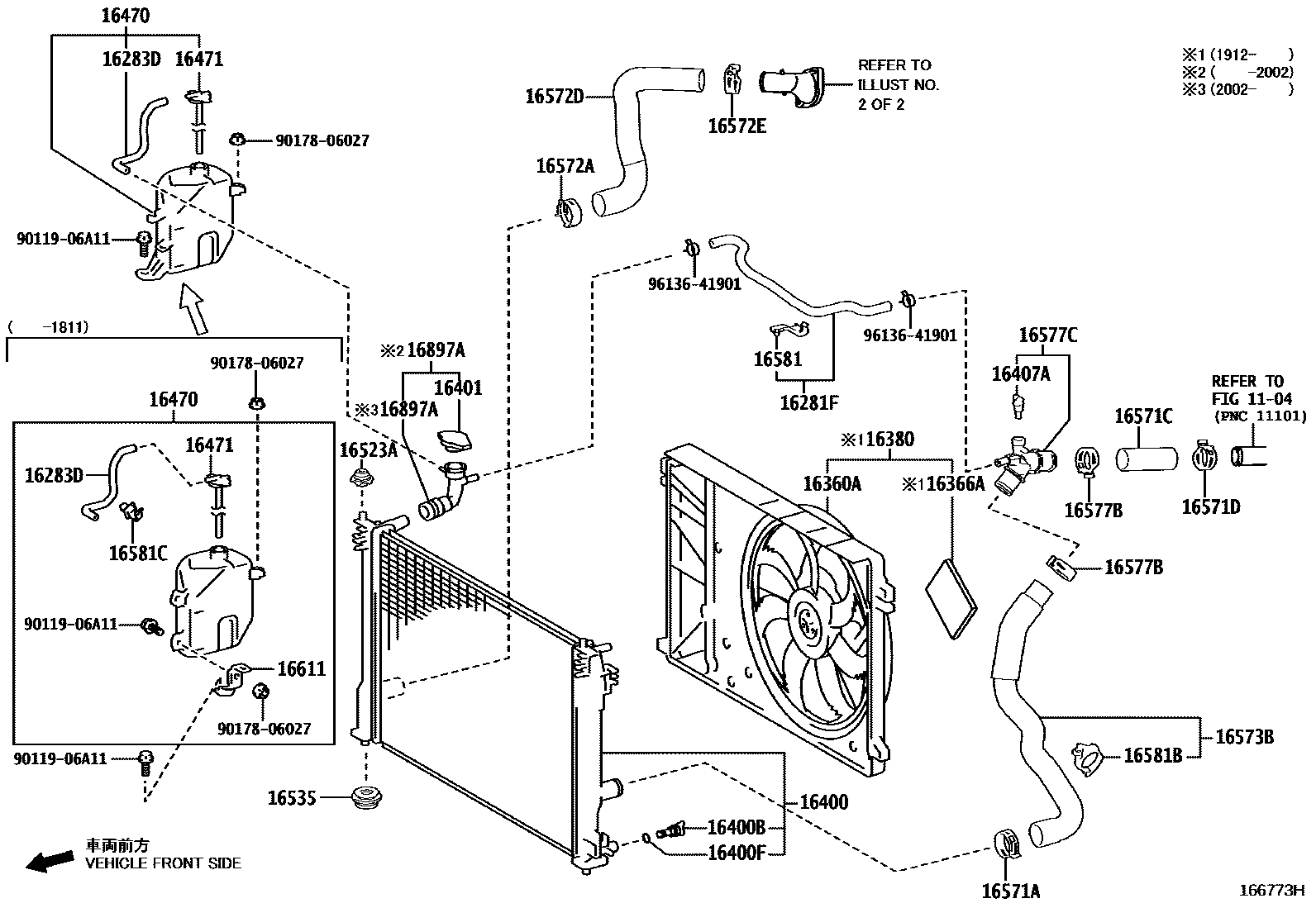

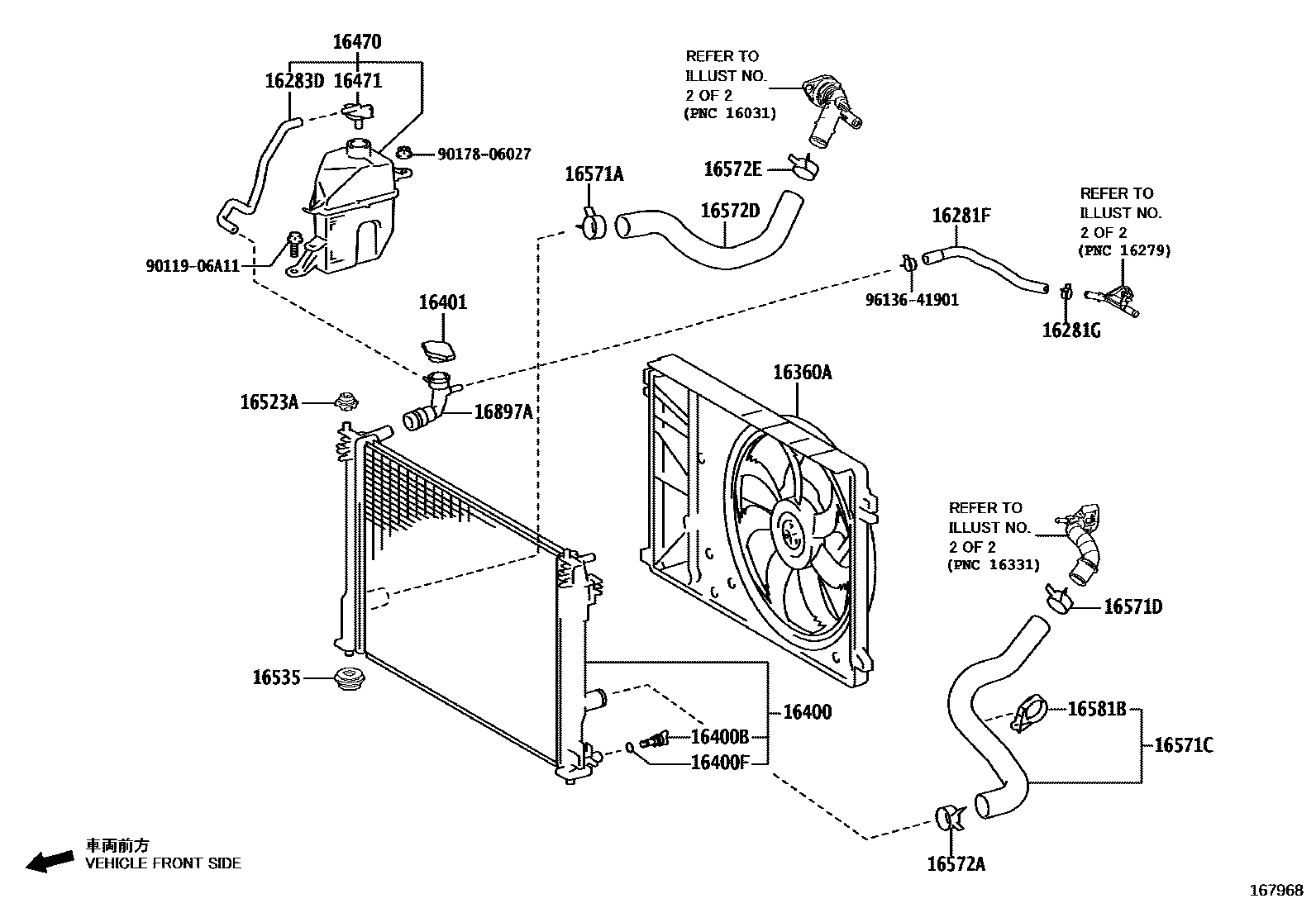

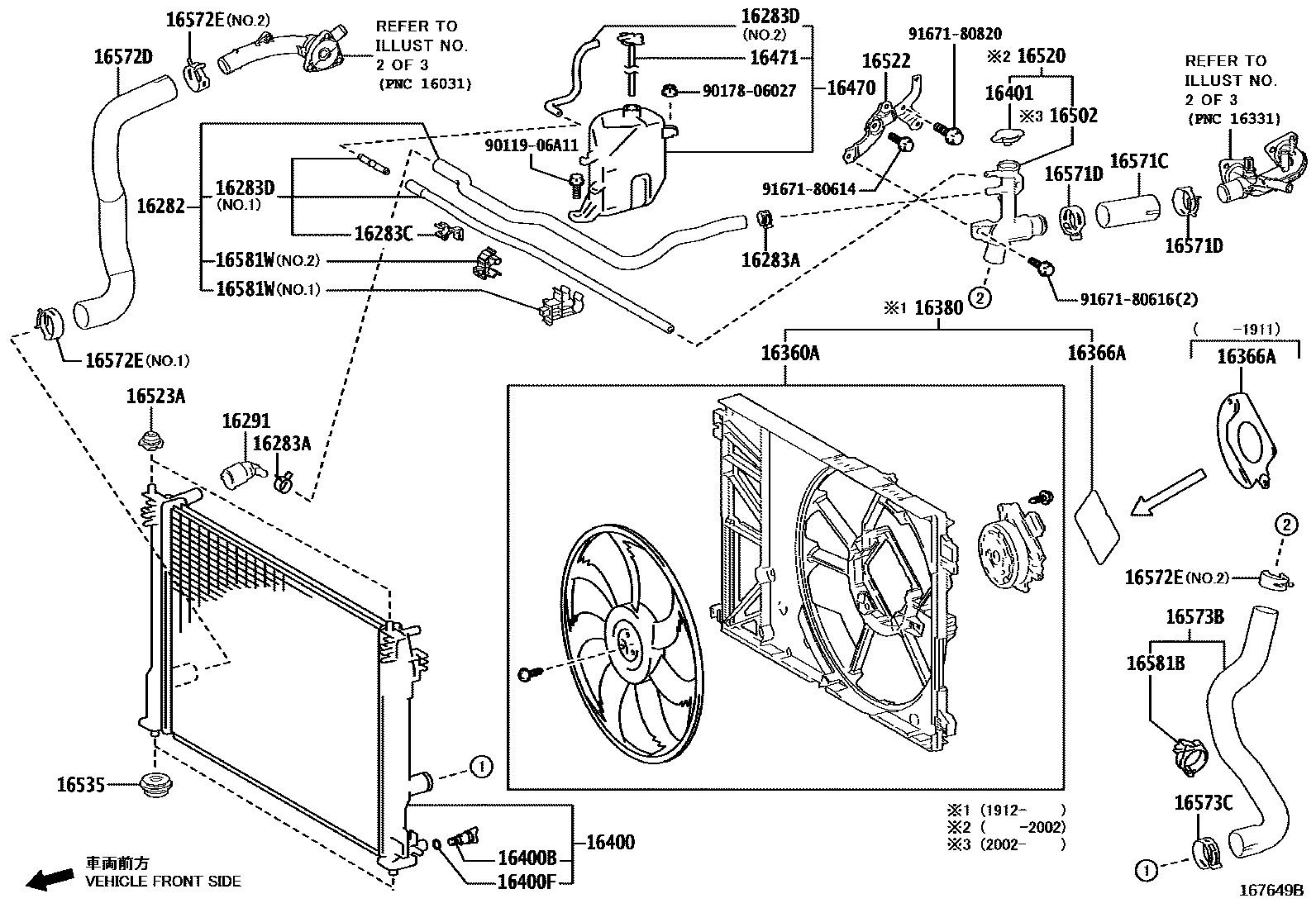

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 15 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24011 · 16031-25010 · 16031-25011 · 16031-25040 · 16031-31030 · 16031-31031 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24010 · 16032-25010 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-25030 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-24030 · 16207-25010 |
| 16258C | Gasket (for water bypass pipe) | 16258-25010 · 16258-36010 |
| 16260 | Water bypass hose assembly | 16260-24050 · 16260-25010 · 16260-25021 |
| 16260A | Clamp (for water bypass hose assembly) | 16581-36040 · 96138-42101 · 96138-42501 · 96138-42701 |
| 16261 | HOSE, WATER BY-PASS | 16261-31061 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-27001 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-24070 · 16261-25070 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96136-42201 · 96138-42501 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-25050 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 96138-42101 |
| 16261R | Clip or clip (for water bypass hose) | 16581-25070 · 16581-25080 · 16581-25081 · 96138-42501 |
| 16261V | CLAMP OR CLIP, WATER BY-PASS HOSE | 16581-36040 · 96138-42101 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-31160 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-24050 · 16264-25030 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 · 96138-42101 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-24040 · 16267-25010 · 16267-25020 · 16267-25060 · 16267-31100 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 96138-42101 |
| 16267B | Clip (for water bypass hose) | 96137-41501 · 96138-42501 |
| 16267D | CLIP, WATER BY-PASS HOSE NO.4 | 96138-42701 |
| 16267K | HOSE, WATER BY-PASS, NO.3 | 16267-24070 · 16267-31140 · 16267-36140 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-24030 · 16268-36260 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-25020 · 16278-25030 |
| 16278B | Water bypass pipe bracket | 16575-25070 |
| 16278F | HOSE, WATER BY-PASS, NO.2 | 16278-24010 |
| 16279 | No. 3 water bypass pipe | 16279-24010 · 16279-25010 · 16279-25020 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-24030 · 16281-25020 · 16281-25021 · 16281-31100 · 99555-10200 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 16581-31140 · 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-25010 · 16282-25021 · 16282-25110 · 16282-36160 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 · 96138-51701 |
| 16281N | HOSE, WATER BY-PASS, NO.4 | 16281-24050 · 16281-31120 · 16281-36130 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24020 · 16282-25030 · 16282-25040 · 16282-31100 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 96136-42101 · 96138-41501 · 96138-42101 |
| 16282F | HOSE, WATER BY-PASS, NO.5 | 16282-31060 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24010 · 16283-25010 · 16283-25020 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41901 · 96138-41501 · 96138-42501 |
| 16283C | Clip or clip (for water bypass hose) | 16581-25030 · 16581-31200 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-25031 · 16283-25032 · 16283-31090 |
| 16291 | water hose connector | 16291-31070 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24010 · 16295-25010 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24020 · 16296-25010 · 16296-25020 · 16296-25050 · 16296-25060 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24010 · 16297-25010 · 16297-25020 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90467-15022 · 96138-41501 |
| 16305E | Water bypass outlet sub-assembly | 16305-24010 · 16305-25030 |
| 16321 | water inlet | 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-31080 |
| 16323 | HOUSING, WATER INLET | 16032-36011 · 16032-36021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-25010 · 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-25010 · 16326-31040 · 16326-31050 · 16326-36010 · 16326-47020 |
| 16331 | Water outlet | 16331-24030 · 16331-25021 · 16331-25030 · 16331-25050 · 16331-31220 |
| 16331A | thermostat | 90916-03129 |
| 16341 | GASKET, WATER OUTLET | 16341-24010 · 16341-25010 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-25020 · 16345-25030 |
| 16351 | water bypass outlet | 16351-25040 |
| 16360A | Fan assembly with motor | 16360-25010 · 16360-31500 · 16360-31510 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-31500 · 16366-31510 · 16368-25010 |
| 16380 | Fan bracket assembly | 16380-31010 · 16380-31020 |
| 16400 | Radiator assembly | 16400-25130 · 16400-25141 · 16400-25180 · 16400-25190 · 16400-31690 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31830 · 16401-36030 |
| 16407A | Radiator drain switch sub-assembly | 16407-36160 |
| 16470 | Radiator reservoir assembly | 16470-25041 · 16470-25042 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-25010 |
| 16502 | Water injection port sub-assembly | 16502-31031 |
| 16520 | Water injection port assembly | 16502-31030 |
| 16522 | Water injection port bracket | 16522-31010 |
| 16523A | Radiator bracket cushion | 16523-25010 · 16523-38010 |
| 16535 | Radiator lower support | 16535-20010 · 16535-20030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-39002 |
| 16571C | Radiator hose No. 1 | 16571-25020 · 16571-25031 · 16571-25040 · 16571-25130 · 16571-31390 · 16571-36280 |
| 16571D | No. 1 radiator hose clip | 90466-43002 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-39002 |
| 16572D | Radiator hose No. 2 | 16572-25010 · 16572-25020 · 16572-25070 · 16572-31460 · 16572-36230 |
| 16572E | No. 2 radiator hose clip | 90466-39002 · 90466-43002 |
| 16573B | Radiator hose No. 3 | 16573-25040 · 16573-31080 · 16573-36030 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-39002 |
| 16575B | No. 2 water hose clamp bracket | 16575-24090 · 16575-25040 · 16575-25050 |
| 16575C | No. 1 water hose clamp bracket | 16575-24110 · 16575-25010 |
| 16575F | No. 3 water hose clamp bracket | 16575-24100 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90466-43002 |
| 16577C | radiator pipe | 16577-25010 · 16577-36040 |
| 16581 | Hose clamp (for water hose) | 16581-31100 · 16581-36090 |
| 16581B | Hose clamp (for radiator hose) | 16581-25010 · 16581-25030 · 16581-25110 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-25050 |
| 16581W | Hose clamp (for water hose) | 16581-31150 · 16581-31190 |
| 16582 | Radiator bracket No. 1 | 16582-25010 |
| 16611 | Radiator reservoir bracket | 16611-25010 |
| 16671 | water valve | 16671-24020 · 16671-25030 |
| 16897A | Filling port neck | 16897-25010 · 16897-25011 · 16897-25030 · 16897-25031 |
| 87245W | water hose | 87245-33810 · 87245-33880 |
| 87248R | water pipe | 87248-33020 · 87248-42041 |
| 87265D | Heater water hose connector | 87265-33020 |
