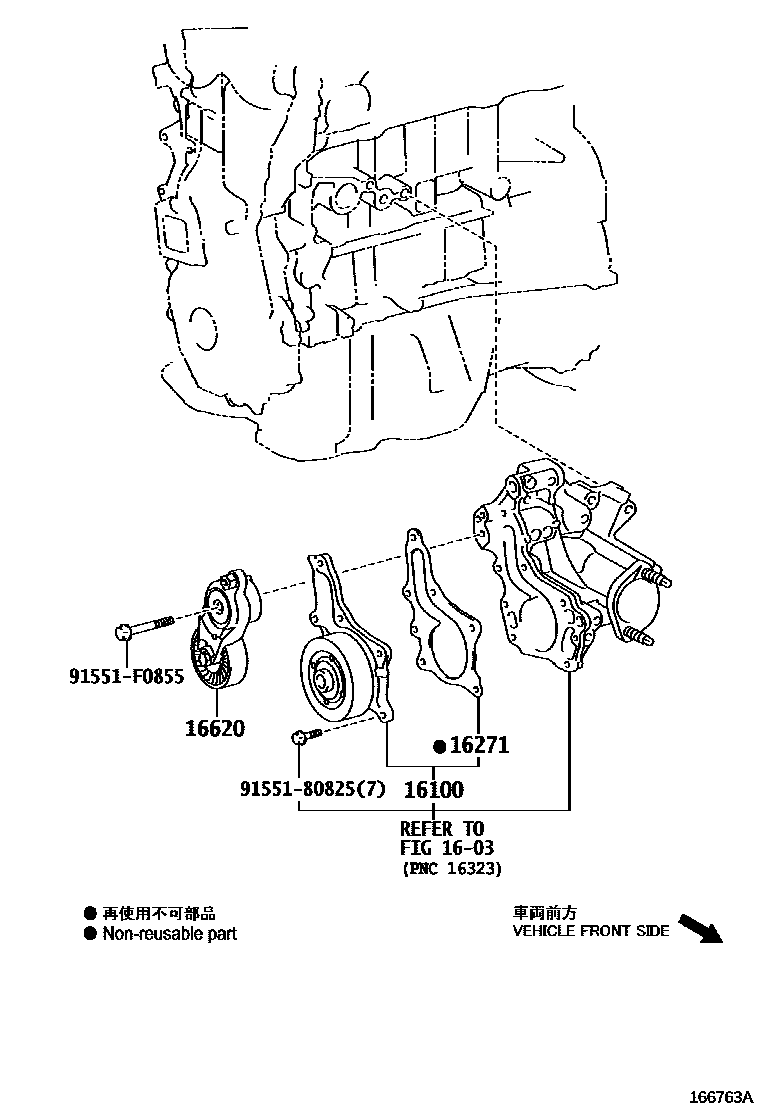

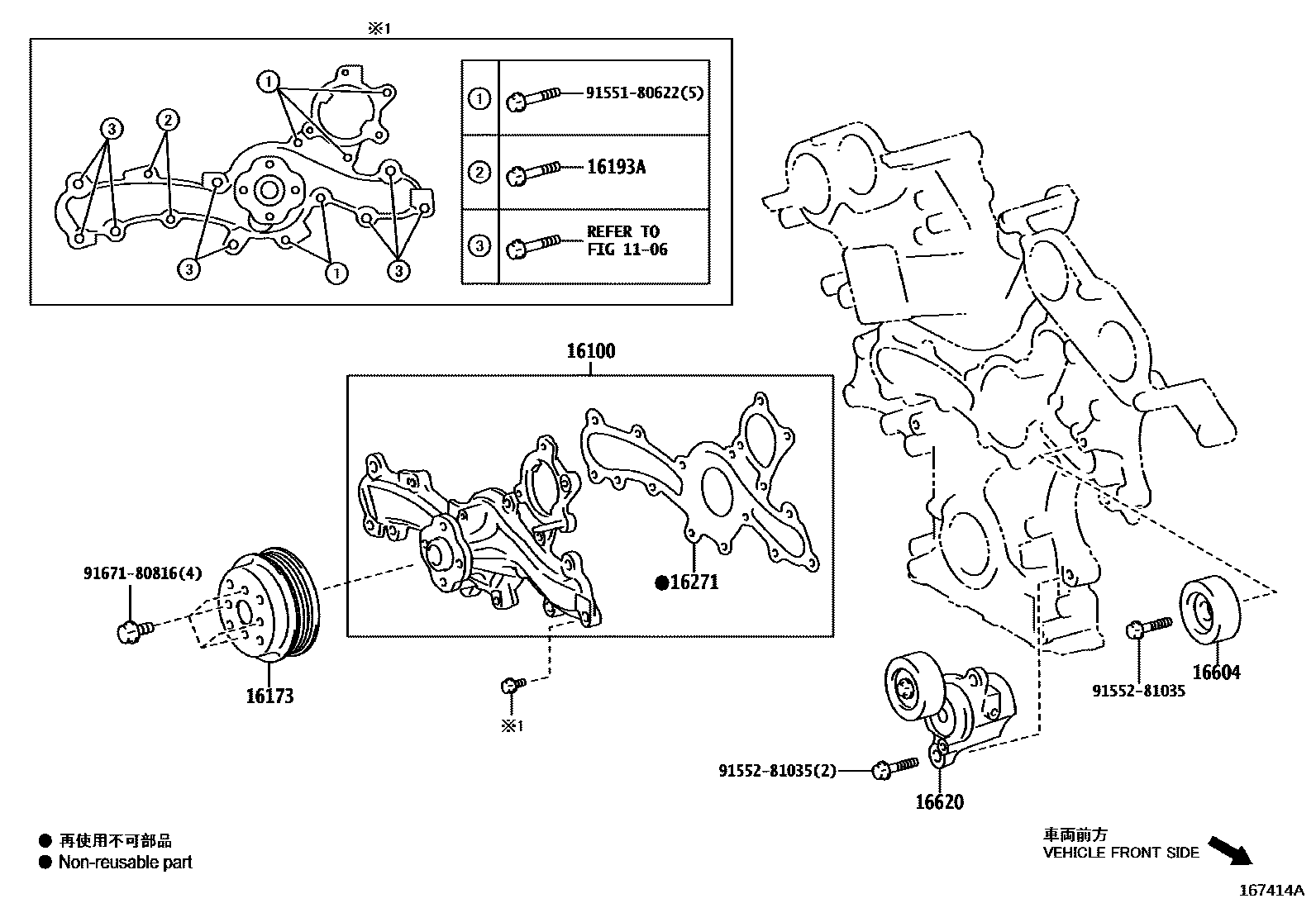

Toyota CAMRY Water Pump — Figure 1601
Toyota CAMRY EPC diagram 1601, Water Pump, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39515 · 16100-39615 · 16100-39616 |
| 16173 | water pump pulley | 16173-31030 · 16173-31031 |
| 16193A | Bolts (for water pump cover) | 16193-31080 |
| 16271 | water pump gasket | 16271-31050 · 16271-36010 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-31030 |
| 16620 | Poly V-belt tensioner assembly | 16620-31090 · 16620-36012 · 16620-36013 |
