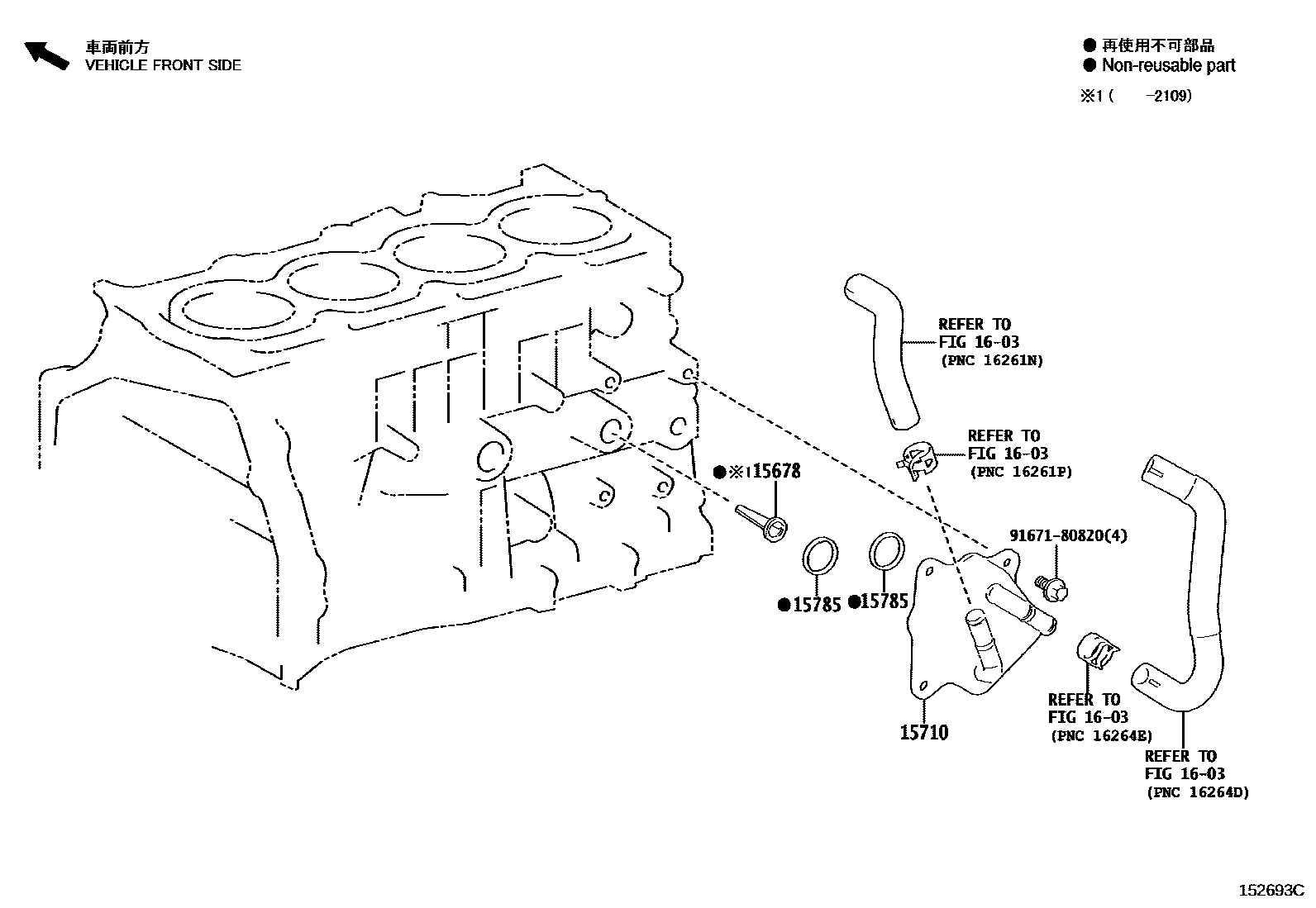

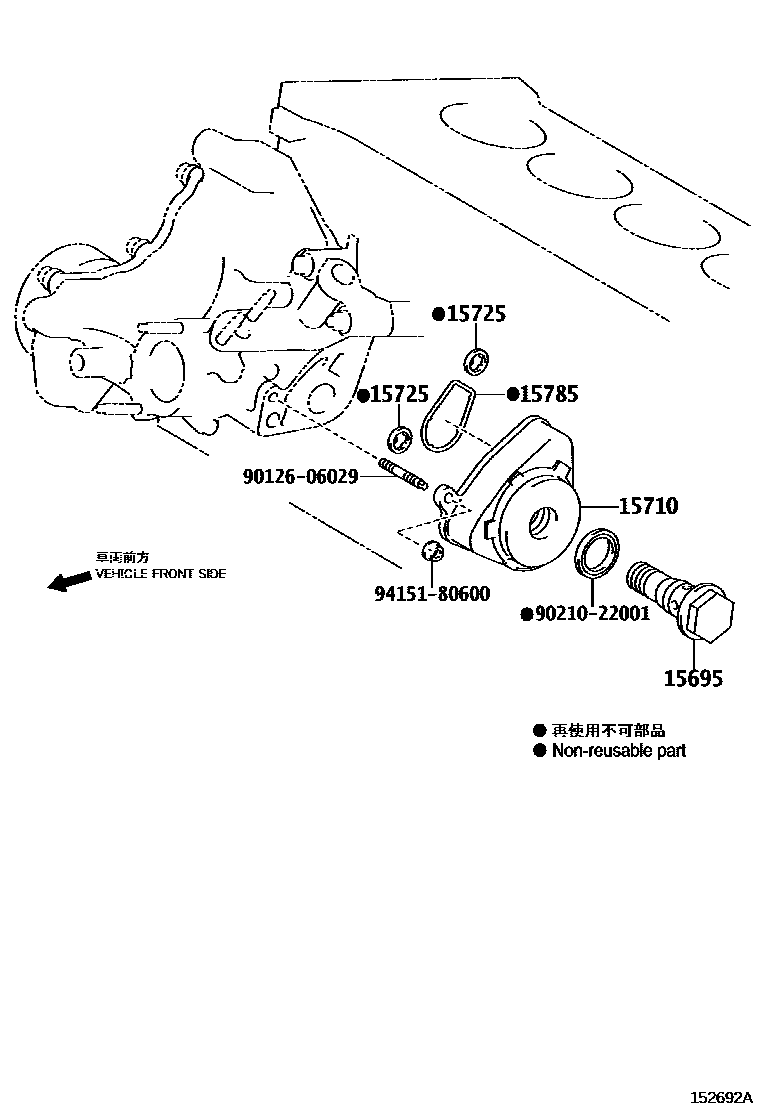

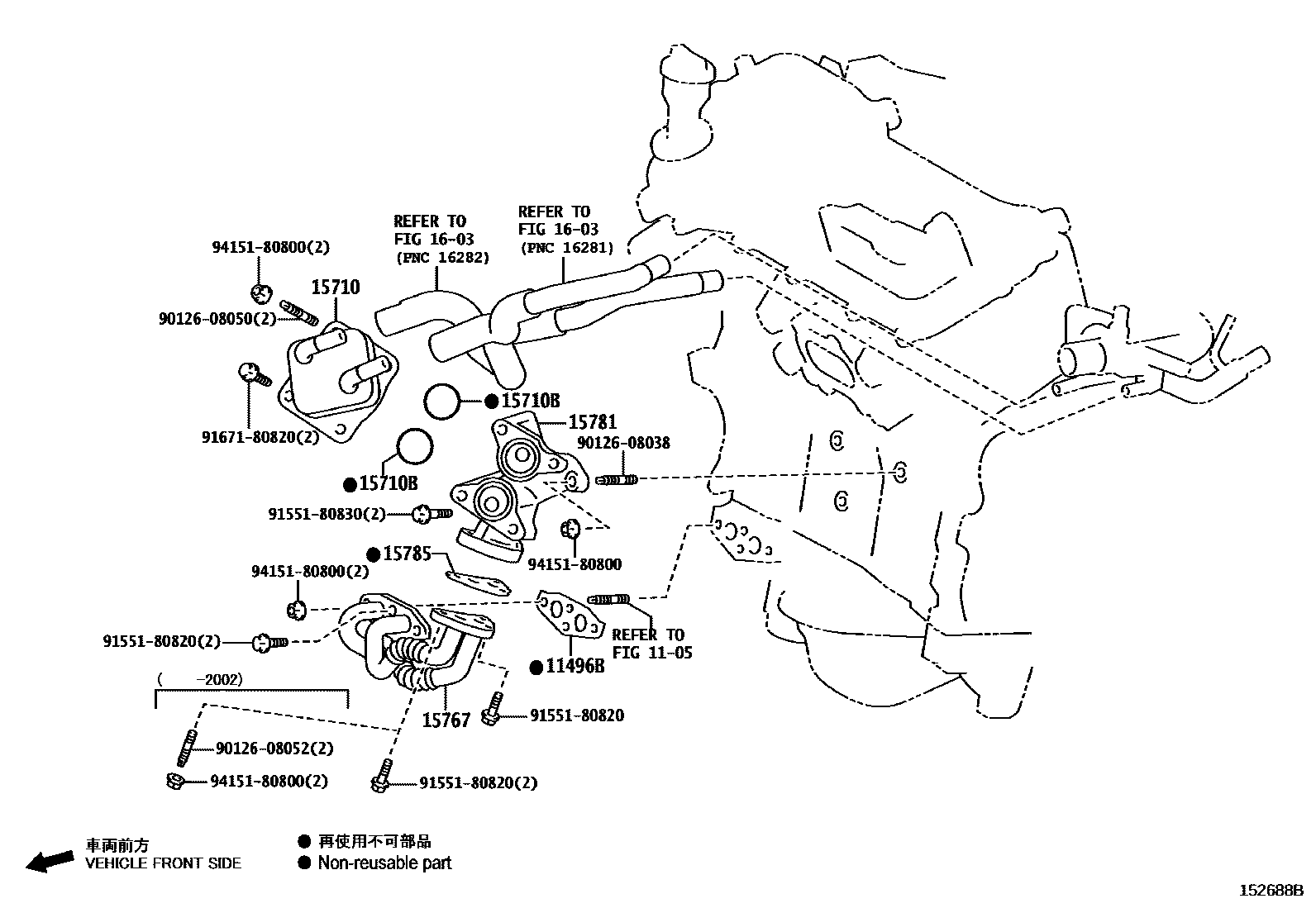

Toyota CAMRY Engine Oil Cooler — Figure 1503
Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11496B | Oil hole cover gasket | 11496-31020 |
| 15678 | Oil control valve filter | 15678-25010 |
| 15695 | Oil cooler joint bolts | 15695-62030 |
| 15710 | Oil cooler assembly | 15710-25010 · 15710-31060 · 15710-36010 |
| 15710B | O-ring (for transmission oil cooler) | 15785-31050 · 96723-35035 |
| 15725 | Oil cooler cover gasket | 15725-36010 |
| 15767 | oil cooler pipe | 15767-31030 · 15767-31031 · 15767-31032 |
| 15781 | No. 1 oil cooler bracket | 15781-31020 |
| 15785 | oil cooler gasket | 15785-25010 · 15785-31040 · 15785-36010 |
