Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 5 images and 11 PNC and OE references.

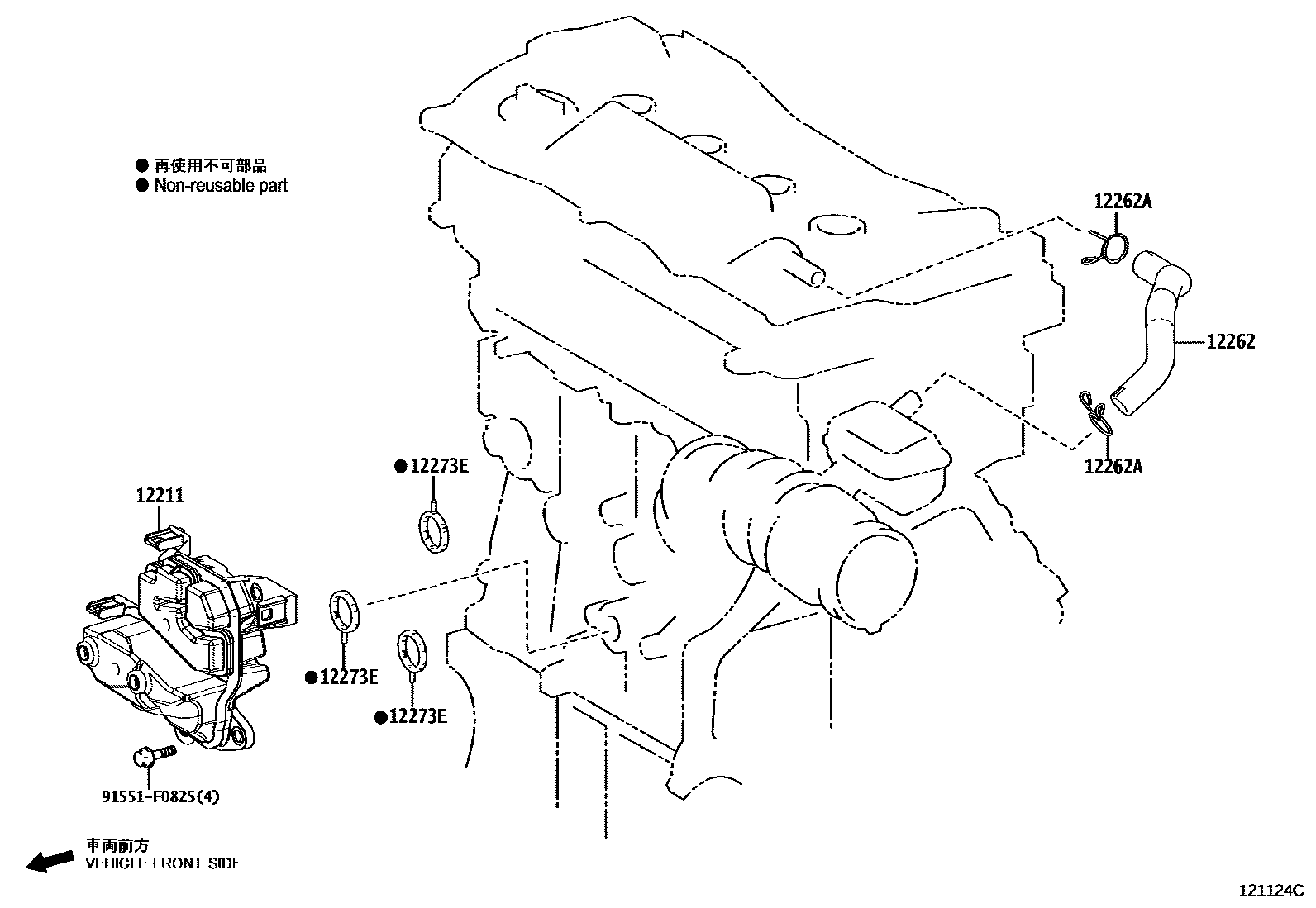

Toyota CAMRY Ventilation Hose EPC diagram — 121124C
Ventilation Hose — 121124C (201712 – 999999)

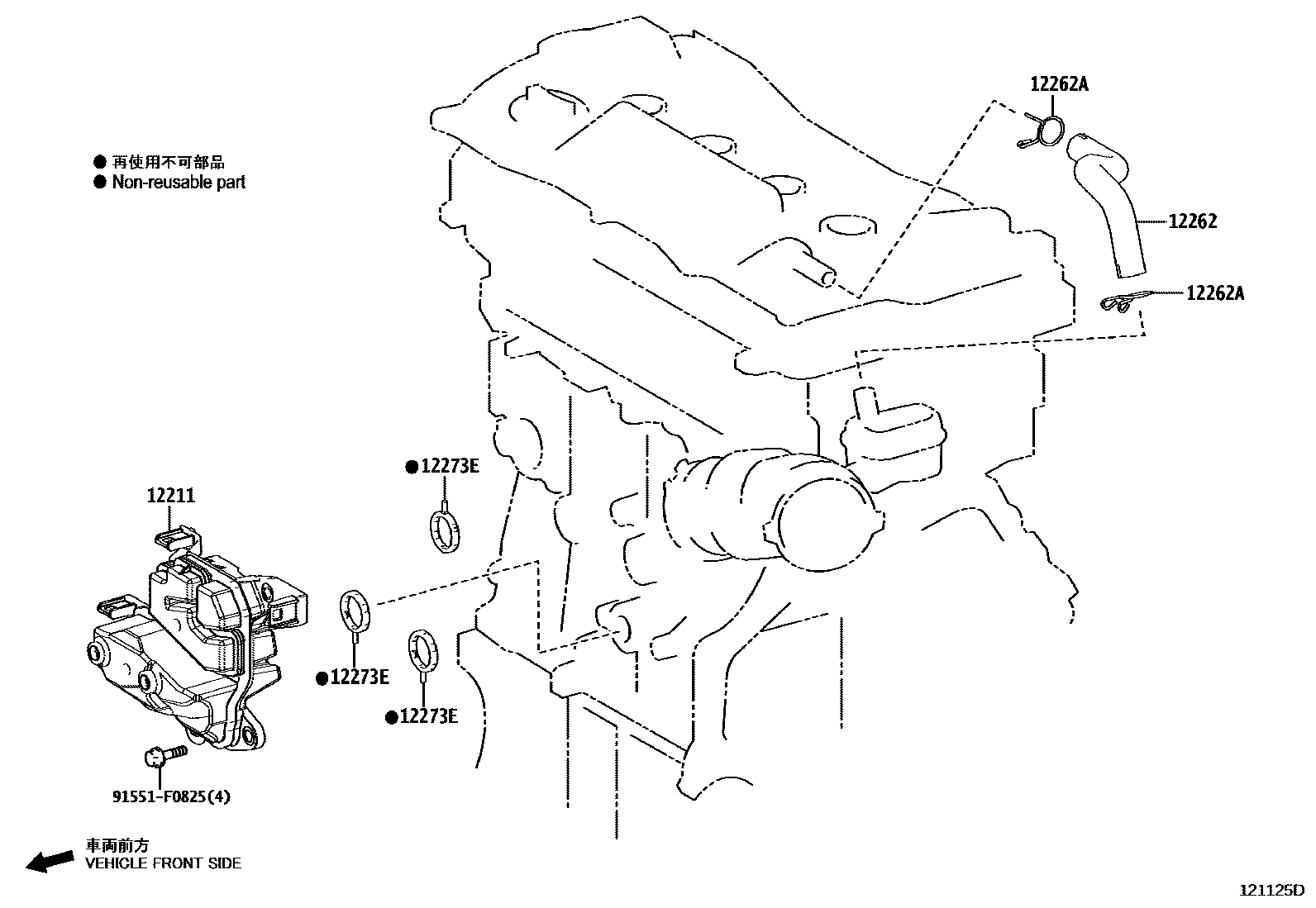

Toyota CAMRY Ventilation Hose EPC diagram — 121125D
Ventilation Hose — 121125D (201712 – 999999)

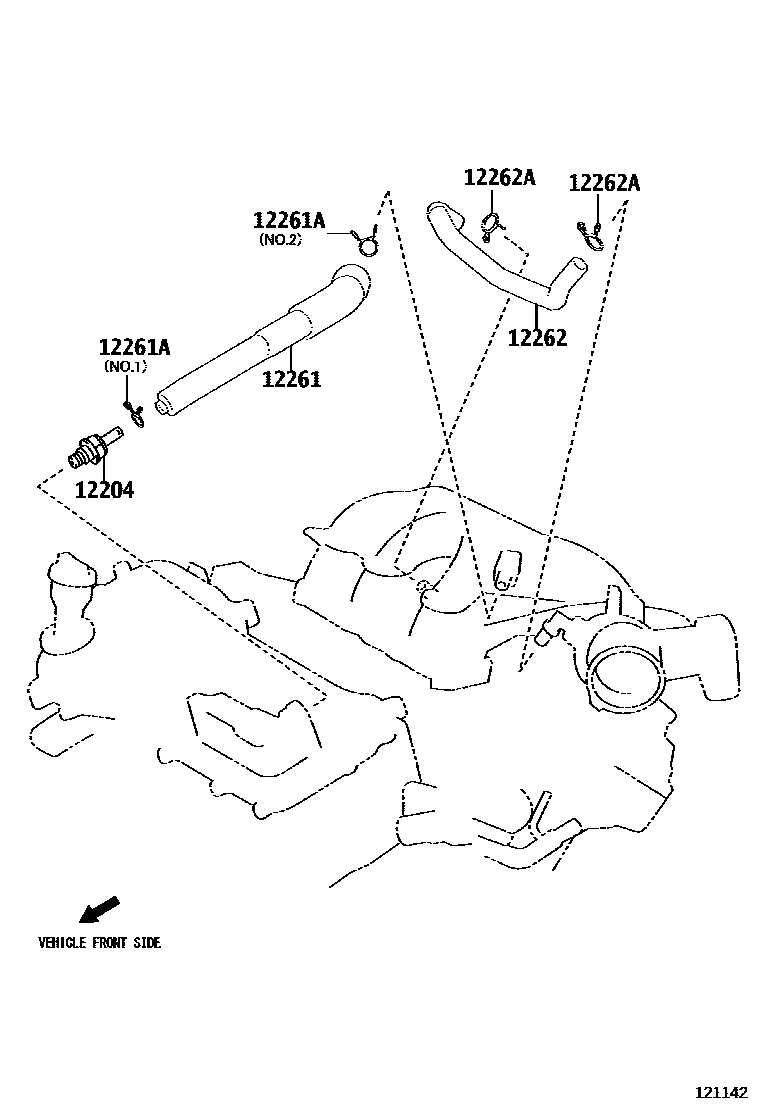

Toyota CAMRY Ventilation Hose EPC diagram — 121142
Ventilation Hose — 121142 (201712 – 999999)

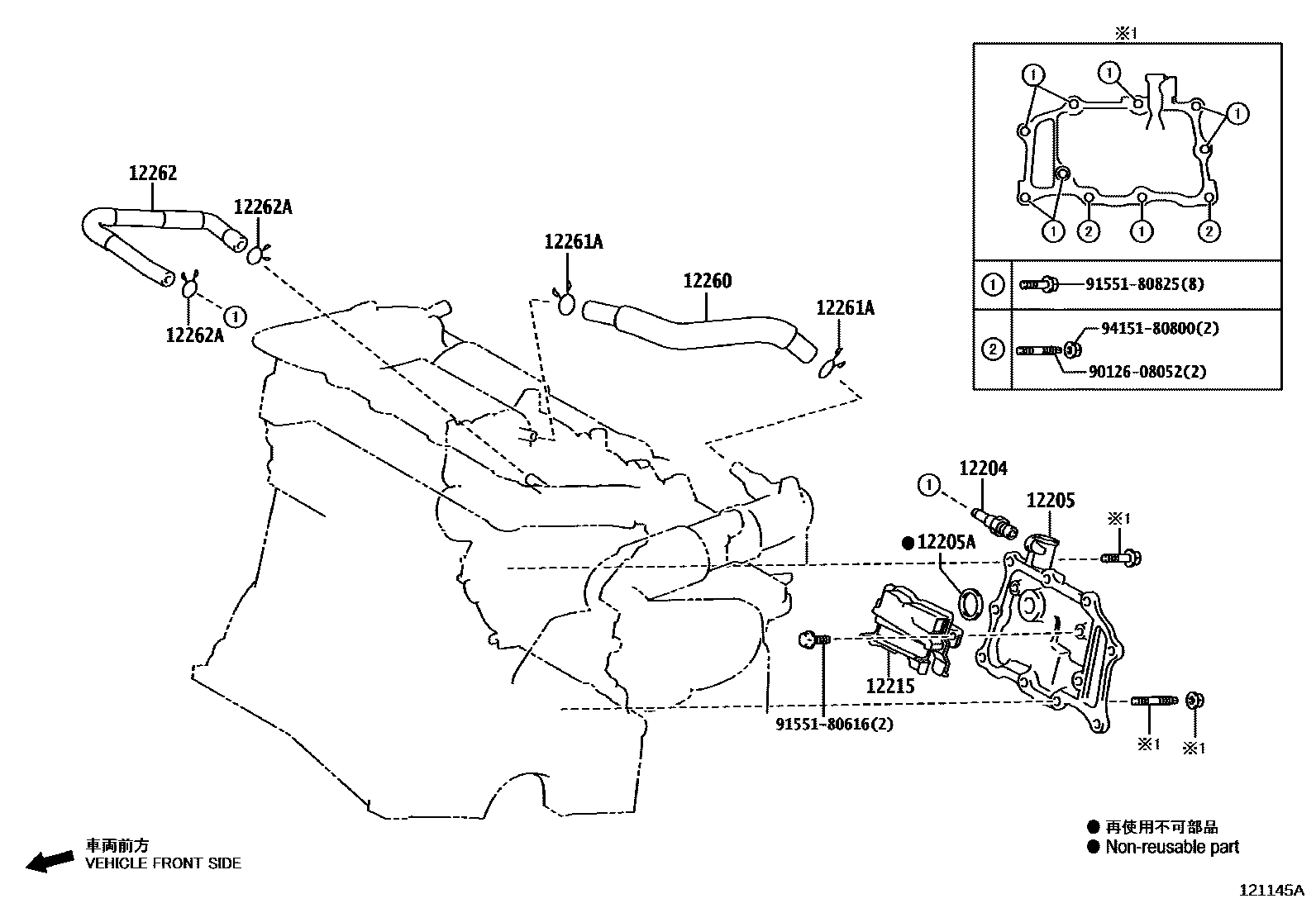

Toyota CAMRY Ventilation Hose EPC diagram — 121145A
Ventilation Hose — 121145A (201709 – 999999)

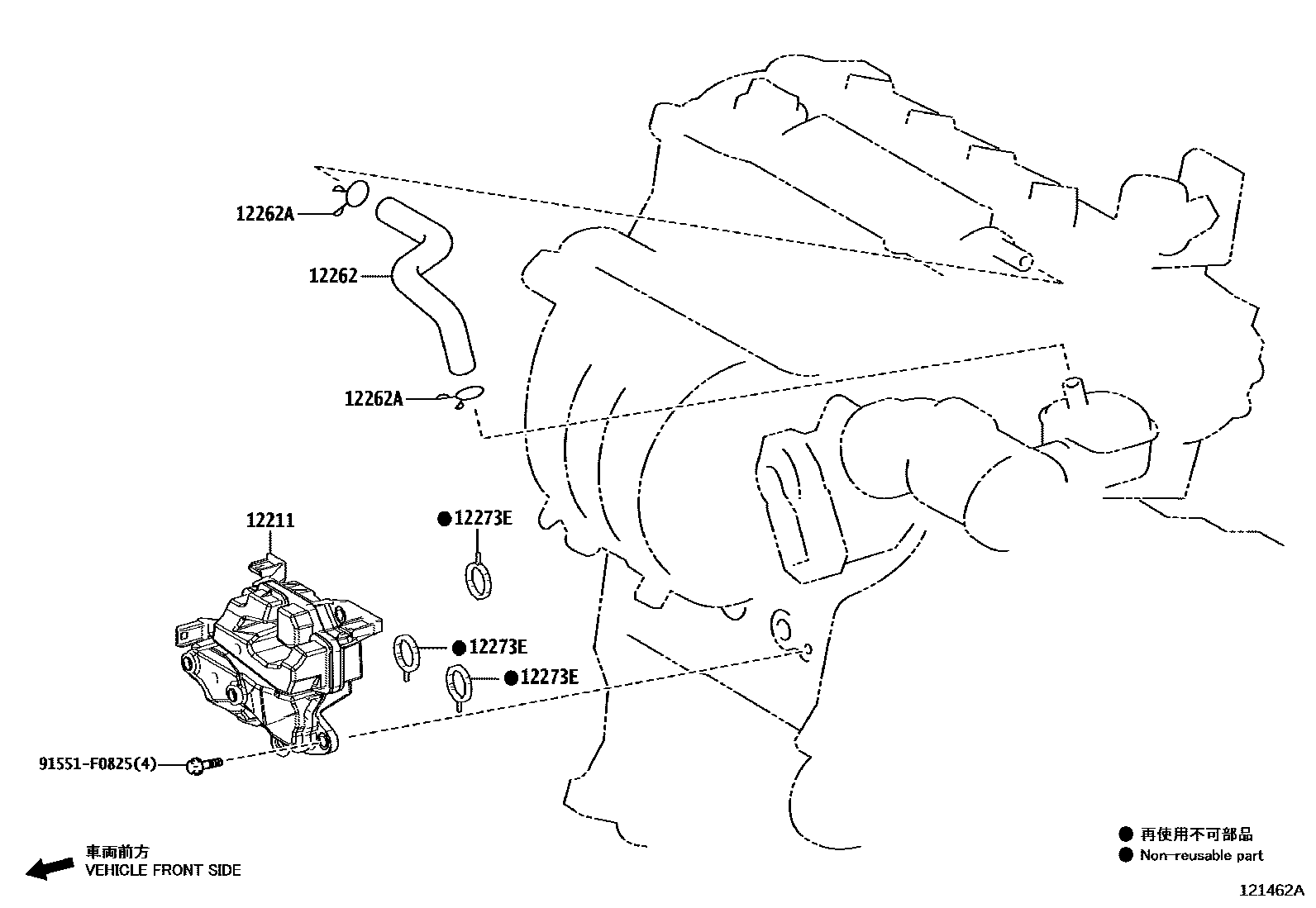

Toyota CAMRY Ventilation Hose EPC diagram — 121462A
Ventilation Hose — 121462A (202102 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-31150 · 12204-36020 · 12204-36030
12205Ventilation box sub-assembly12205-36010
12205AO-ring (for ventilation box)12273-36010
12211Ventilation box No. 112211-24010 · 12211-24020 · 12211-25010 · 12211-25011
12215Ventilation box isolation device12215-36010
12260Ventilation hose assembly12260-36090
12261Ventilation Hose12261-31200
12261AClip or clip (for vent hose)90467-15120 · 90467-19003 · 90467-21004
12262Ventilation hose No. 212262-24060 · 12262-25030 · 12262-25060 · 12262-31190 · 12262-36040
12262AClamp (for vent hose No. 2)90467-16035 · 90467-21004
12273EPads (for ventilation boxes)12273-24010
