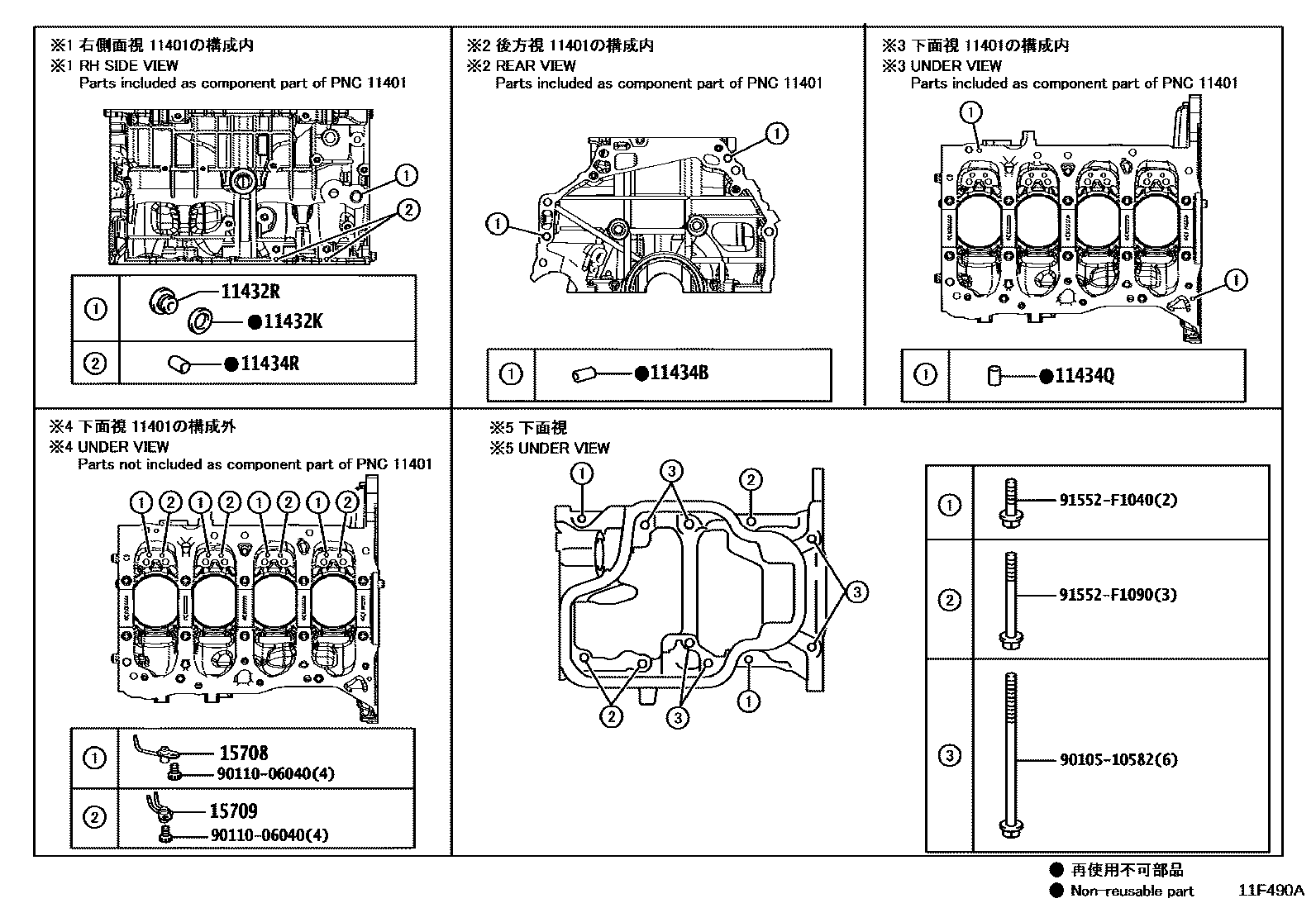

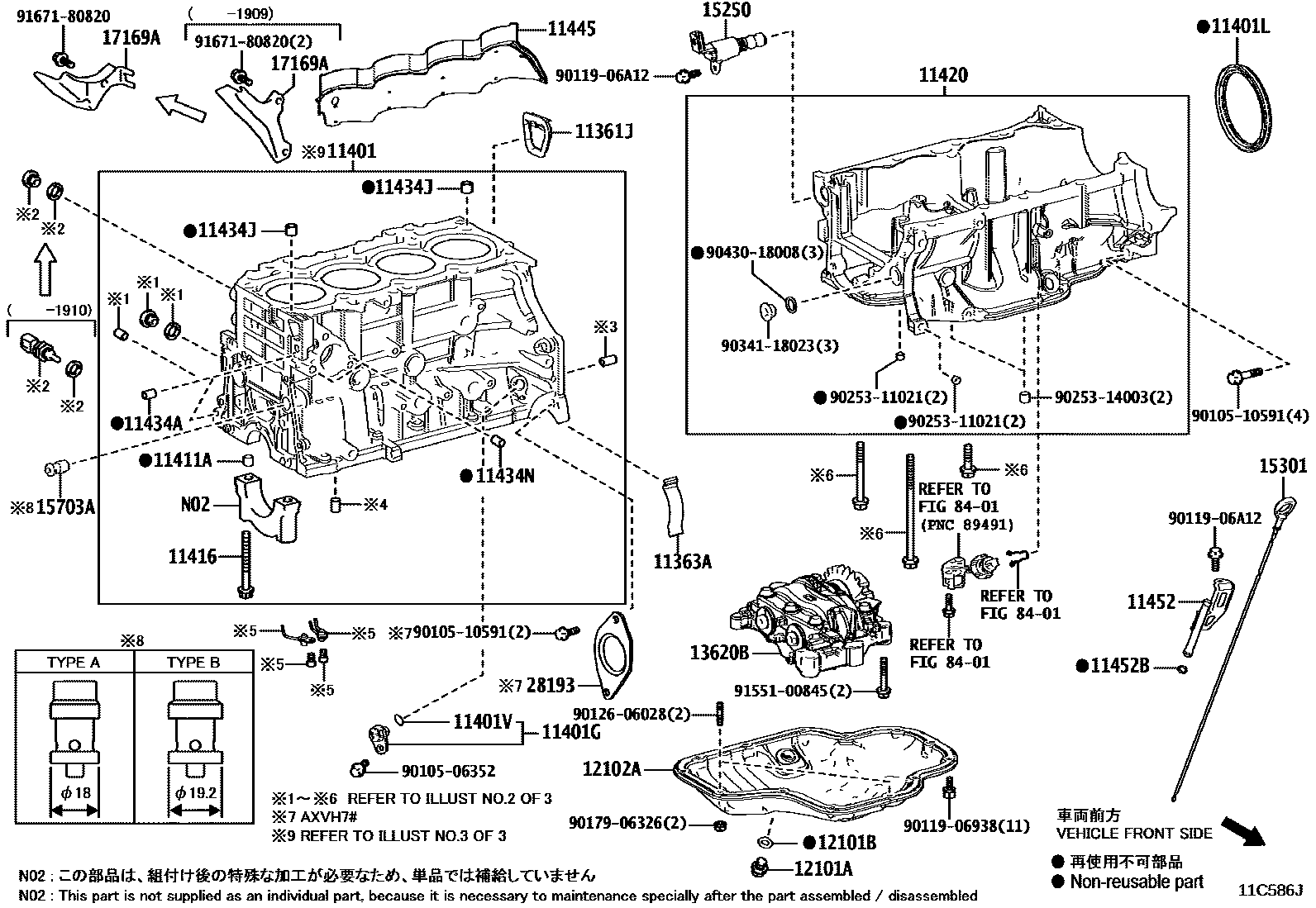

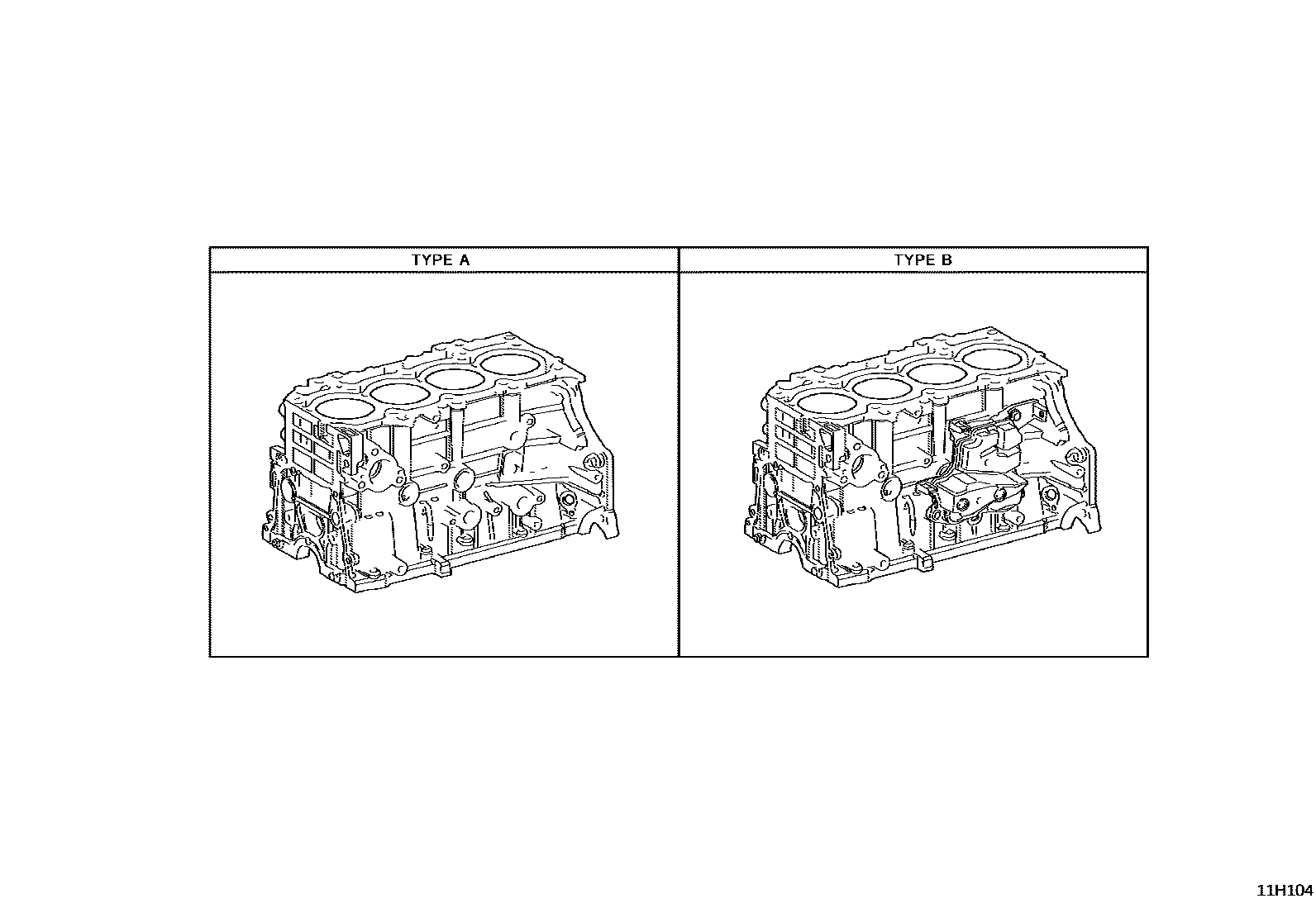

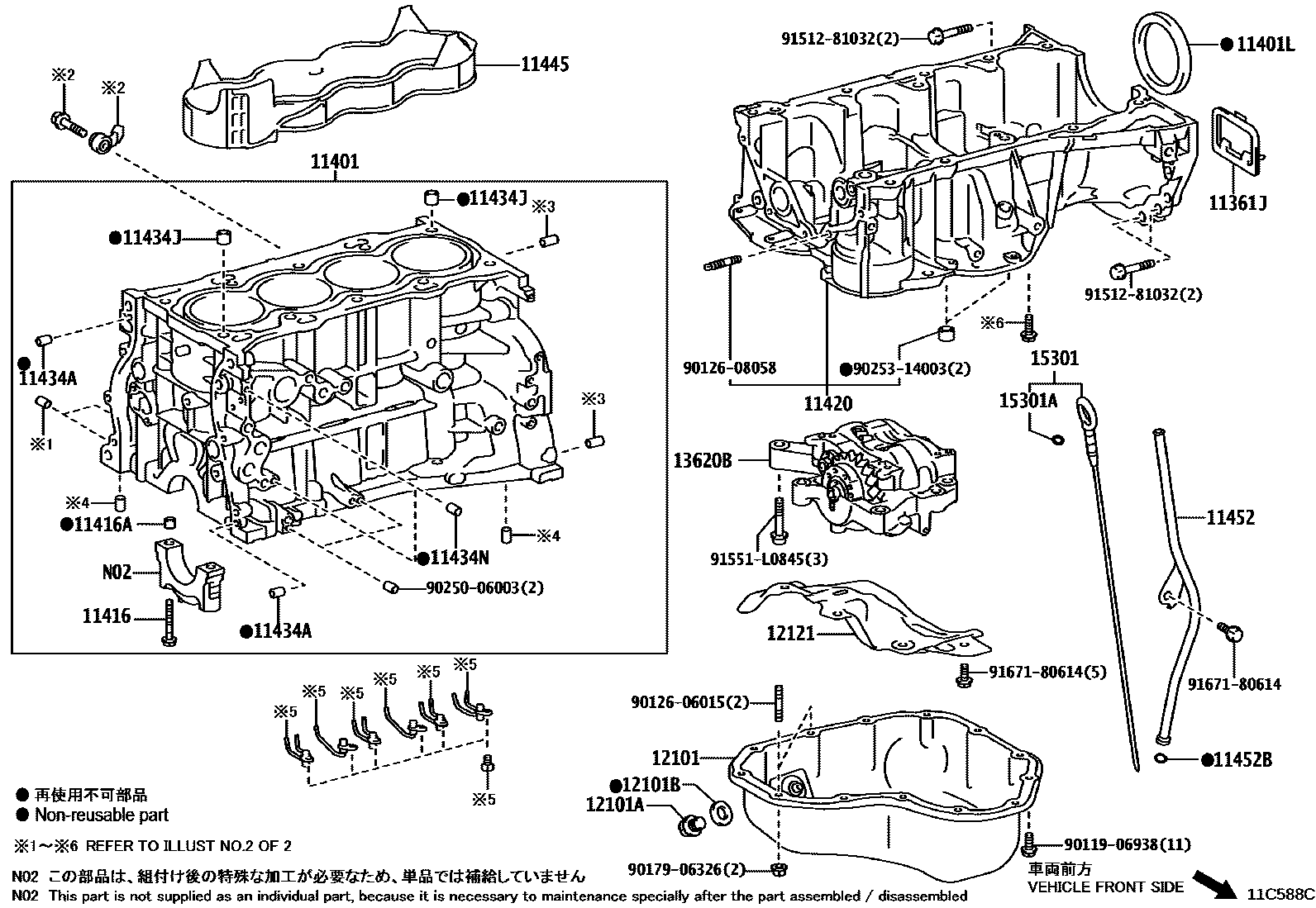

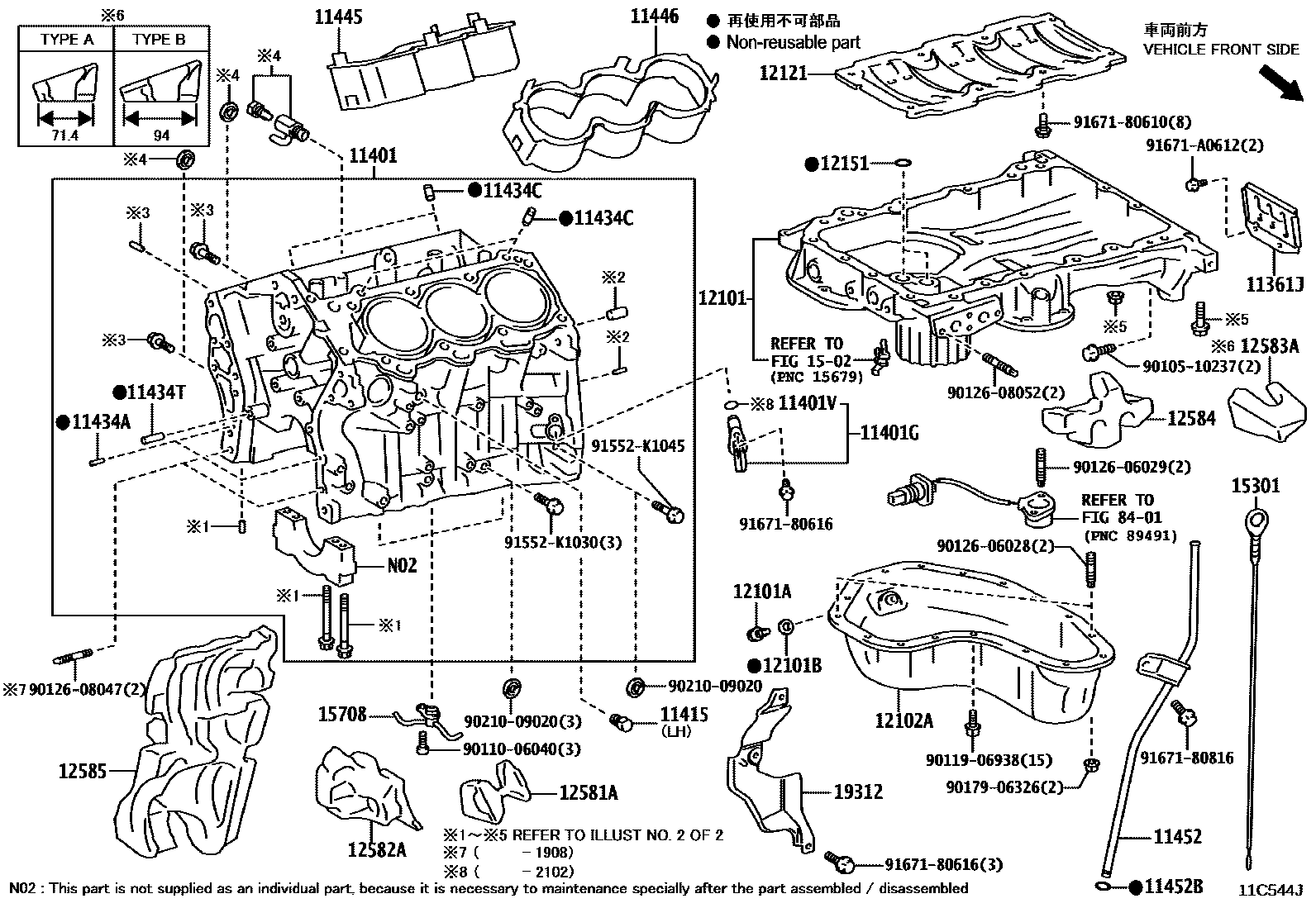

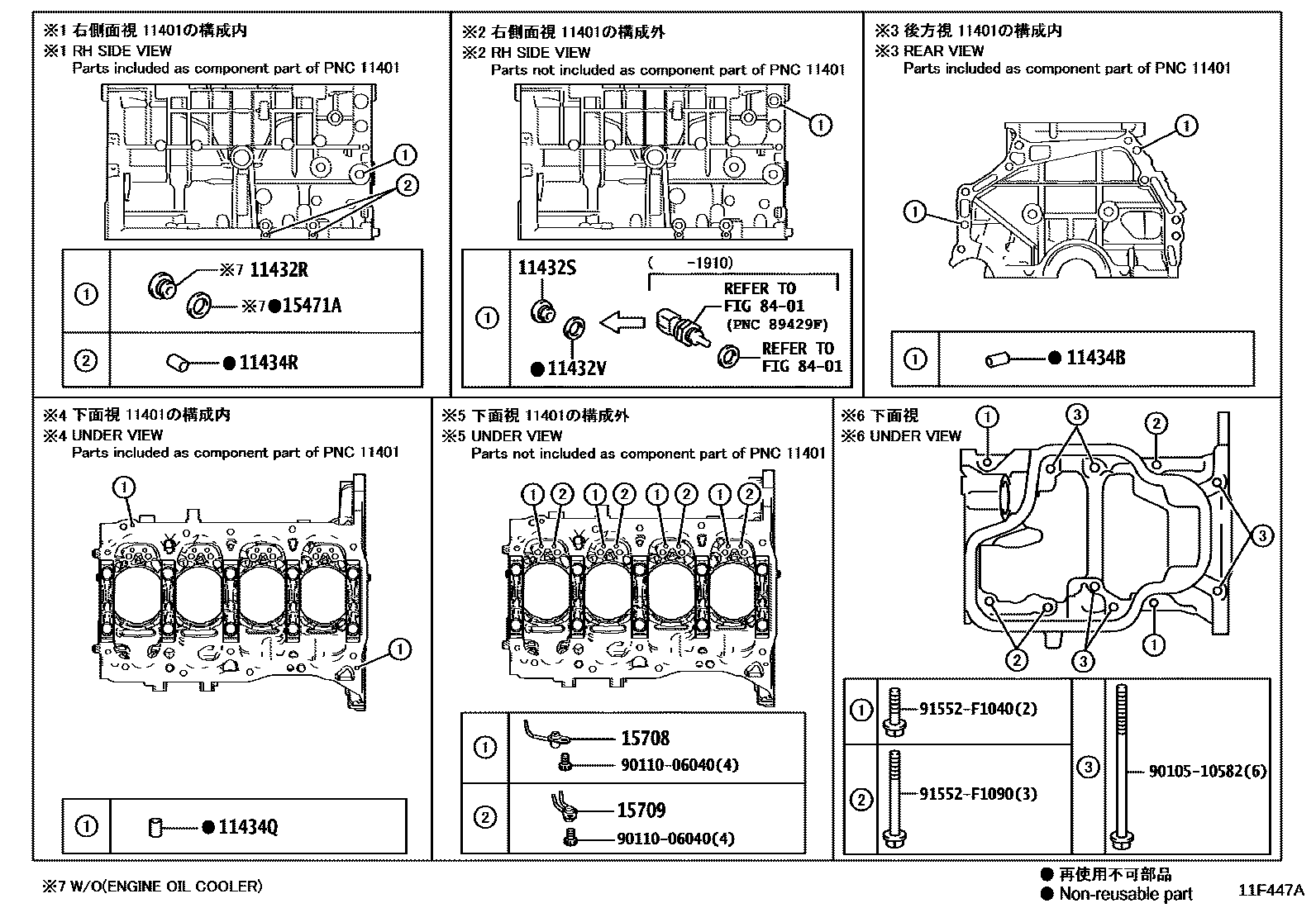

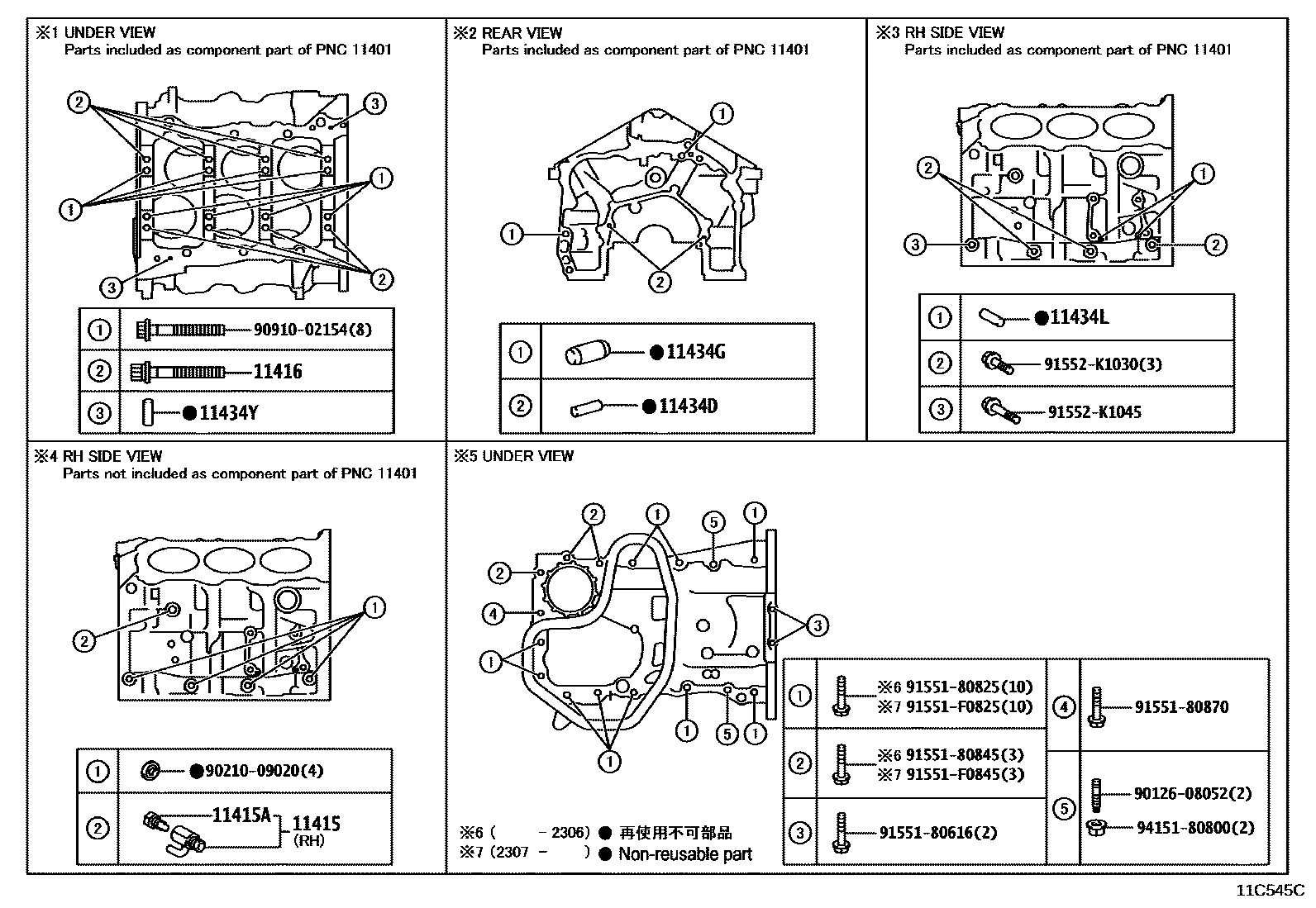

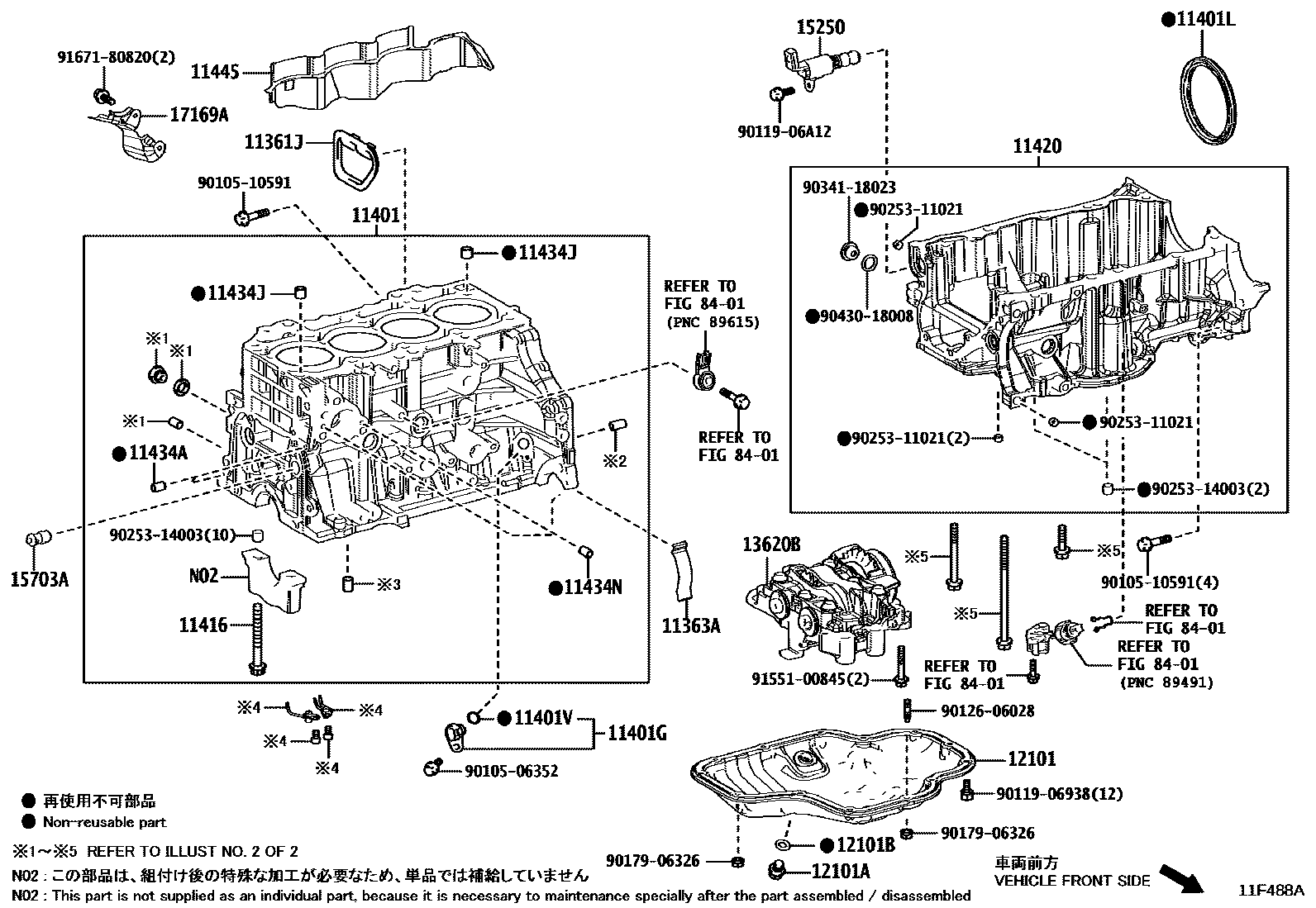

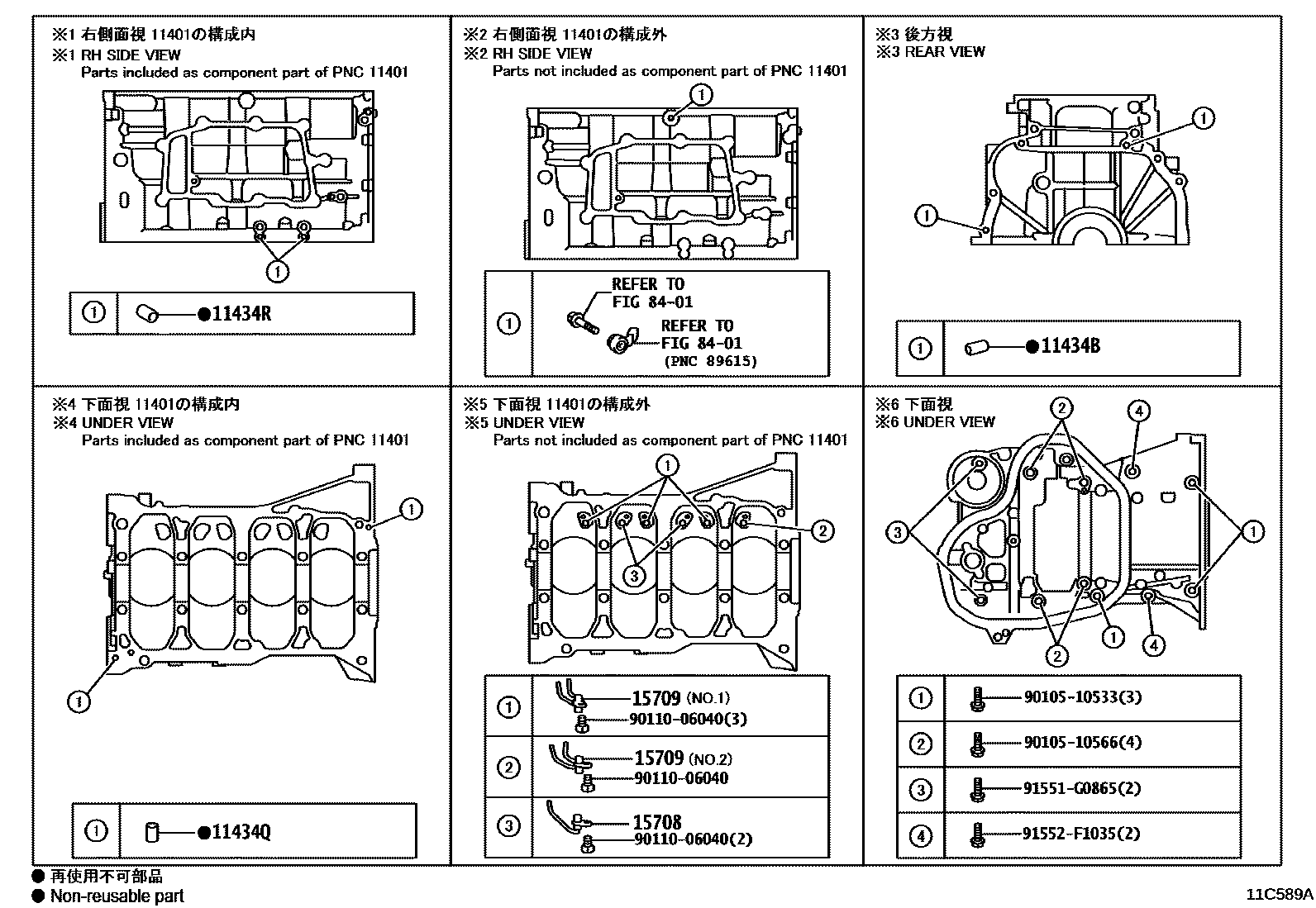

Toyota CAMRY Cylinder Block — Figure 1105
Toyota CAMRY EPC diagram 1105, Cylinder Block, with 9 images and 54 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-25010 · 11361-28010 · 11361-31060 |
| 11363A | Flywheel housing side cover | 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11401-80037 · 11401-80062 · 11410-29435 · 11410-29505 · 11410-29515 · 11410-29665 · 11410-29685 · 11410-39126 |
| 11401G | crankshaft position sensor | 90919-05090 · 90919-05094 · 90919-05095 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-89015 · 90311-90010 |
| 11401V | Crankshaft position sensor O-ring | 90301-11039 · 90301-14016 |
| 11411A | Ring pin (for cylinder block No. 1) | 90253-14003 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90345-52001 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02153 · 90910-02173 · 90910-02197 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 |
| 11420 | Reinforce crankcase assembly | 11420-24020 · 11420-25010 · 11420-36020 |
| 11432K | Headed straight thread plug liner | 90430-18008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18023 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-12012 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-12031 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-04097 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 · 90253-14003 · 90253-15001 |
| 11434L | Direct sales (for engine mounts) | 90250-04097 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 |
| 11445 | Cylinder block water jacket spacer | 11445-24010 · 11445-25010 · 11445-31050 · 11445-36010 |
| 11446 | Left cylinder block water jacket spacer | 11446-31050 |
| 11452 | Engine oil level gauge guide | 11452-25010 · 11452-31210 · 11452-36050 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12100-31040 · 12101-36040 · 12102-24020 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-25010 · 12102-31101 |
| 12121 | No. 1 oil pan baffle | 12121-31120 · 12121-36030 |
| 12151 | oil pan gasket | 12151-31010 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-31010 |
| 12582A | No. 2 cylinder block vibration isolation pad | 12582-31010 |
| 12583A | No. 3 cylinder block vibration isolation pad | 12583-31010 · 12583-31011 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-31010 |
| 12585 | No. 5 cylinder block vibration isolation pad | 12585-31010 |
| 13620B | Engine balancer assembly | 13620-24010 · 13620-25010 · 13620-36060 |
| 15250 | Oil pressure control valve assembly | 15250-25010 |
| 15301 | Engine oil level scoring assembly | 15301-25030 · 15301-31150 · 15301-36031 · 15301-36032 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15471A | Gasket (for cylinder block) | 90430-18008 |
| 15703A | Oil nozzle valve sub-assembly | 15703-25010 · 15703-25011 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-25010 · 15708-31050 · 15708-36010 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-25010 · 15709-36010 · 15709-36020 |
| 17169A | Exhaust manifold No. 3 heat shield | 17169-24010 · 17169-25021 · 17169-25030 |
| 19312 | Crankshaft position sensor protective cover | 19312-31010 |
| 28193 | Starter hole vibration isolation pad | 28193-25010 |
