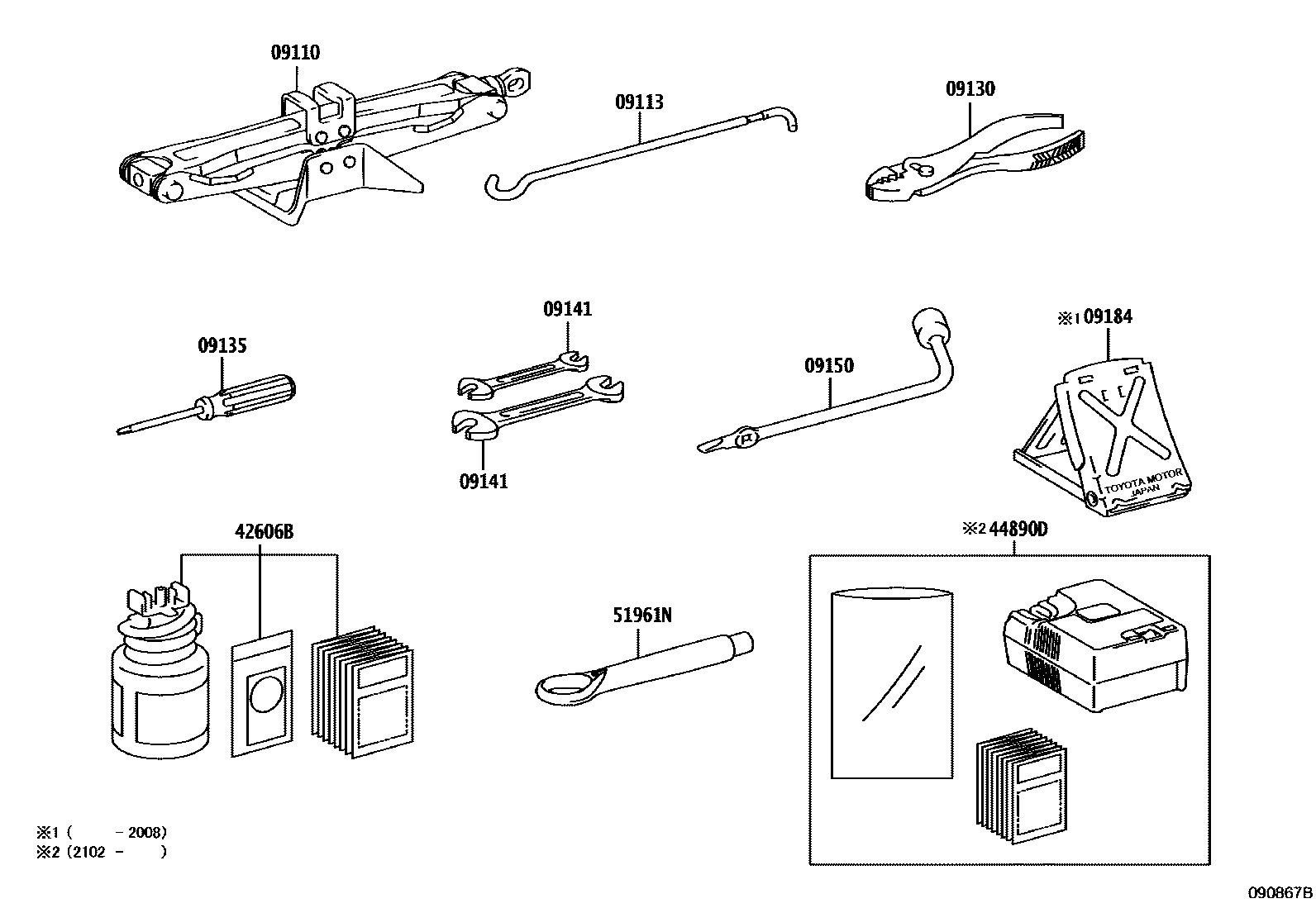

Toyota CAMRY Standard Tools — Figure 0901
Toyota CAMRY EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-33050 · 09110-33080 · 09111-33050 · 09111-33051 |
| 09113 | Jack Handle | 09113-42030 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench Case | 09150-42010 |
| 09184 | Wheel Chock | 09184-00010 |
| 42606B | Tubeless tire repair components | 42606-12040 · 42606-30011 · 42606-42080 · 42606-58010 |
| 44890D | Air Compressor Assembly | 44890-12030 · 44890-42050 |
| 51961N | transport hook | 51961-33010 |
