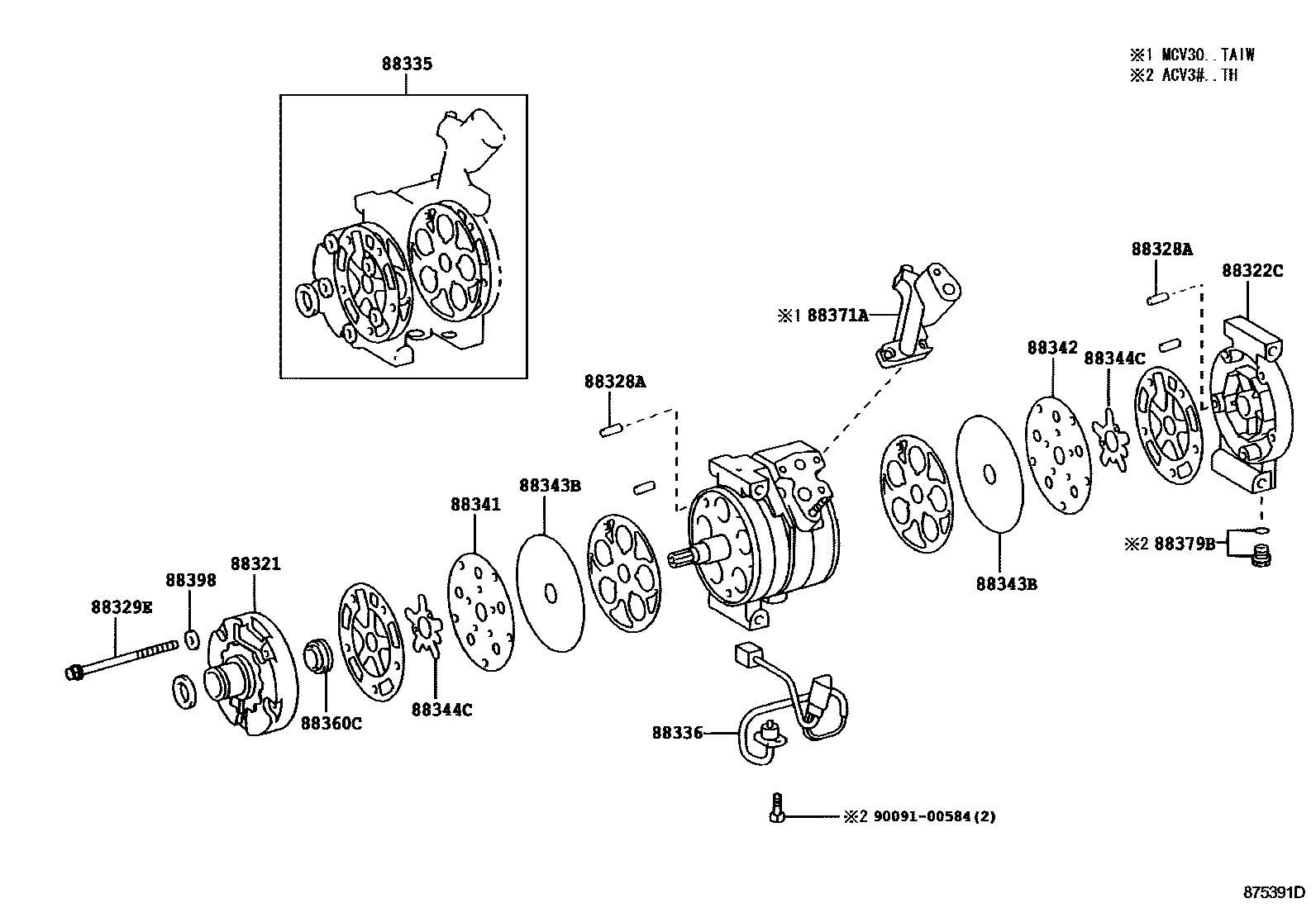

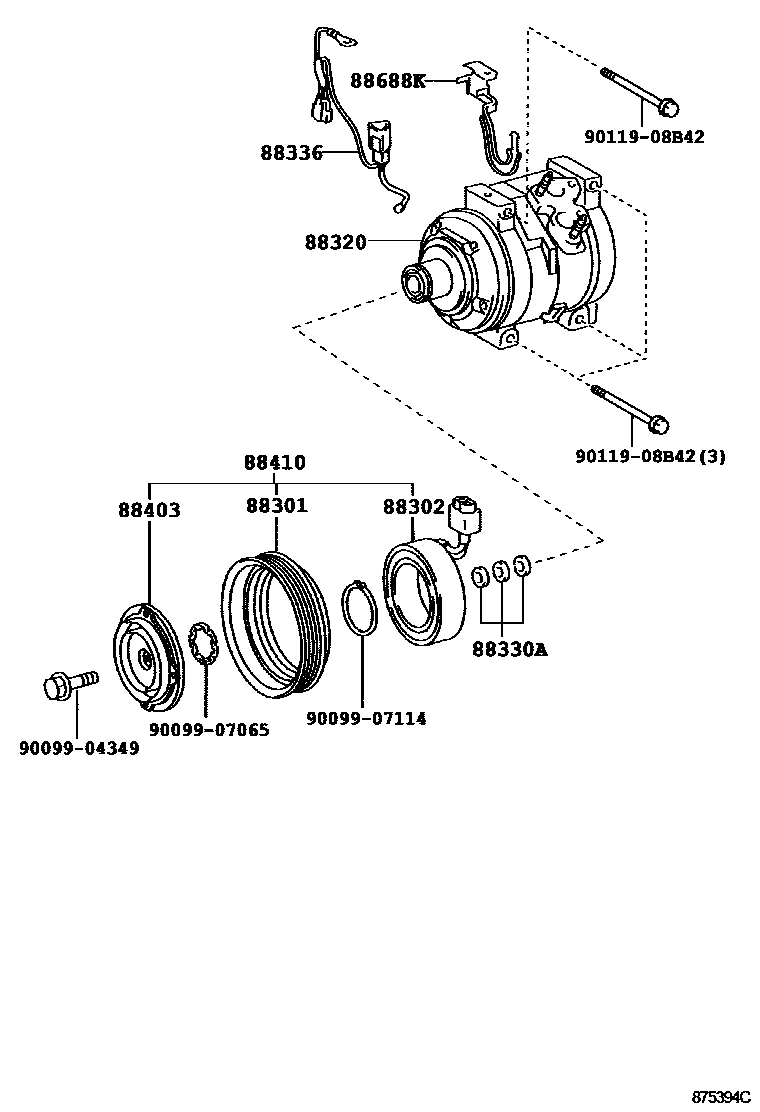

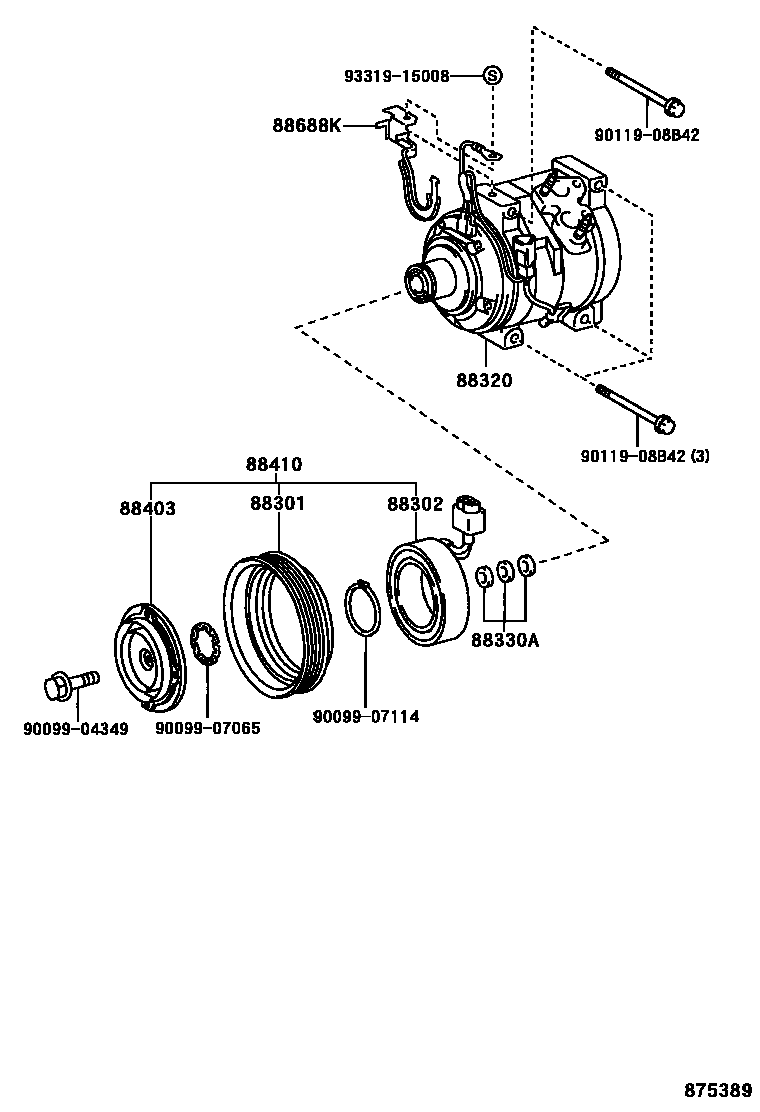

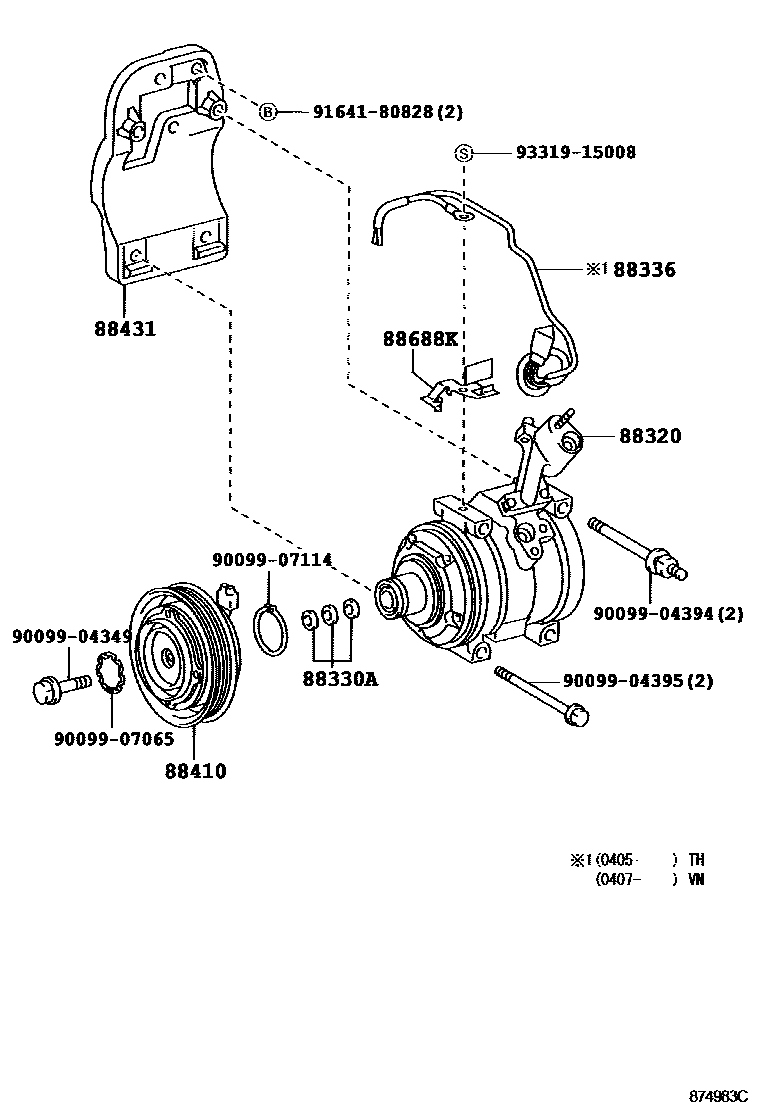

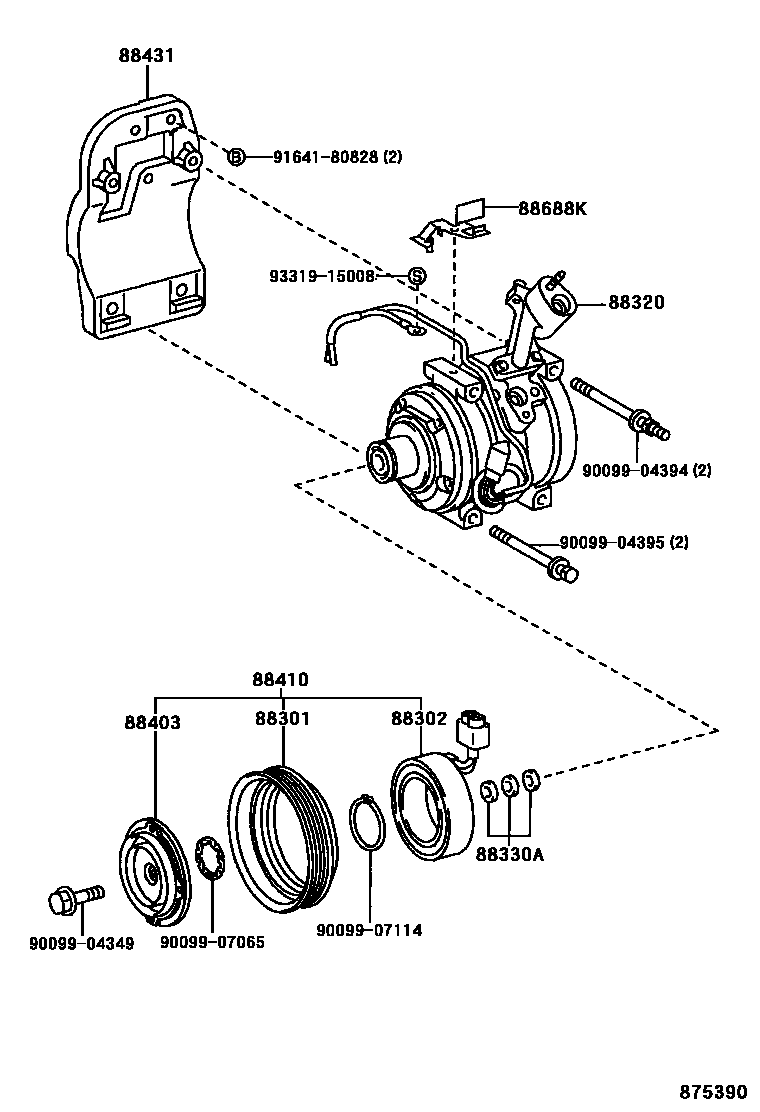

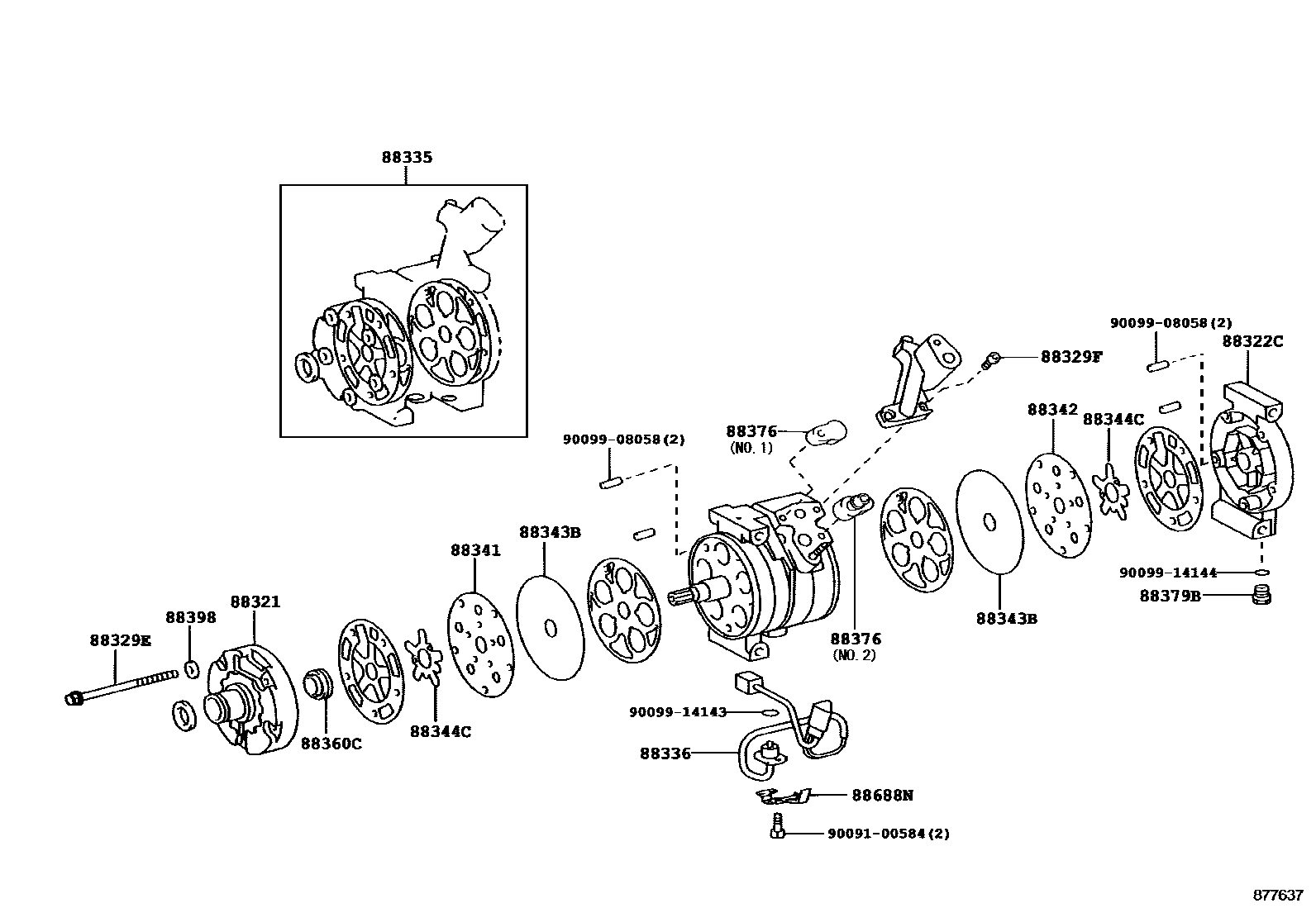

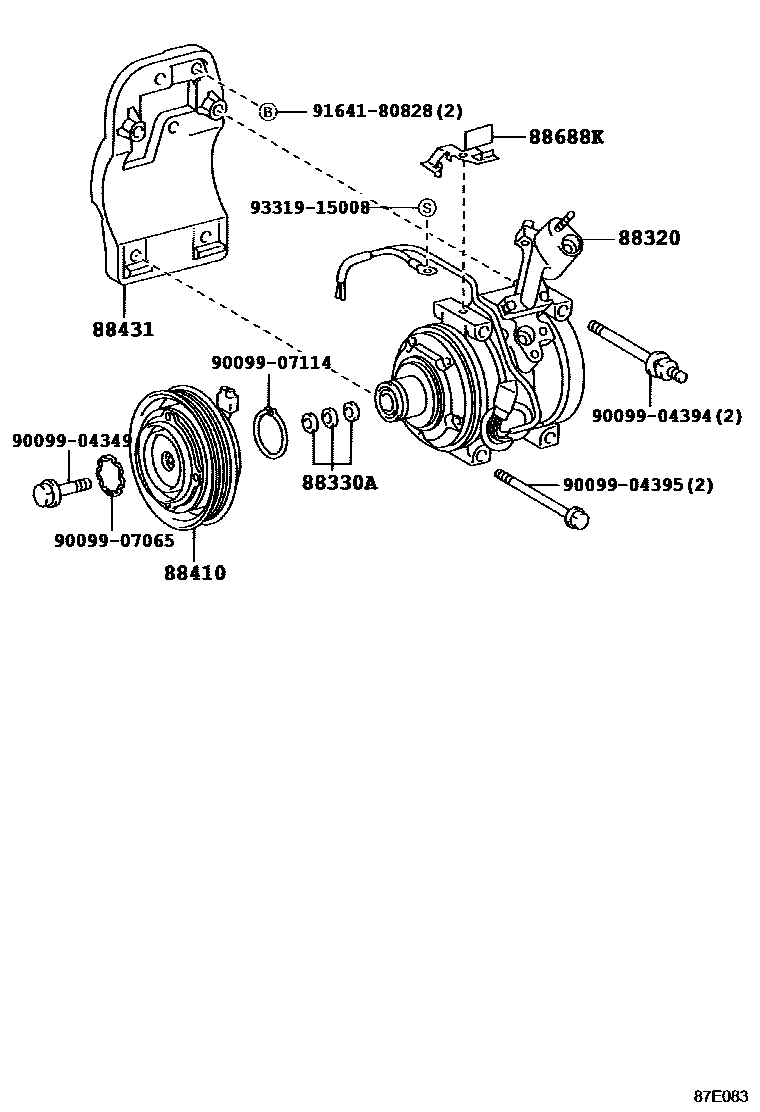

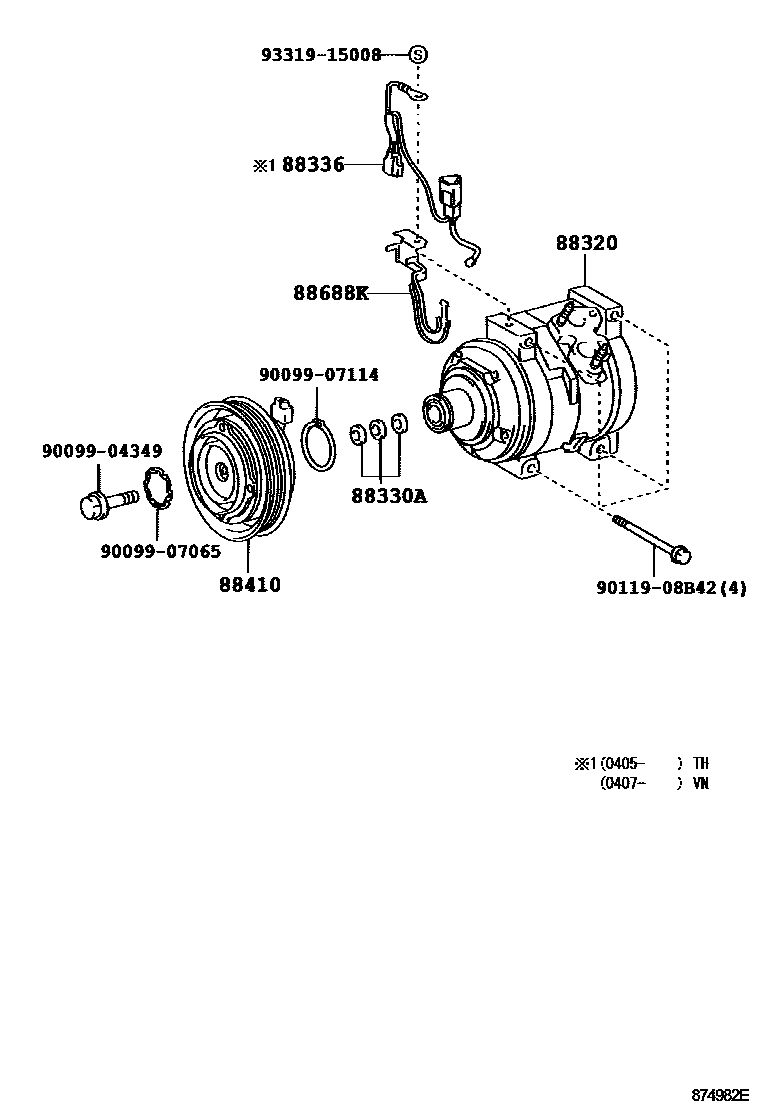

Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 8 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-42010 · 88412-48020 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-44010 |
| 88320 | Cooler Compressor Assembly | 88320-06090 · 88320-06100 · 88320-33160 · 88320-48080 · 88320-8C000 · 88320-8C001 |
| 88321 | Cooler compressor cylinder head | 88321-48010 |
| 88322C | Rear cylinder head | 88322-32060 · 88322-48010 |
| 88328A | compressor pin | 90099-08058 |
| 88329E | No. 1 compressor bolt | 88329-48010 |
| 88329F | No. 2 compressor bolt | 88329-16030 |
| 88330A | Washer (for electromagnetic clutch) | 88318-87704 · 88318-87705 · 88318-87706 · 88335-14020 · 88335-8C000 |
| 88335 | Overhaul gasket assembly | 88335-48070 · 88335-8C000 |
| 88336 | compressor sensor | 88336-33130 · 88336-48030 |
| 88341 | front valve | 88341-32010 |
| 88342 | Rear compressor valve plate | 88342-32020 |
| 88343B | suction valve reed | 88343-32020 |
| 88344C | Discharge valve reed | 88344-32010 |
| 88360C | Shaft seal assembly | 88360-32010 |
| 88371A | suction valve | 88371-8C001 |
| 88376 | blind cover | 88376-14020 · 88376-32020 |
| 88379B | Pressure reducing valve | 88379-32010 |
| 88398 | Compressor seals | 88398-32010 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-33120 · 88410-42040 |
| 88431 | Compressor No. 1 mounting bracket | 88431-33041 |
| 88688K | Cooler compressor bracket | 88688-03030 · 88688-48070 · 88688-48110 |
| 88688N | cooler bracket | 88688-48050 |
