Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

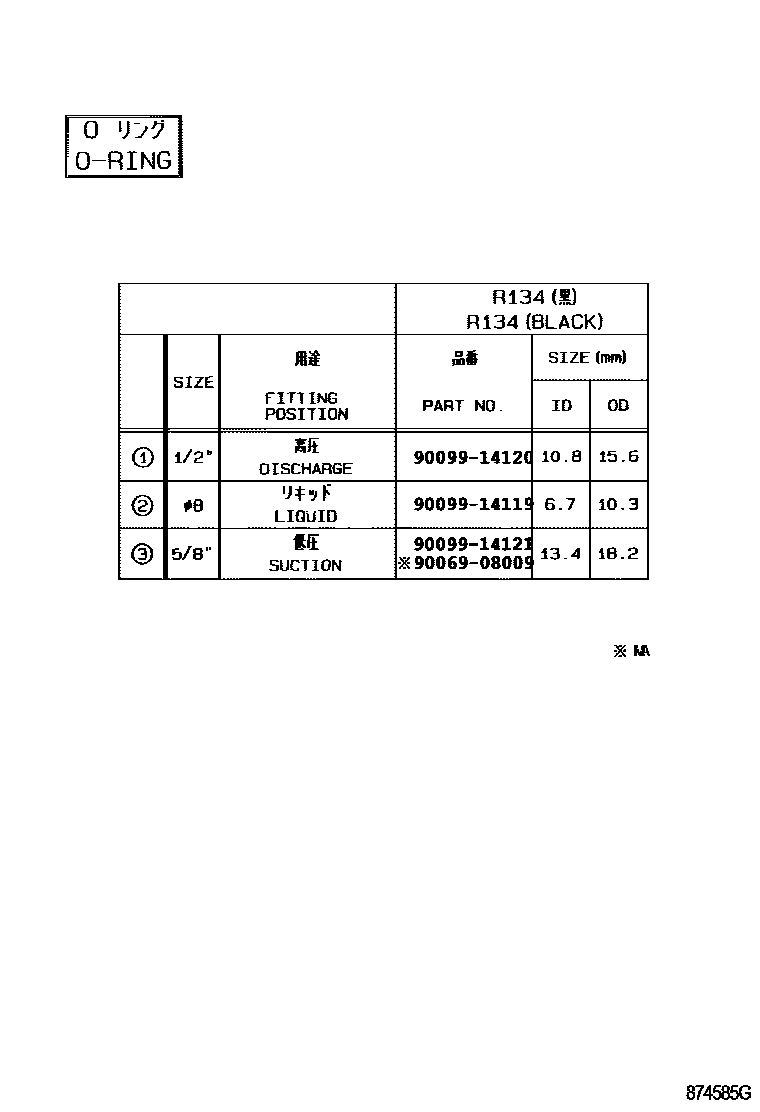

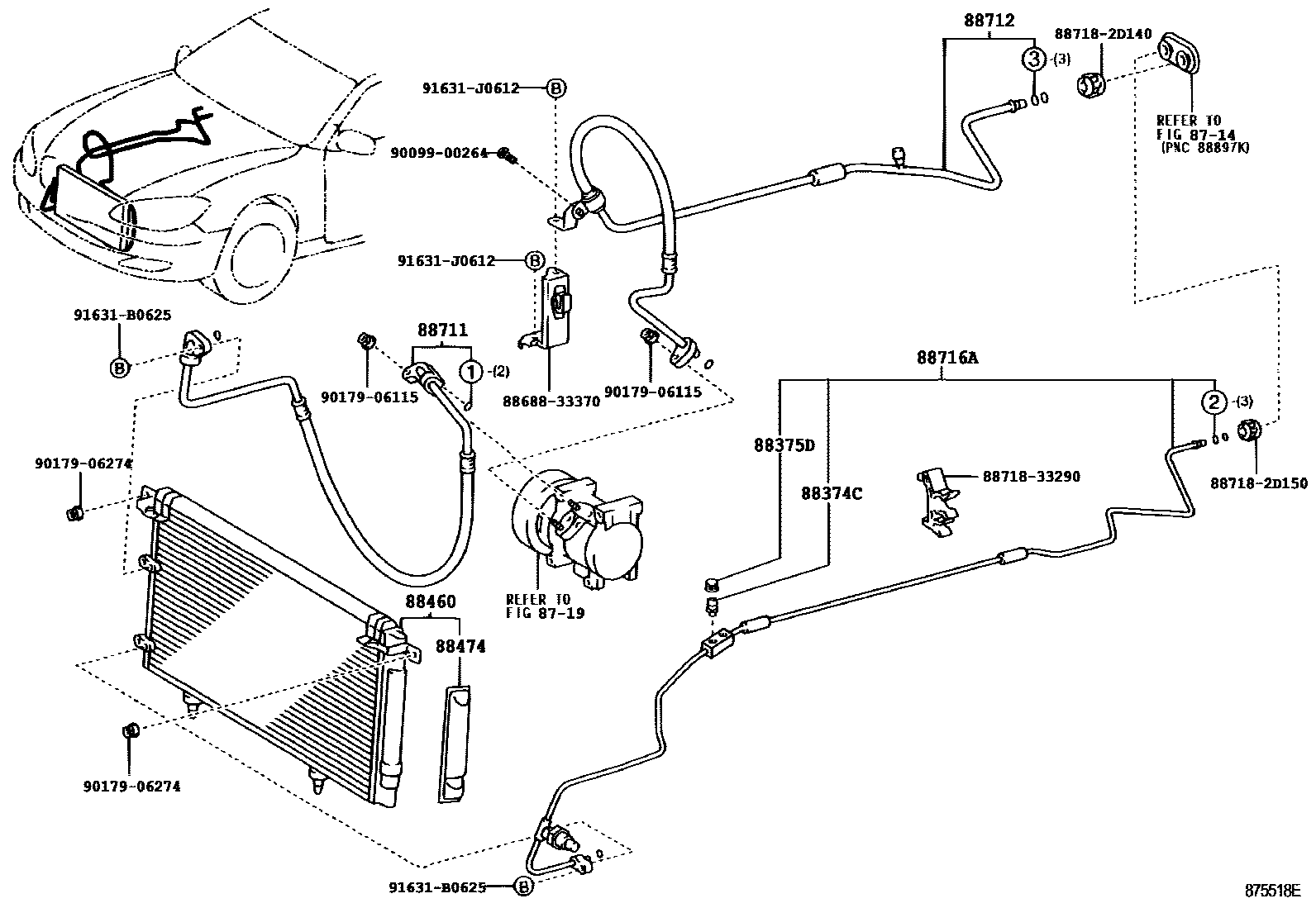

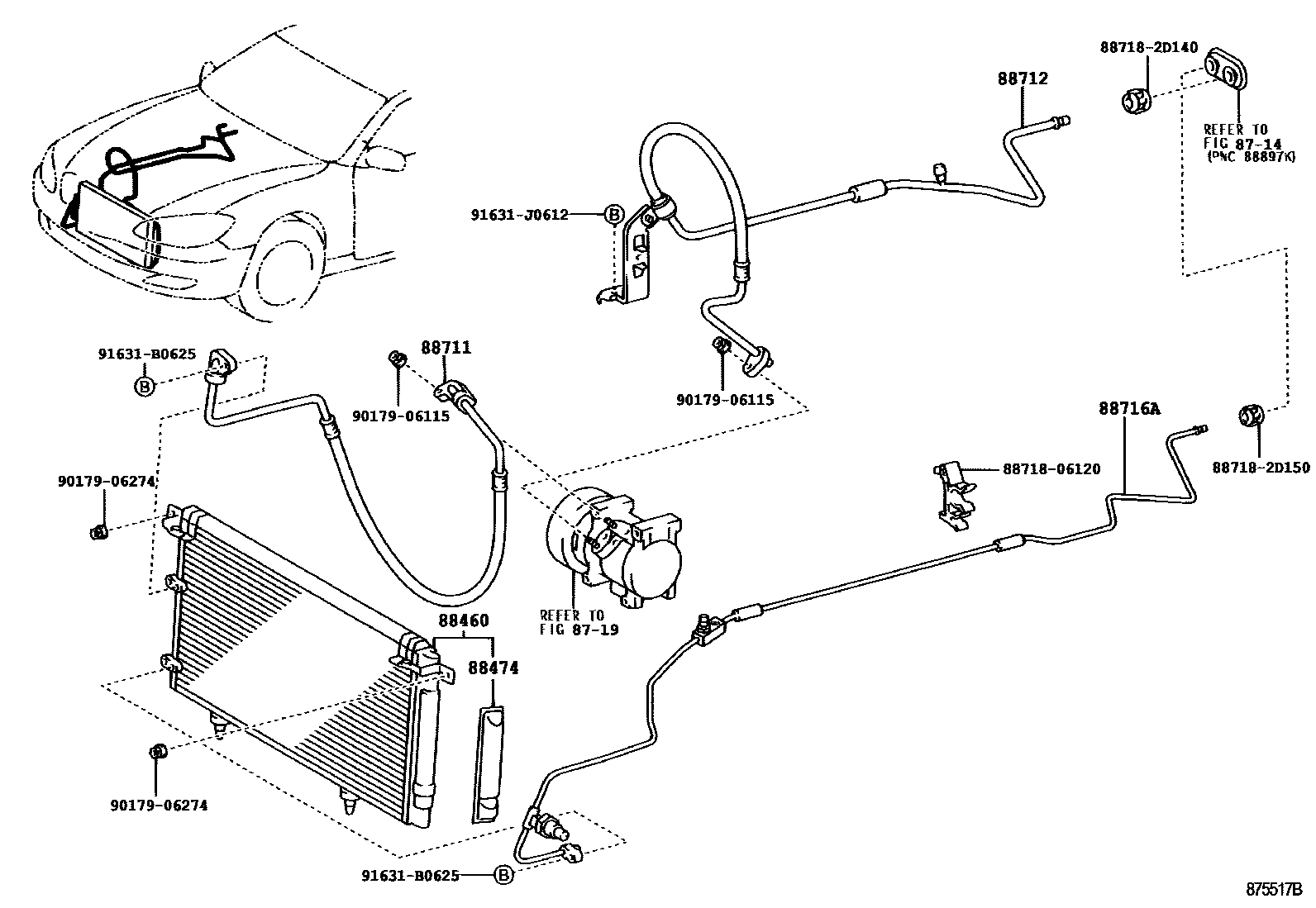

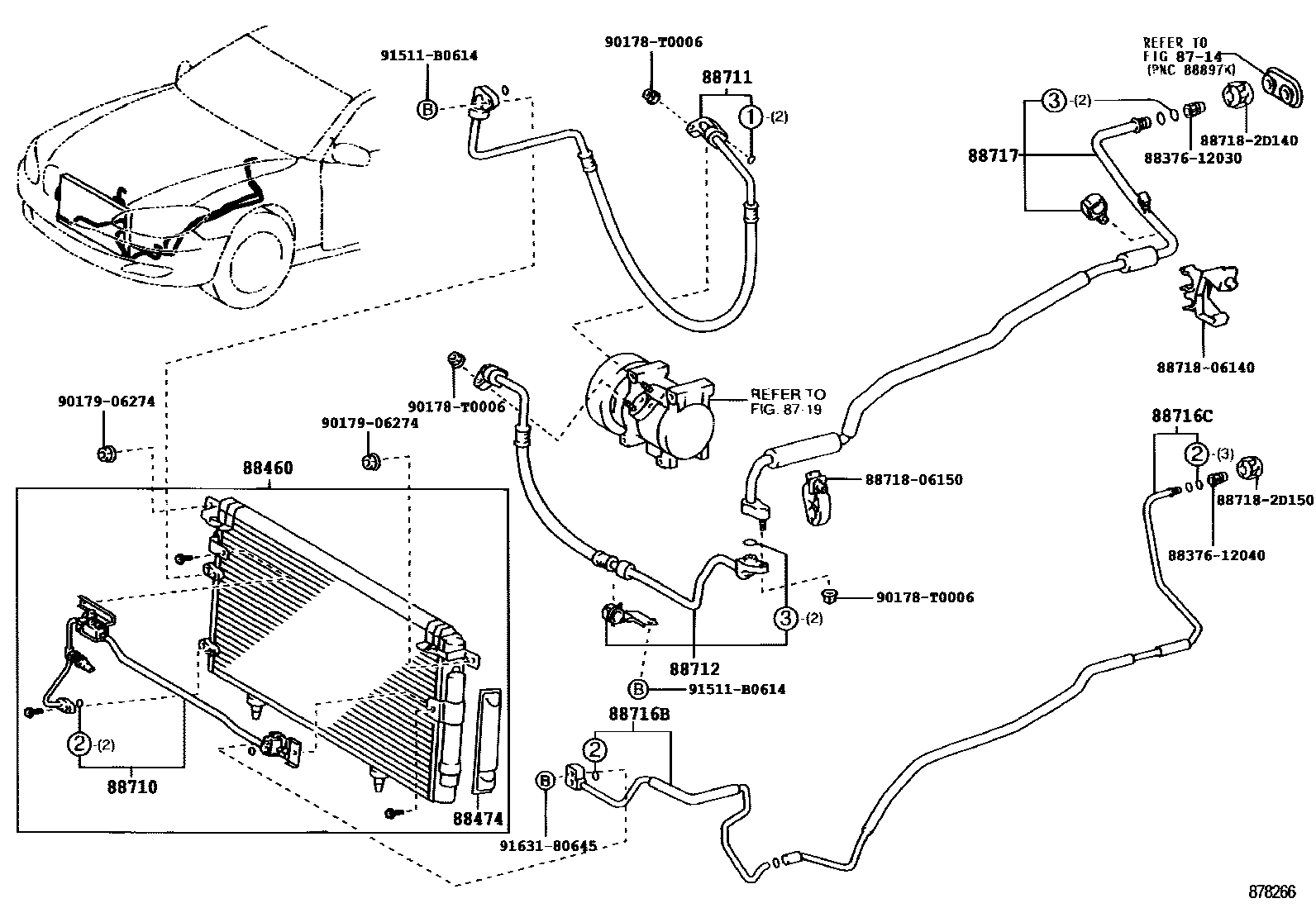

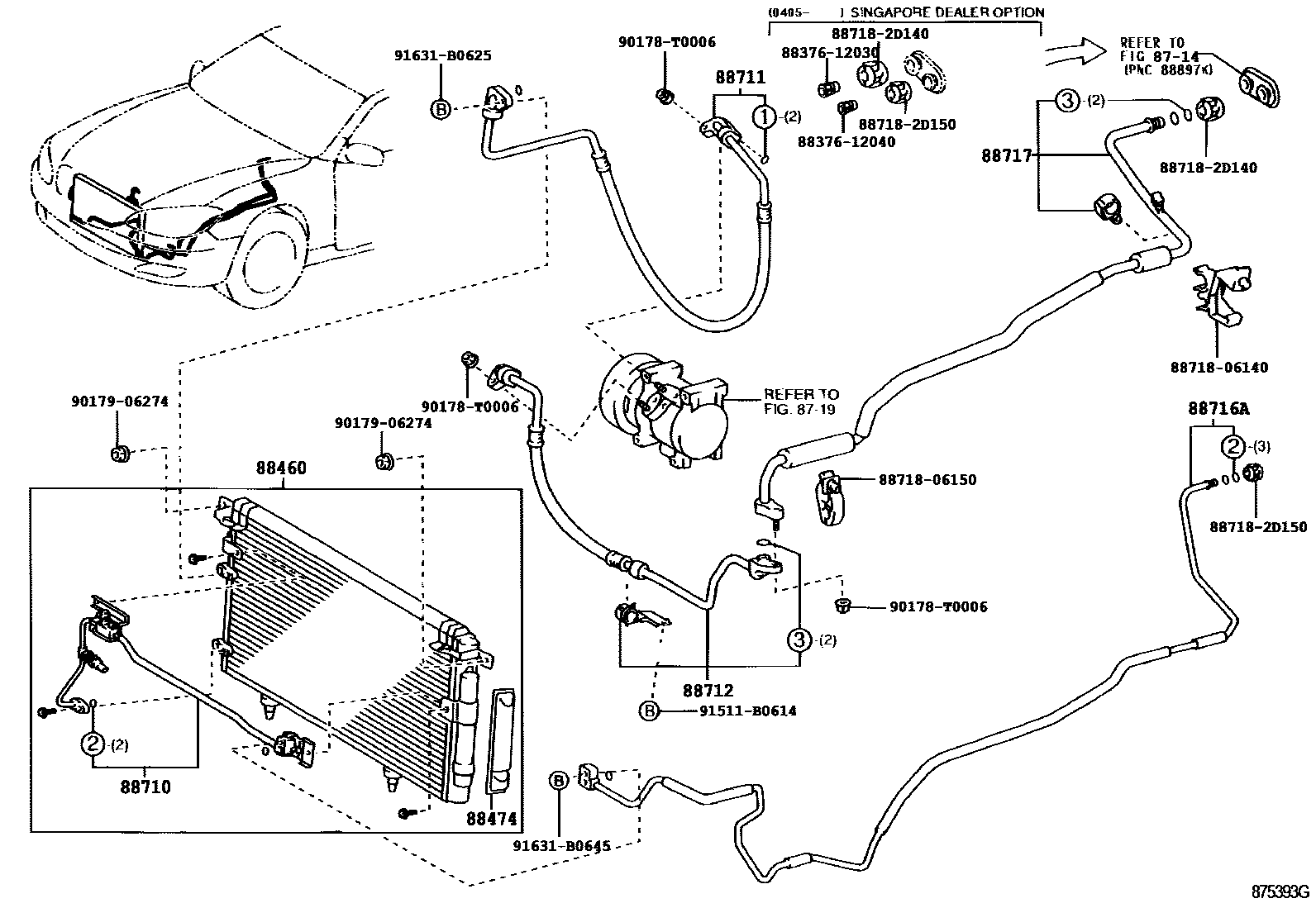

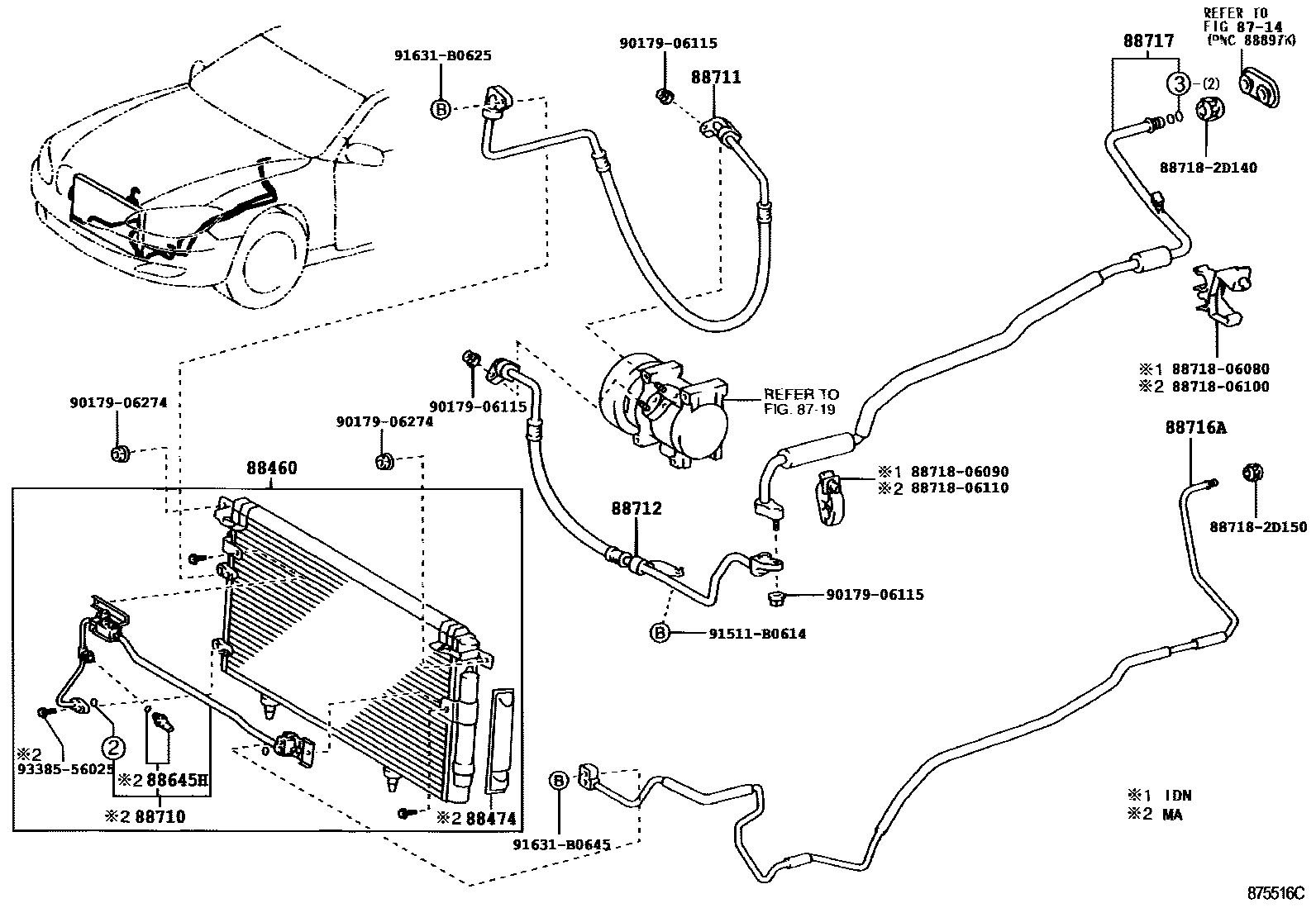

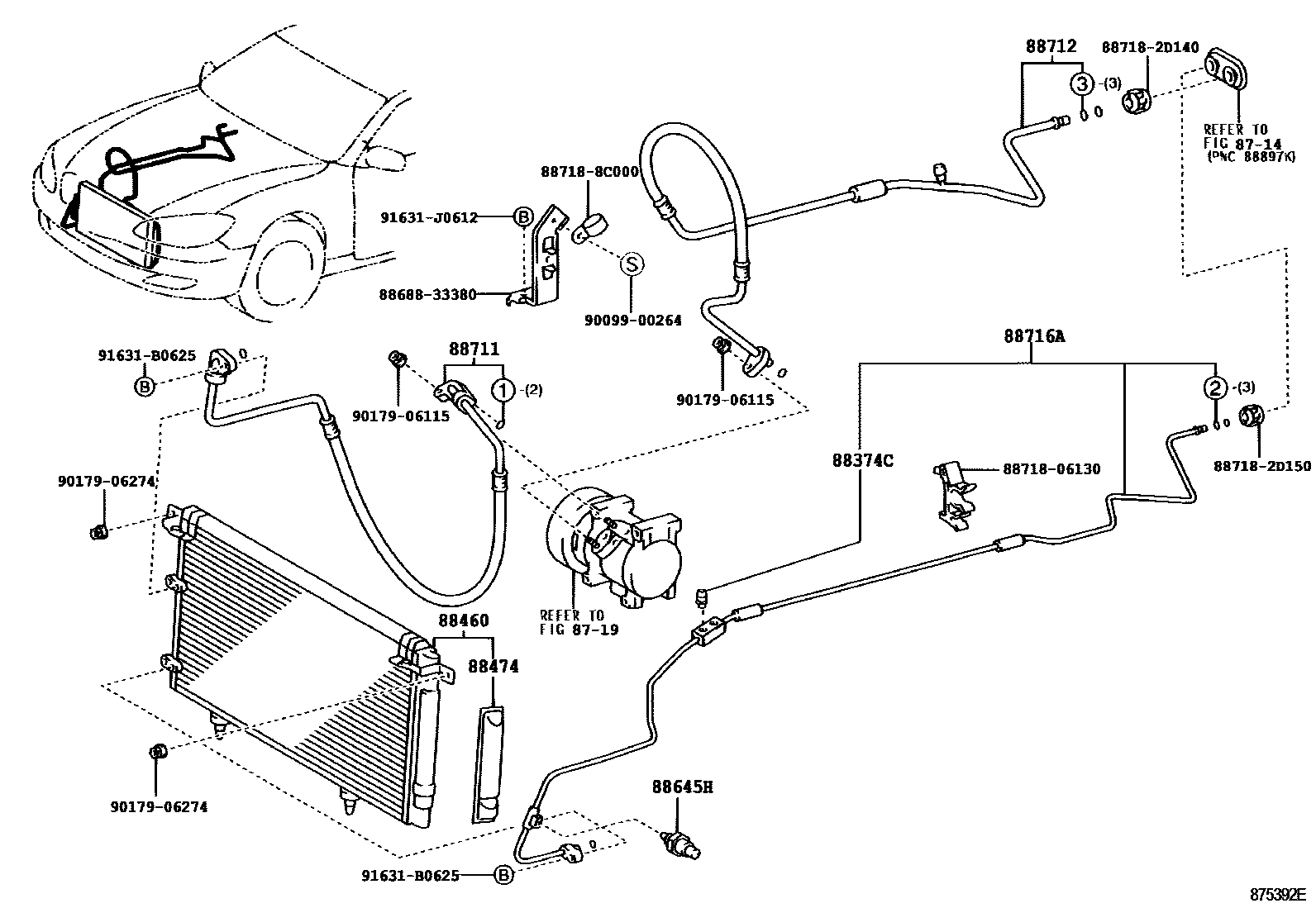

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-06080 · 88460-06090 · 88460-06100 · 88460-06110 · 88460-06120 · 88460-06121 |
| 88474 | cooler dryer | 88474-06010 · 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88710 | Air conditioning pipe assembly | 88710-06180 · 88710-33300 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06140 · 88711-06150 · 88711-06160 · 88711-06170 · 88711-06180 · 88711-06190 · 88711-06200 · 88711-06210 · 88711-06220 · 88711-33160 · 88711-33180 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-06140 · 88704-06150 · 88704-06160 · 88704-06170 · 88704-06180 · 88704-06190 · 88704-06200 · 88704-06250 · 88704-06260 · 88704-33270 · 88704-33290 · 88712-33220 · 88712-8C004 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-06140 · 88710-06170 · 88710-33260 · 88716-06170 · 88716-06180 · 88716-06190 · 88716-33420 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-06230 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-06240 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88710-06110 · 88710-06120 · 88710-06130 |
