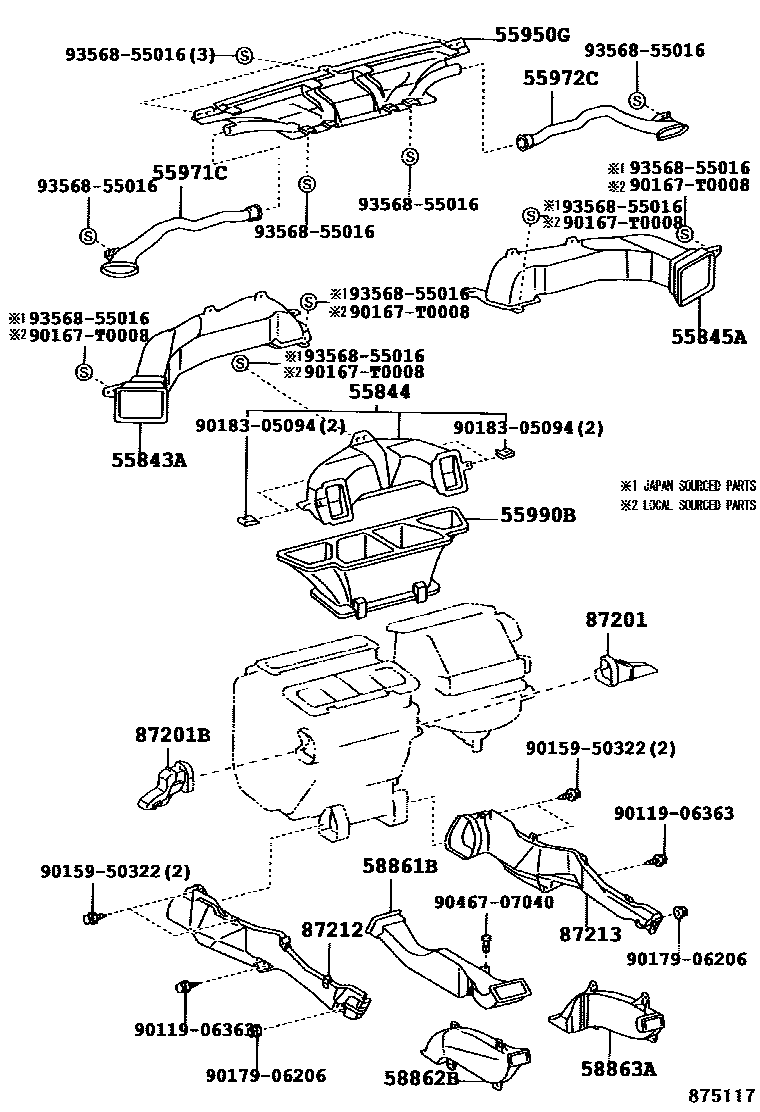

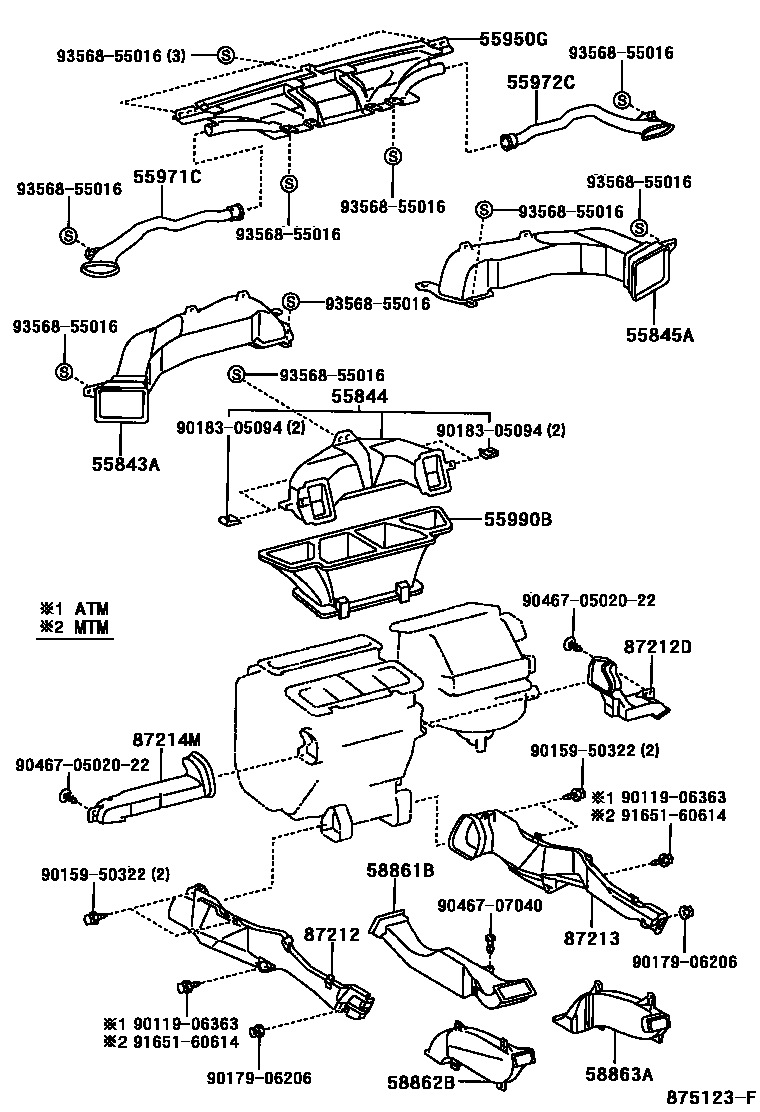

Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-06030 · 55843-06040 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06040 · 55844-06050 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06020 · 55845-06030 |
| 55900B | air conditioning control light bulb | 90010-03054 · 90010-03055 · 90010-03056 |

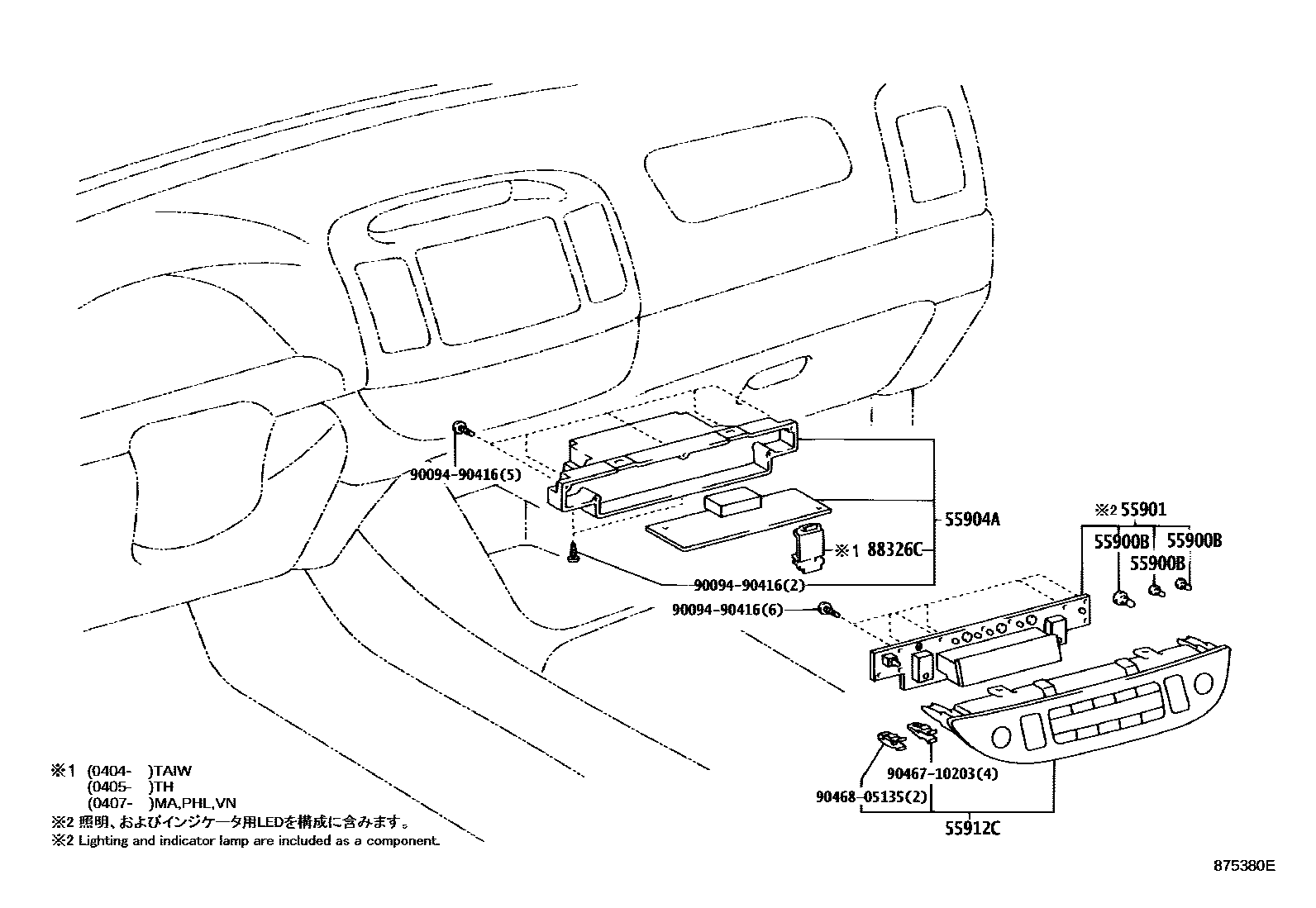

| 55901 | Heater controller base sub-assembly | 55901-33010 · 55901-33020 · 55901-33030 |

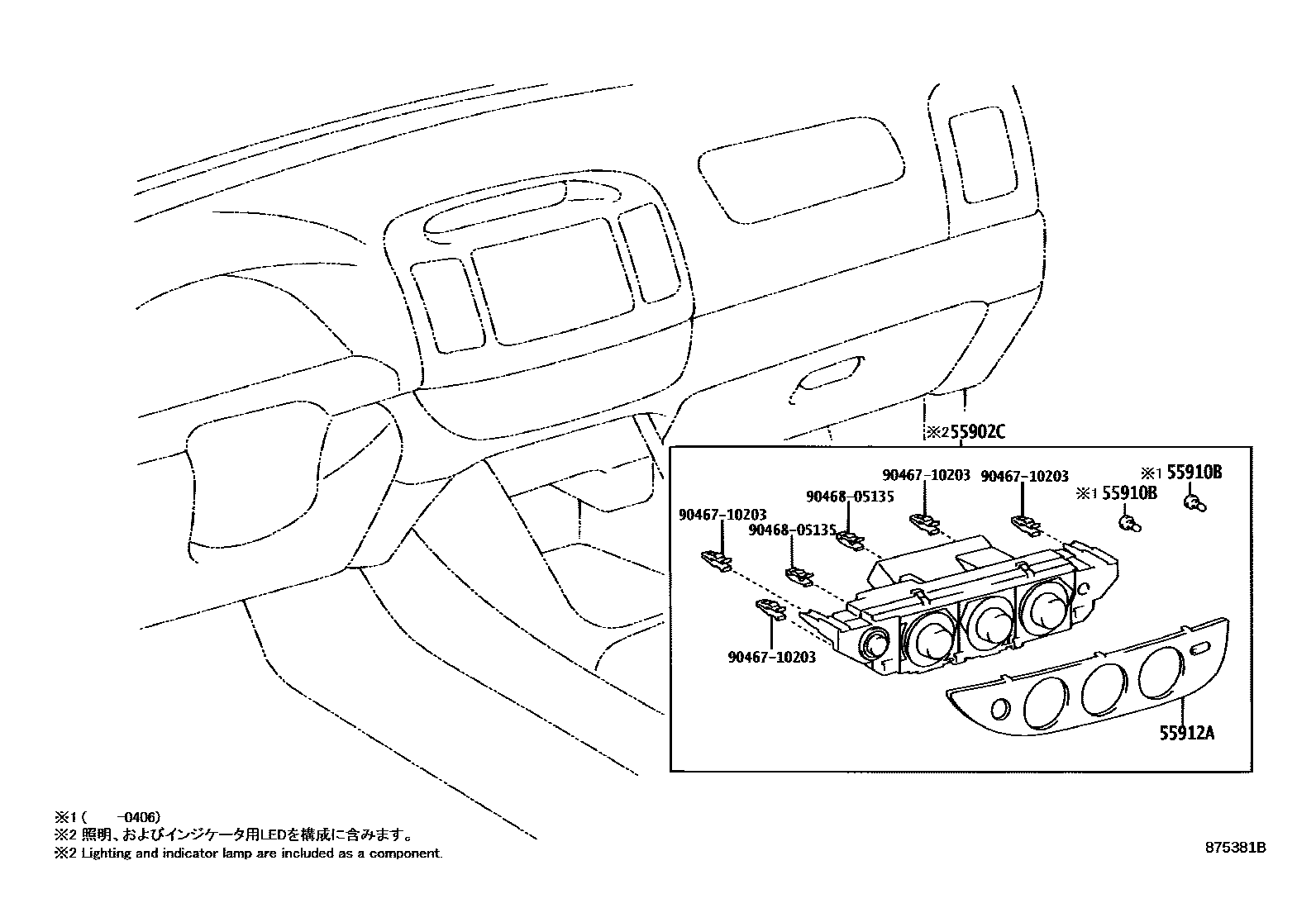

| 55902C | Air conditioning panel sub-assembly | 55902-33540 |
| 55904A | Heater control housing sub-assembly | 55904-33120 |
| 55910B | heater control light bulb | 84999-33020 |
| 55912A | heater control housing | 55912-33130 |
| 55912C | heater control housing | 55912-33080 · 55912-33170 · 55912-33180 · 55912-33190 · 55912-33270 · 55912-33290 · 55912-33310 · 55912-33320 |
| 55950G | Defroster nozzle assembly | 55950-06030 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06020 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06020 |
| 55990B | Lower defroster nozzle assembly | 55990-06010 · 55990-33010 · 55990-33020 |
| 58861B | Air duct No. 1 for armrest box | 58861-06010 · 58861-33010 |
| 58862B | Air duct No. 2 for armrest box | 58862-06010 |
| 58863A | Armrest box No. 3 air duct | 58863-06010 |
| 87201 | No. 1 air duct sub-assembly | 87201-06080 · 87201-06100 · 87201-06120 |
| 87201B | No. 2 air duct sub-assembly | 87201-06090 · 87201-06110 · 87201-06130 |
| 87212 | No. 1 rear air duct | 87212-06020 · 87212-06030 · 87212-33020 |
| 87212D | Heater to foot duct No. 1 | 55823-06020 |
| 87213 | No. 2 rear air duct | 87213-06020 · 87213-06030 · 87213-33030 |
| 87214M | Heater to foot duct No. 3 | 55824-06010 |
| 88326C | Cover plate | 88326-63010 |

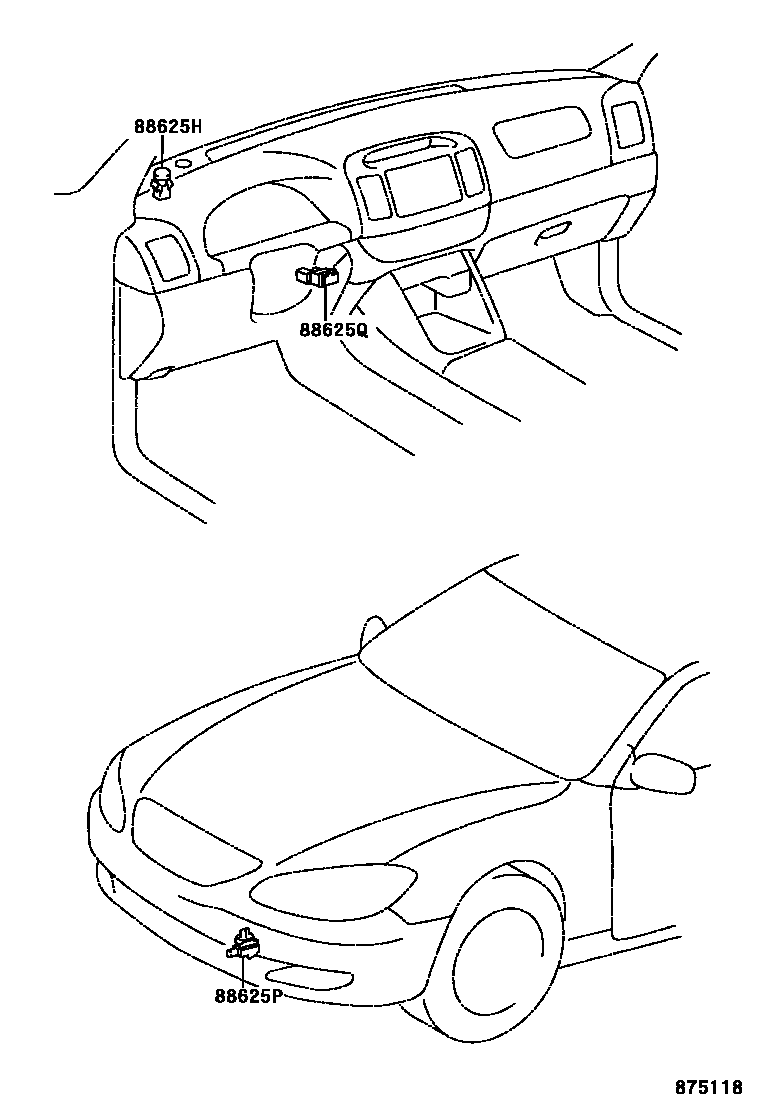

| 88625H | Cooler thermistor (sunlight sensor) | 88625-33150 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
