Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

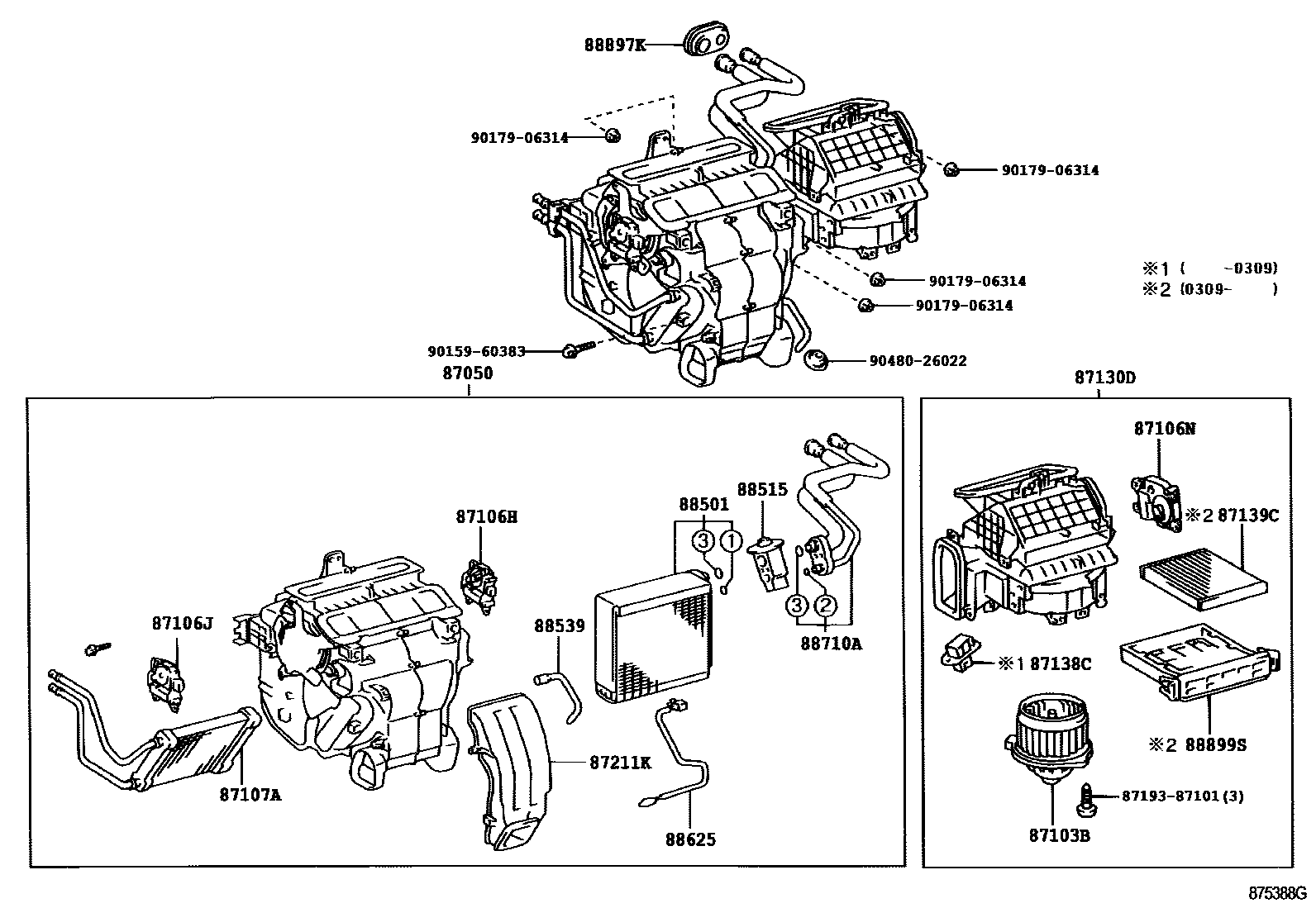

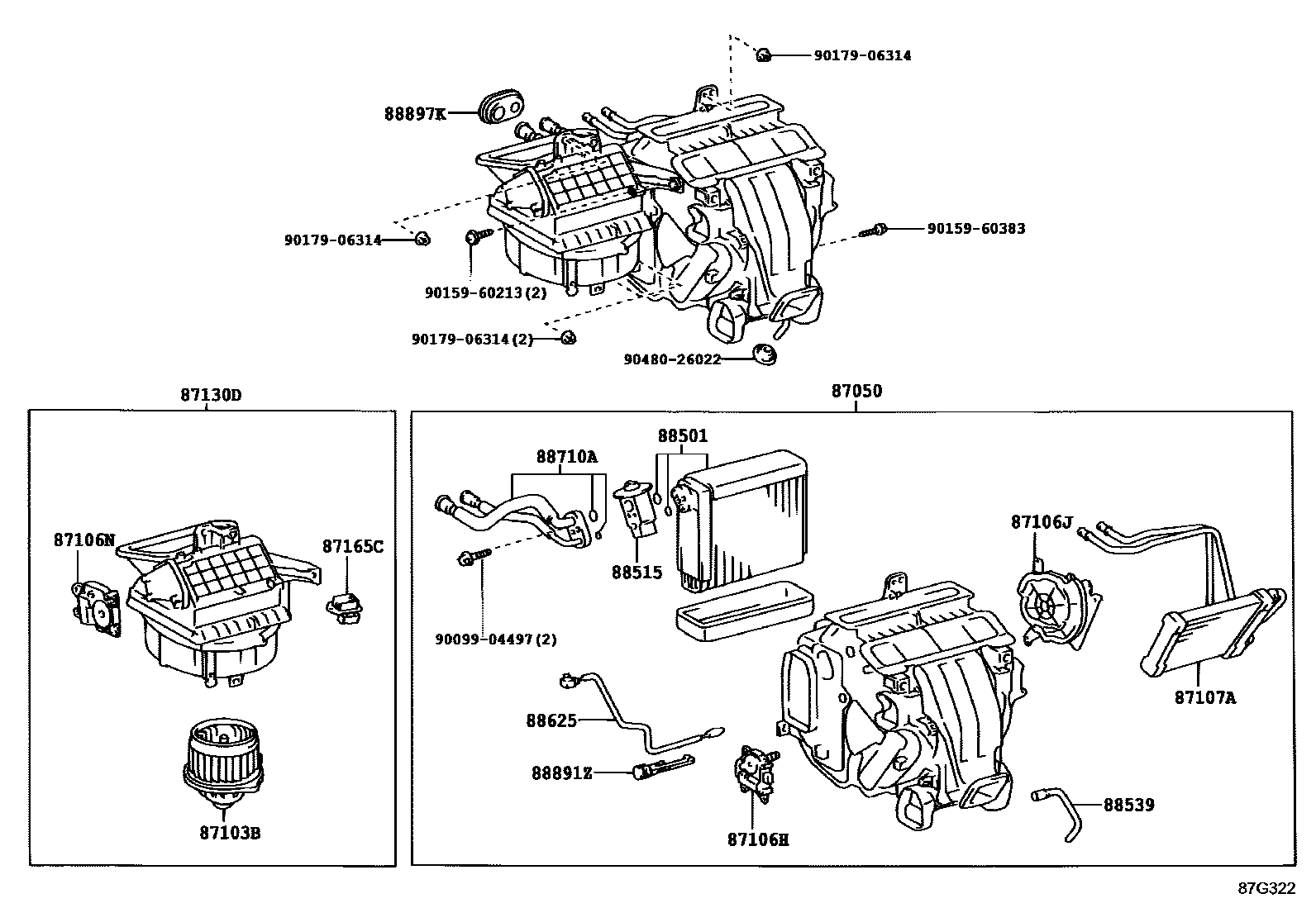

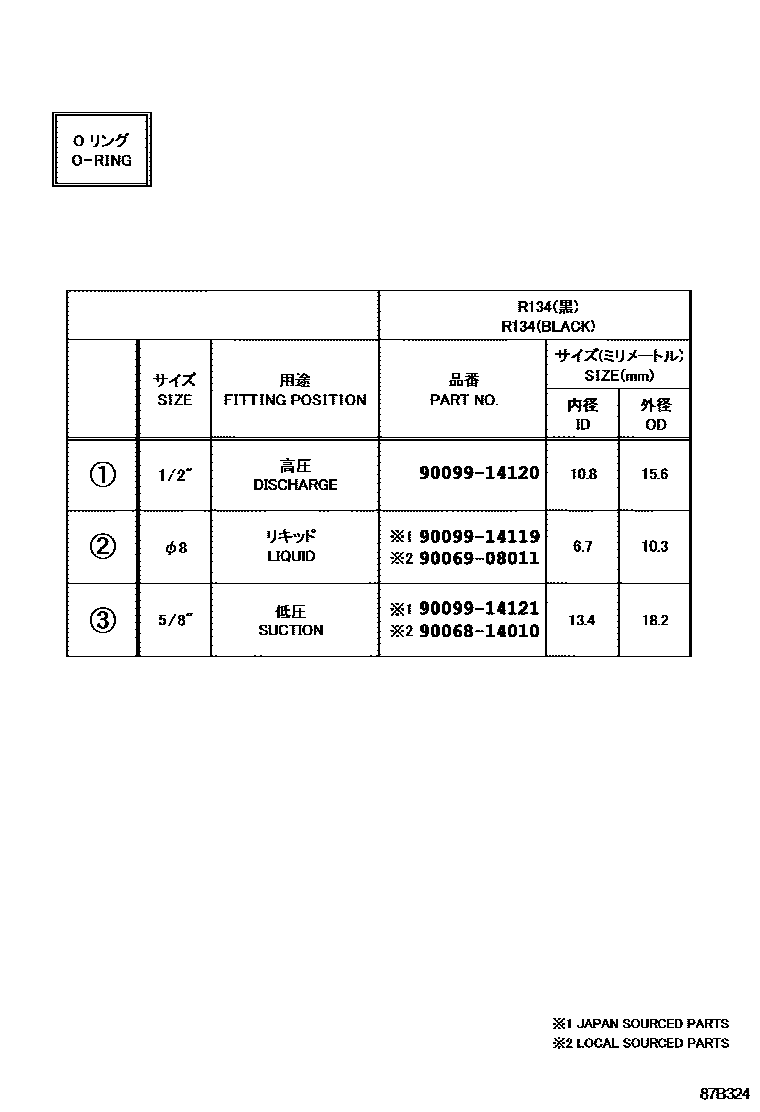

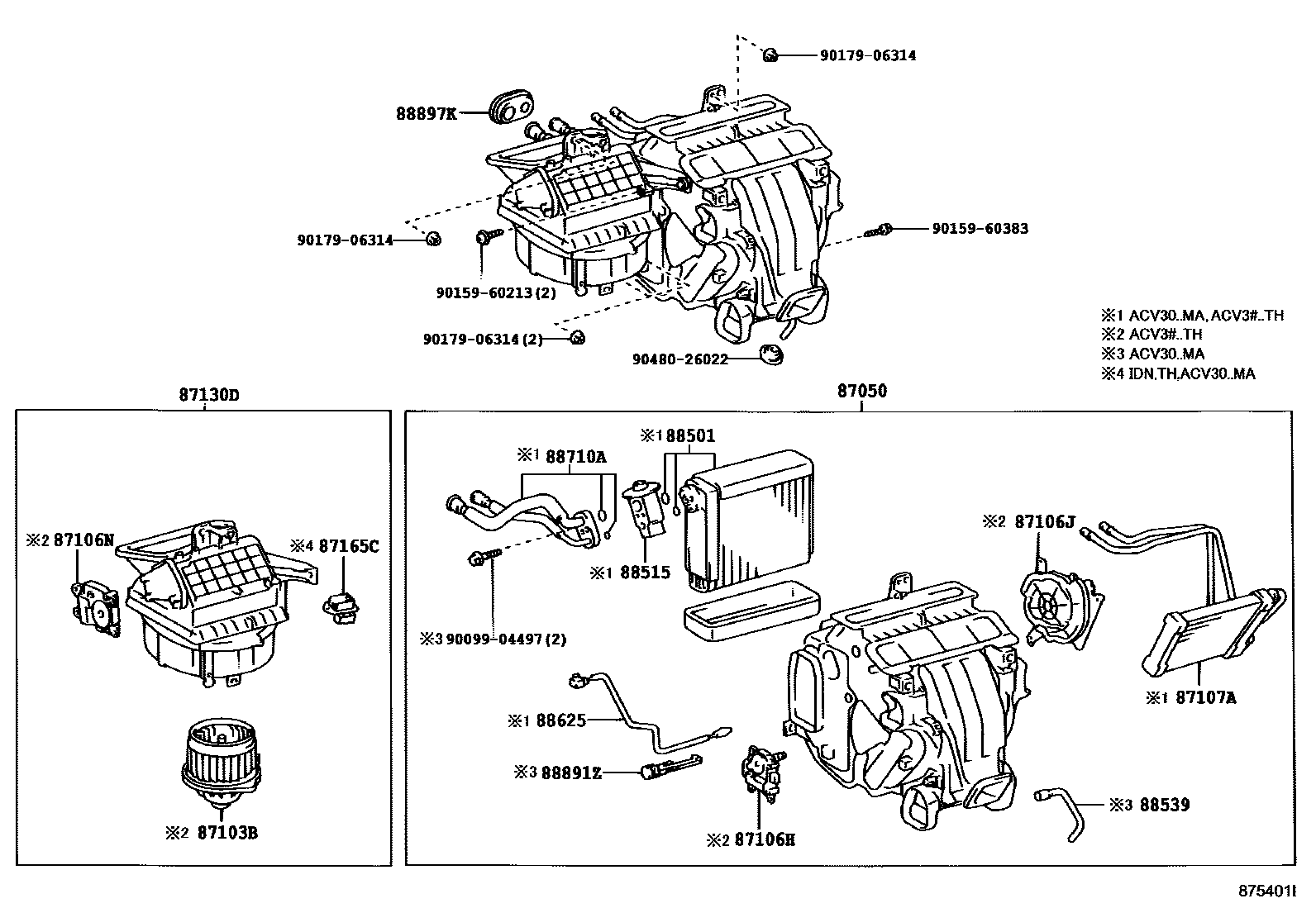

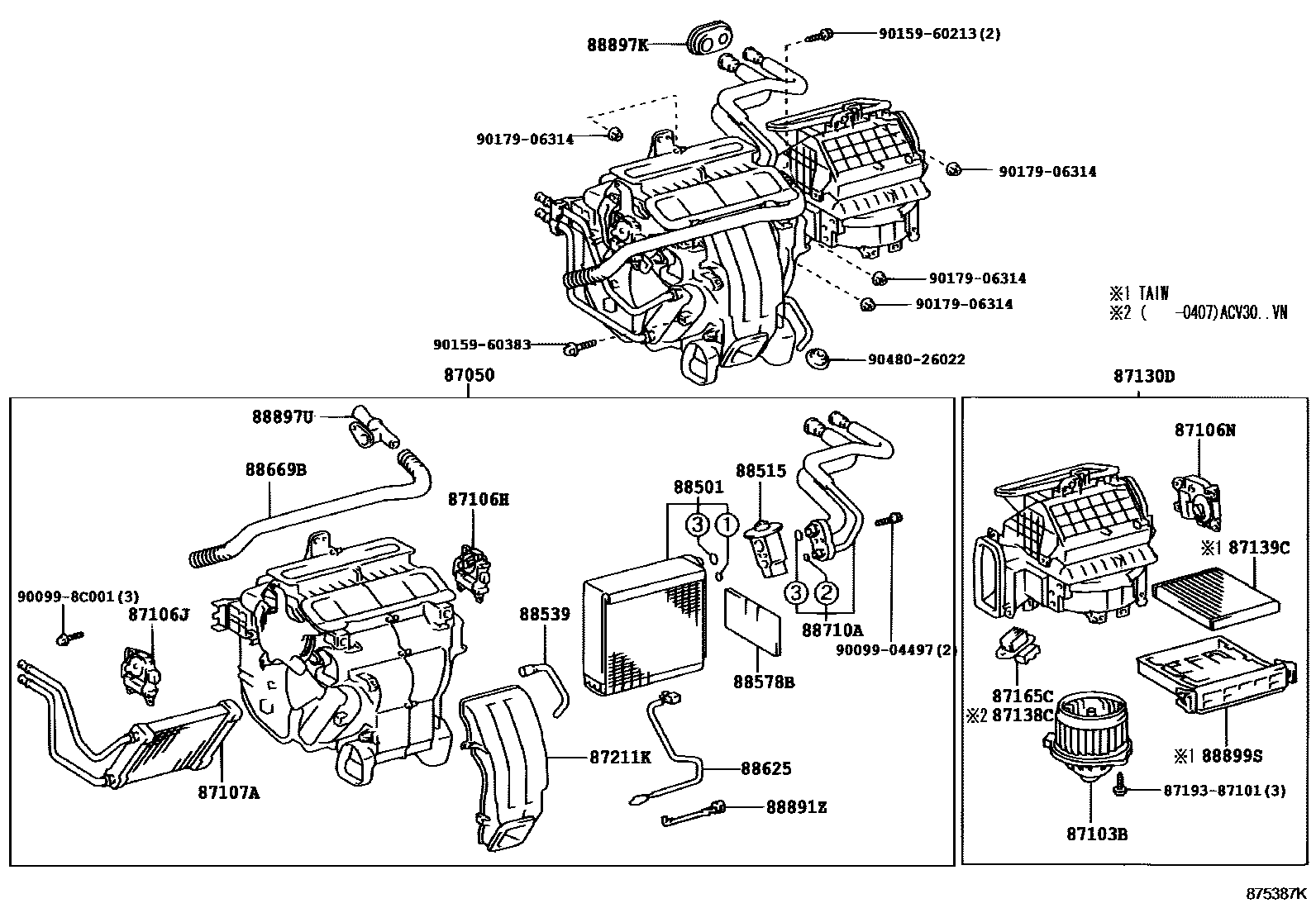

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-06260 · 87050-06261 · 87050-06262 · 87050-06270 · 87050-06271 · 87050-06272 · 87050-06280 · 87050-06281 · 87050-06282 · 87050-06290 · 87050-06291 · 87050-06292 · 87050-06301 · 87050-06302 · 87050-06320 · 87050-06321 · 87050-06322 · 87050-06330 · 87050-06331 · 87050-06332 · 87050-06340 · 87050-06341 · 87050-06342 · 87050-06350 · 87050-06351 · 87050-06352 · 87050-06370 · 87050-06371 · 87050-06372 · 87050-06390 · 87050-06400 |
| 87103B | Blower motor sub-assembly with fan | 87103-06030 · 87103-06041 · 87103-06050 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-41041 · 87106-41051 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06150 · 87106-8C005 · 87106-8C006 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-33200 · 87106-33220 · 87106-8C004 |
| 87107A | Heater radiator device sub-assembly | 87107-06050 · 87107-8C001 |
| 87130D | Blower assembly | 87130-06100 · 87130-06110 · 87130-06120 · 87130-06121 · 87130-06130 · 87130-06140 · 87130-06160 · 87130-06170 · 87130-06180 · 87130-06200 · 87130-06210 |
| 87138C | Blower resistor | 87138-28220 · 87138-41020 |
| 87139C | air purification filter | 87139-47010 |
| 87165C | Blower motor control device | 87165-13010 |
| 87211K | air duct | 87211-8C001 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06040 · 88501-06050 · 88501-07020 · 88501-33170 |
| 88515 | Cooler expansion valve | 88515-28160 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-33070 · 88539-41010 |
| 88578B | Cooling unit seal No. 1 | 88578-41030 |
| 88625 | Cooler No. 1 Thermistor | 88625-33170 |
| 88669B | Cooler air hose | 88669-33060 |
| 88710A | Air conditioning pipe assembly | 88710-06190 · 88710-07060 · 88710-33270 |
| 88891Z | Cooler thermistor bracket | 88891-50060 |
| 88897K | Seals (for cooler tubes) | 88897-33020 |
| 88897U | aspirator tube | 88897-12210 |
| 88899S | front cooler frame | 88899-41010 |
