Toyota CAMRY 后视镜 — Figure 8701

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

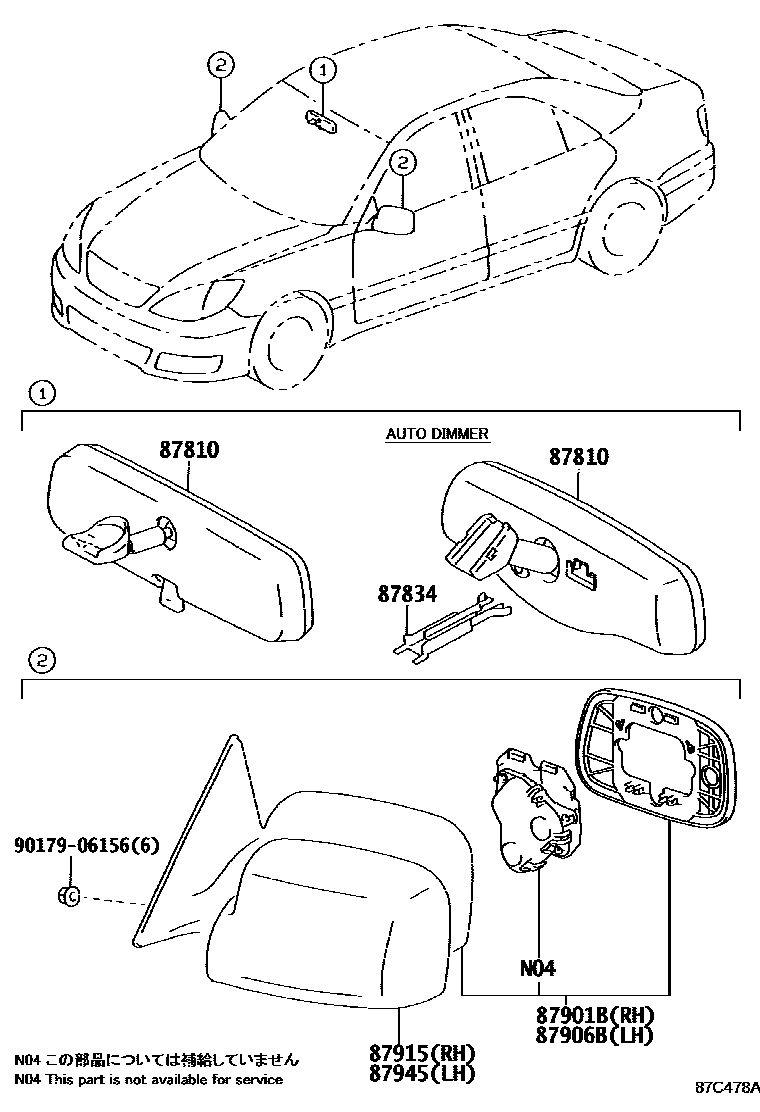

Toyota CAMRY 后视镜 EPC diagram — 87C478A
后视镜 — 87C478A (200203 – 999999)

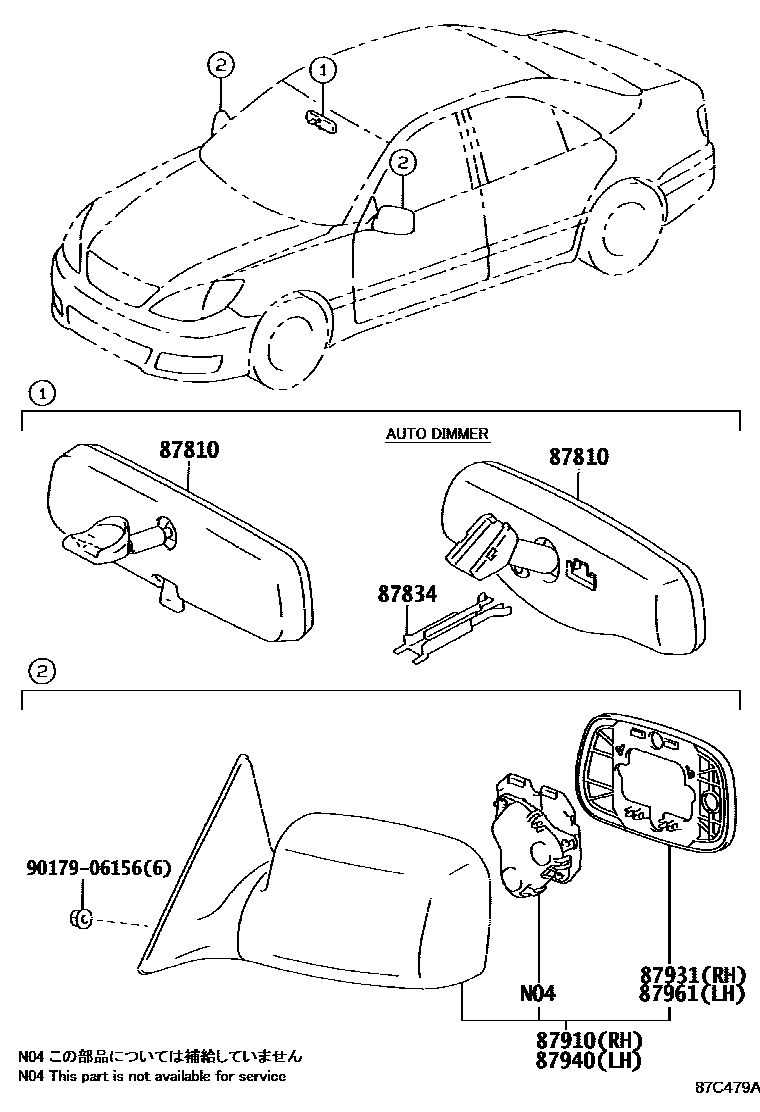

Toyota CAMRY 后视镜 EPC diagram — 87C479A
后视镜 — 87C479A (200203 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-05040 · 87810-06030 · 87810-06040 · 87810-06041 · 87810-AA011 · 87810-AA020
87834Interior rearview mirror stay fixing cover87818-48010 · 87818-AC010
87901BRight exterior rearview mirror sub-assembly87901-06010 · 87901-06020
87906BLeft exterior rearview mirror sub-assembly87906-06010 · 87906-06020
87910Right exterior rearview mirror assembly87901-06030 · 87910-06900 · 87910-06901 · 87910-06902 · 87910-06903 · 87910-06904
87915Right exterior rearview mirror cover87915-06040
87931Right exterior rearview mirror87931-8C004 · 87931-8C005
87940Left exterior rearview mirror assembly87906-06030 · 87940-06900 · 87940-06901 · 87940-06902 · 87940-06903 · 87940-06904
87945Left exterior rearview mirror cap87945-06020
87961Left exterior rearview mirror87961-8C004 · 87961-8C005 · 87961-8C006
