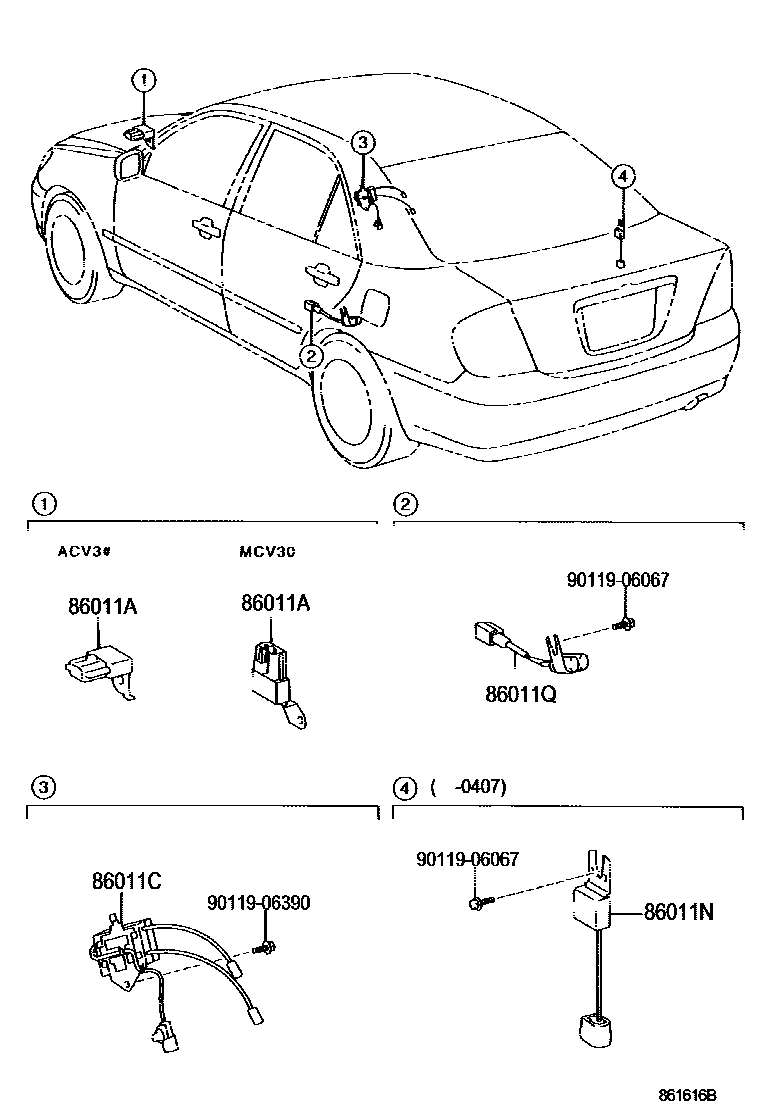

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04153 · 90980-04157 |
| 86011C | Noise filter | 90084-98058 |
| 86011N | Noise filter | 90980-04046 |
| 86011Q | radio settings phase modulator | 90980-04129 |
| 86120 | Radio assembly | 86120-06121 · 86120-06130 · 86120-06140 · 86120-06150 · 86120-2B570 |
| 86120A | Radio switch knob | 90011-8C000 · 90011-8C001 · 90011-8C002 |
| 86211 | No. 1 radio bracket | 86211-33160 · 86211-33200 |
| 86212 | No. 2 radio bracket | 86212-33160 · 86212-33200 |
| 86221A | radio panel | 86221-02010 · 86221-52050 |
| 86221D | radio panel | 86221-02020 · 86221-52060 |
