Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

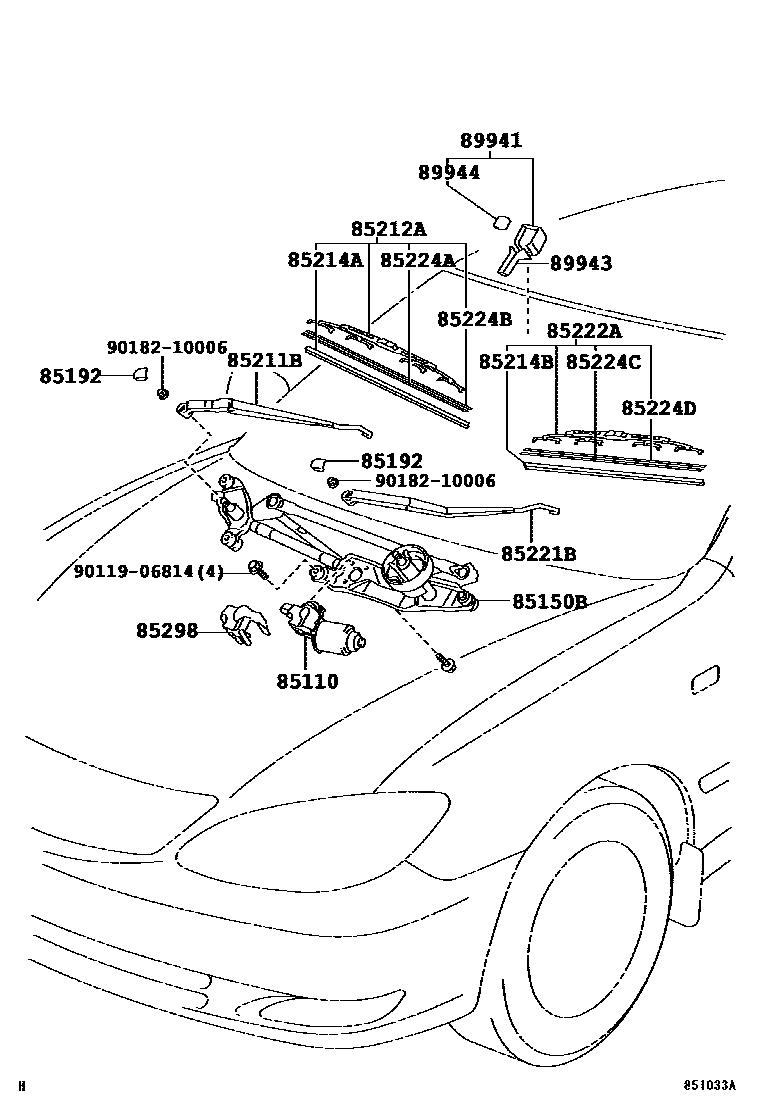

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-06040 · 85110-33250 · 85110-33300 |
| 85150B | Wiper connecting rod assembly | 85150-06040 · 85150-33180 · 85150-33220 |
| 85192 | windshield wiper arm cover | 85292-13010 |
| 85211B | Right front wiper arm | 85211-06030 · 85211-06040 |
| 85212A | Right front wiper blade | 85212-06030 · 85212-06040 |
| 85214A | Right wiper rubber strip | 85214-06030 · 85214-06040 |
| 85214B | Left wiper rubber strip | 85214-06030 · 85214-06040 |
| 85221B | Left front wiper arm | 85221-06030 · 85221-06040 |
| 85222A | Left front wiper blade | 85222-06030 · 85222-06040 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-06030 · 85224-06040 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-06030 · 85224-06040 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-06030 · 85224-06040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-06030 · 85224-06040 |
| 85298 | wiper motor cover | 85111-33020 |
| 89941 | rain sensor | 89941-41010 |
| 89943 | Rain sensor cover | 89943-33020 |
| 89944 | Rain sensor tape | 89944-33010 |
