Toyota CAMRY 防盗装置 — Figure 8424

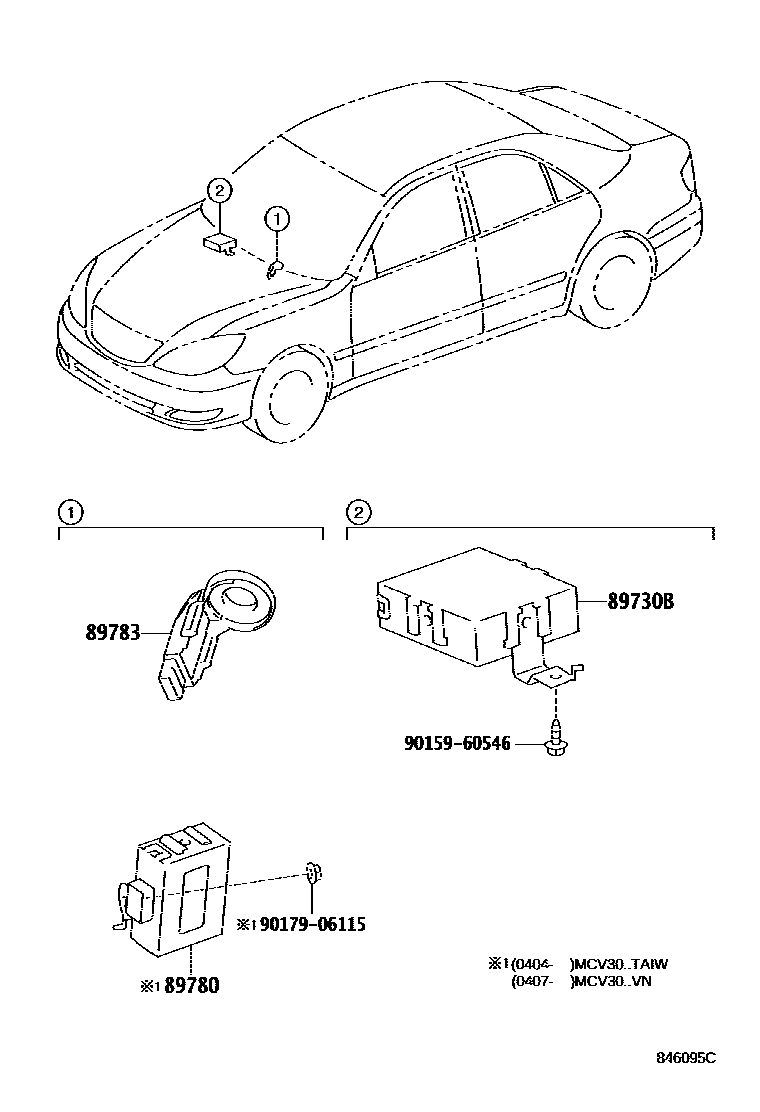

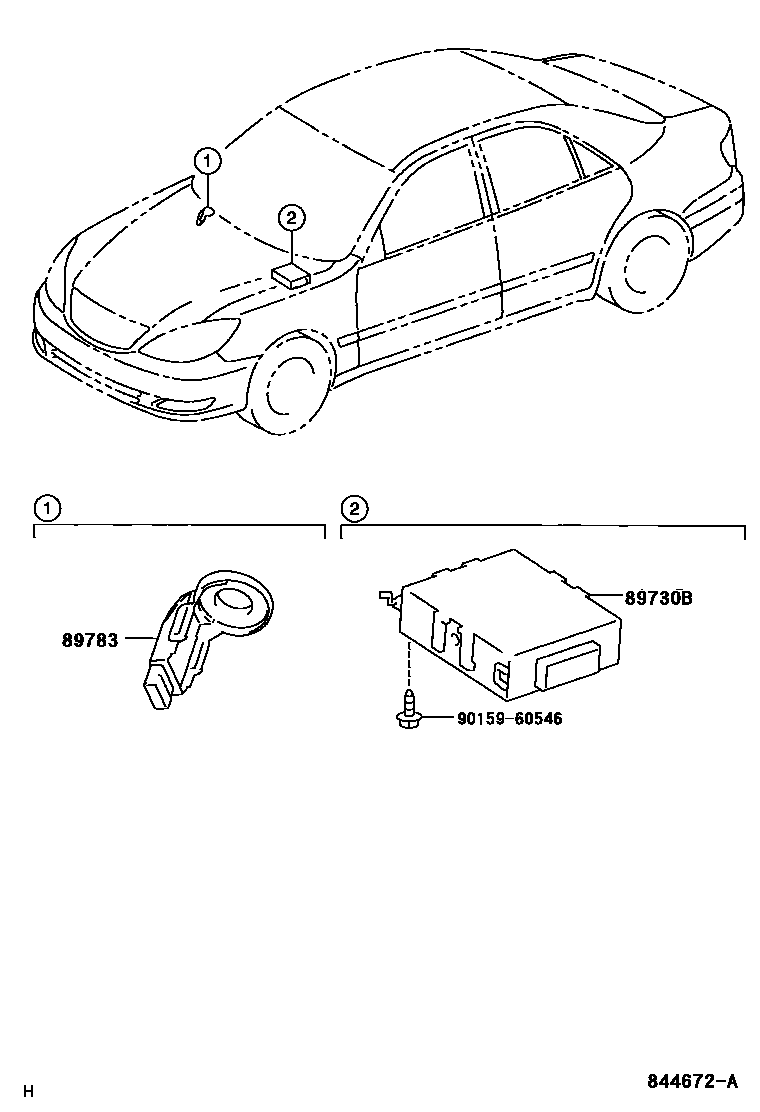

Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89730B | Anti-theft warning ECU assembly | 89730-06060 · 89730-06061 · 89730-06070 · 89730-06071 · 89730-06080 · 89730-06081 · 89730-06090 · 89730-06091 |
| 89780 | Transceiver key ECU assembly | 89780-33120 |
| 89783 | transceiver key amplifier | 89783-33070 · 89783-33100 |
