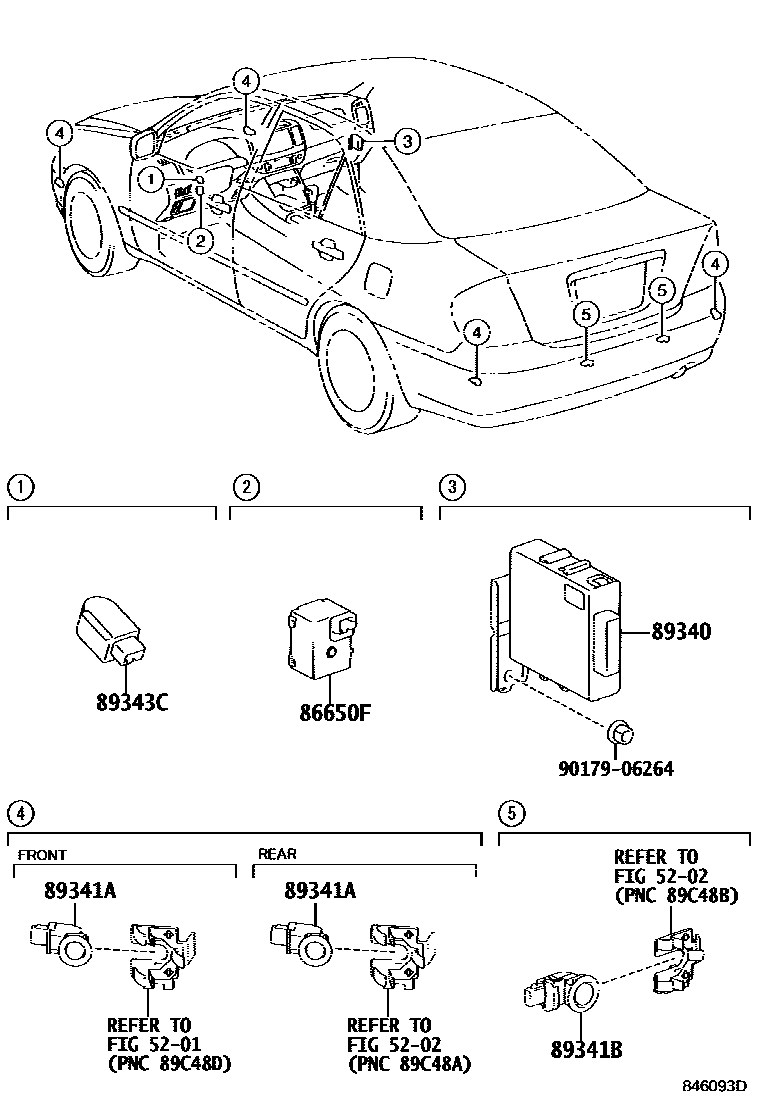

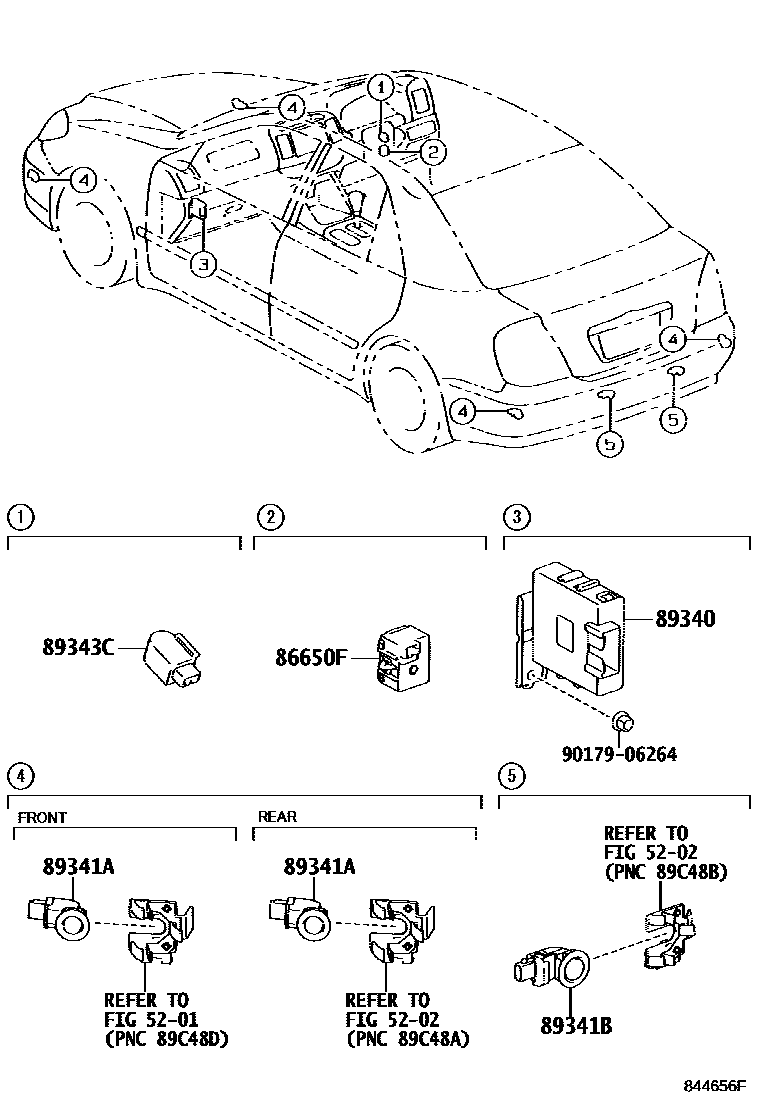

Toyota CAMRY 测距雷达和倒车雷达 — Figure 8417
Toyota CAMRY EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86650F | Buzzer assembly | 89343-33030 |
| 89340 | Rear distance warning ECU assembly | 89340-33010 · 89340-33020 · 89340-33030 · 89340-33040 · 89340-33050 |
| 89341A | Ultrasonic sensor No. 1 | 89341-0M040 · 89341-0M050 · 89341-0M060 · 89341-12080 · 89341-28370 · 89341-33030 · 89341-33080 · 89341-33090 · 89341-33100 |
| 89341B | Ultrasonic sensor No. 2 | 89341-0M010 · 89341-0M020 · 89341-0M030 · 89341-12050 · 89341-12070 · 89341-33020 · 89341-33040 · 89341-33050 · 89341-33060 · 89341-33070 · 89341-52010 · 89341-52020 |
| 89343C | No. 1 distance warning buzzer | 89343-33010 |
