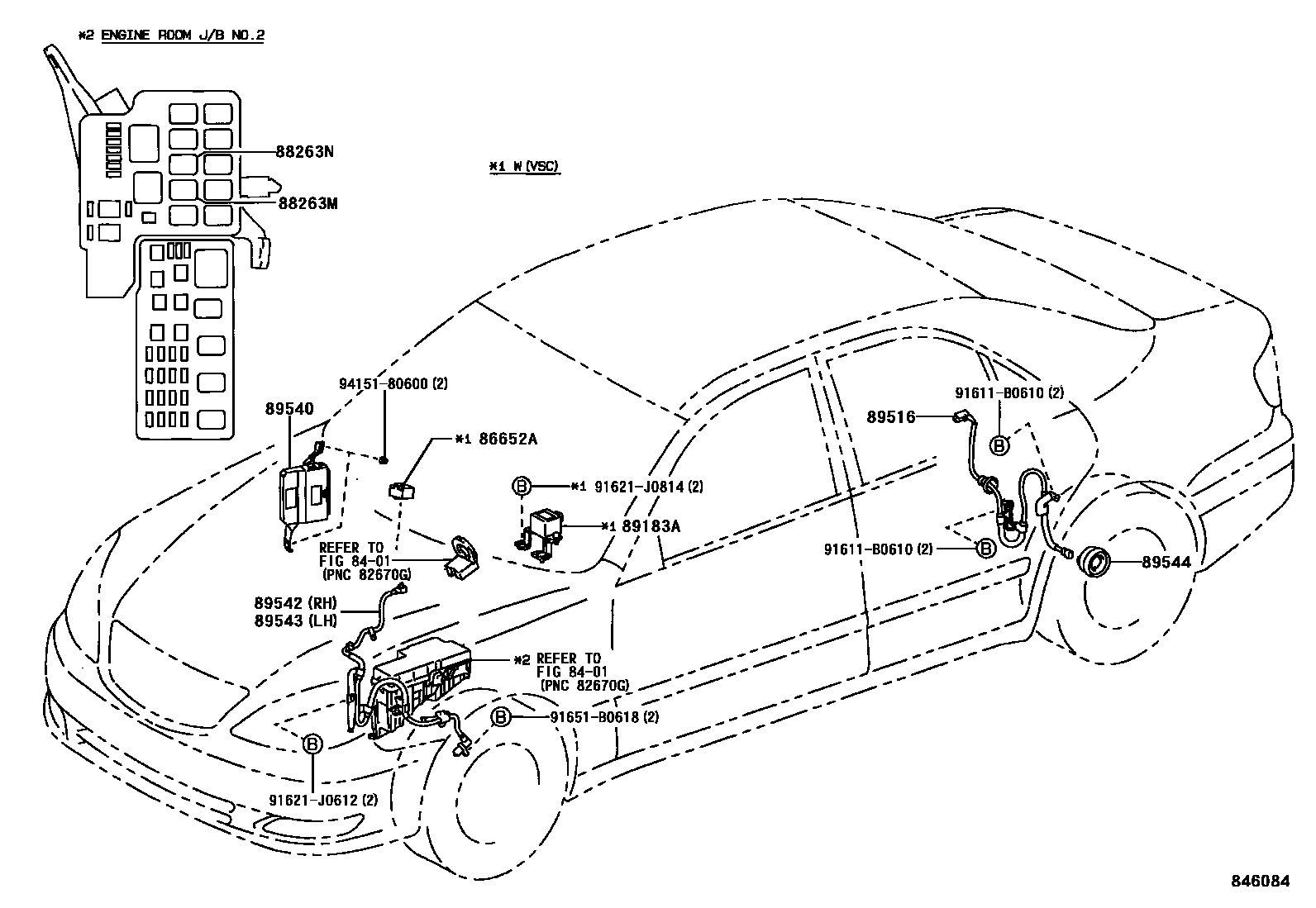

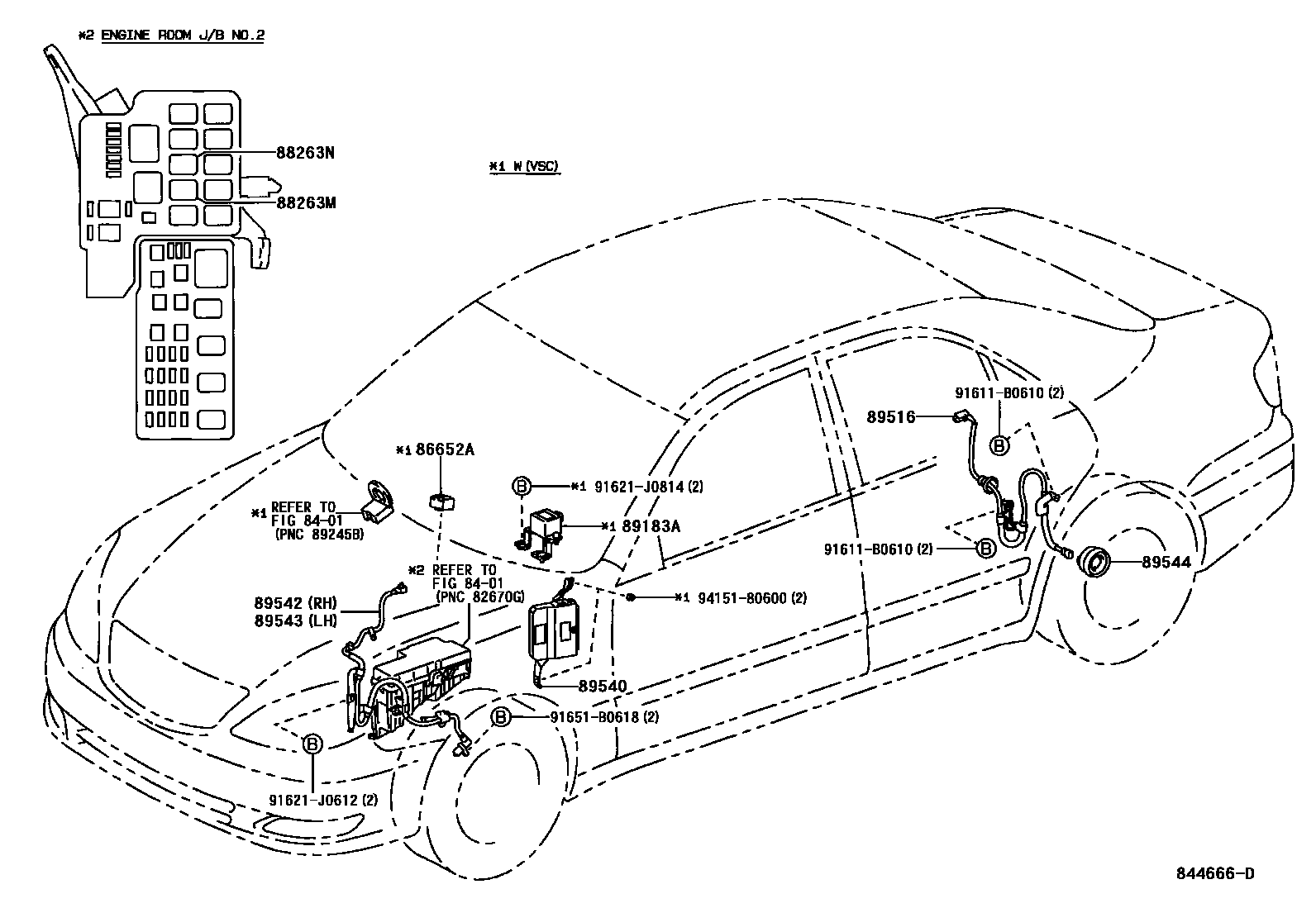

Toyota CAMRY ABS 和 VSC — Figure 8414
Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652A | Anti-skid control buzzer assembly | 86652-51010 |
| 88263M | ABS solenoid valve relay | 88263-32070 |
| 88263N | ABS motor relay | 88263-32070 |
| 89183A | Yaw rate sensor | 89180-33020 |
| 89516 | Anti-skid control sensor wiring harness | 89516-33010 · 89516-33020 |
| 89540 | Anti-skid control ECU assembly | 89540-33301 · 89540-33310 · 89540-33321 · 89540-33340 · 89540-33360 · 89540-33370 · 89540-33380 |
| 89542 | Right front wheel speed sensor | 89542-33070 |
| 89543 | Left front wheel speed sensor | 89543-33070 |
| 89544 | Anti-skid control sensor | 89544-48010 |
