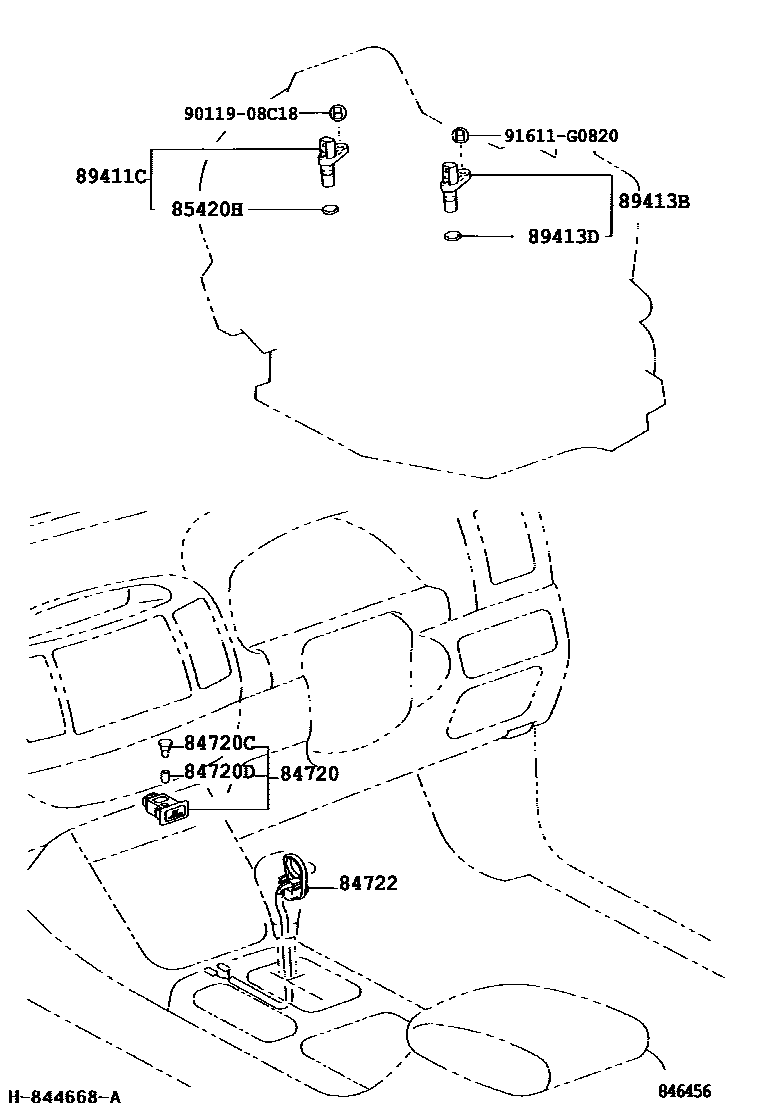

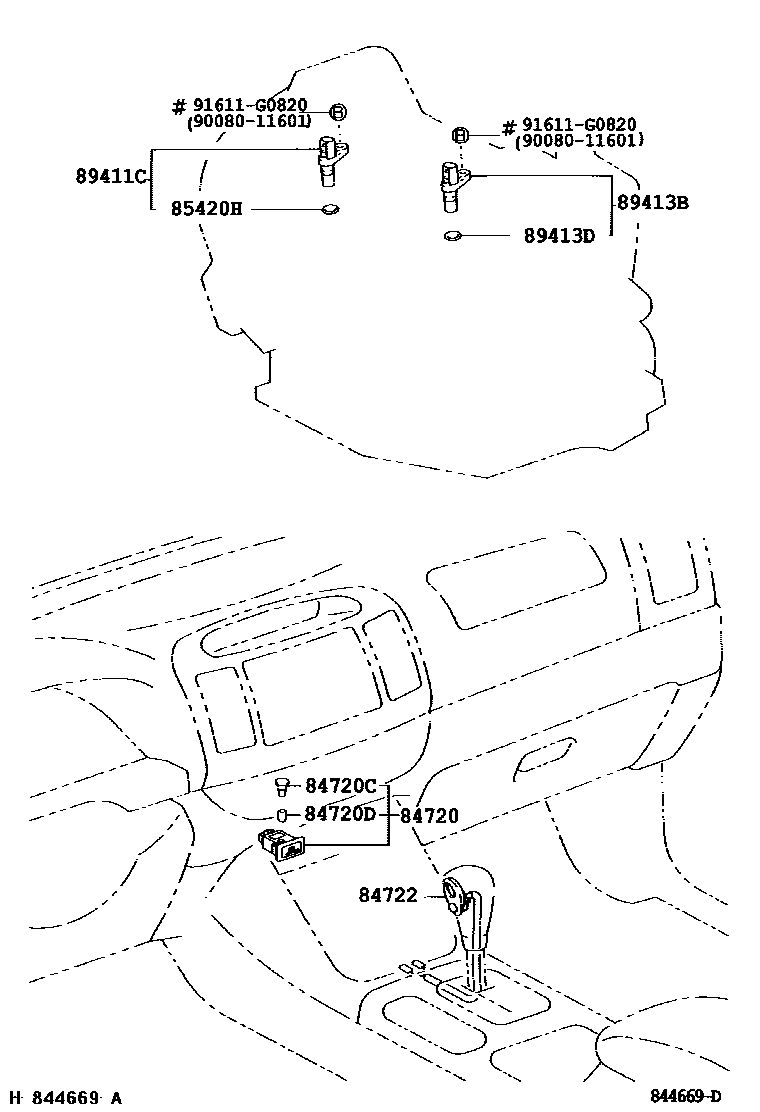

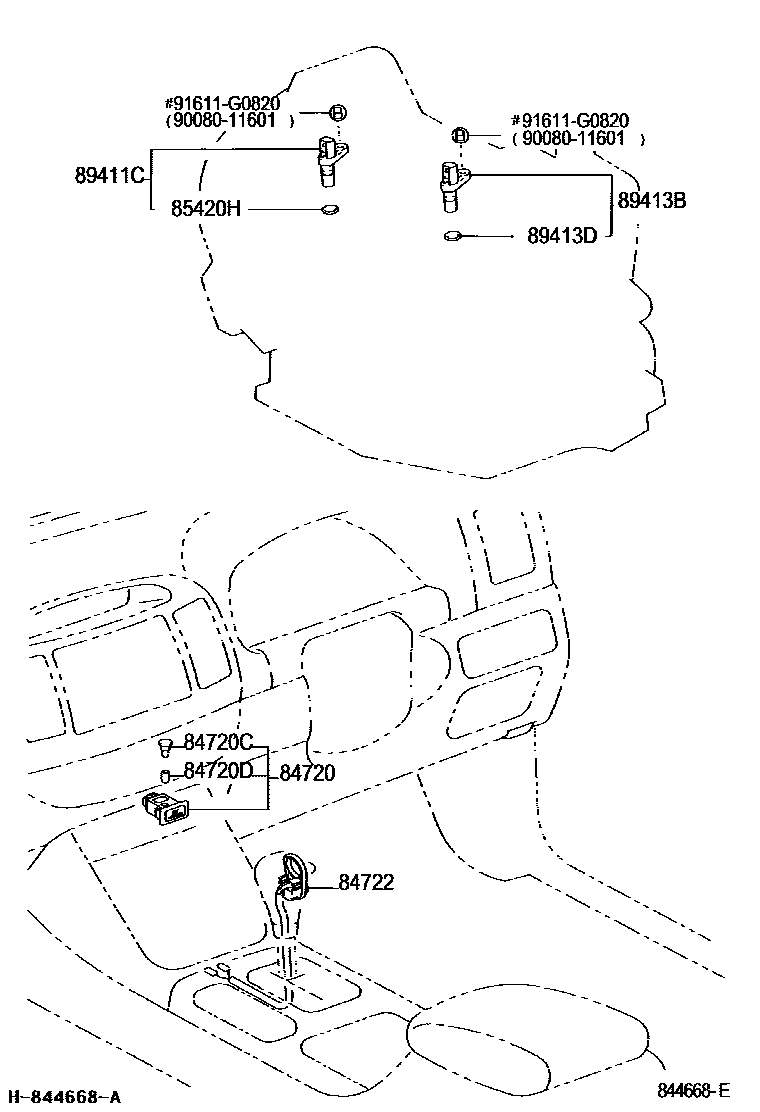

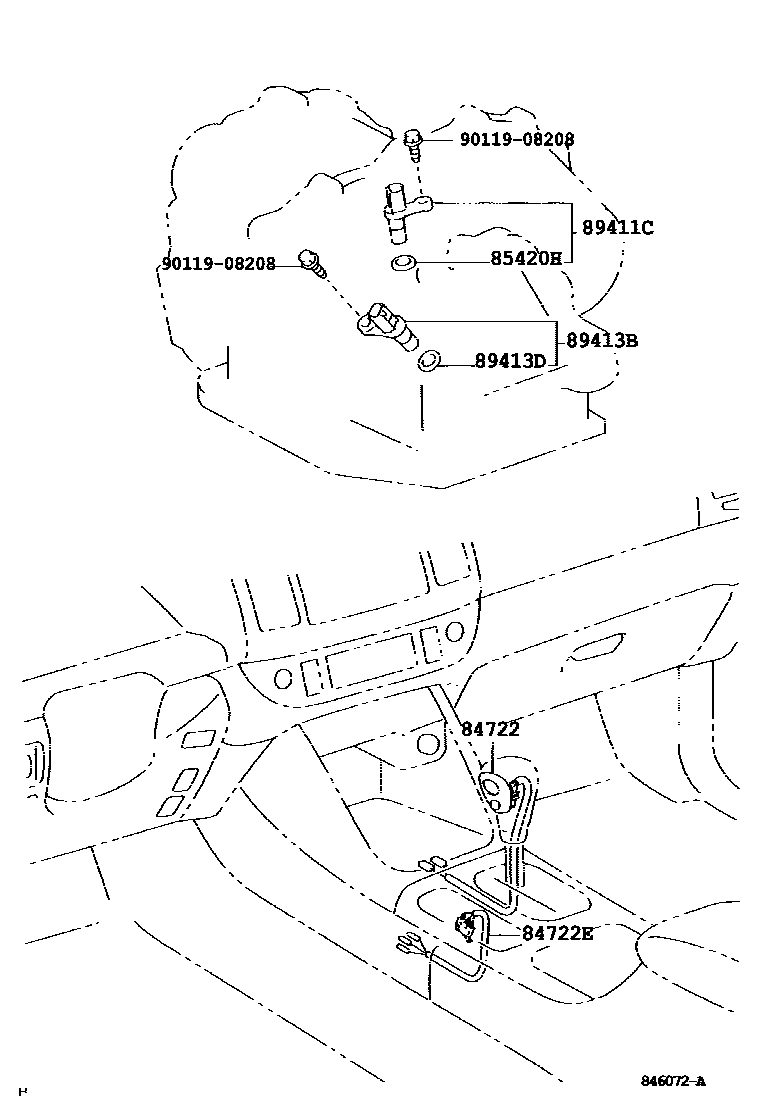

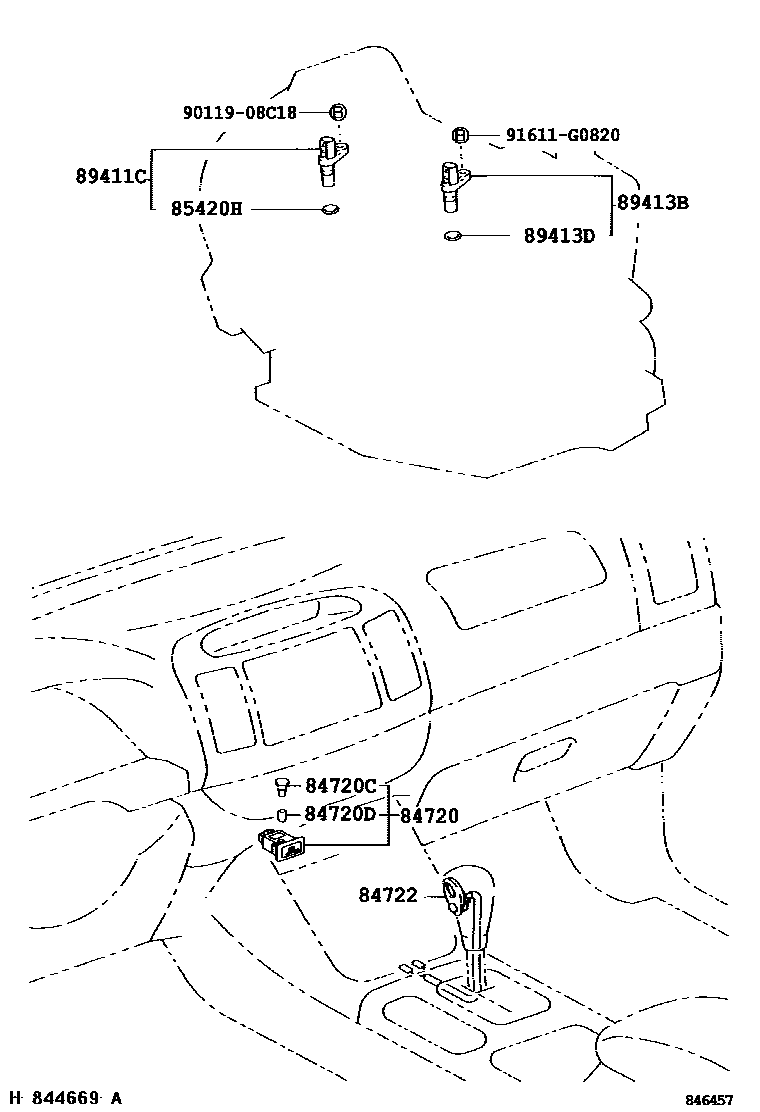

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84720 | Mode selection switch assembly | 84720-33060 |
| 84720C | Light bulb (for mode selector switch) | 84999-10320 |
| 84720D | Mode selector switch cover | 84998-10270 |
| 84722 | transmission control switch | 84722-33100 |
| 84722E | transmission control switch | 84722-33150 |
| 85420H | O-ring (for speed sensor) | 90301-11008 |
| 89411C | Speed sensor | 89411-33010 · 89413-08020 · 89413-24010 · 89413-48010 |
| 89413B | Transmission speed sensor | 89411-33010 · 89413-08020 · 89413-24010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
