Toyota CAMRY 电子燃油喷射系统 — Figure 8404

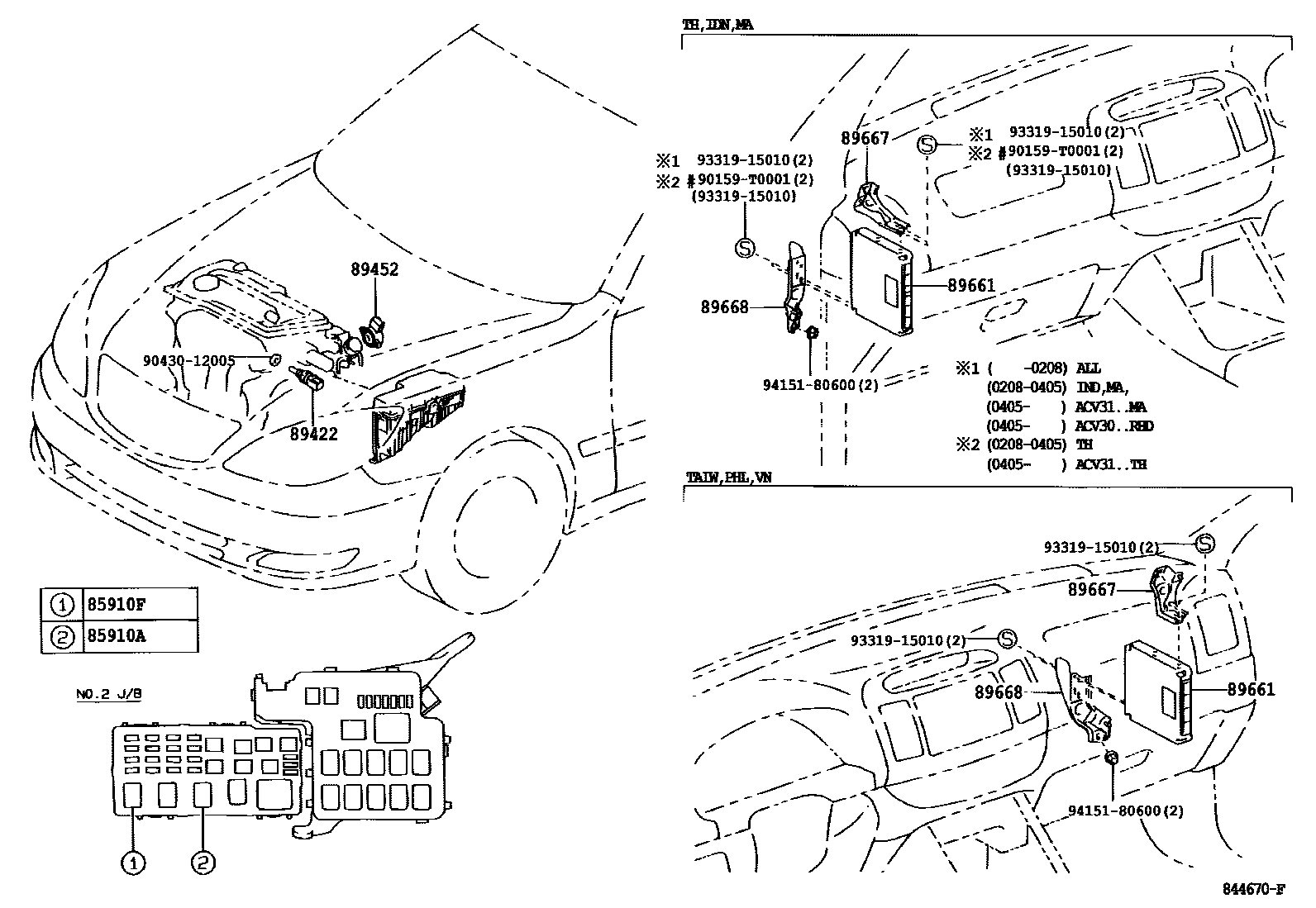

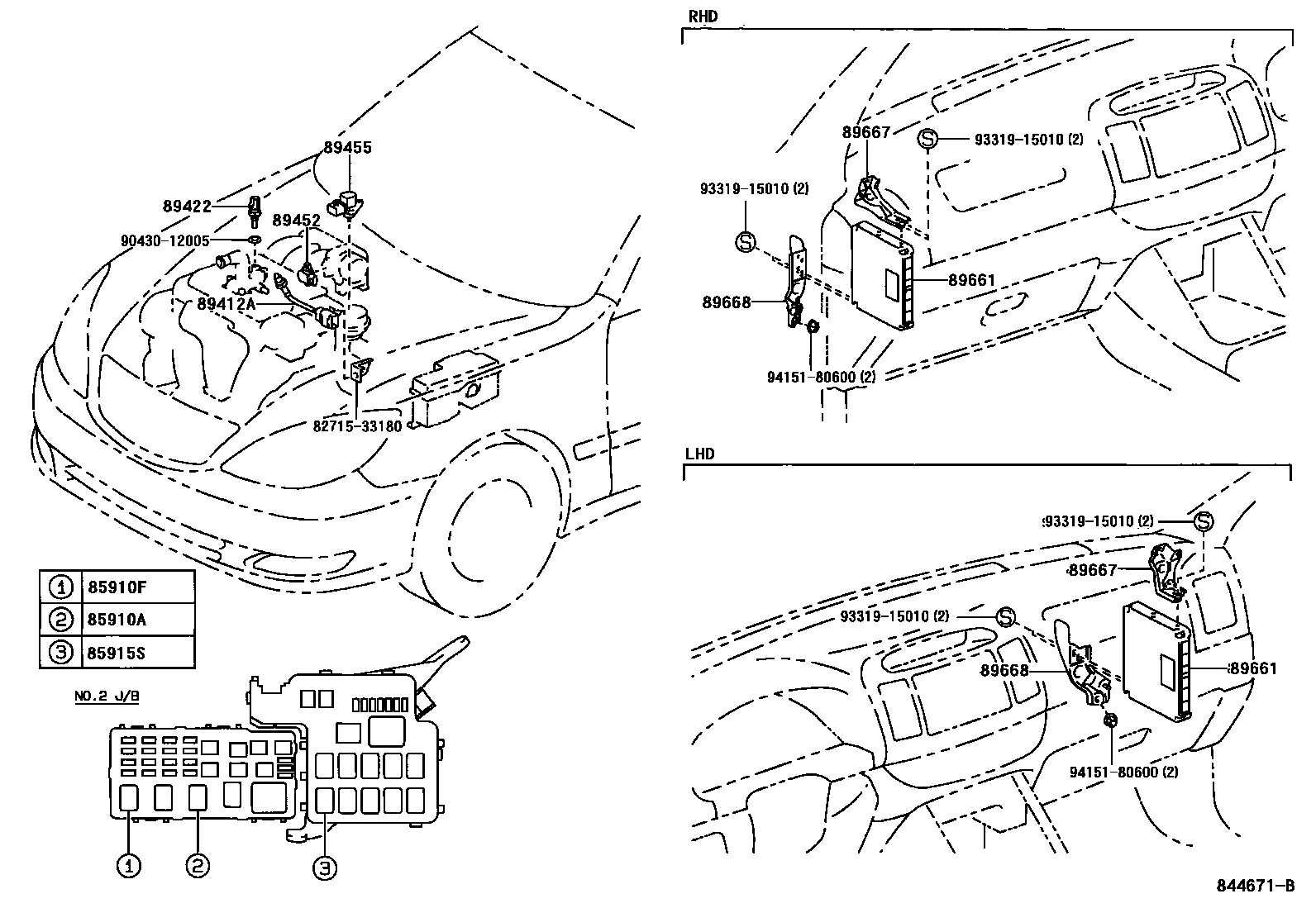

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90080-87008 · 90080-87010 |
| 85910F | ECU relay (for EFI) | 90080-87008 · 90080-87010 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90080-87008 · 90080-87010 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-33050 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-06010 · 89422-33020 · 89422-33030 · 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-30150 · 89452-33030 |
| 89455 | EGR valve position sensor | 89455-33020 |
| 89661 | Engine control ECU | 89661-06A60 · 89661-06A70 · 89661-06A80 · 89661-06A90 · 89661-3T730 · 89666-06340 · 89666-06341 · 89666-06350 · 89666-06360 · 89666-06370 · 89666-06390 · 89666-06400 · 89666-33330 · 89666-33380 |
| 89667 | Engine control ECU bracket | 89667-33120 · 89667-33130 |
| 89668 | No. 2 engine control ECU bracket | 89668-33160 · 89668-33170 |
