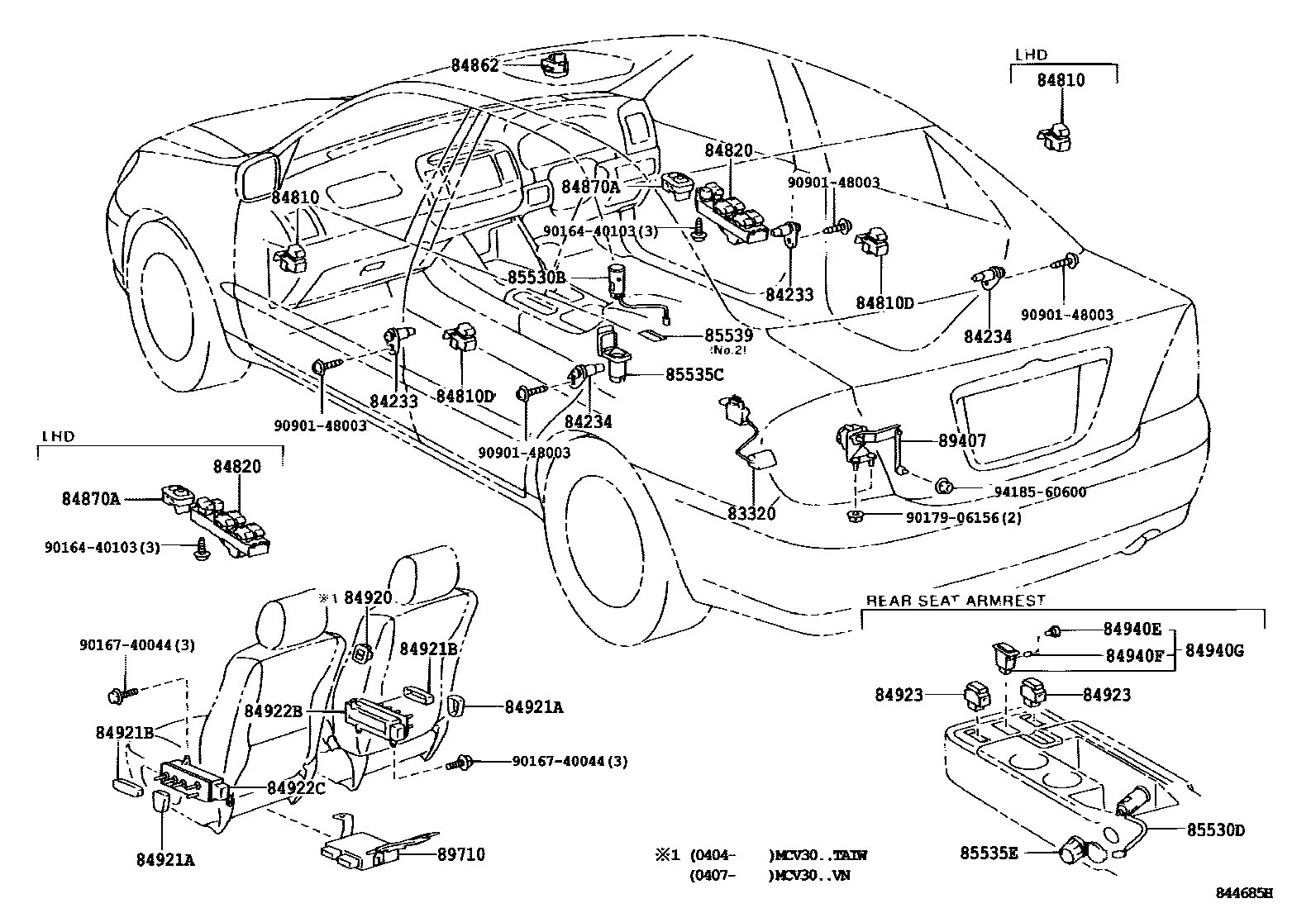

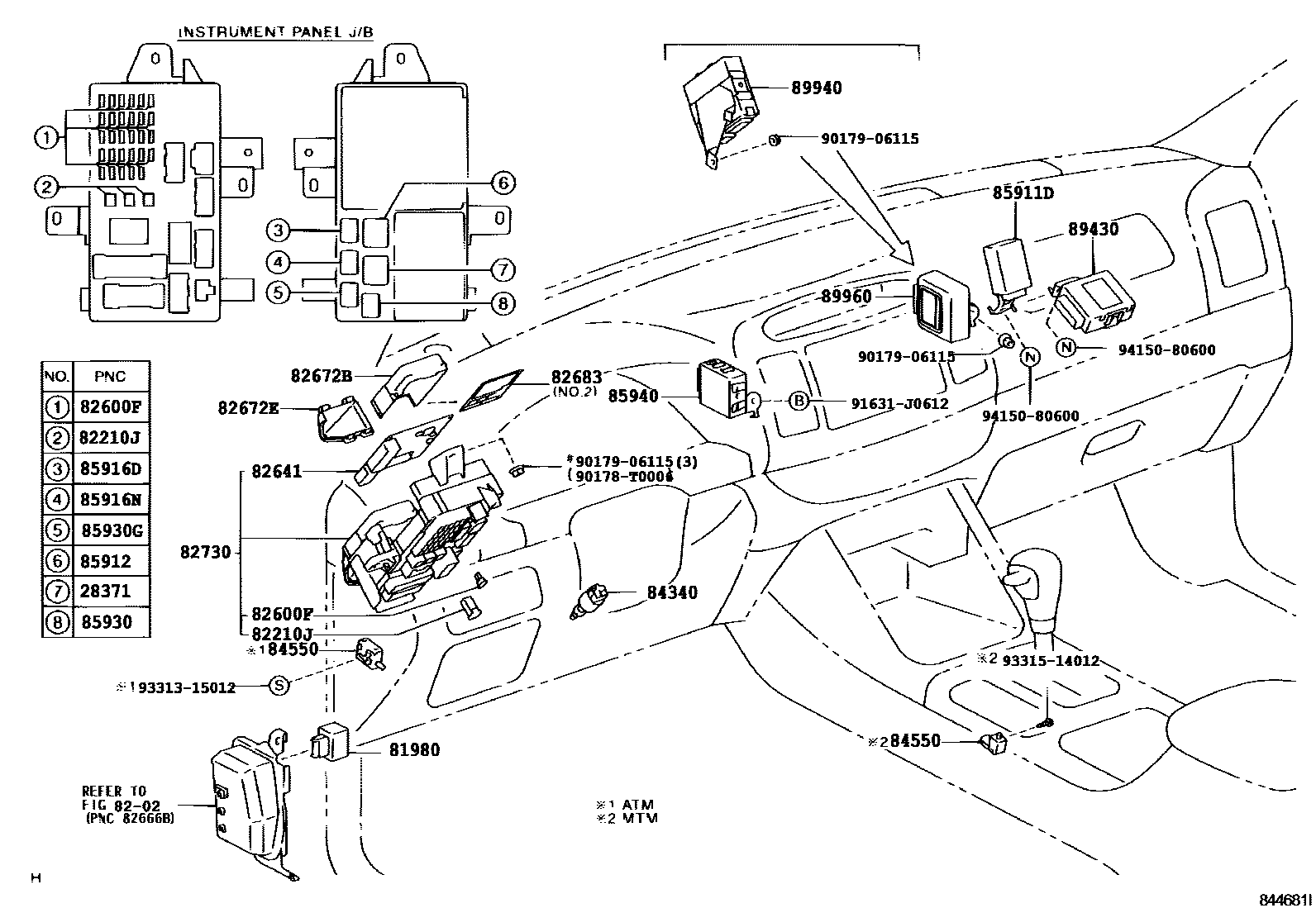

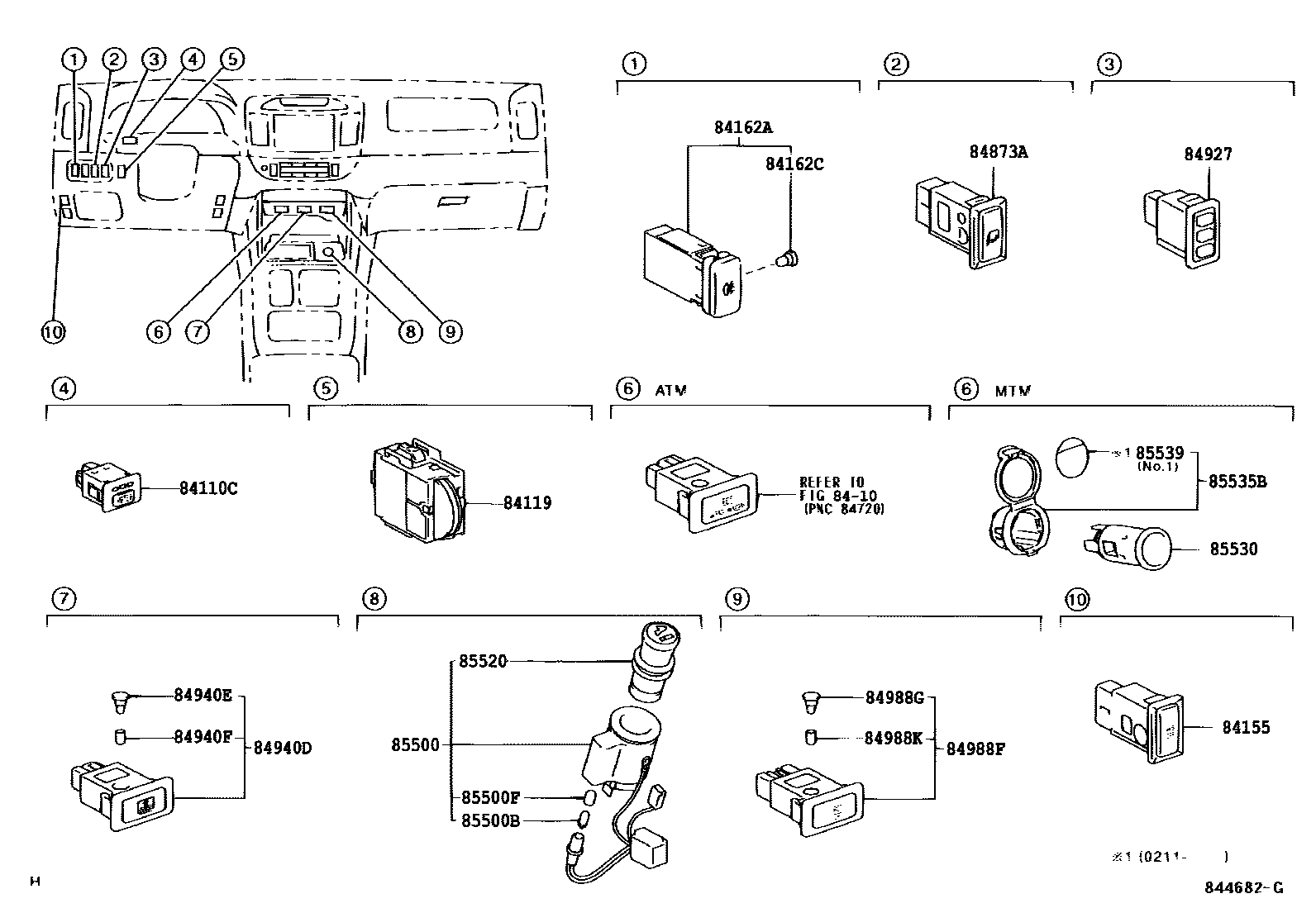

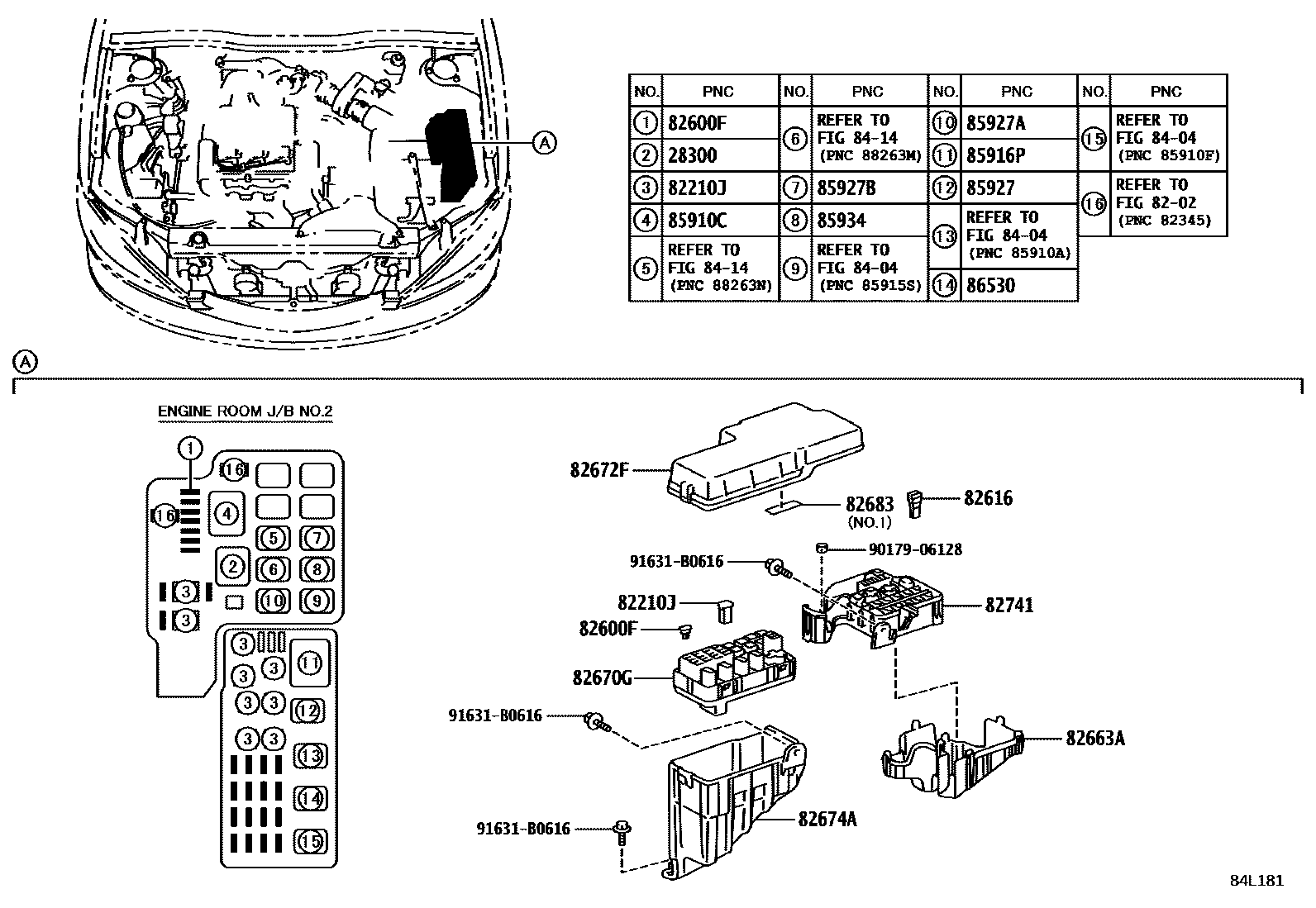

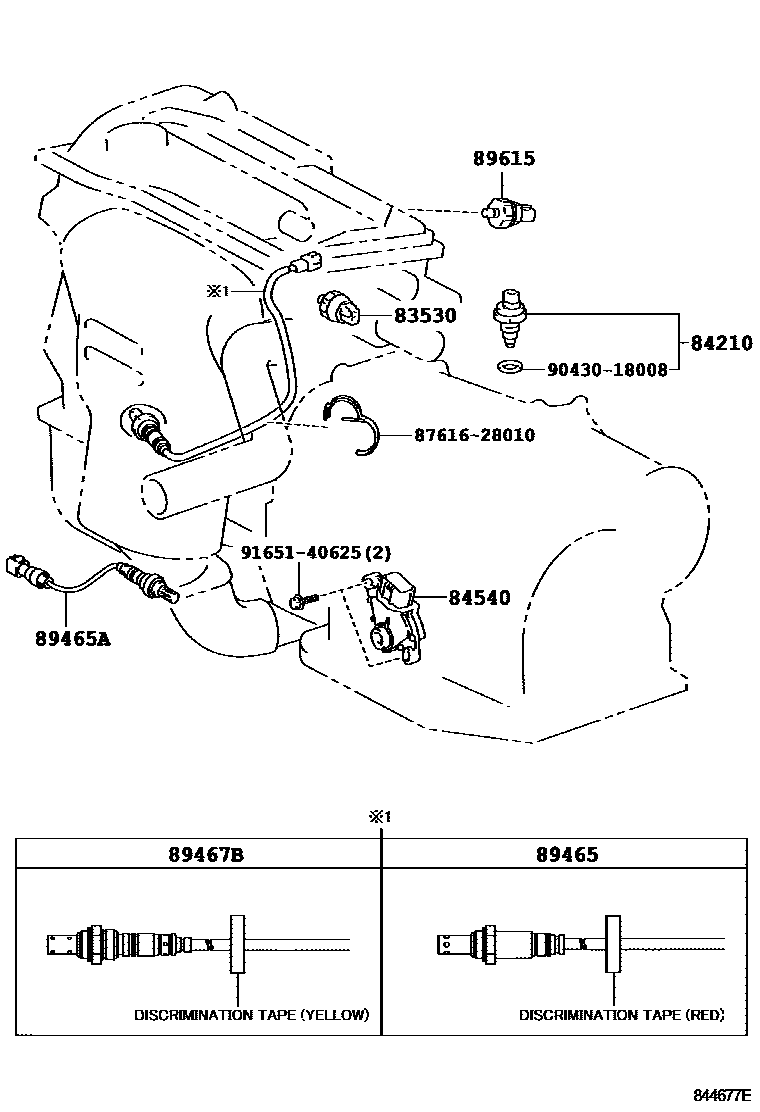

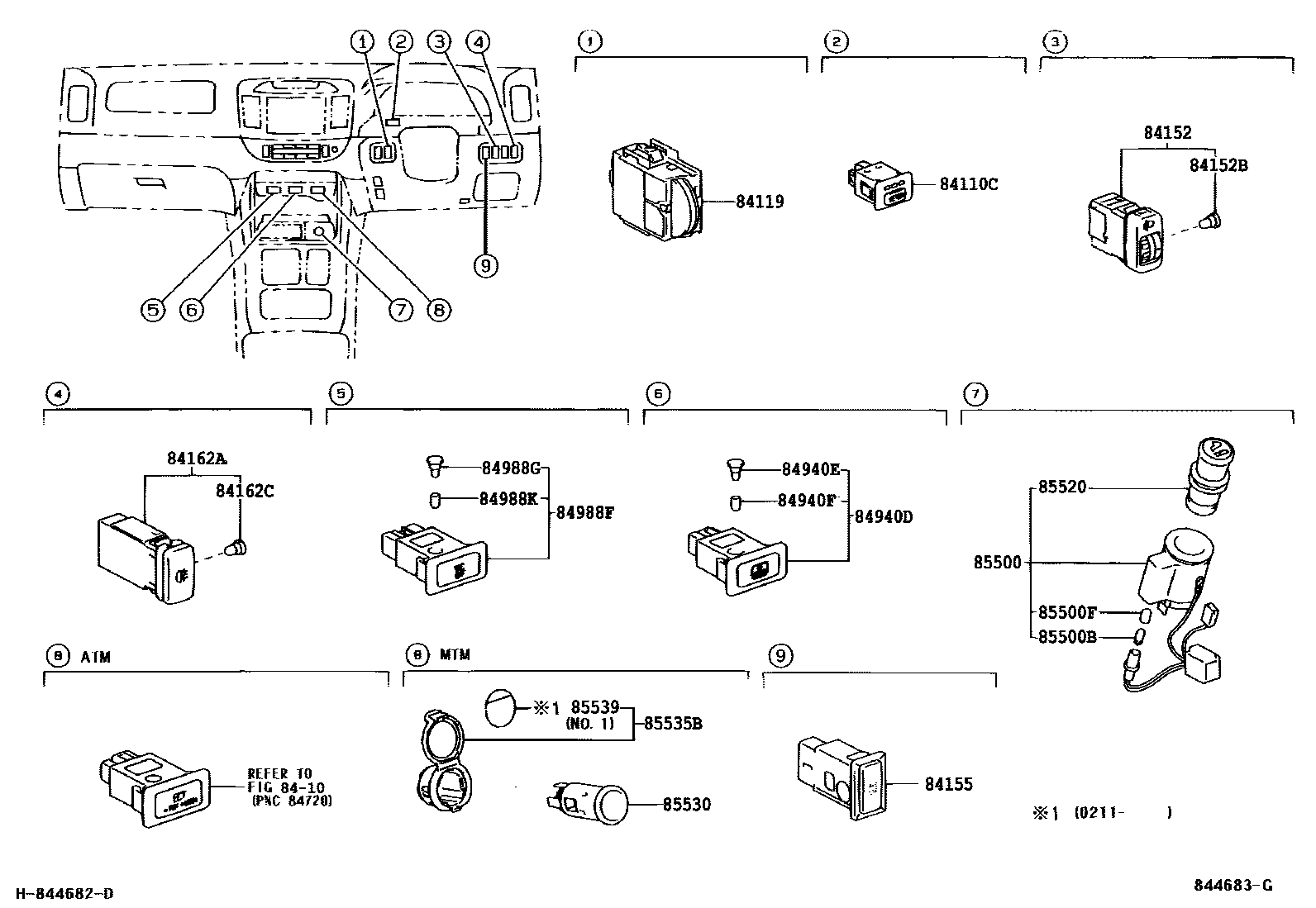

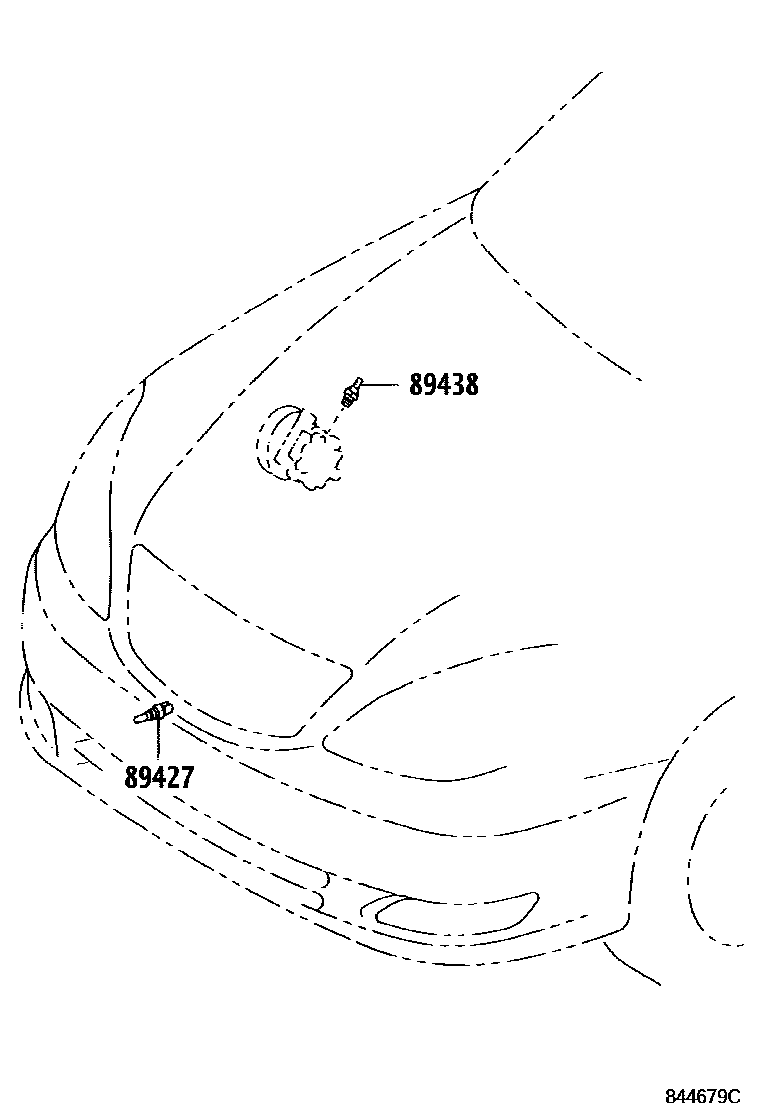

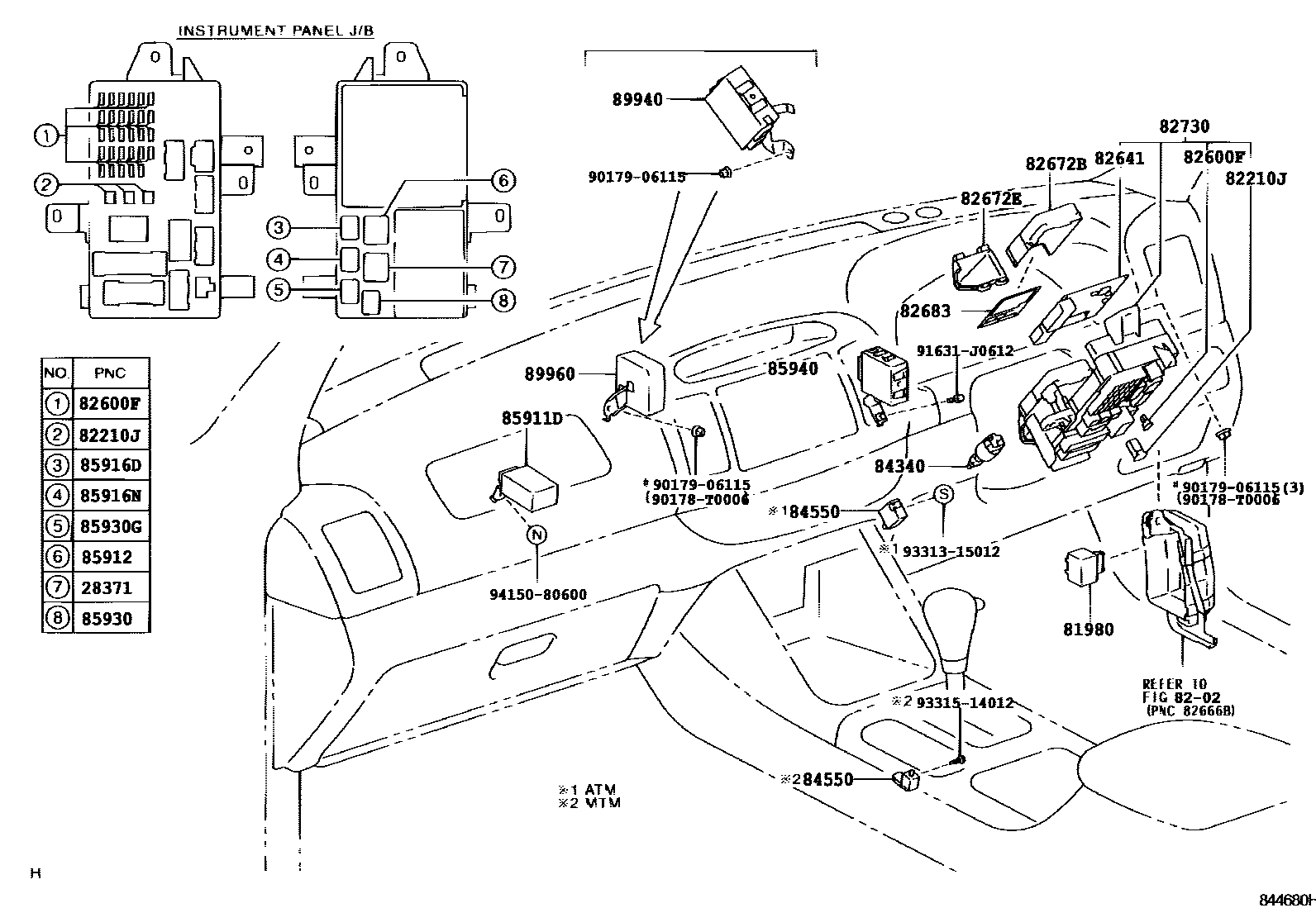

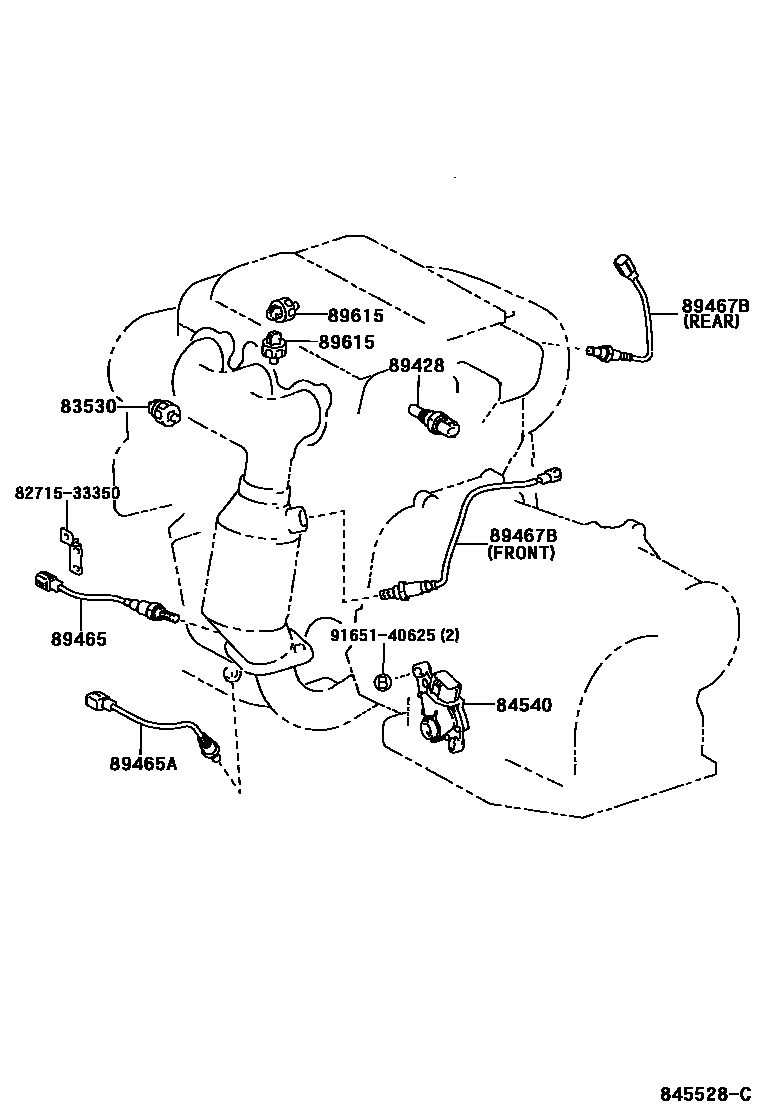

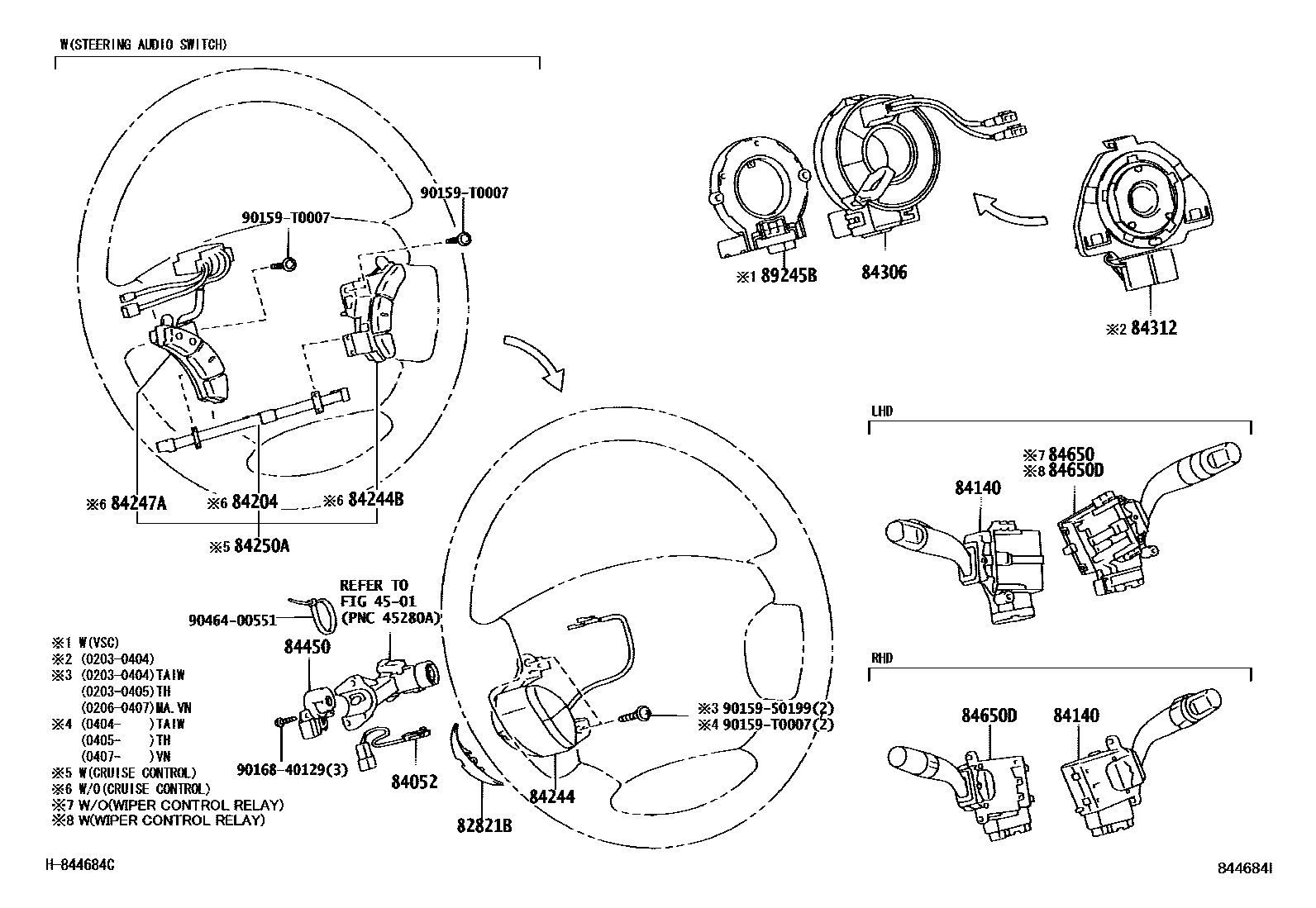

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 10 images and 101 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-06010 · 28300-10020 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 81980 | Turn signal flasher relay assembly | 81980-02020 · 81980-50030 |
| 82210J | fuse | 90982-08202 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08282 |
| 82600F | Spare fuse | 90080-82020 · 90080-82021 · 90080-82022 · 90080-82023 · 90080-82024 · 90080-82031 · 90080-82033 · 90982-08280 · 90982-09007 · 90982-09009 · 90982-09010 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-06030 · 82641-06031 · 82641-06040 · 82641-06041 · 82641-06050 · 82641-06060 · 82641-06070 · 82641-06080 |
| 82663A | No. 2 relay box lower cover | 82663-33060 |
| 82670G | Engine room junction box assembly | 82720-06040 |
| 82672B | Junction box cover | 82672-06120 · 82672-33200 |
| 82672E | Junction box cover | 82672-06110 · 82672-33210 |
| 82672F | Junction box cover | 82672-33290 · 82672-33300 · 82672-33310 |
| 82674A | Junction box lower cover | 82674-33060 |
| 82683 | Fuse box warning nameplate | 82683-02040 · 82683-06040 · 82683-06041 · 82683-06050 |
| 82730 | Instrument panel junction box assembly | 82730-33150 · 82730-33151 · 82730-33160 · 82730-33161 · 82730-33241 · 82730-33250 · 82730-33261 · 82730-33270 |
| 82741 | Engine room relay box | 82741-33010 |
| 82821B | Connector cover | 82821-33200 |
| 83320 | Fuel gauge sensor assembly | 83320-06020 · 83320-33070 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-32030 |
| 84110C | No. 2 light control switch assembly | 84110-33010 |
| 84119 | Light control rheostat | 84119-06030 · 84119-06040 · 84119-06050 · 84119-06060 |
| 84140 | Headlight dimmer switch assembly | 84140-02110 · 84140-02160 · 84140-06120 · 84140-06130 · 84140-06140 · 84140-06150 · 84140-06160 · 84140-06170 · 84140-06220 · 84140-32250 |
| 84152 | Headlight beam height adjustment switch | 84152-33030 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 · 90010-08107 |
| 84155 | Headlight rotary main switch | 84155-33010 |
| 84162A | Rear fog light switch | 84165-16010 · 84165-33040 |
| 84162C | Bulb (for rear fog light switch) | 84999-20120 · 90010-01061 |
| 84204 | Steering wheel decorative cover switch cable sub-assembly | 84204-58010 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-02040 · 84231-02070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-02040 · 84231-02070 |
| 84244 | Steering wheel trim cover switch | 84244-33020 · 84244-33040 · 84244-33100 |
| 84244B | Steering wheel decorative cover right switch | 84244-33080 |
| 84247A | Steering wheel decorative cover left switch | 84247-33010 |
| 84306 | Spiral cable sub-assembly | 84306-02080 · 84306-02090 · 84306-06040 · 84306-06050 · 84306-06060 · 84306-58011 · 84306-68030 |
| 84312 | Speaker contact piece | 84312-52010 |
| 84340 | brake light switch assembly | 84340-06030 · 84340-06031 · 84340-06060 · 84340-06070 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84540 | Neutral start switch assembly | 84540-32110 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-30080 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-06100 · 84652-06120 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-02260 · 84652-02270 · 84652-06110 · 84652-06130 |
| 84810 | Electric window lift switch assembly | 84030-06010 · 84030-33010 · 84810-02030 · 84810-20180 |
| 84810D | Rear electric window lift switch assembly | 84030-06010 · 84030-33010 · 84810-02030 · 84810-20180 |
| 84820 | Electric window lift main switch assembly | 84040-06010 · 84040-33020 · 84820-06020 · 84820-06030 · 84820-06040 |
| 84862 | Sliding sunroof motor switch | 84862-AA030 |
| 84870A | Exterior rearview mirror switch assembly | 84870-06030 · 84870-06040 · 84870-06050 |
| 84873A | Telescopic exterior mirror switch | 84873-33020 |
| 84920 | Electric seat switch assembly | 84920-06010 |
| 84921A | Electric seat switch button (for backrest tilt adjustment) | 84921-33120 |
| 84921B | Power seat switch button (for seat sliding and height adjustment) | 84921-33110 |
| 84922B | Front right electric seat switch | 84922-06010 · 84922-30210 |
| 84922C | Front left electric seat switch | 84922-06020 · 84922-06030 · 84922-30230 |
| 84923 | Rear electric seat switch | 84923-30100 |
| 84927 | Seat memory switch | 84927-33030 |
| 84940D | Rear sunshade switch assembly | 84940-33020 |
| 84940E | Rear sunshade light bulb | 84999-10320 |
| 84940F | Rear sunshade switch light bulb cover | 84998-10270 |
| 84940G | Rear sunshade switch assembly (for rear) | 84940-33010 |
| 84988F | traction control switch | 84988-33060 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 84988K | Traction control switch bulb cover | 84998-10270 |
| 85500 | Cigarette lighter assembly | 85500-41030 |
| 85500B | Cigarette lighter bulb | 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85530B | No. 1 rear power socket assembly | 85530-33050 · 85530-33060 |
| 85530D | No. 2 power socket assembly | 85530-30010 |
| 85535B | No. 1 power outlet cover | 85535-26050 |
| 85535C | Rear power outlet cover | 85535-33020 |
| 85535E | No. 2 power outlet cover | 85535-30010 |
| 85539 | Power socket attention labels | 85539-06010 · 85539-06020 · 85539-33010 · 85539-60020 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85911D | Rear sun visor relay | 85911-06010 |
| 85912 | defogger relay | 90987-02025 |
| 85916D | fog light relay | 90080-87008 · 90080-87010 |
| 85916N | Tail light relay | 90080-87008 · 90080-87010 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85927 | cooling fan relay | 90080-87008 · 90080-87010 · 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 · 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90080-87008 · 90080-87010 · 90987-02012 · 90987-02027 |
| 85930 | Electric window relay assembly | 90080-87008 · 90080-87010 |
| 85930G | ACC relay | 90080-87008 · 90080-87010 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-33100 |
| 86530 | Speaker relay assembly | 90080-87008 · 90080-87010 |
| 89245B | steering sensor | 89245-12010 · 89245-50030 |
| 89407 | Right rear height control sensor sub-assembly | 89407-48010 |
| 89427 | Temperature detection switch | 89428-21010 |
| 89428 | No. 2 temperature detection switch | 89428-41010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33020 · 89430-33040 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-06160 · 89465-06170 · 89465-33240 · 89465-33250 |
| 89465A | Oxygen sensor No. 2 | 89465-06180 · 89465-33220 · 89465-33260 |
| 89467B | air fuel ratio sensor | 89467-33040 · 89467-33050 · 89467-33060 · 89467-33120 |
| 89615 | knock control sensor | 89615-12090 · 89615-32030 · 89615-44010 |
| 89710 | Position control ECU assembly | 89710-33040 |
| 89940 | Headlight rotating ECU assembly | 89940-33010 · 89940-33020 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33060 · 89960-33070 · 89960-33100 · 89960-33110 · 89960-33120 · 89960-33130 · 89960-33140 · 89960-33150 |
