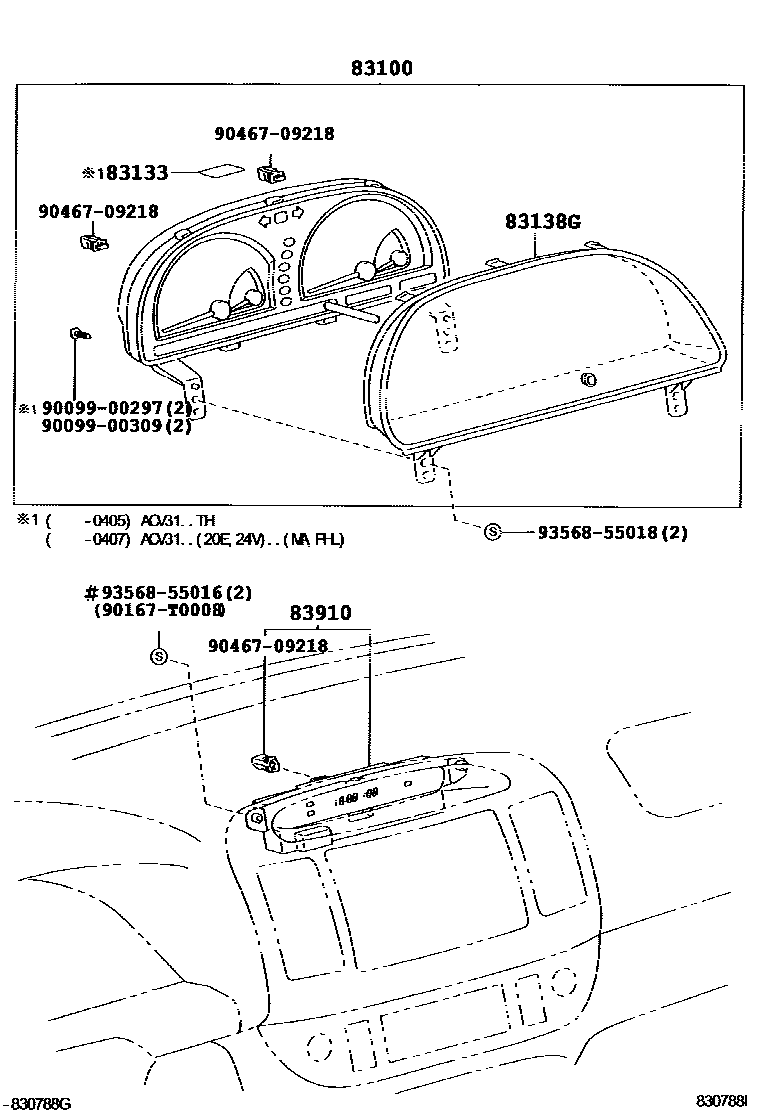

Toyota CAMRY 仪表 — Figure 8301
Toyota CAMRY EPC diagram 8301, 仪表, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-06760 · 83800-06770 · 83800-06780 · 83800-06790 · 83800-06800 · 83800-06810 · 83800-06820 · 83800-06830 · 83800-06840 · 83800-06A30 · 83800-06A40 · 83800-06A50 · 83800-06A60 · 83800-06A70 · 83800-06A80 · 83800-06A90 · 83800-06B00 · 83800-06B10 · 83800-06B20 · 83800-06B30 · 83800-06B40 · 83800-06F00 |
| 83133 | Combined instrument panel No. 1 | 83811-0W240 |
| 83138G | Instrument cluster glass | 83852-06760 · 83852-06780 · 83852-06810 |
| 83910 | clock assembly | 83910-06030 · 83910-06040 · 83910-06050 · 83910-06060 |
