Toyota CAMRY 车内灯 — Figure 8121

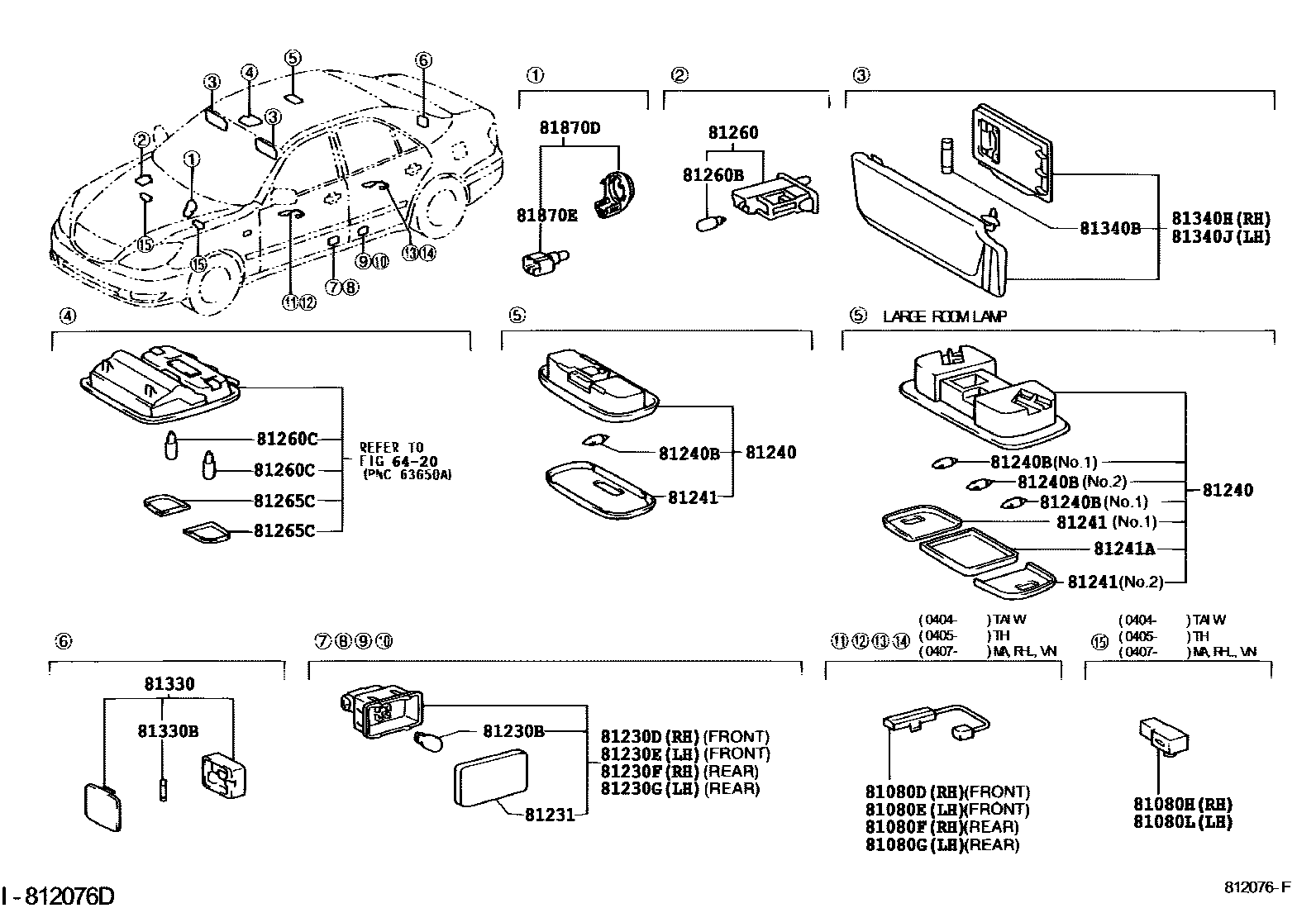

Toyota CAMRY EPC diagram 8121, 车内灯, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81080D | Right front door inner handle lighting assembly | 81080-33010 |
| 81080E | Left front door inner handle lighting assembly | 81090-33010 |
| 81080F | Right rear door inner handle lighting assembly | 81080-33010 |
| 81080G | Left rear door inner handle lighting assembly | 81090-33010 |
| 81080H | Right No. 1 interior lighting assembly | 81080-48010 |
| 81080L | No. 1 interior lighting assembly on the left | 81080-48010 |
| 81230B | Bulb (for gated lights) | 90981-11020 |
| 81230D | Right front door control light assembly | 81230-02010 · 81230-02021 |
| 81230E | Left front door control light assembly | 81230-02010 · 81230-02021 |
| 81230F | Right rear door control light assembly | 81230-02010 · 81230-02021 |
| 81230G | Left rear door control light assembly | 81230-02010 · 81230-02021 |
| 81231 | door control lamp shade | 81231-50010 |
| 81240B | Interior light bulb No. 1 | 90981-14004 |
| 81241 | Interior light cover No. 1 | 81241-8C002 · 81241-8C004 · 81241-8C005 |
| 81241A | Interior light cover No. 2 | 81241-8C003 |
| 81260 | Glove box light assembly | 81260-06030 · 81260-33030 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90084-98049 |
| 81265C | No. 1 reading lamp shade | 81265-AA010 · 81265-AA020 |
| 81330 | No. 1 trunk light assembly | 81330-06020 |
| 81330B | trunk light bulb | 90981-14009 |
| 81340B | Bulb (for vanity lights) | 90981-14007 |
| 81870D | Lock core lighting assembly | 81870-06010 · 81870-13010 |
| 81870E | Lock cylinder lighting bulb | 90010-01056 |
