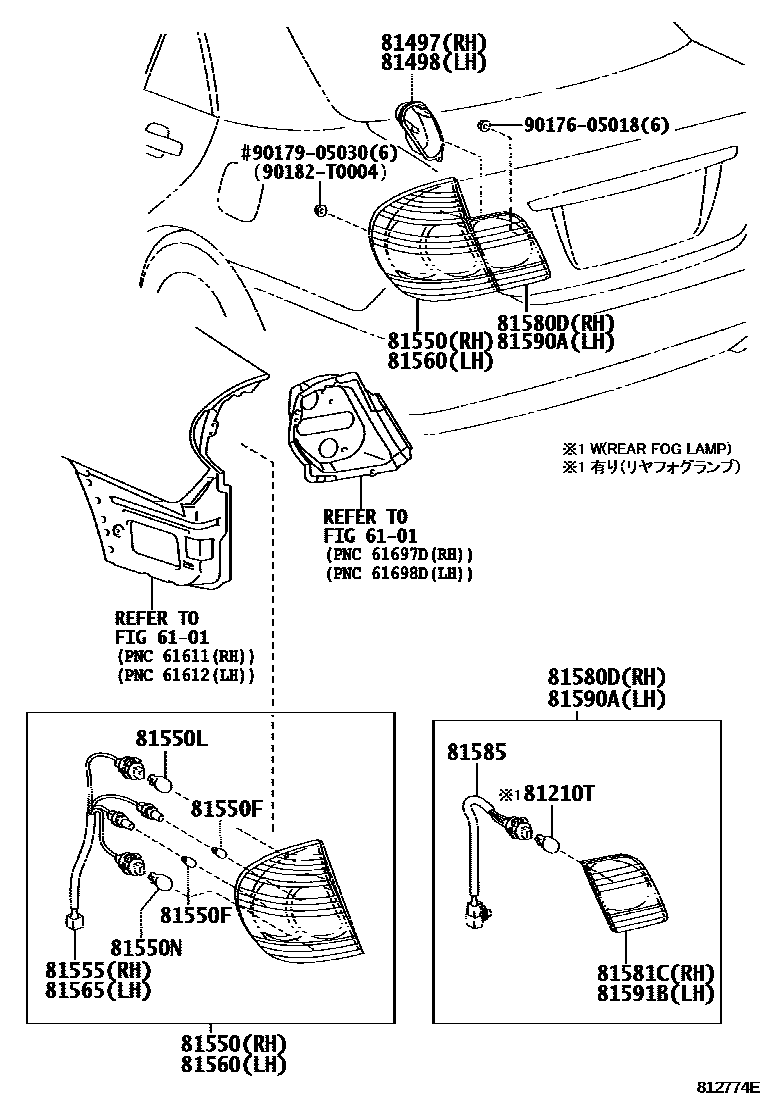

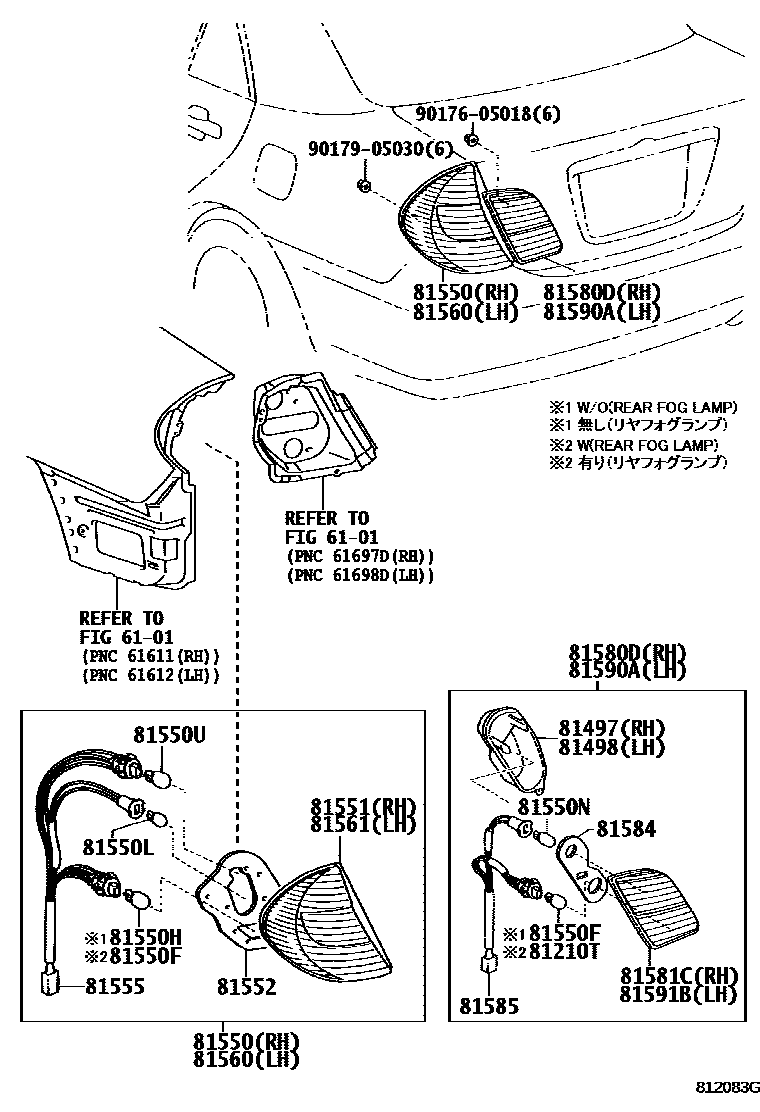

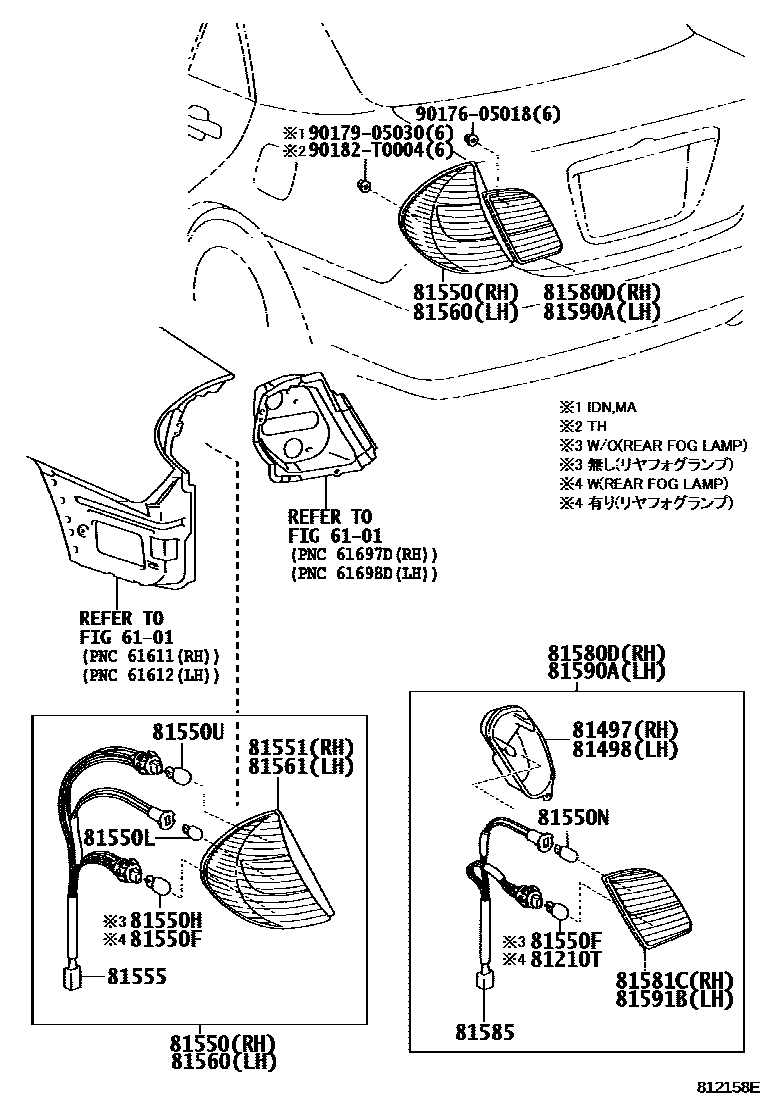

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210T | Rear fog light bulb | 90981-13043 · 90981-13044 |
| 81497 | Right rear combination lamp cover | 81497-33010 |
| 81498 | Left rear combination lamp cover | 81498-33010 |
| 81550 | Right rear combination light assembly | 81550-06120 · 81550-06130 · 81550-06140 · 81550-06150 · 81550-06170 · 81550-06180 |
| 81550F | tail light bulb | 90981-13044 · 99132-12050 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-11059 · 90981-13043 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550U | brake light bulb | 90981-13043 |
| 81551 | Right rear combination lamp shade | 81551-06140 · 81551-06150 · 81551-8C005 |
| 81552 | Right rear combination lamp shade gasket | 81552-8C001 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06140 · 81555-06150 · 81555-06170 · 81555-8C002 · 81555-8C003 · 81555-8C007 |
| 81560 | Left rear combination light assembly | 81560-06130 · 81560-06140 · 81560-06150 · 81560-06160 · 81560-06180 · 81560-06190 |
| 81561 | Left rear combination lamp shade | 81561-06150 · 81561-06160 · 81561-8C005 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-06170 · 81555-8C007 |
| 81580D | Right rear light assembly | 81580-06030 · 81580-06040 · 81580-06050 · 81580-06060 · 81580-06070 · 81580-06080 · 81580-06090 · 81580-06100 · 81580-06110 |
| 81581C | Right rear light lampshade and lamp body | 81581-06030 · 81581-06040 · 81581-06050 · 81581-06060 · 81581-06100 · 81581-8C004 |
| 81584 | Right rear light seal | 81584-8C002 |
| 81585 | Rear lamp holder and wiring harness | 81585-06050 · 81585-06060 · 81585-06100 · 81585-8C001 · 81585-8C002 · 81585-8C004 |
| 81590A | Left rear light assembly | 81590-06030 · 81590-06040 · 81590-06050 · 81590-06060 · 81590-06070 · 81590-06080 · 81590-06090 · 81590-06100 · 81590-06110 |
| 81591B | Left rear light shade and body | 81591-06030 · 81591-06040 · 81591-06050 · 81591-06060 · 81591-06100 · 81591-8C007 |
