Toyota CAMRY Fog Lamp — Figure 8102

Toyota CAMRY EPC diagram 8102, Fog Lamp, with 3 images and 6 PNC and OE references.

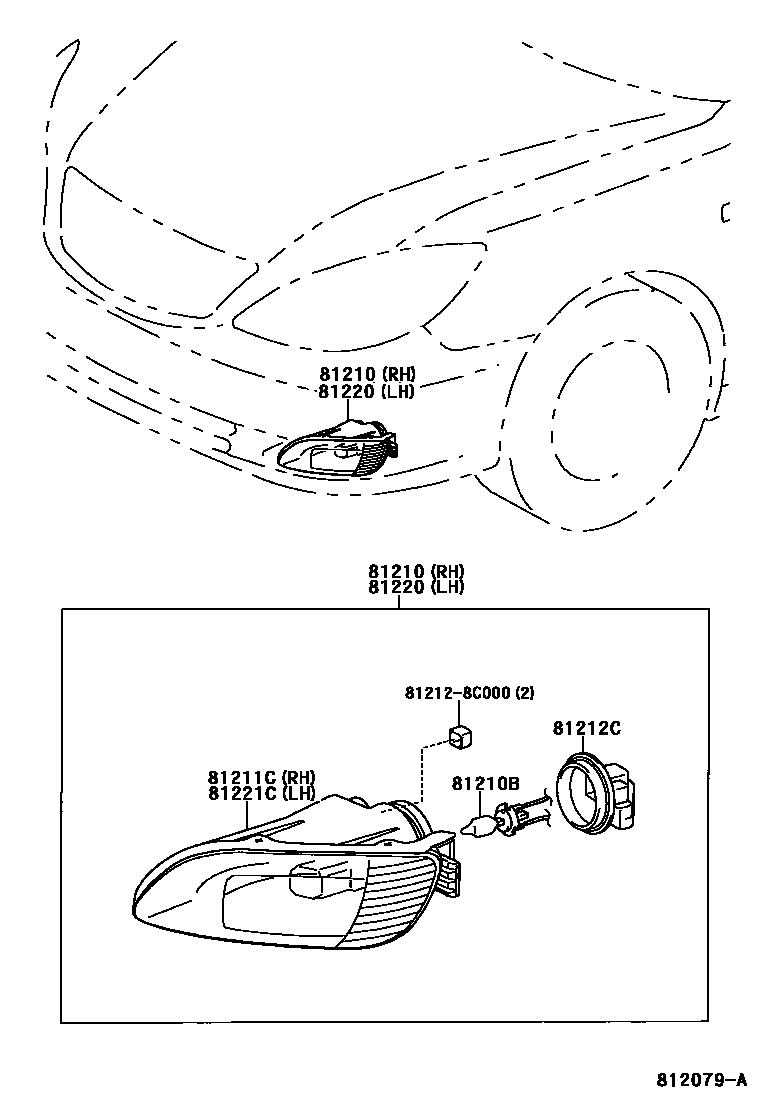

Toyota CAMRY Fog Lamp EPC diagram — 812079A — Fog Lamp — 812079A (200203 – 200407)

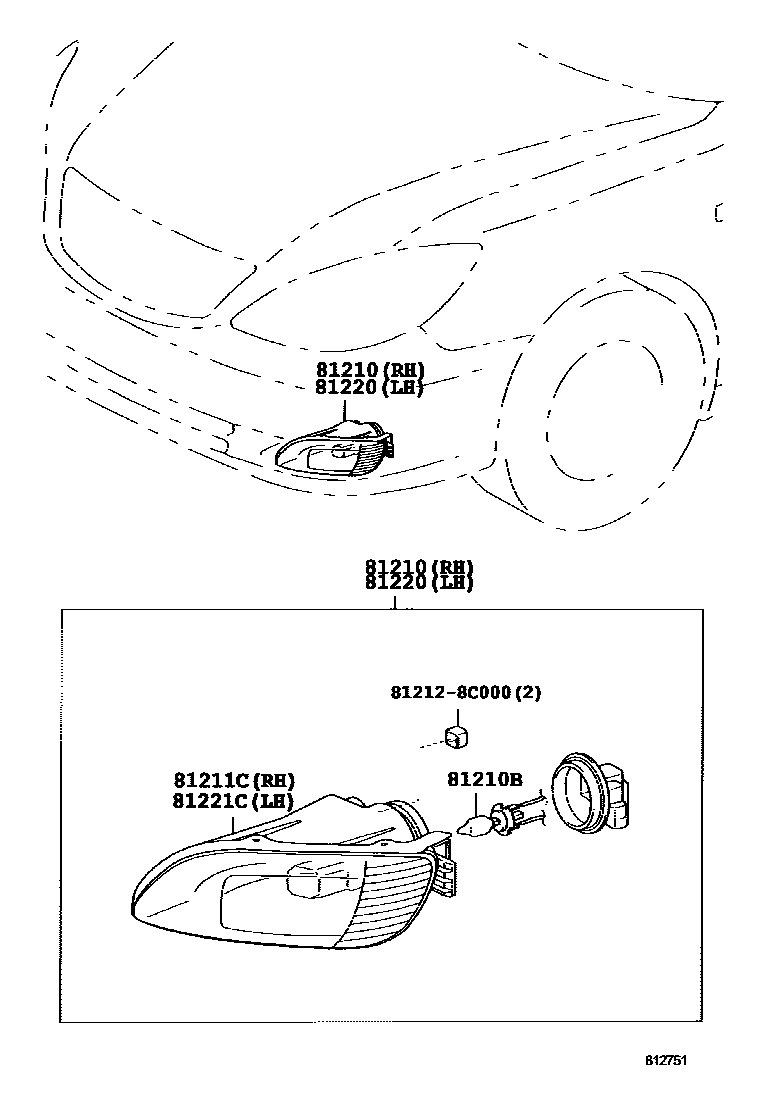

Toyota CAMRY Fog Lamp EPC diagram — 812751B — Fog Lamp — 812751B (200311 – 200405)

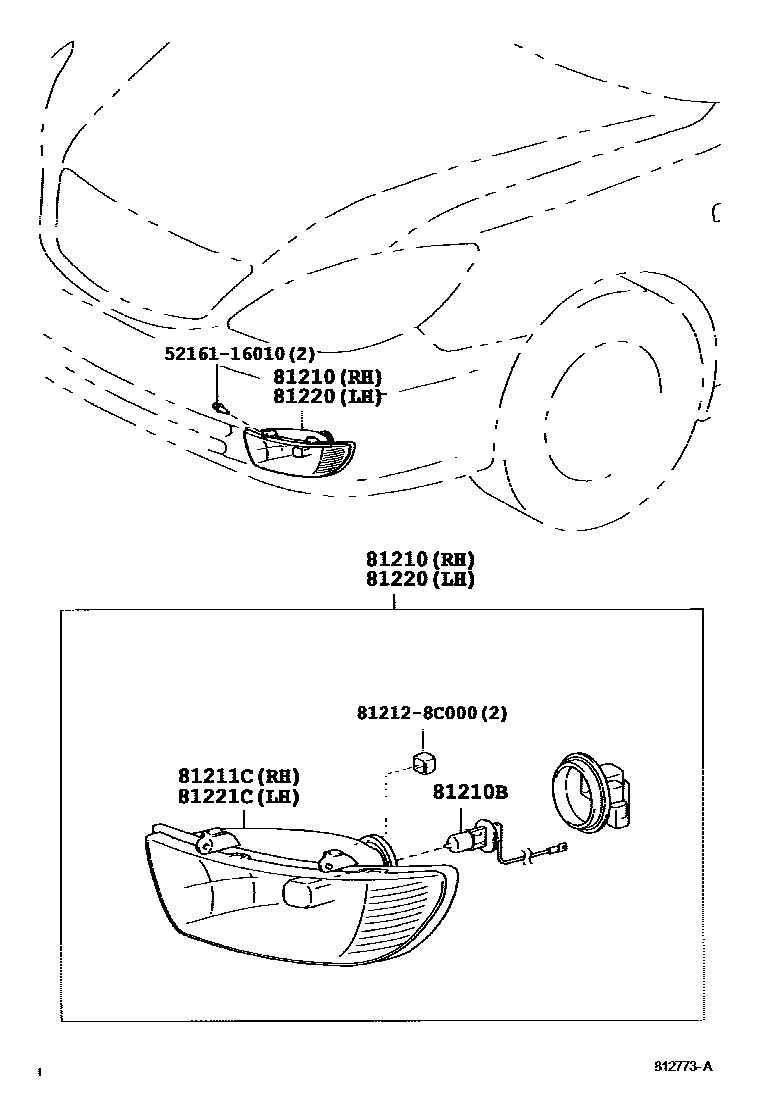

Toyota CAMRY Fog Lamp EPC diagram — 812773A — Fog Lamp — 812773A (200404 – 999999)

PNC and OE references

PNC	Part name	OE numbers
81210	Fog light assembly	81210-06020 · 81210-06030 · 81210-0B050
81210B	fog light bulb	90981-13018 · 90981-13047 · 90981-13048
81211C	Right fog light assembly	81211-8C001 · 81211-8C002
81212C	fog light cover	90075-66001
81220	Left fog light assembly	81220-06020 · 81220-06030 · 81220-0B040
81221C	Left fog light assembly	81221-8C001 · 81221-8C002
