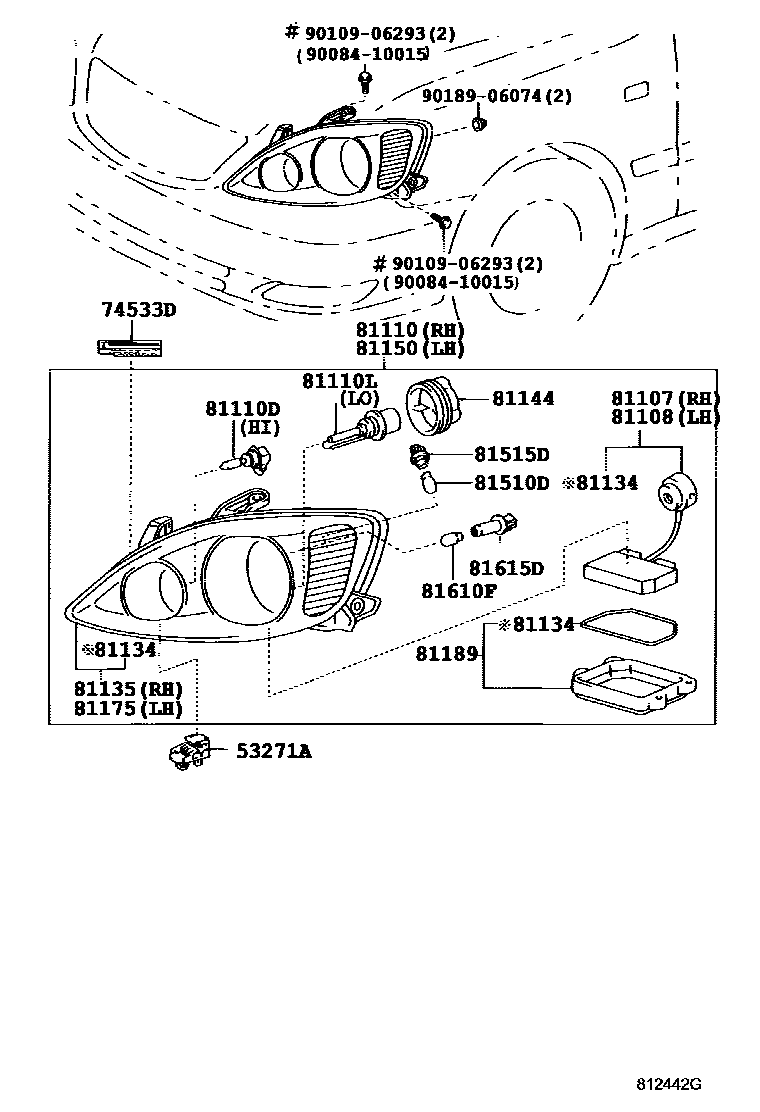

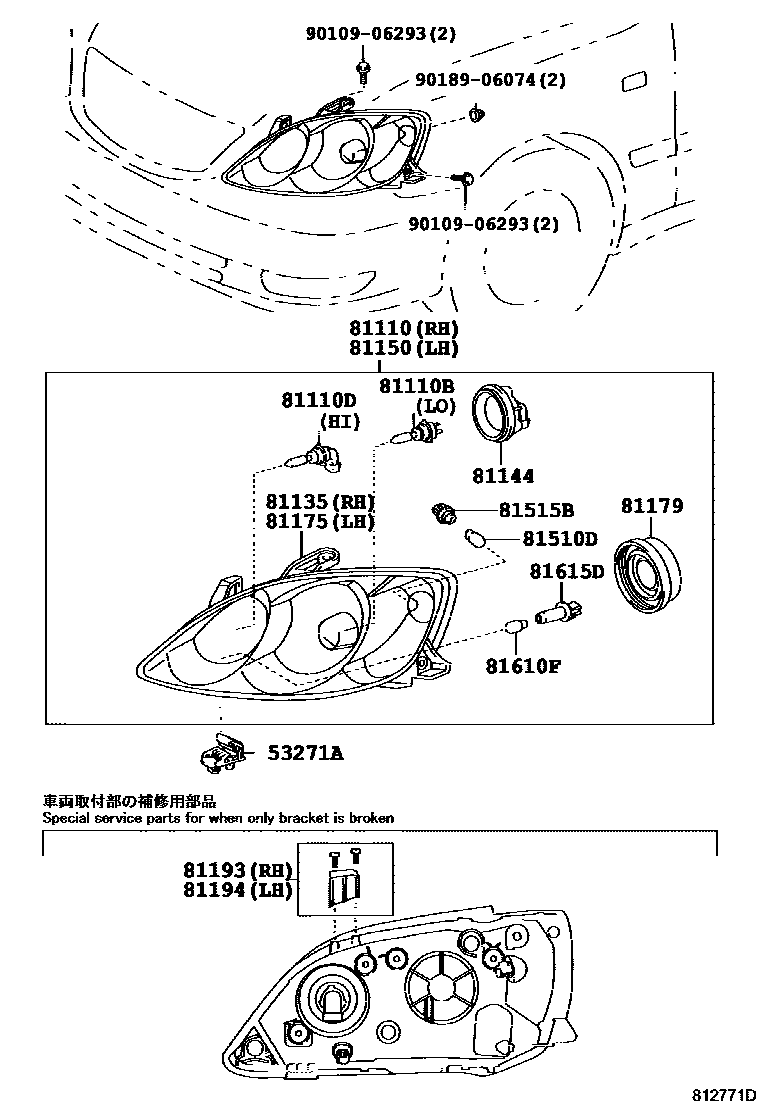

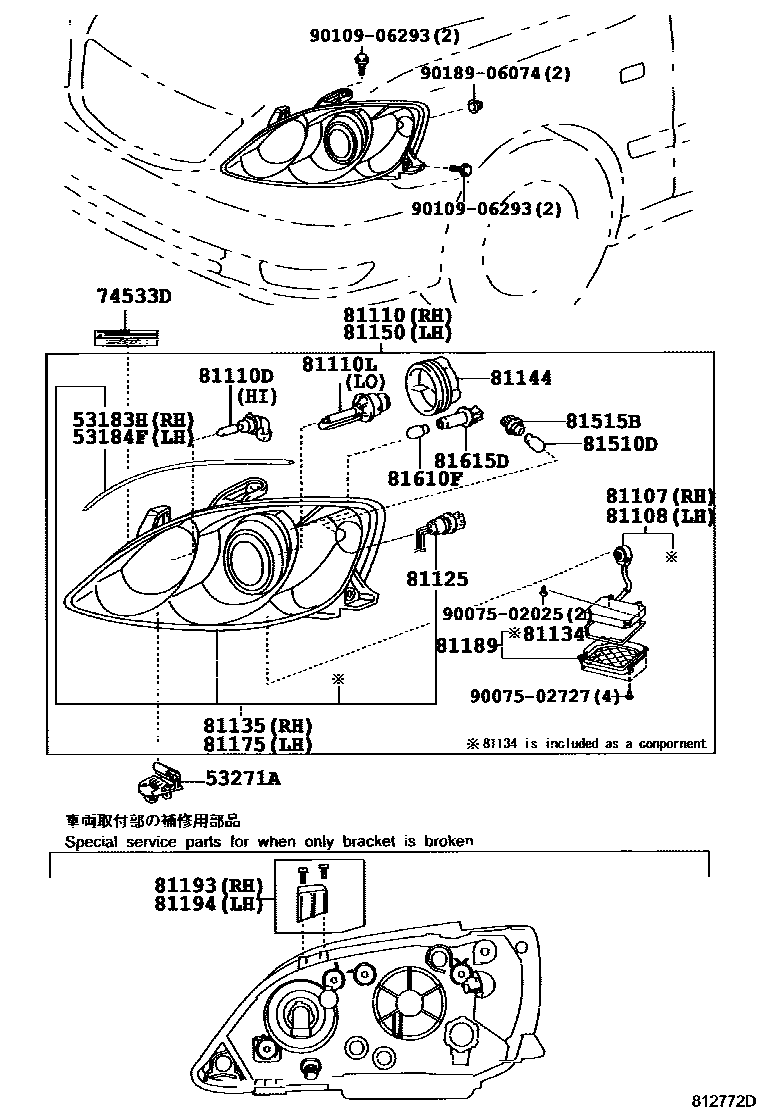

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183H | Right headlight cover seal | 53183-8C001 |
| 53184F | Left headlight cover seal | 53183-8C001 |
| 53271A | Headlight mounting bracket | 53271-44010 |
| 74533D | Headlight voltage warning label | 74533-06010 · 74533-06011 · 74533-06020 · 74533-33010 |
| 81107 | Right headlight control ECU sub-assembly | 81107-06090 · 81107-8C002 |
| 81108 | Left headlight control ECU sub-assembly | 81107-06090 · 81107-8C002 |
| 81110 | Right headlight assembly | 81110-06060 · 81110-06070 · 81110-06080 · 81110-06090 · 81110-06100 · 81110-06110 · 81110-06111 · 81110-06130 · 81110-06131 · 81110-06140 · 81110-06141 · 81110-06150 · 81110-06151 · 81110-06160 · 81110-06161 · 81110-06170 · 81110-06171 |
| 81110B | Bulb (for headlight No. 1) | 90981-13063 |
| 81110D | Bulb (for headlight No. 2) | 90080-81041 |
| 81110L | Discharge headlight bulb | 90981-20001 · 90981-20005 |
| 81125 | headlight wire | 81125-8C000 · 81125-8C002 · 81125-8C003 |
| 81134 | headlight gasket | 81134-06090 |
| 81135 | Right headlight assembly assembly | 81130-06060 · 81130-06070 · 81130-06150 · 81130-06151 · 81130-06160 · 81130-06161 · 81130-8C007 · 81140-06090 · 81140-8C002 · 81145-06170 · 81145-8C003 · 81145-8C004 |
| 81144 | No. 1 headlight cover | 81135-06060 · 81135-3A150 · 81135-3A430 · 81179-8C000 |
| 81150 | Left headlight assembly | 81150-06060 · 81150-06070 · 81150-06080 · 81150-06090 · 81150-06100 · 81150-06110 · 81150-06111 · 81150-06130 · 81150-06131 · 81150-06140 · 81150-06141 · 81150-06150 · 81150-06151 · 81150-06160 · 81150-06161 · 81150-06170 · 81150-06171 |
| 81175 | Left headlight assembly assembly | 81070-06090 · 81070-8C002 · 81170-06060 · 81170-06070 · 81170-06150 · 81170-06151 · 81170-06160 · 81170-06161 · 81170-8C007 · 81185-06170 · 81185-8C003 · 81185-8C004 |
| 81179 | Headlight lamp holder cover | 90075-65006 |
| 81189 | headlight cover | 81139-06090 |
| 81193 | Right headlight upper protective ring | 81193-06010 |
| 81194 | Left headlight upper protective ring | 81194-06010 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15011 · 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81515D | fog lamp holder | 81125-48470 · 90075-60004 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 · 90075-60028 · 90075-60046 |
