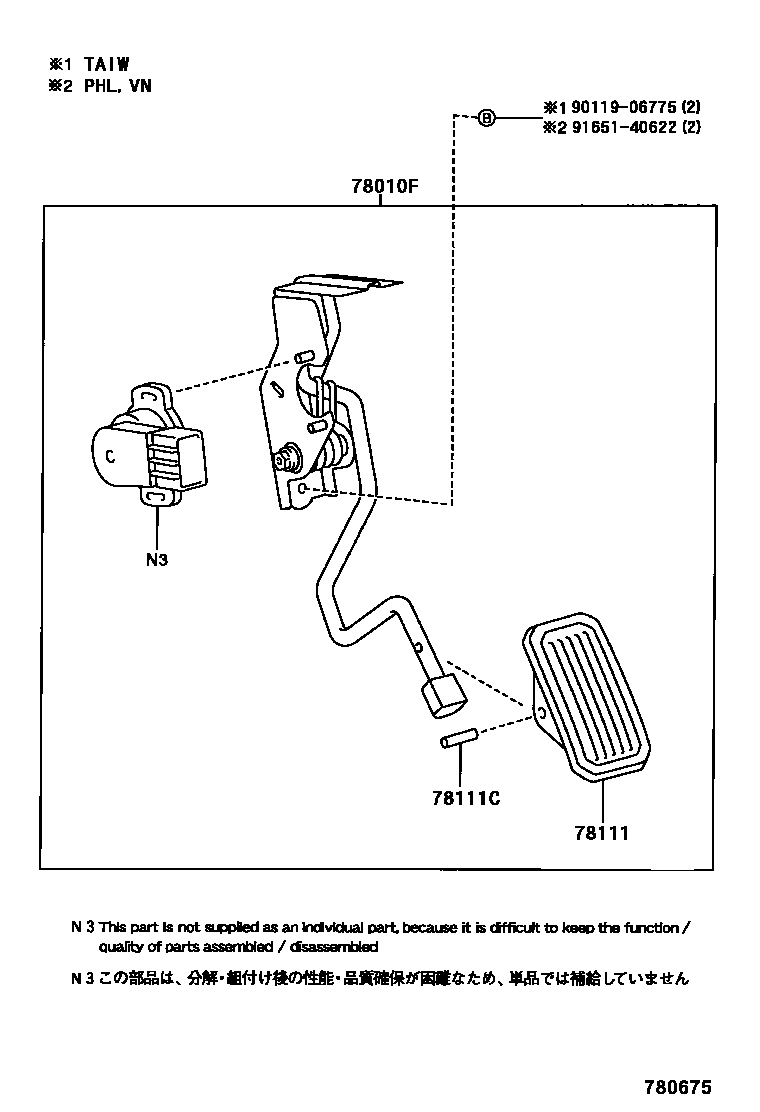

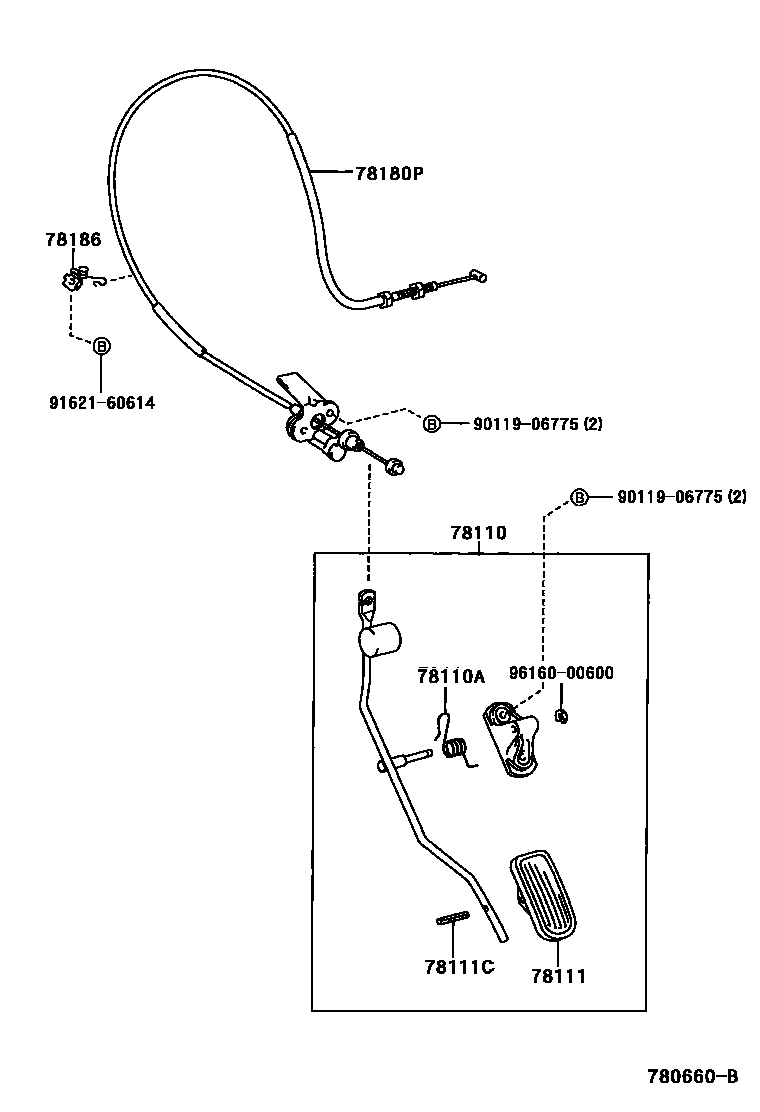

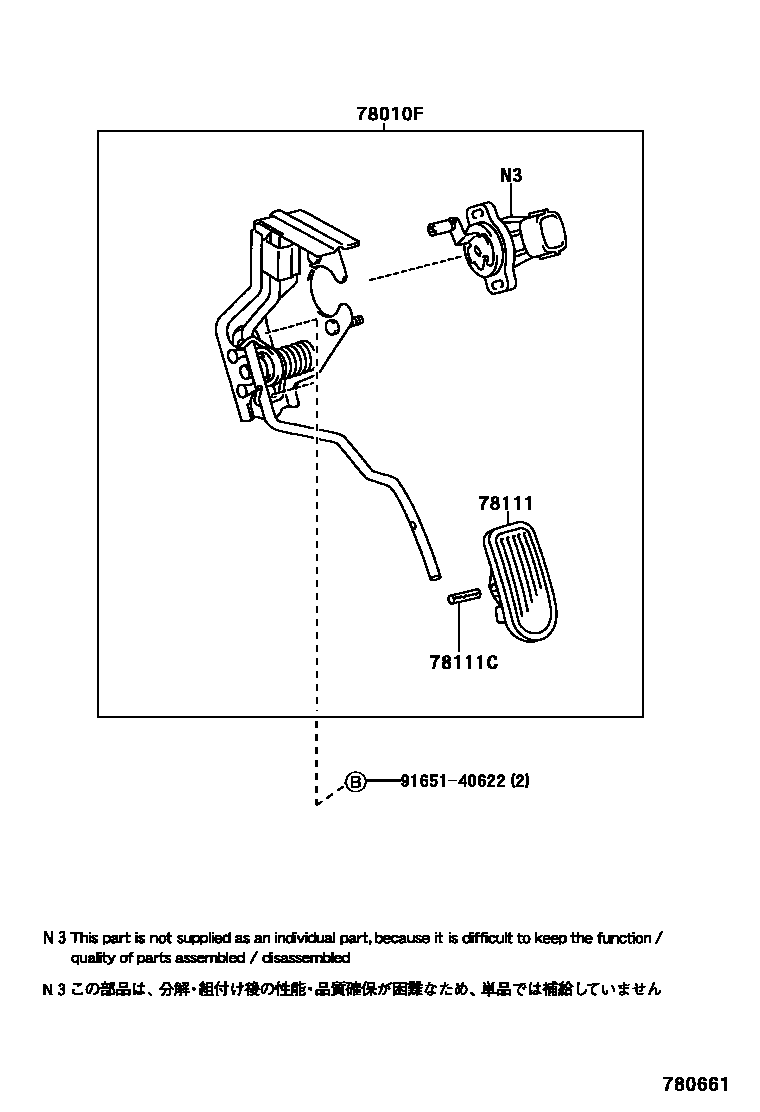

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-06010 · 78010-33010 · 78010-33030 |
| 78110 | Accelerator pedal lever assembly | 78120-06030 |
| 78110A | Spring (for accelerator pedal lever) | 90508-26036 |
| 78111 | accelerator pedal | 78111-20060 · 78111-33010 · 78111-33020 |
| 78111C | pin (for gas pedal) | 90254-04019 |
| 78180P | Accelerator pedal control cable assembly | 78180-06160 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-33090 |
