Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 1 images and 19 PNC and OE references.

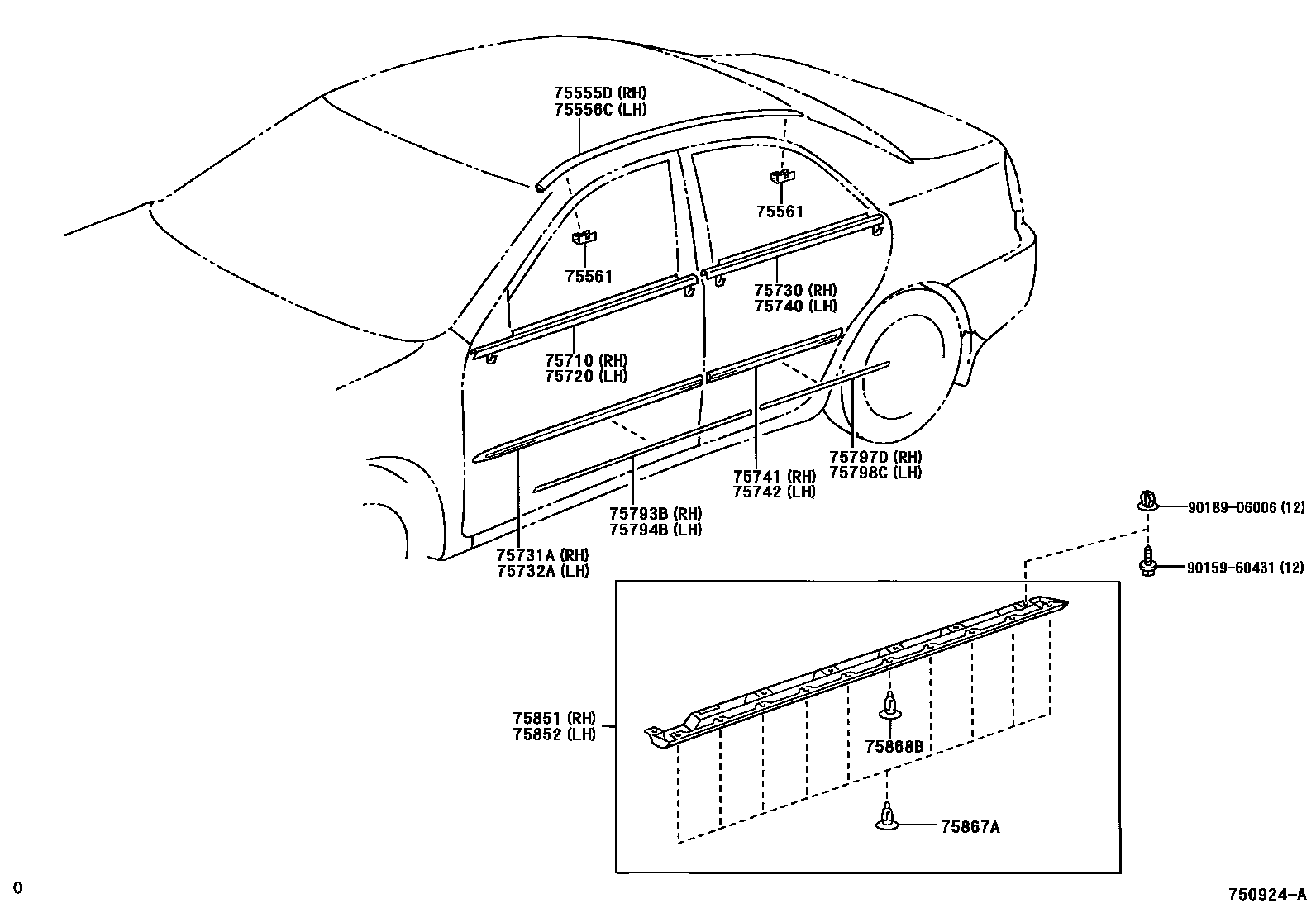

Toyota CAMRY 侧防护条 EPC diagram — 750924A
侧防护条 — 750924A (200203 – 999999)

PNC and OE references

PNCPart nameOE numbers
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-06010 · 75555-06020 · 75555-33010 · 75555-33011
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-06010 · 75556-06020 · 75556-33010 · 75556-33011
75561No. 1 roof drain channel side decorative strip clip75561-33020 · 75561-33030 · 75561-33040
75710Right front door waistline protection strip assembly75710-06050 · 75710-06070 · 75710-33080
75720Left front door waistline protection strip assembly75720-06050 · 75720-06070 · 75720-33080
75730Right rear door waistline protection strip assembly75730-06040 · 75730-06050 · 75730-33080
75731ARight front door outer protective strip75731-06902 · 75731-06903 · 75731-06905 · 75731-06908 · 75731-06909
75732ALeft front door outer protective strip75732-06902 · 75732-06903 · 75732-06905 · 75732-06908 · 75732-06909
75740Left rear door waistline protection strip assembly75740-06040 · 75740-06050 · 75740-33080
75741Right rear door outer protective strip75741-06900 · 75741-06901 · 75741-06903 · 75741-06906 · 75741-06907
75742Left rear door outer protective strip75742-06900 · 75742-06901 · 75742-06903 · 75742-06906 · 75742-06907
75793BRight front door outer protective strip insert75793-06010
75794BLeft front door outer protective strip insert75794-06010
75797DRight rear door outer protective strip insert75797-06010
75798CLeft rear door outer protective strip insert75798-06010
75851Right side door sill panel protective strip75851-06040
75852Left side door sill panel protective strip75852-06040
75867ADoor sill panel protective strip clip75867-33030
75868BNo. 2 door sill plate protective strip clip75868-33020
