Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403

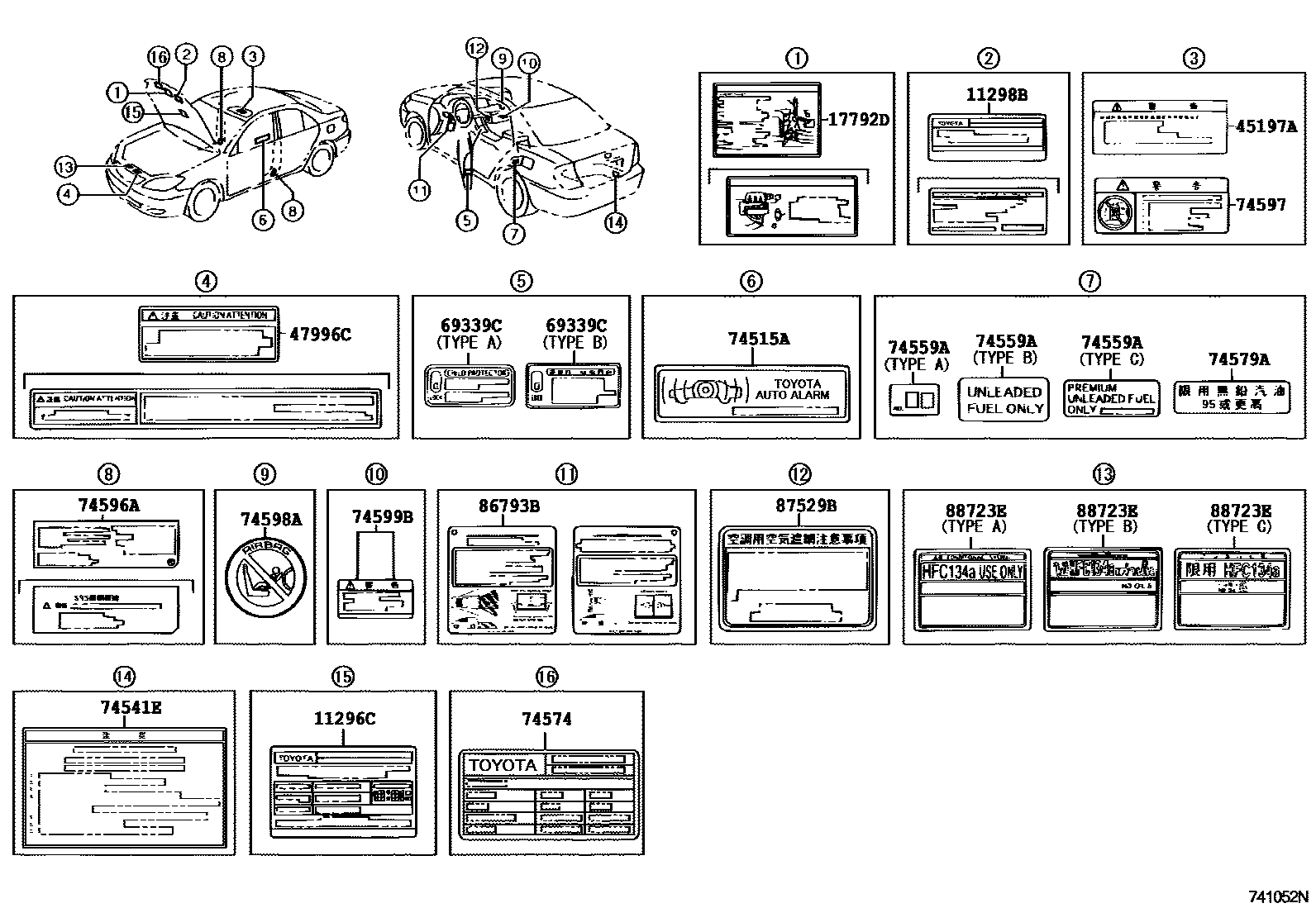

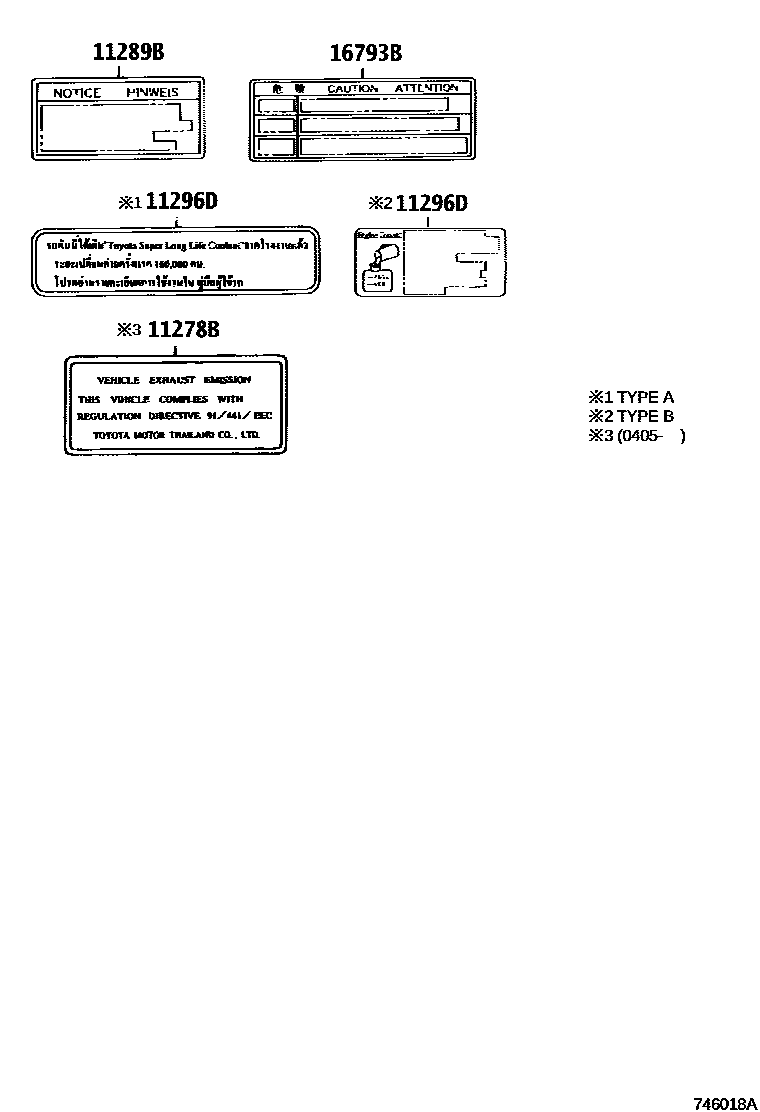

Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-15020 |
| 11289B | spark plug caution label | 11289-28010 · 11289-50010 |
| 11296C | Engine maintenance information label | 11296-0A010 |
| 11296D | Engine maintenance information label | 11296-0D020 · 11296-0L010 · 11296-27020 |
| 11298B | Emission Control Information Label | 11298-0A020 · 11298-0A030 · 11298-0A031 · 11298-0A032 · 11298-0H010 · 11298-0H040 · 11298-0H080 · 11298-20690 · 11298-28170 · 11298-28220 |
| 16793B | Cooling fan information label | 16793-28010 |
| 17792D | Emission control device information label | 17792-0A010 · 17792-0A011 · 17792-0A020 · 17792-0A022 · 17792-0H010 · 17792-0H011 |
| 45197A | air bag warning label | 45197-06020 |
| 47996C | Brake Bleed Warning Label | 47996-06010 · 47996-50050 |
| 69339C | Child Restraint Information Label | 69339-0A010 · 69339-12010 · 69339-20040 |
| 74515A | Anti-theft warning nameplate | 74515-30020 |
| 74541E | Small spare tire warning plate | 42668-16020 |
| 74559A | Fuel warning plate | 74559-02020 · 74559-0A020 · 74559-14050 · 74559-50010 |
| 74574 | Noise identification nameplate | 74574-06010 · 74574-06020 |
| 74579A | Unleaded Fuel Information Label | 74579-20020 |
| 74596A | Side air bag warning label | 74596-06010 · 74596-33010 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74597-0B020 |
| 74598A | Passenger air bag warning label | 74598-02040 |
| 74599B | Driver and passenger air bag information labels | 74599-0B010 |
| 86793B | Reversing camera information label | 86793-33010 |
| 87529B | Cabin filter information label | 87529-02010 |
| 88723E | Cooler maintenance warning label | 88723-02080 · 88723-02090 · 88723-28220 |
