Toyota CAMRY 扶手和遮阳板 — Figure 7401

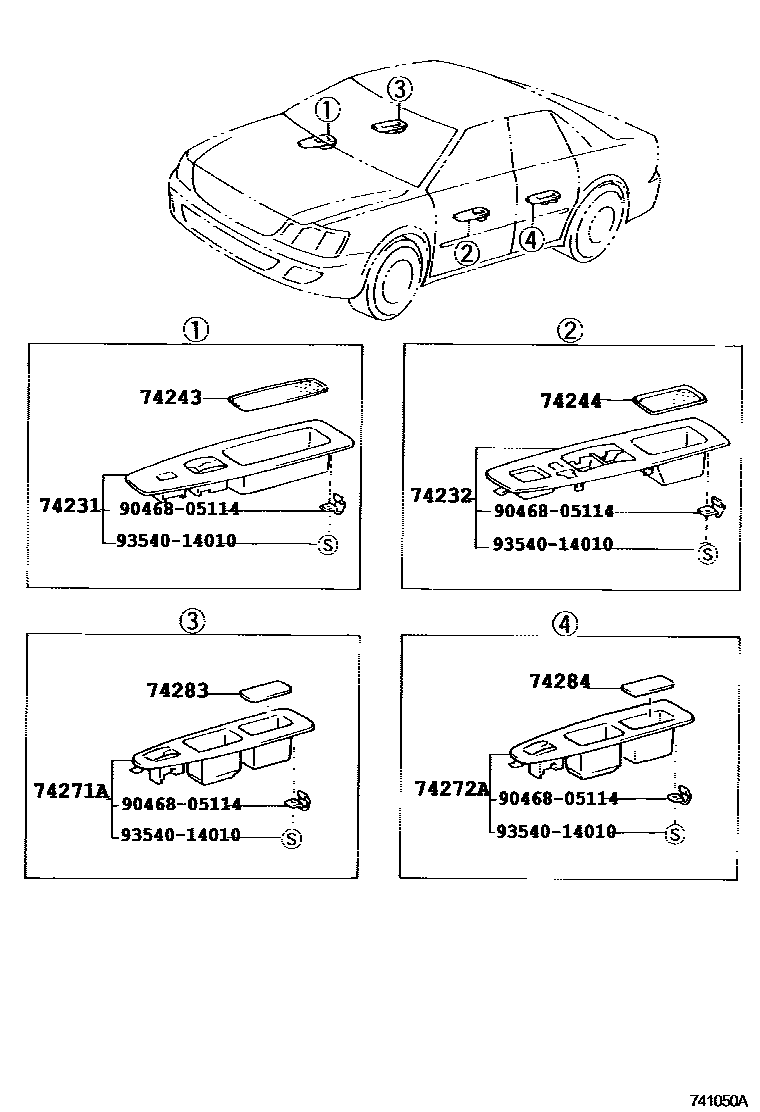

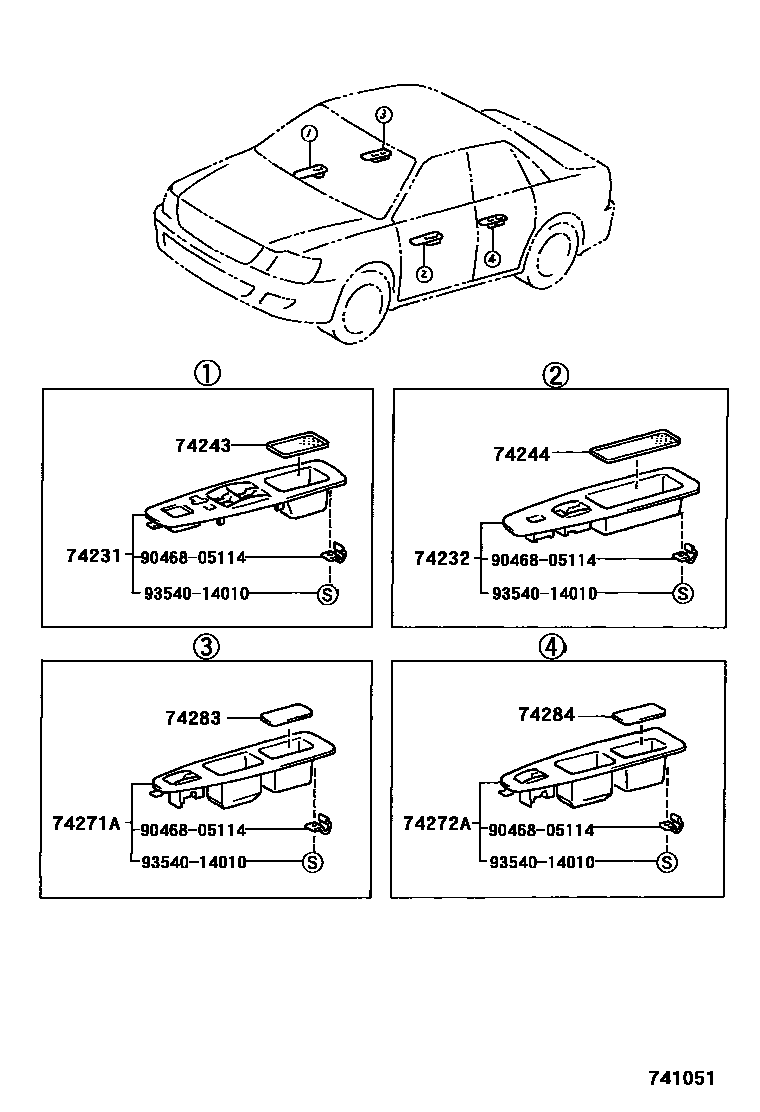

Toyota CAMRY EPC diagram 7401, 扶手和遮阳板, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-06030 · 74231-06050 · 74231-06060 · 74231-06080 · 74231-06090 · 74231-06100 · 74231-06110 · 74231-06120 |
| 74232 | Left front armrest upper panel | 74232-06030 · 74232-06050 · 74232-06060 · 74232-06080 · 74232-06090 · 74232-06100 · 74232-06110 · 74232-06120 |
| 74243 | Right front door armrest lower cover | 74243-06080 · 74243-06090 · 74244-06080 · 74244-06100 |
| 74244 | Left front door armrest lower cover | 74243-06080 · 74243-06090 · 74244-06080 · 74244-06100 |
| 74271A | Right rear door armrest upper panel | 74271-06030 · 74271-06040 · 74271-06050 · 74271-06070 |
| 74272A | Left rear door armrest upper panel | 74272-06030 · 74272-06040 · 74272-06050 · 74272-06070 |
| 74283 | Right rear door armrest lower seat cover | 74284-06010 · 74284-06020 |
| 74284 | Left rear door armrest lower seat cover | 74284-06010 · 74284-06020 |
