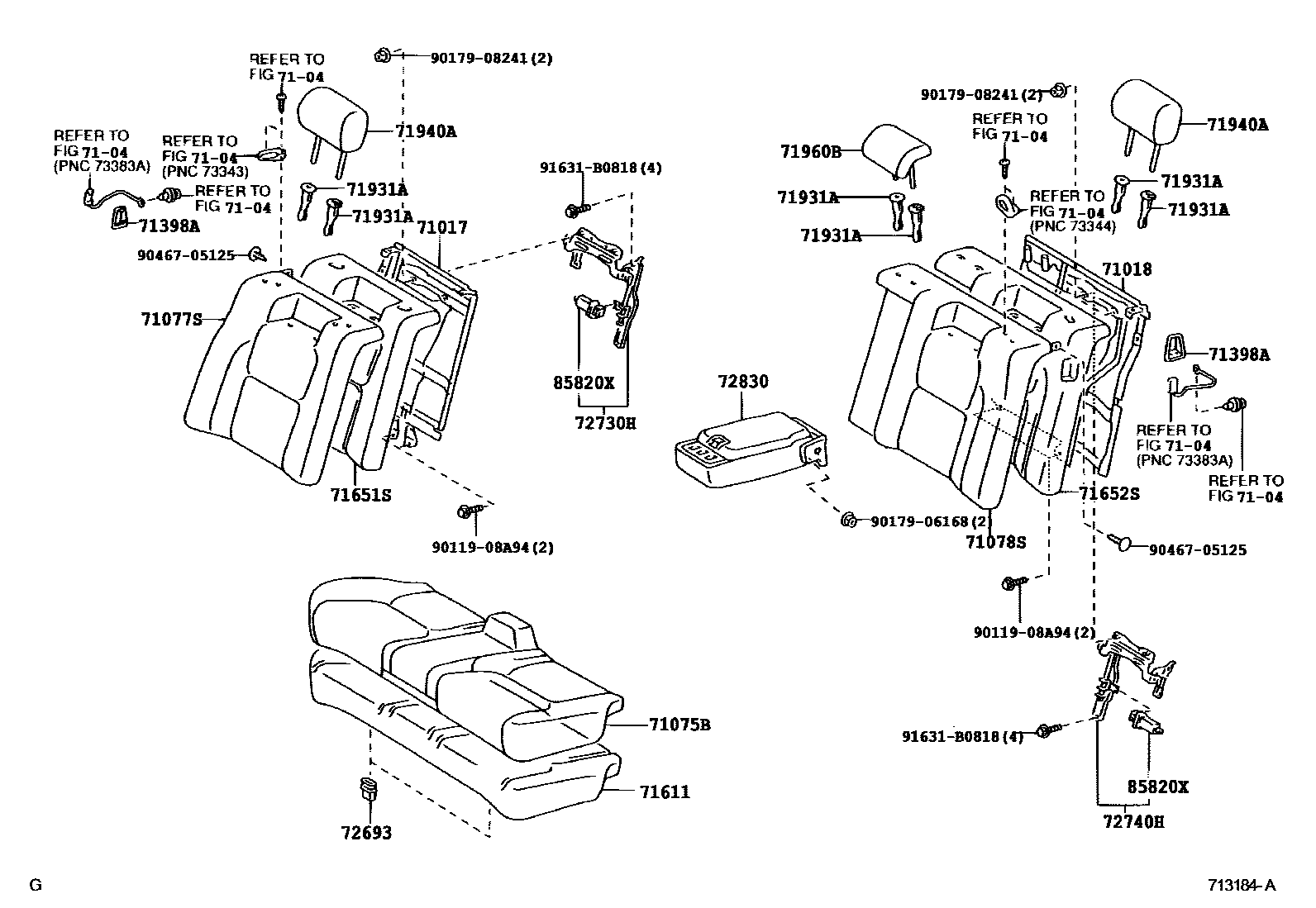

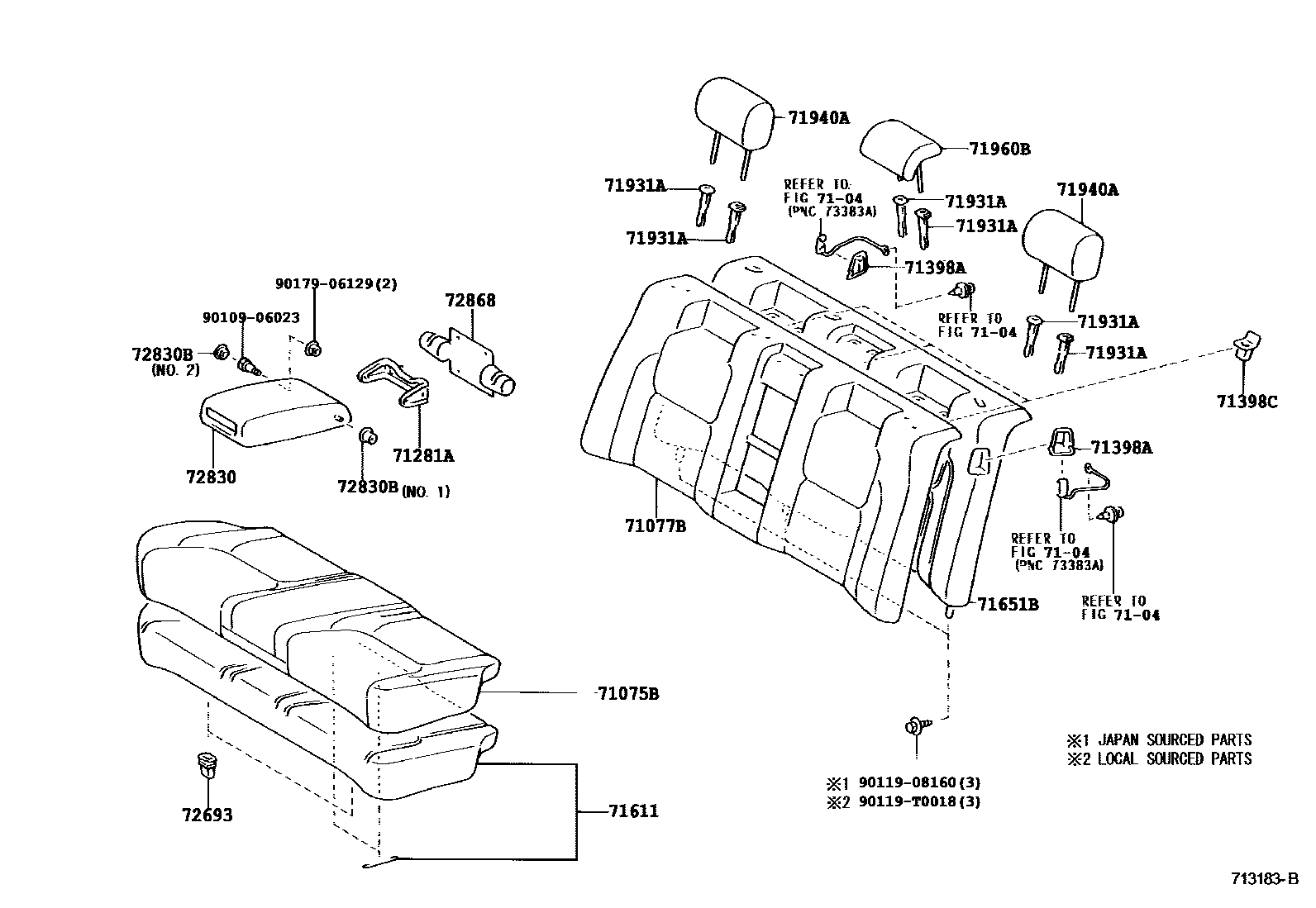

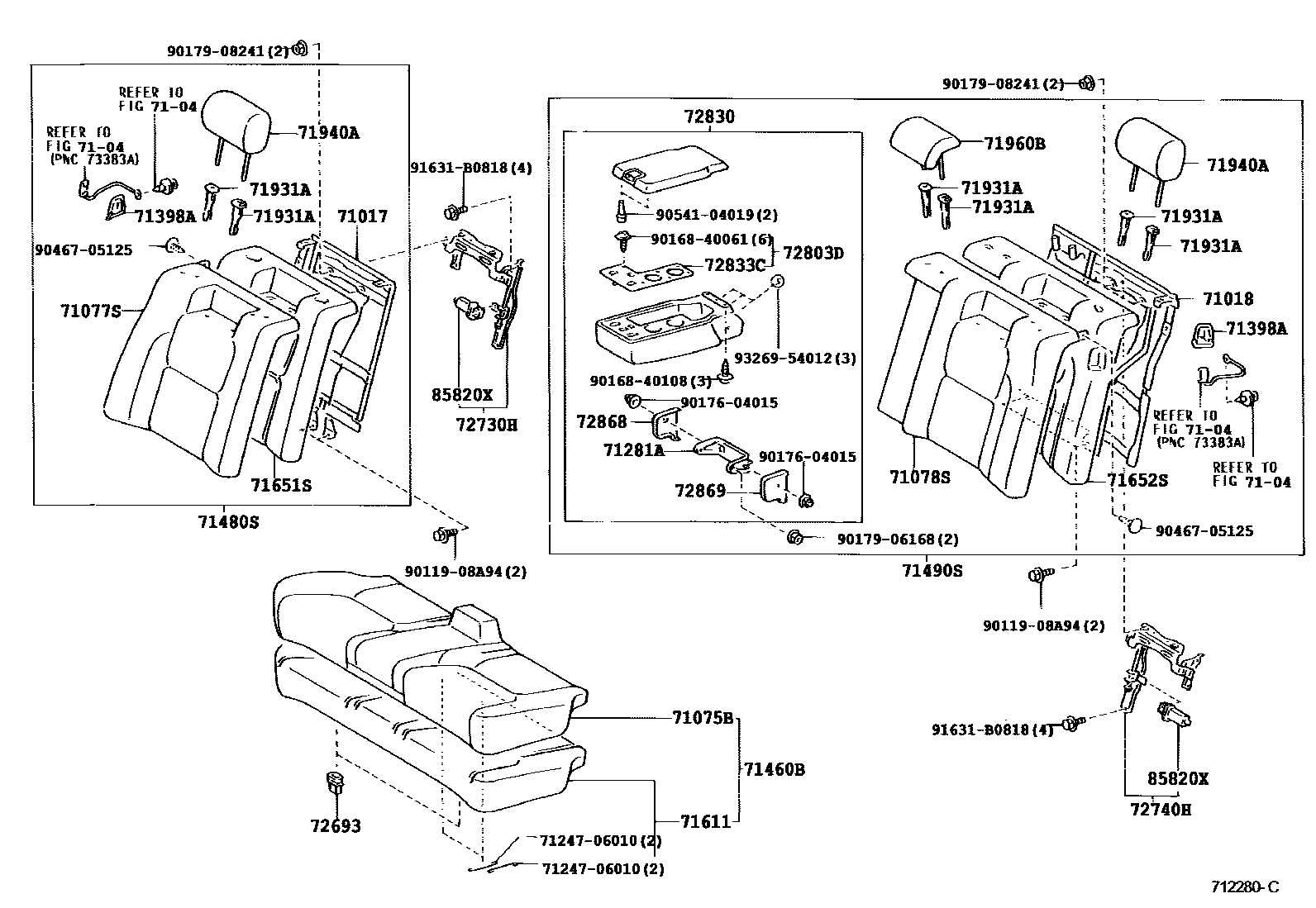

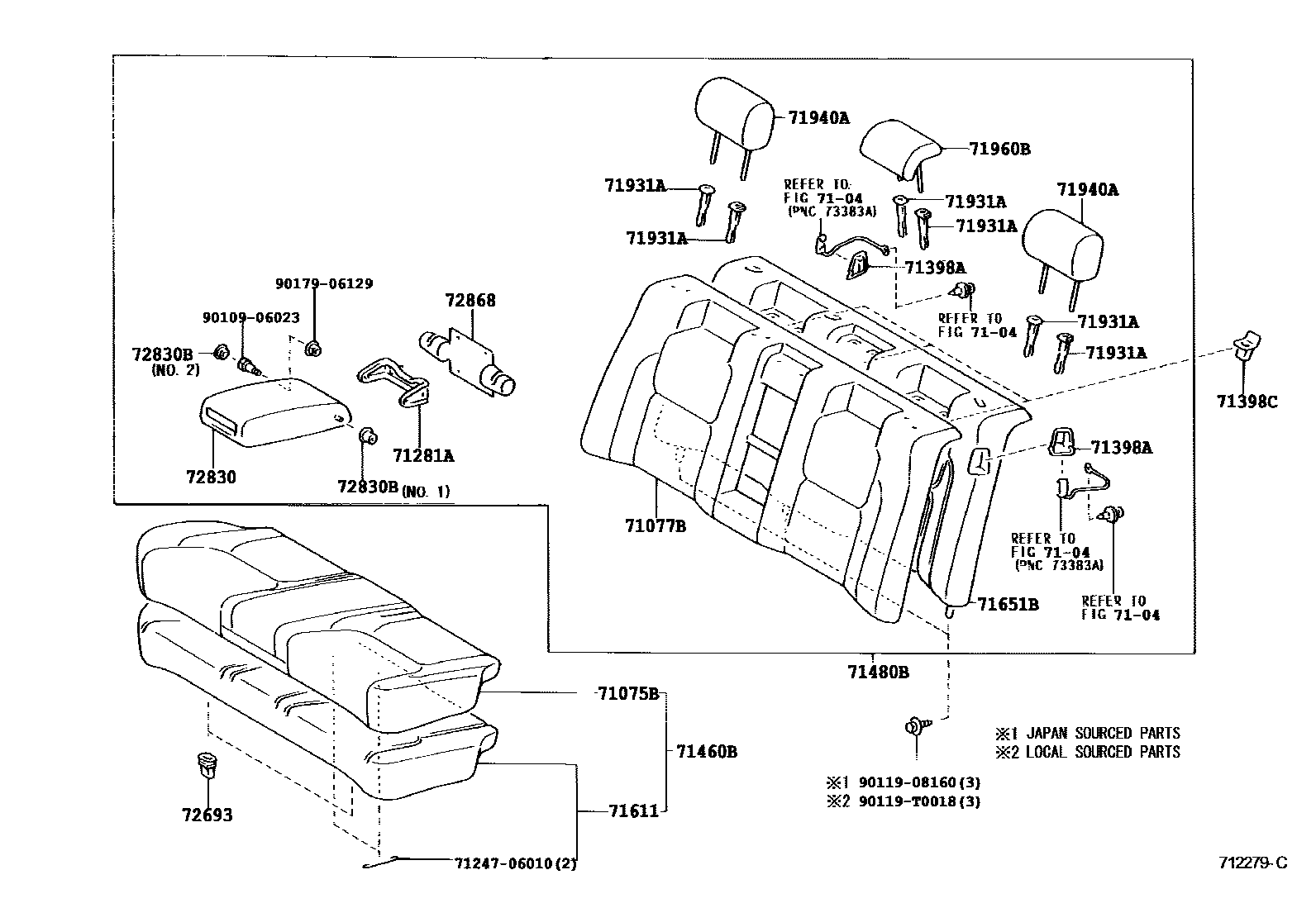

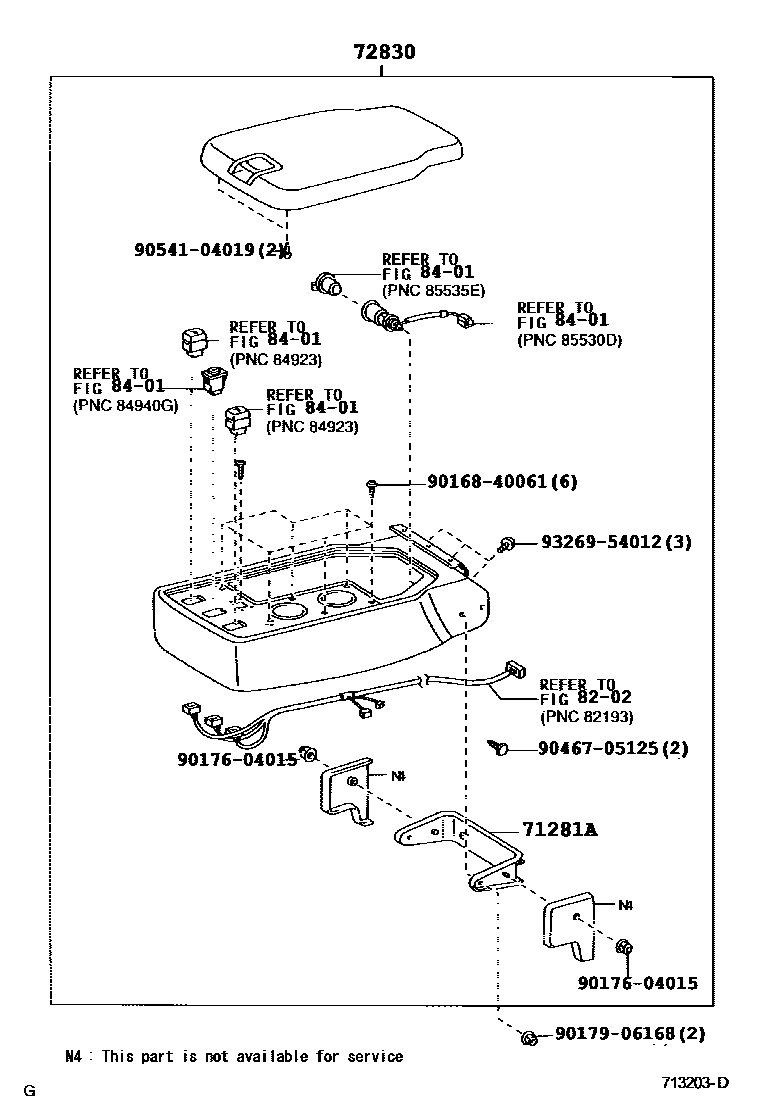

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06060 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06040 |
| 71281A | Rear seat center armrest hinge | 71281-06010 · 71281-30050 |
| 71398A | Rear seat back retainer | 71398-06010 |
| 71398C | Rear seat back retainer | 71398-02040 · 71398-06020 · 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-06020 · 71503-06040 · 71503-06050 · 71503-06060 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-06010 · 71507-06020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06060 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06050 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730H | Rear right seat backrest tilt adjuster assembly | 72730-33010 |
| 72740H | Rear left seat backrest angle adjuster assembly | 72740-30030 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 · 90386-08077 |
| 72868 | Right center armrest hinge cover | 72868-06060 |
| 85820X | Electric seat motor assembly | 85820-30730 |
