Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

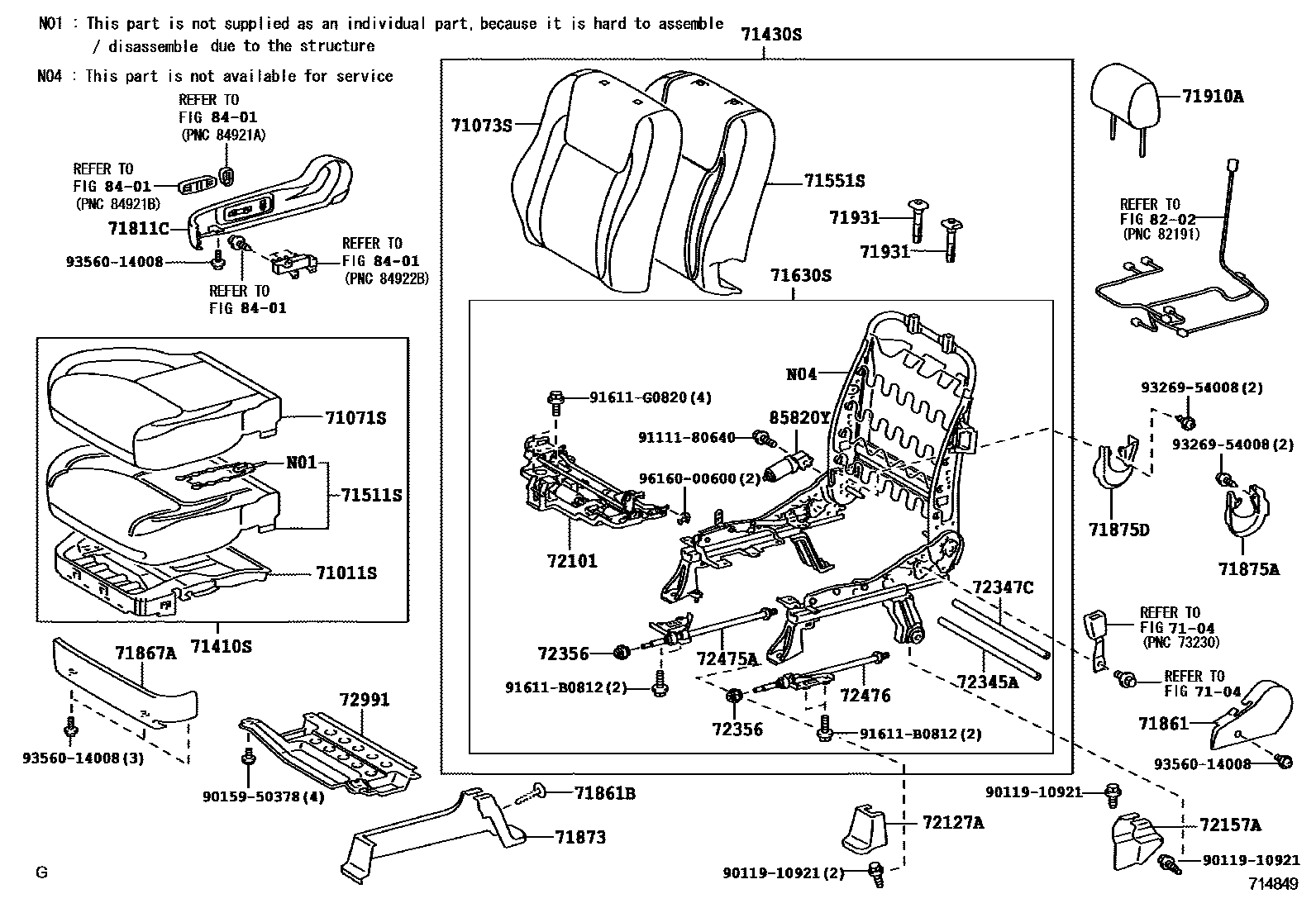

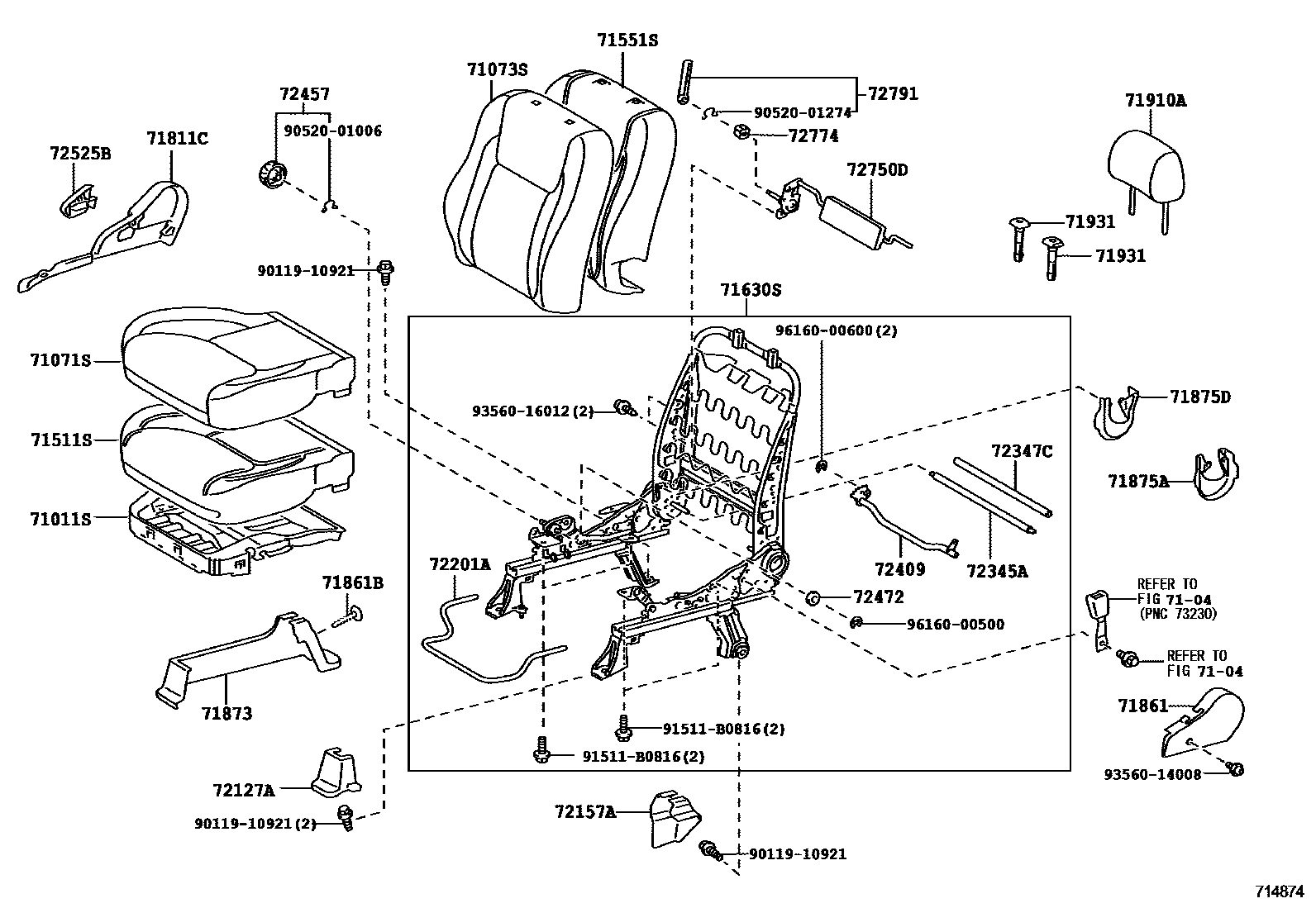

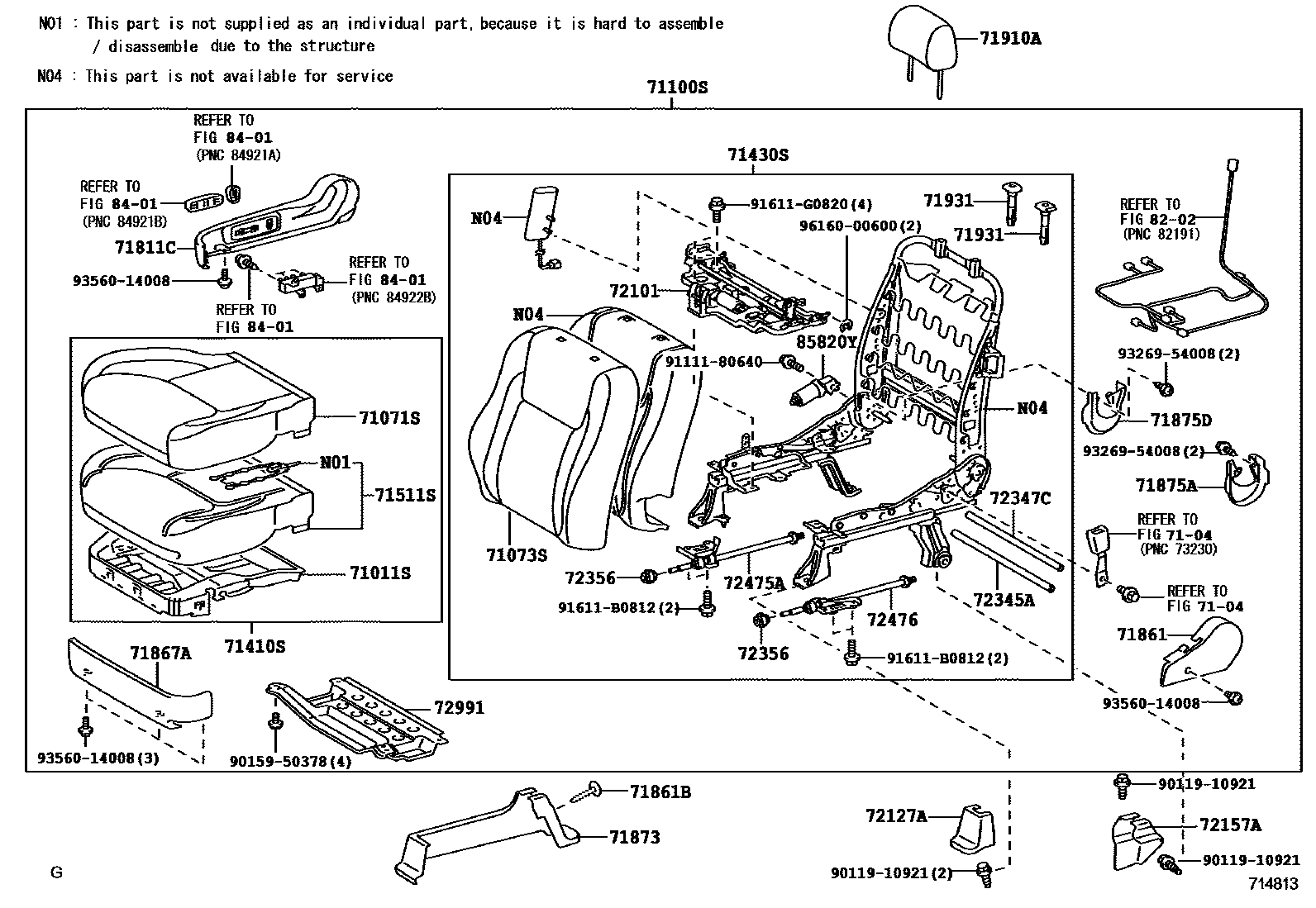

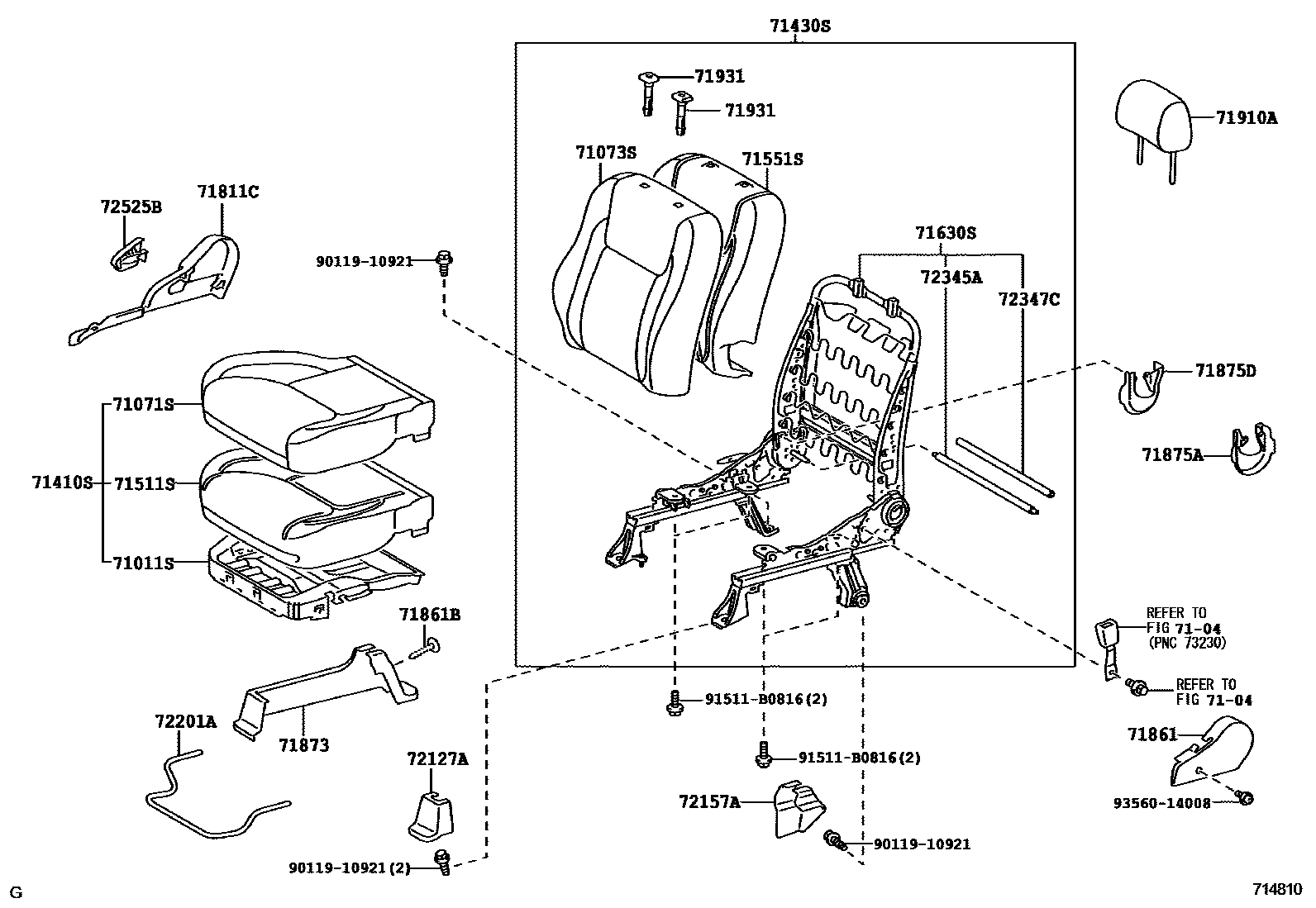

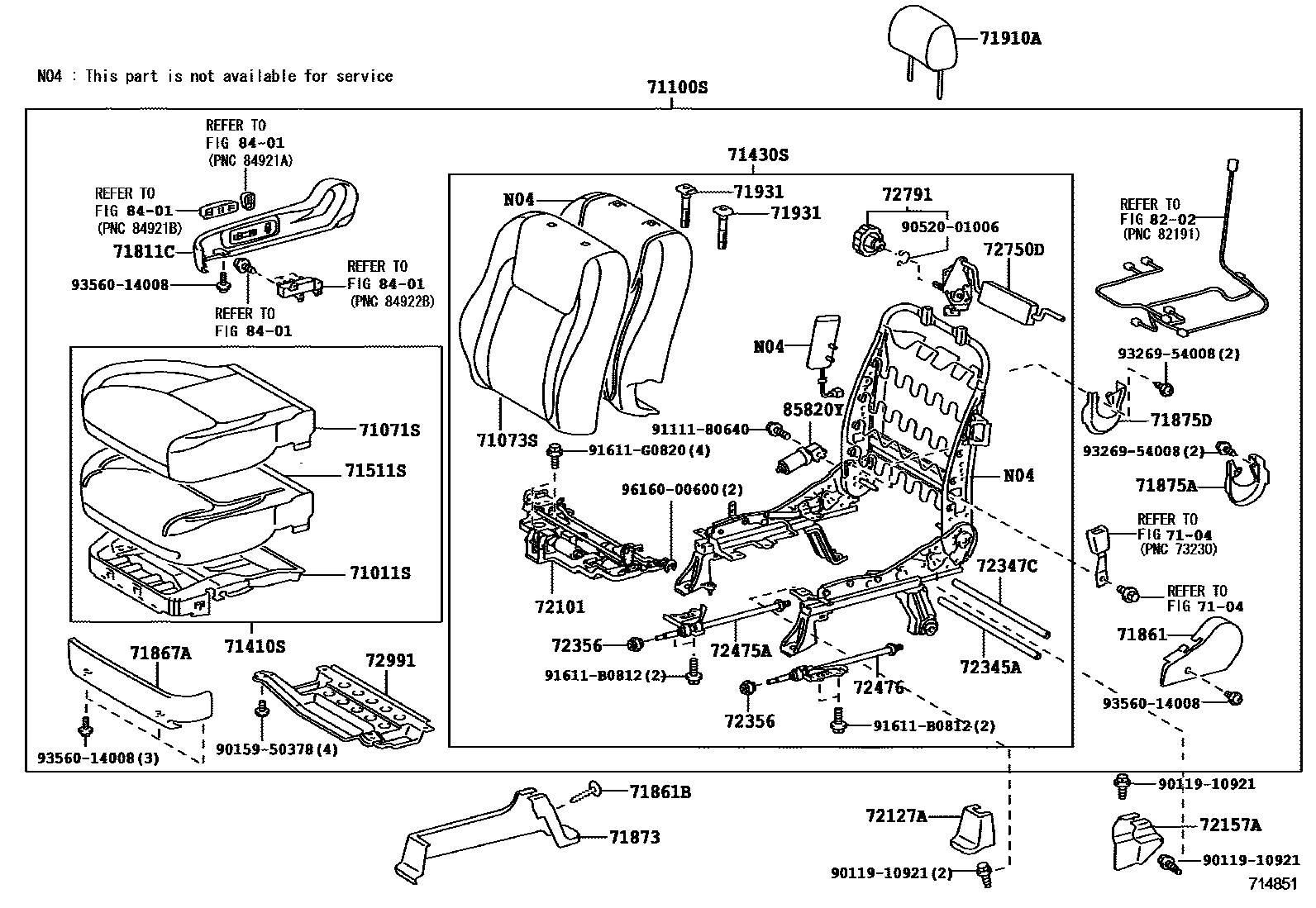

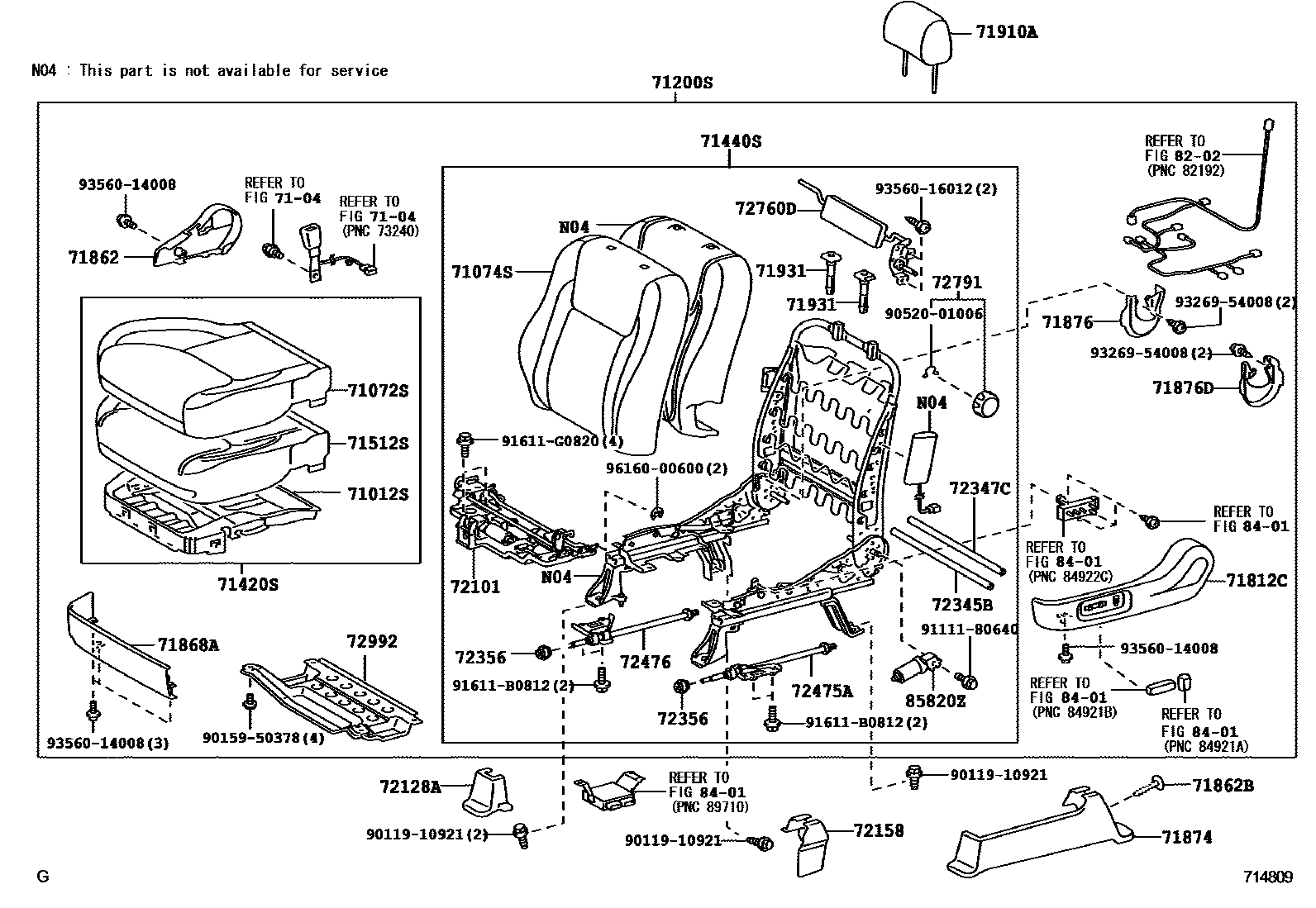

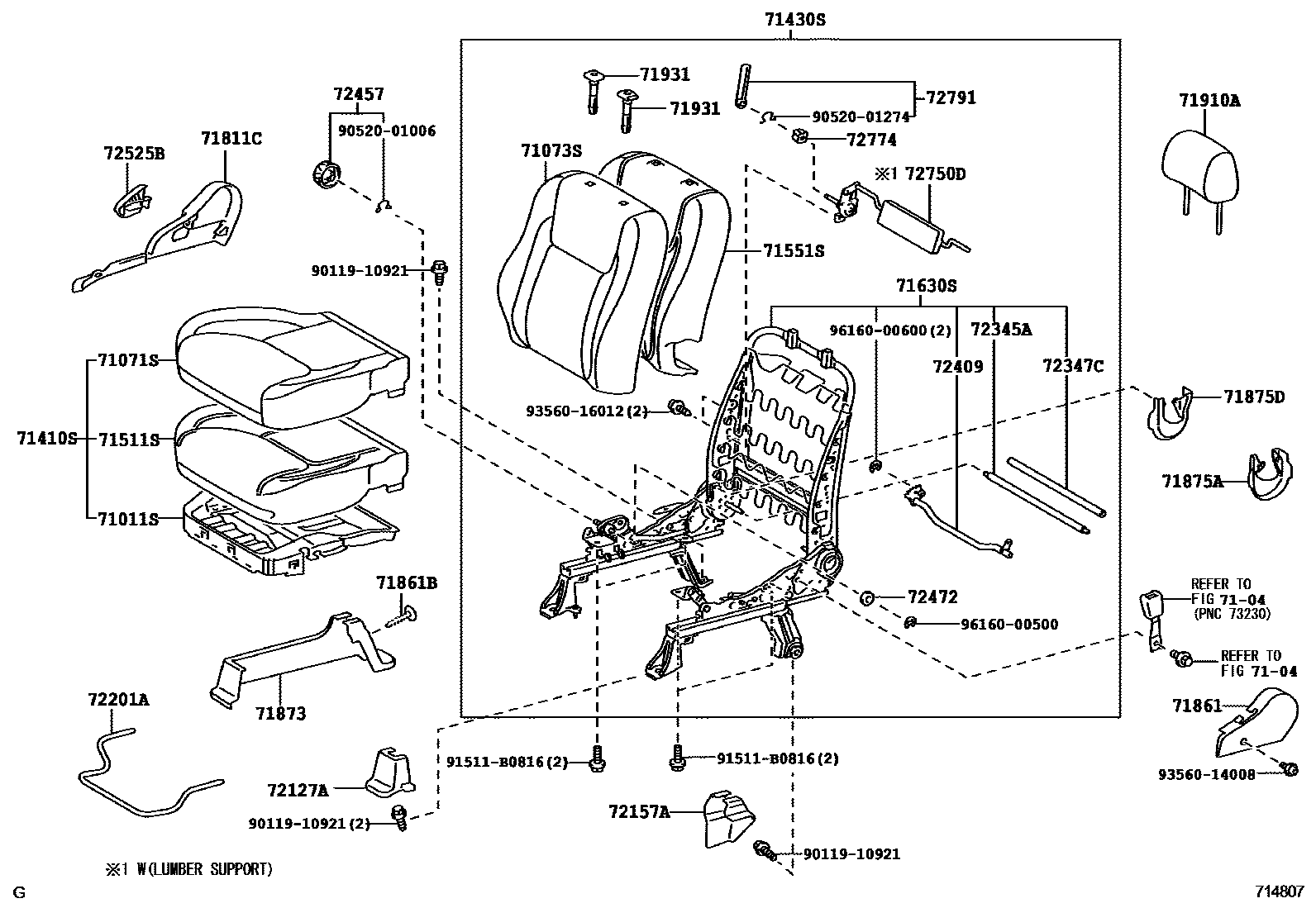

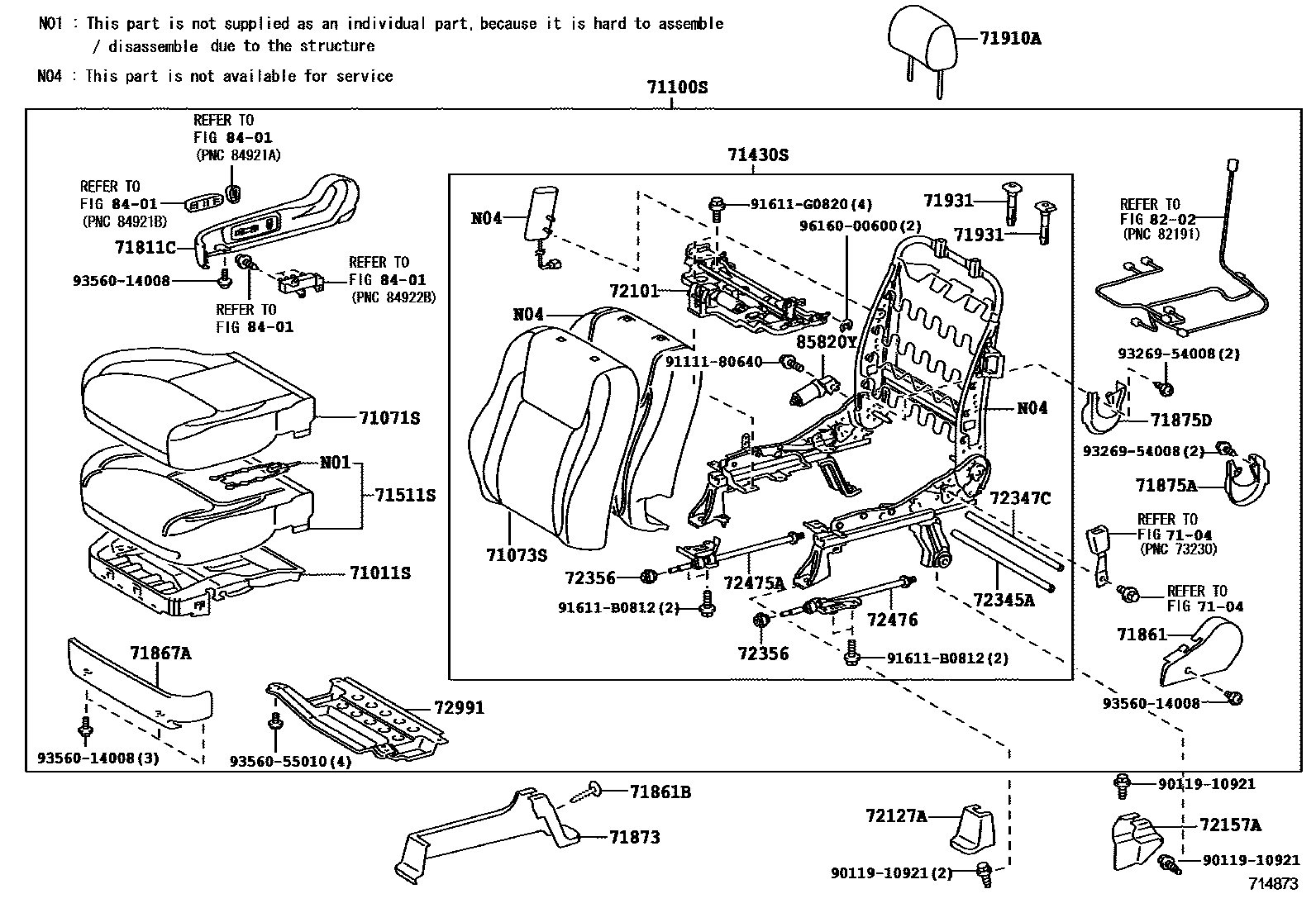

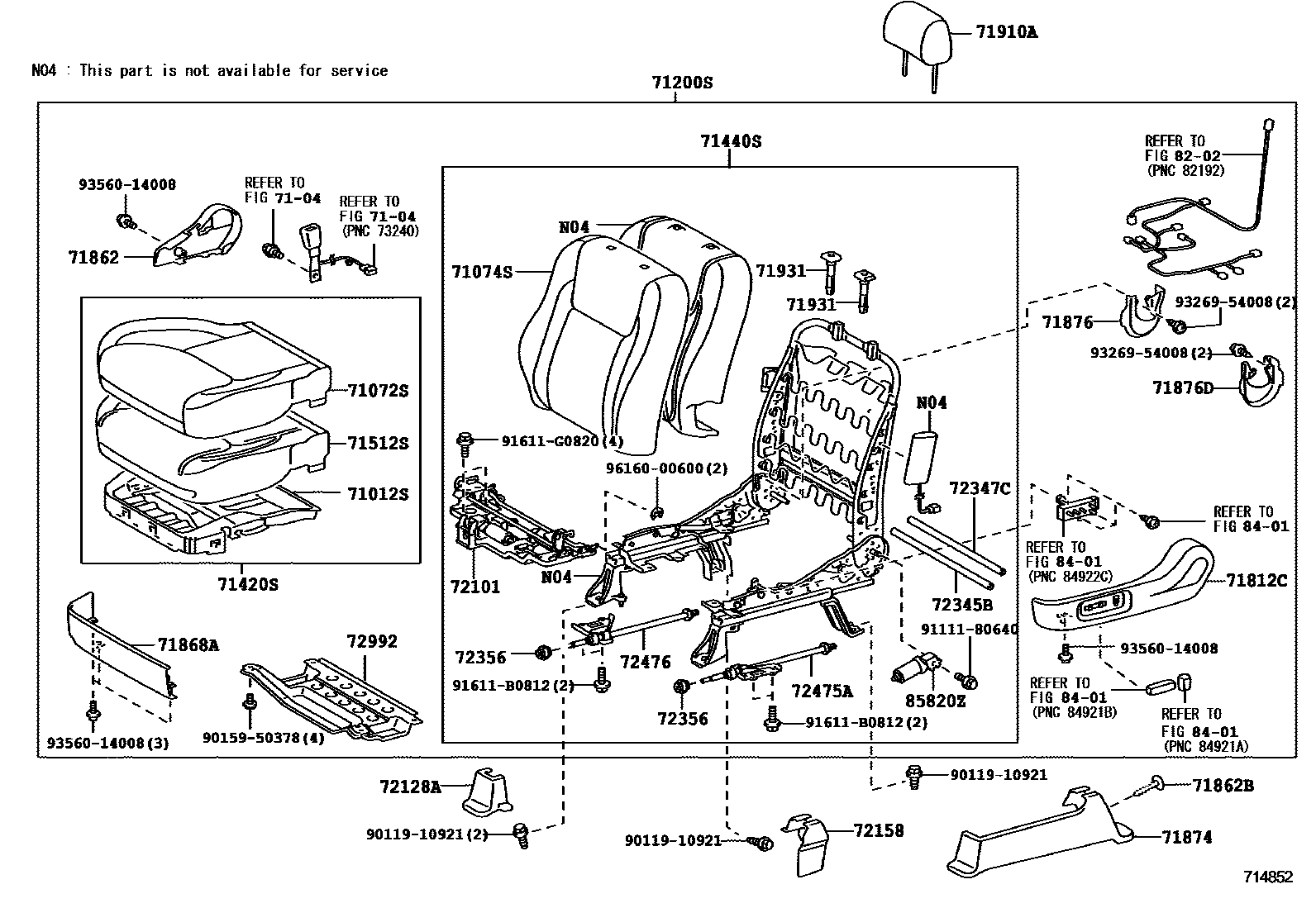

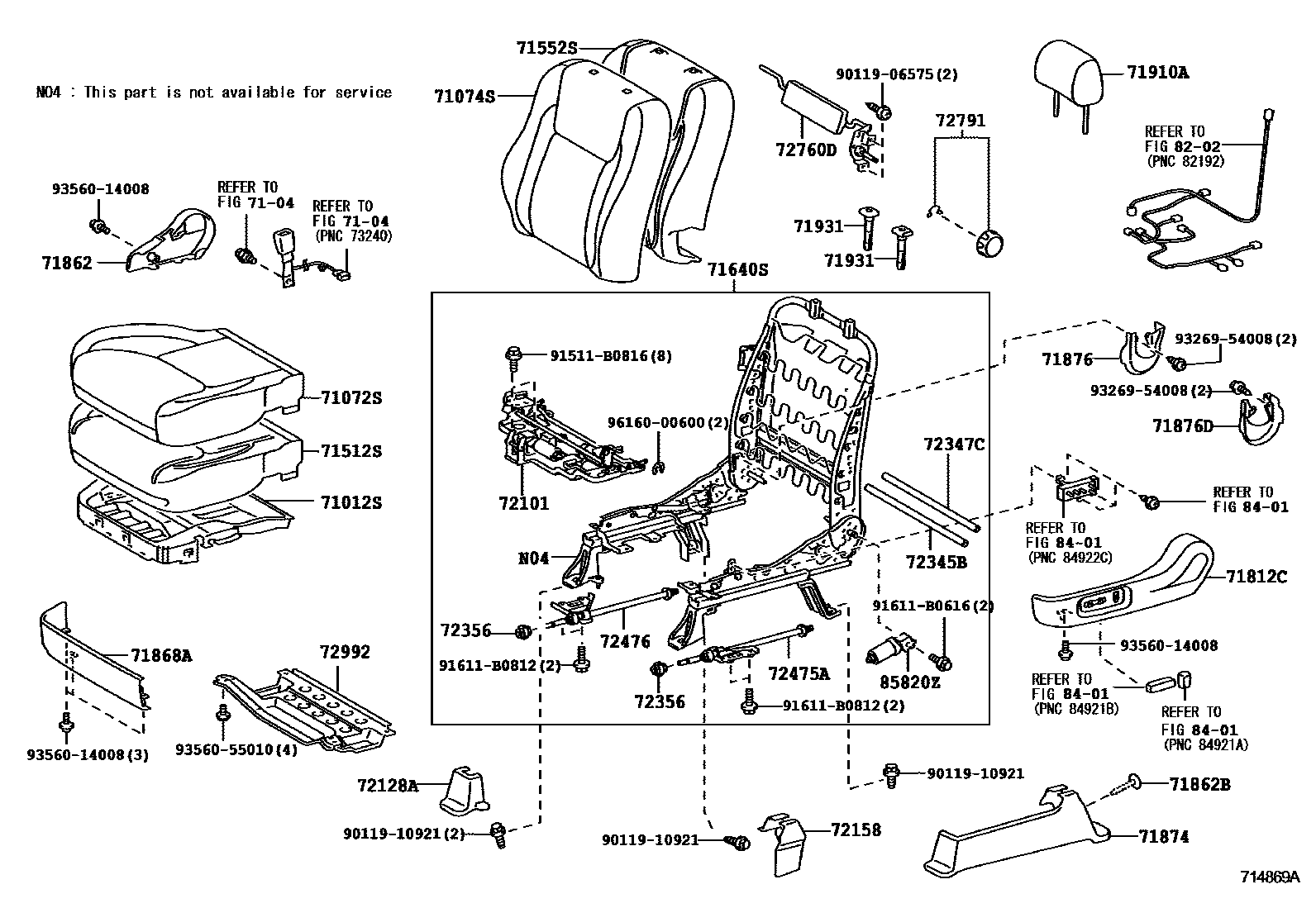

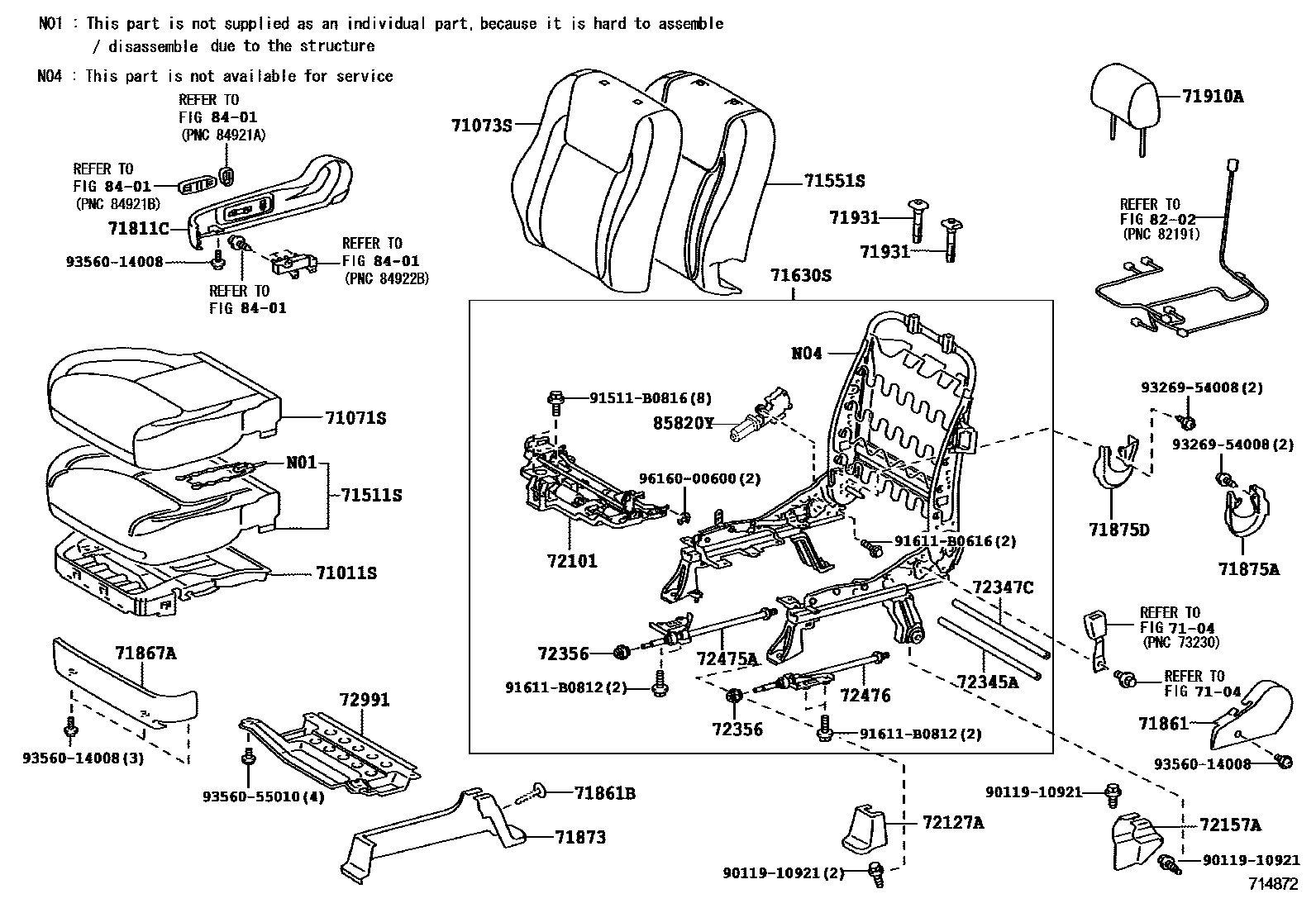

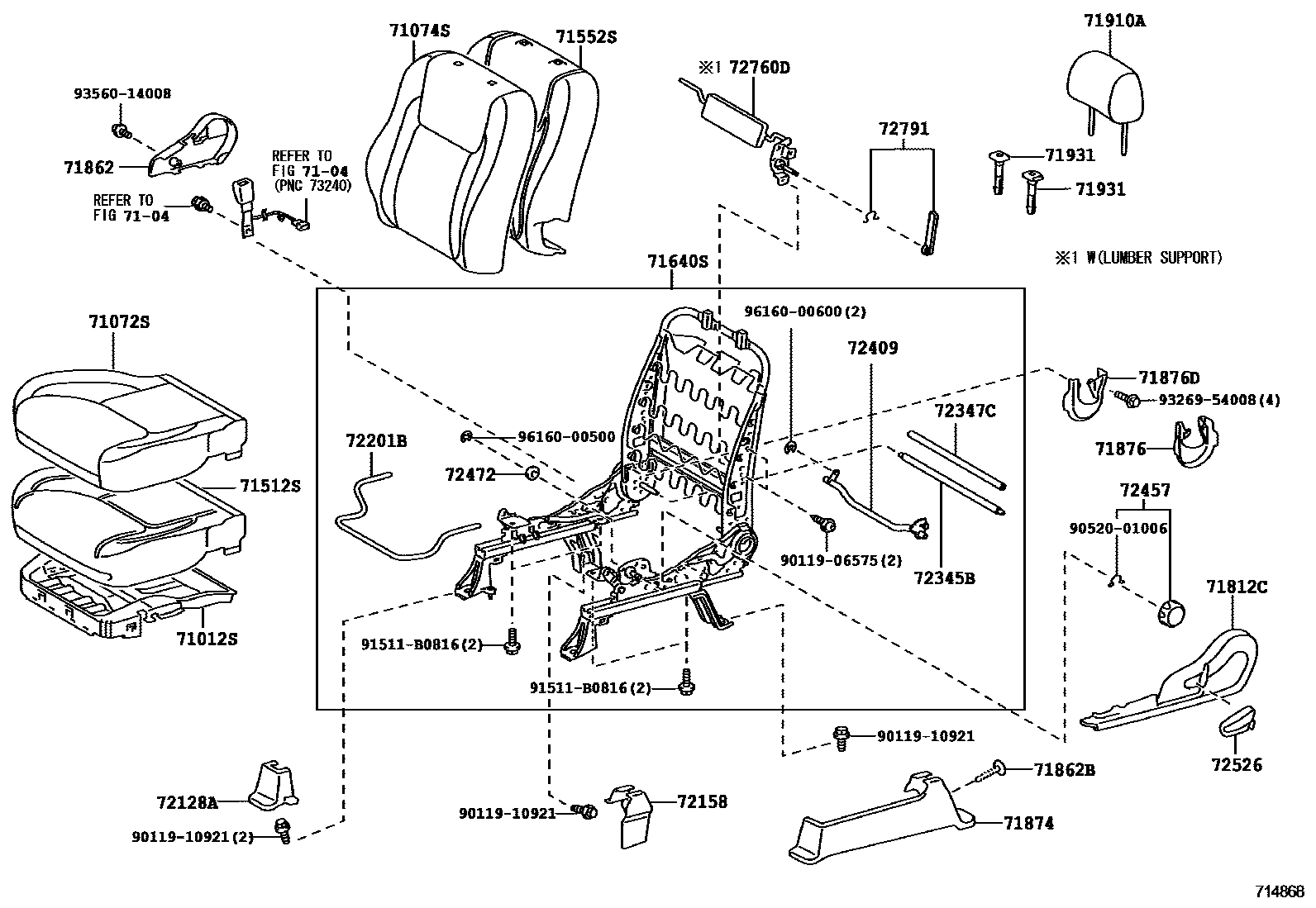

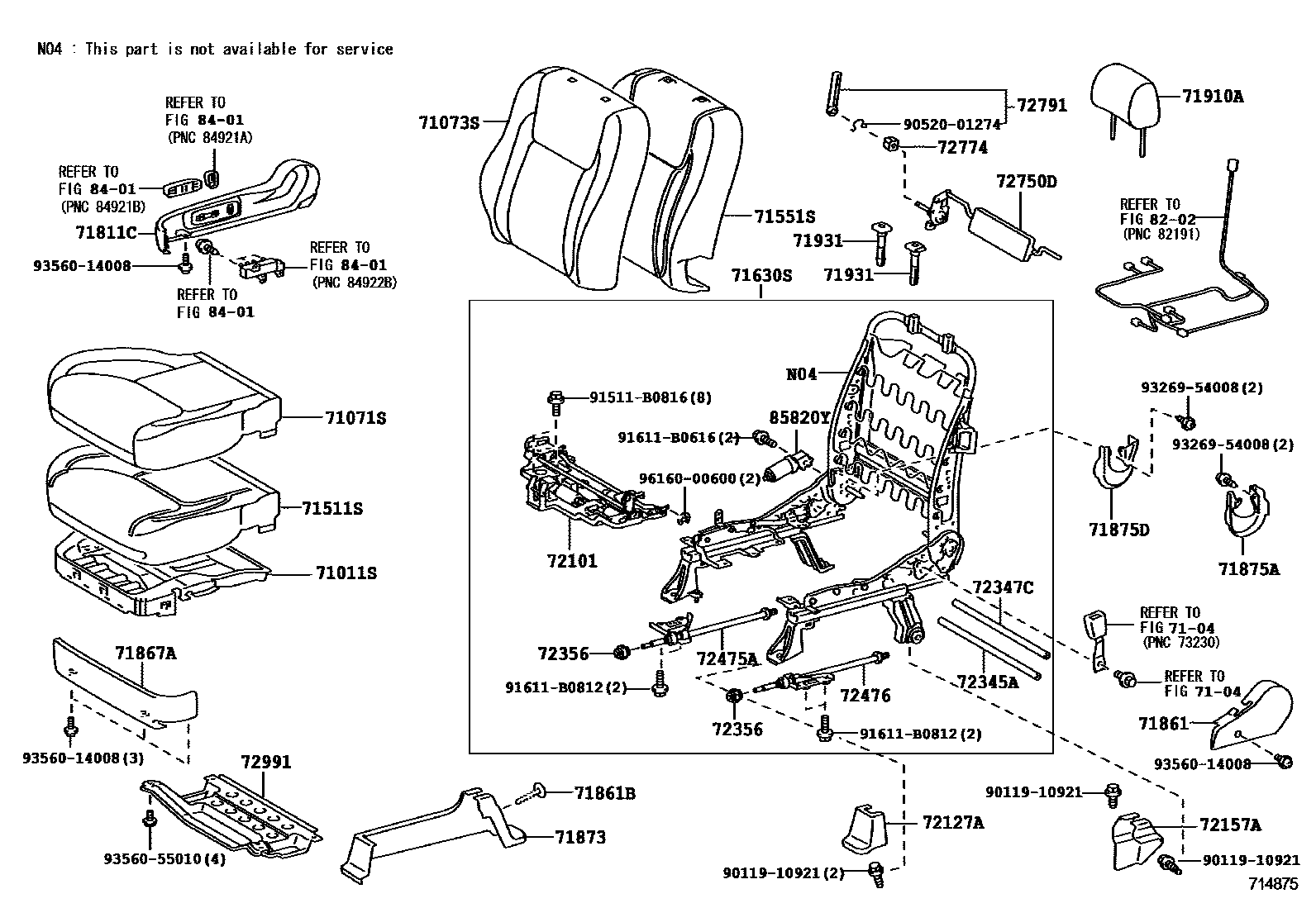

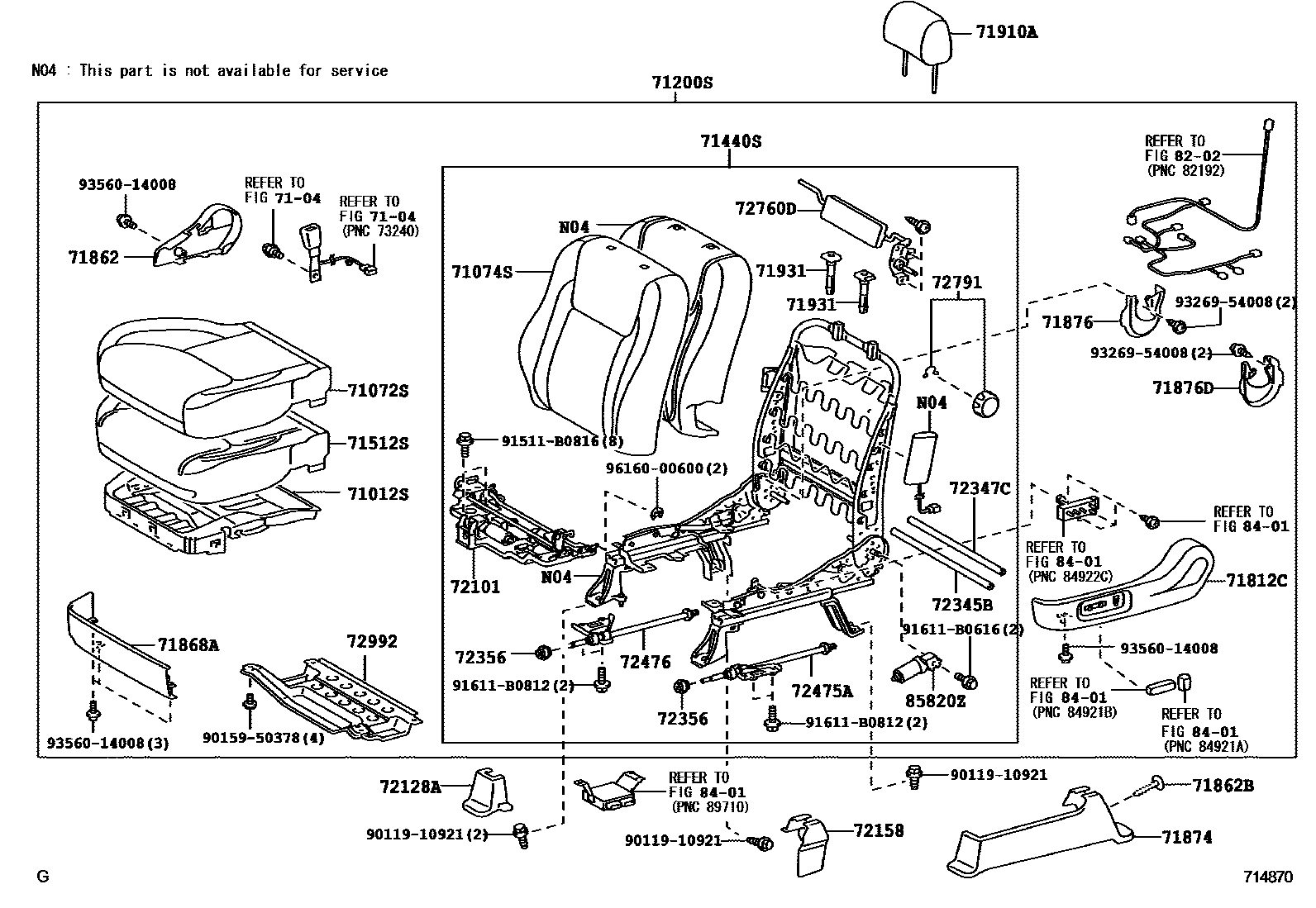

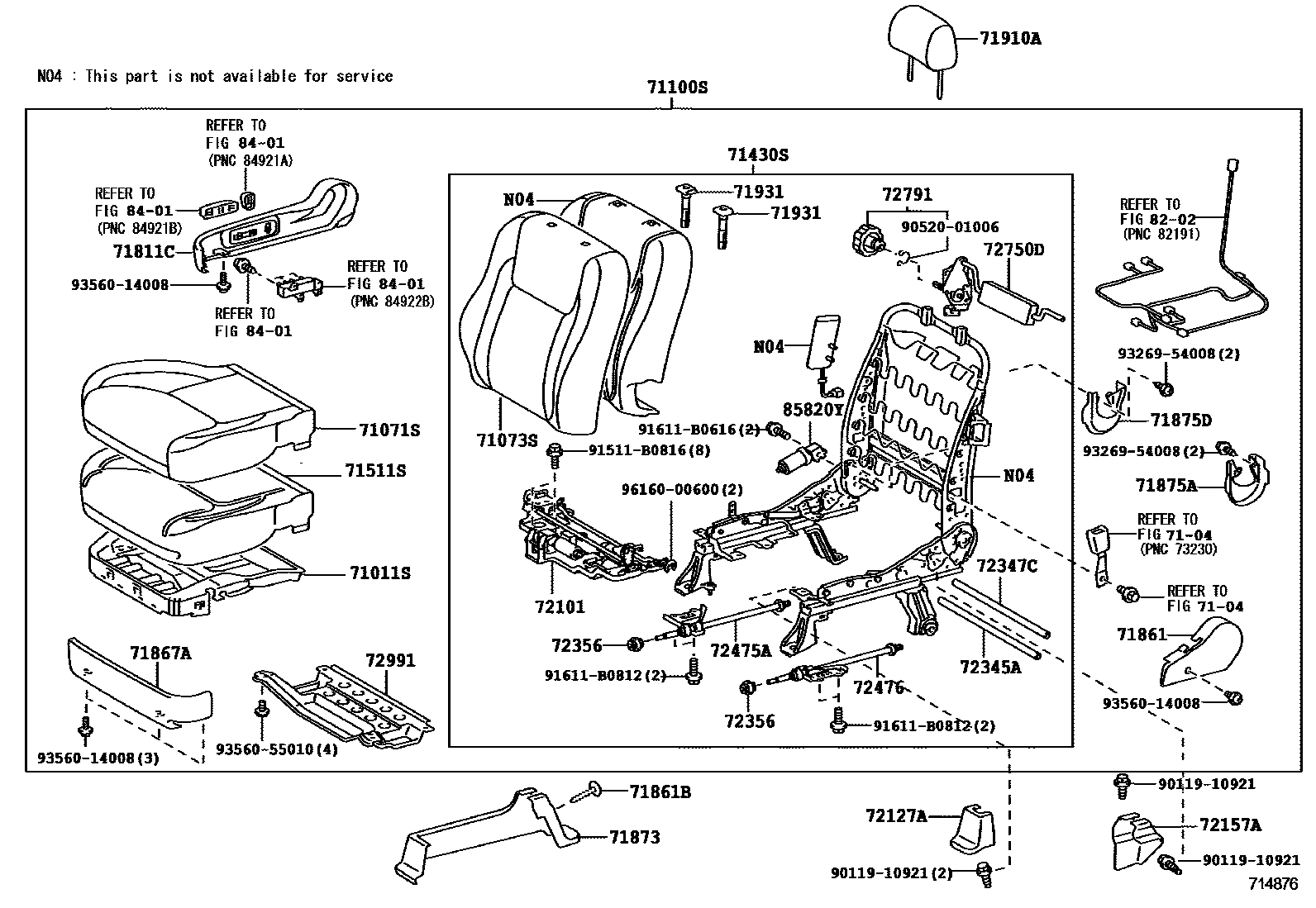

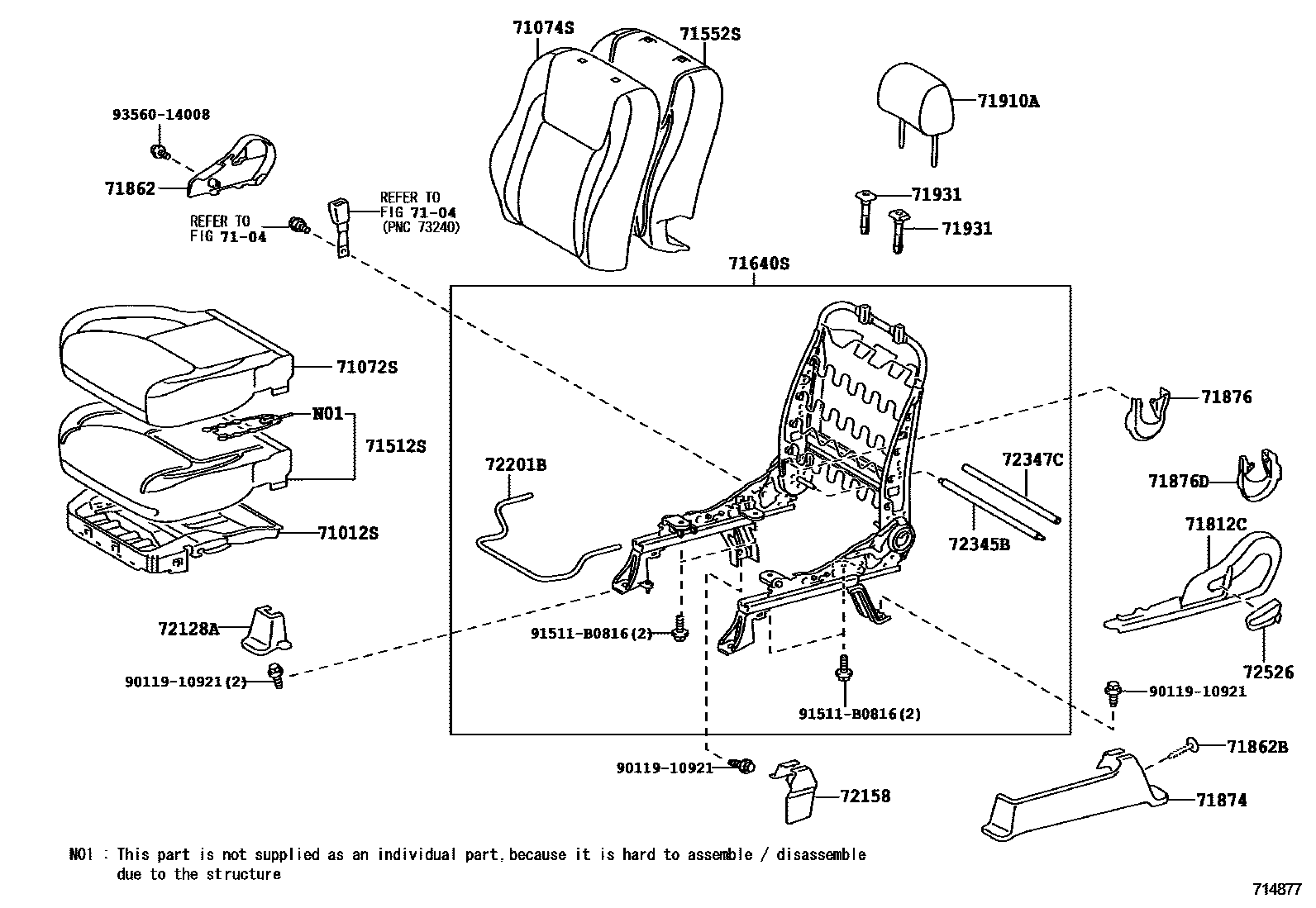

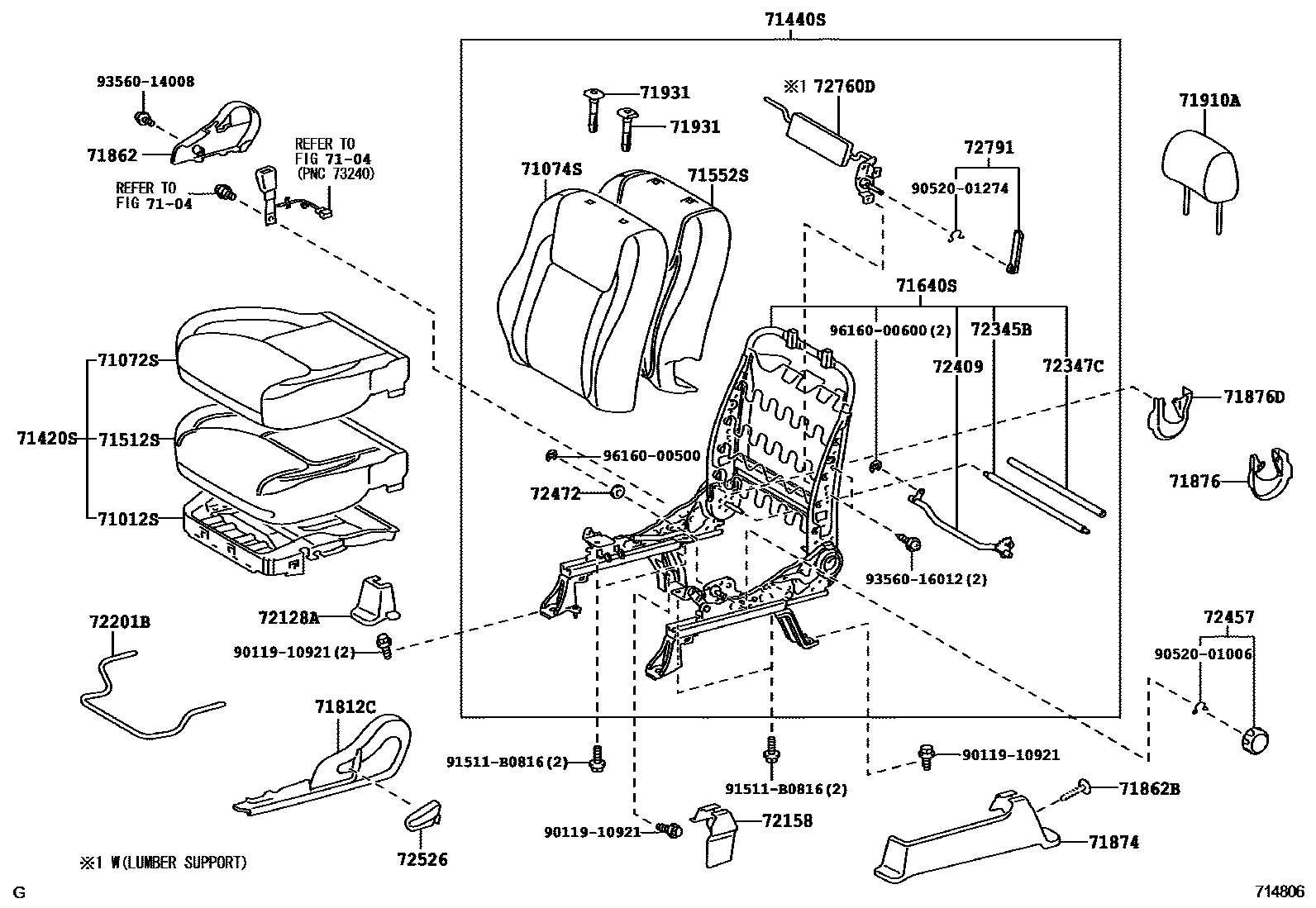

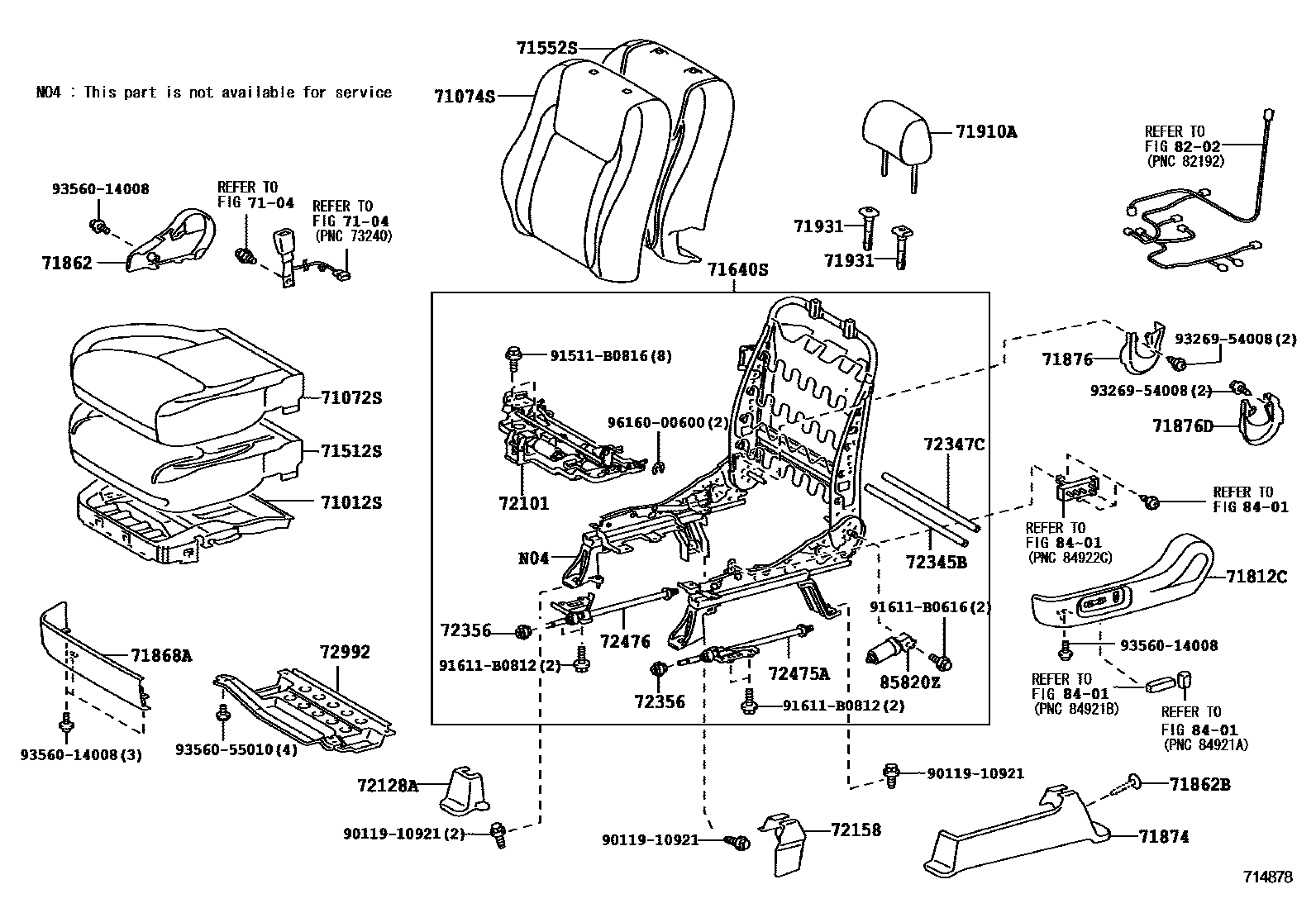

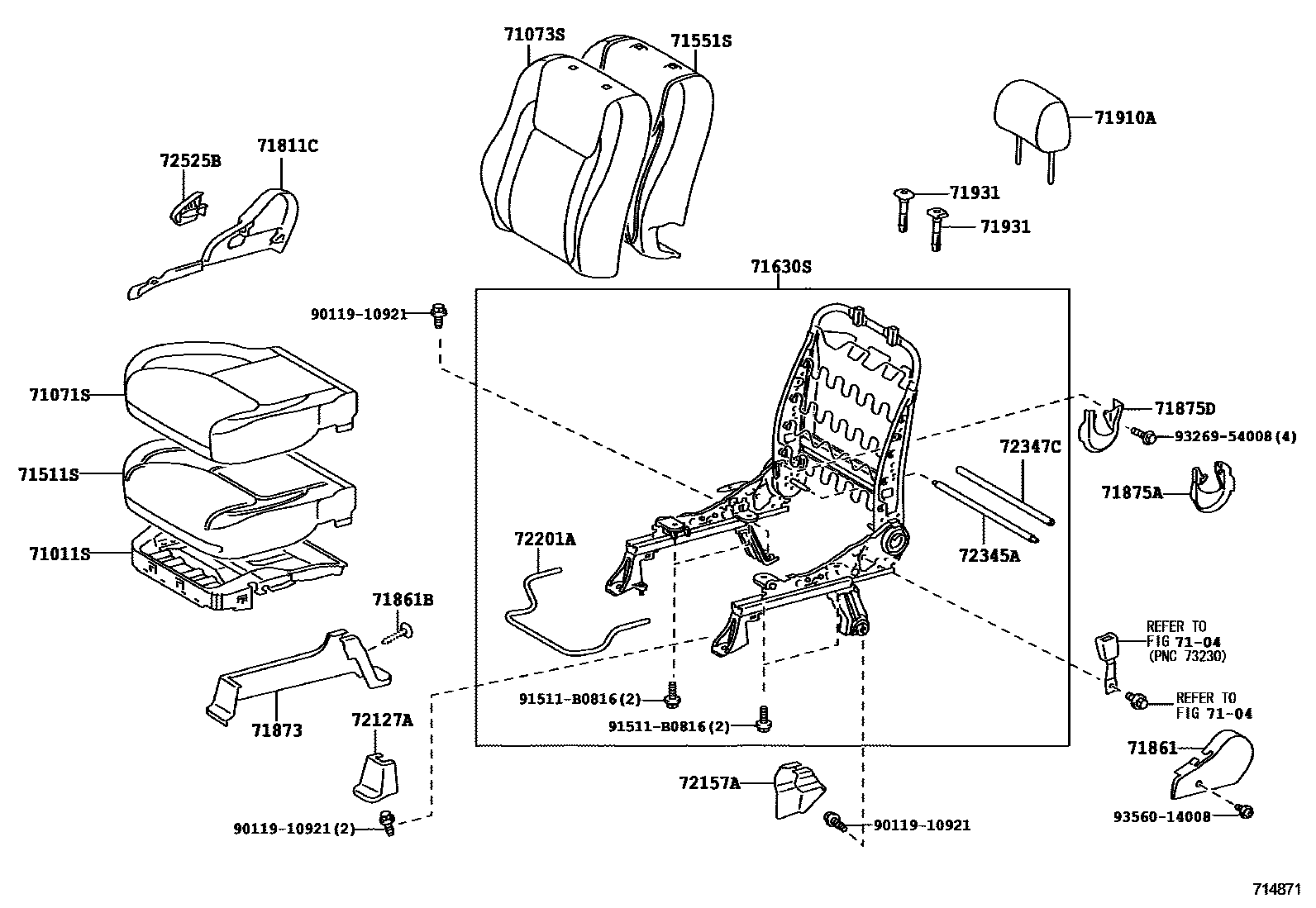

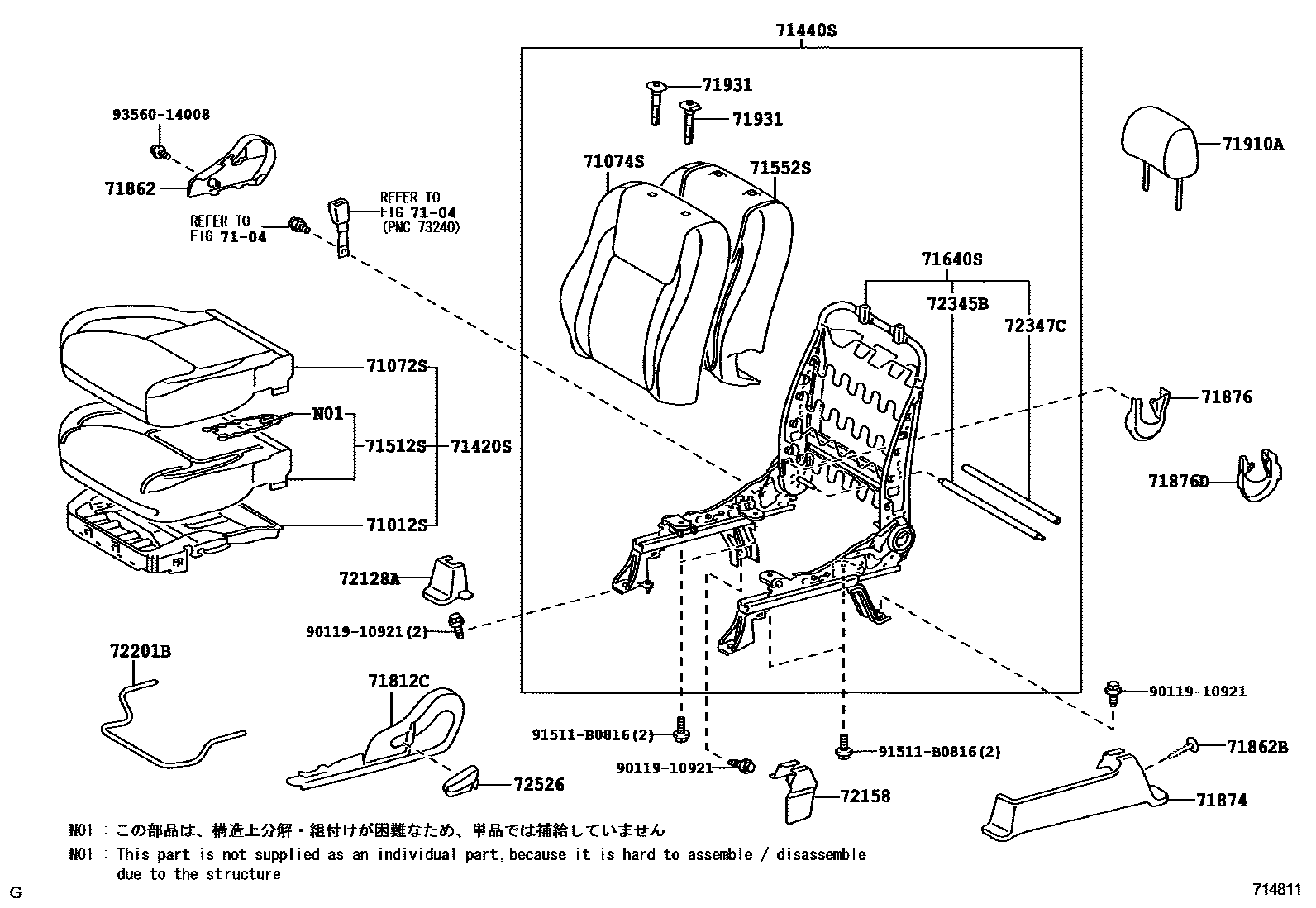

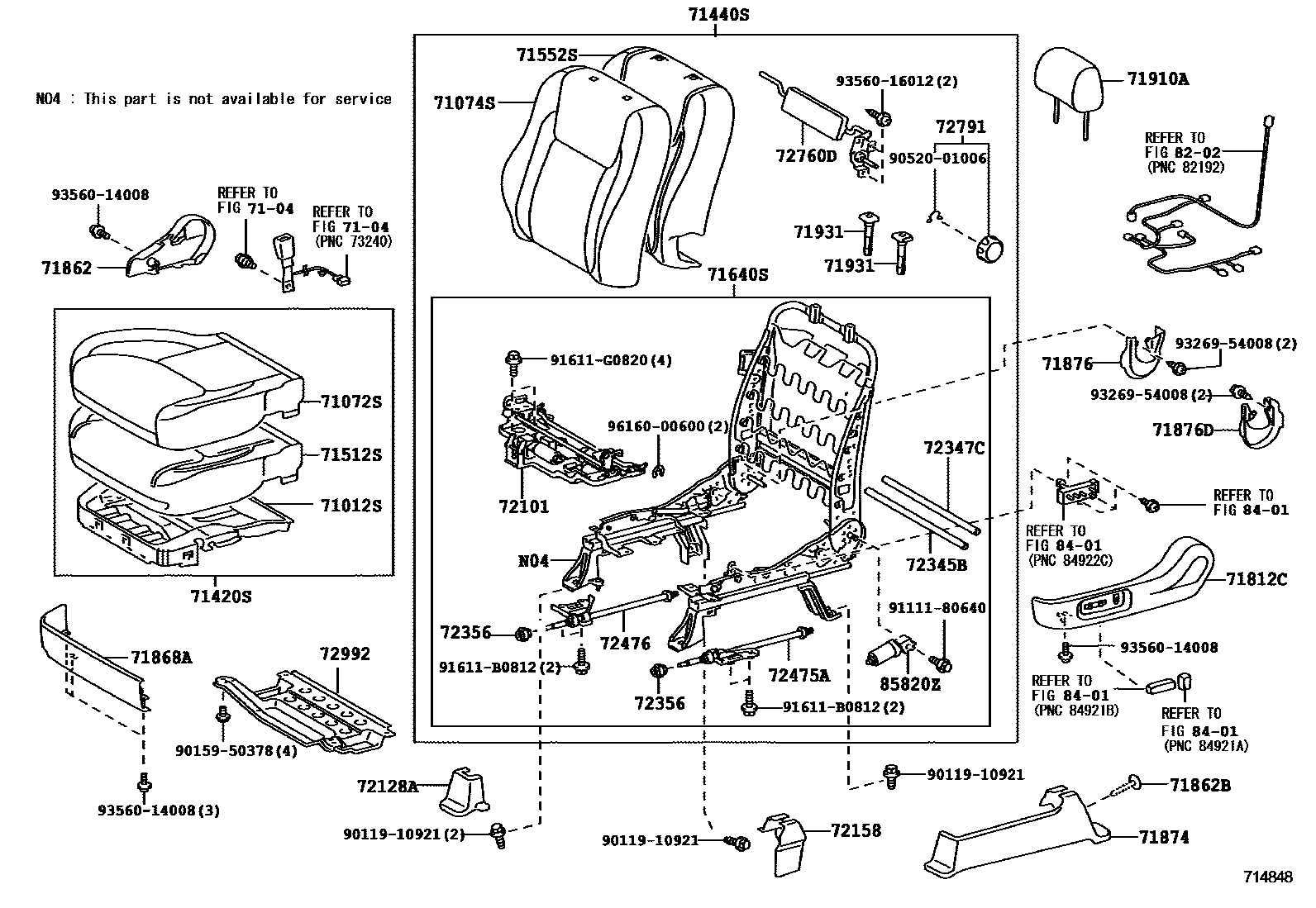

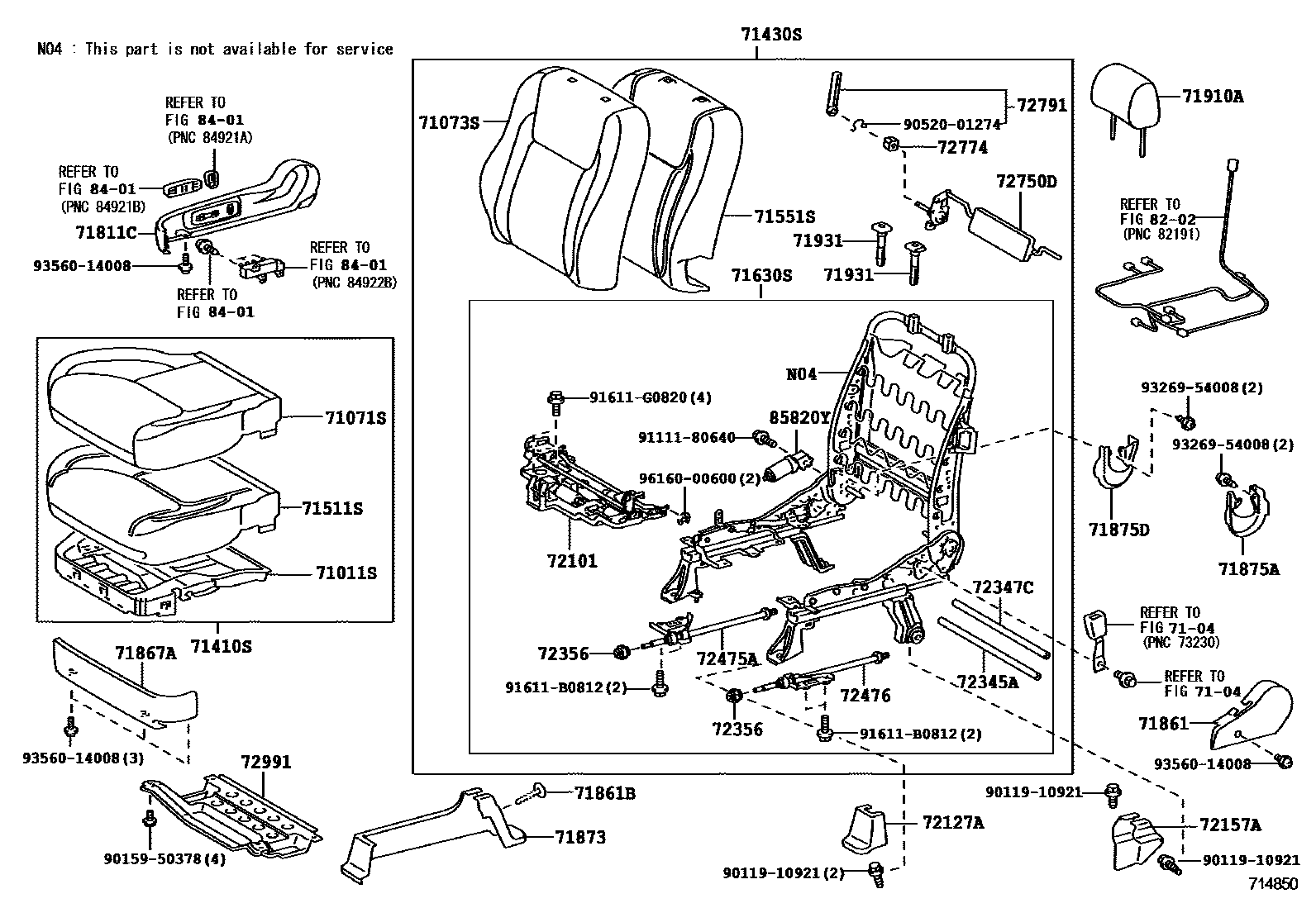

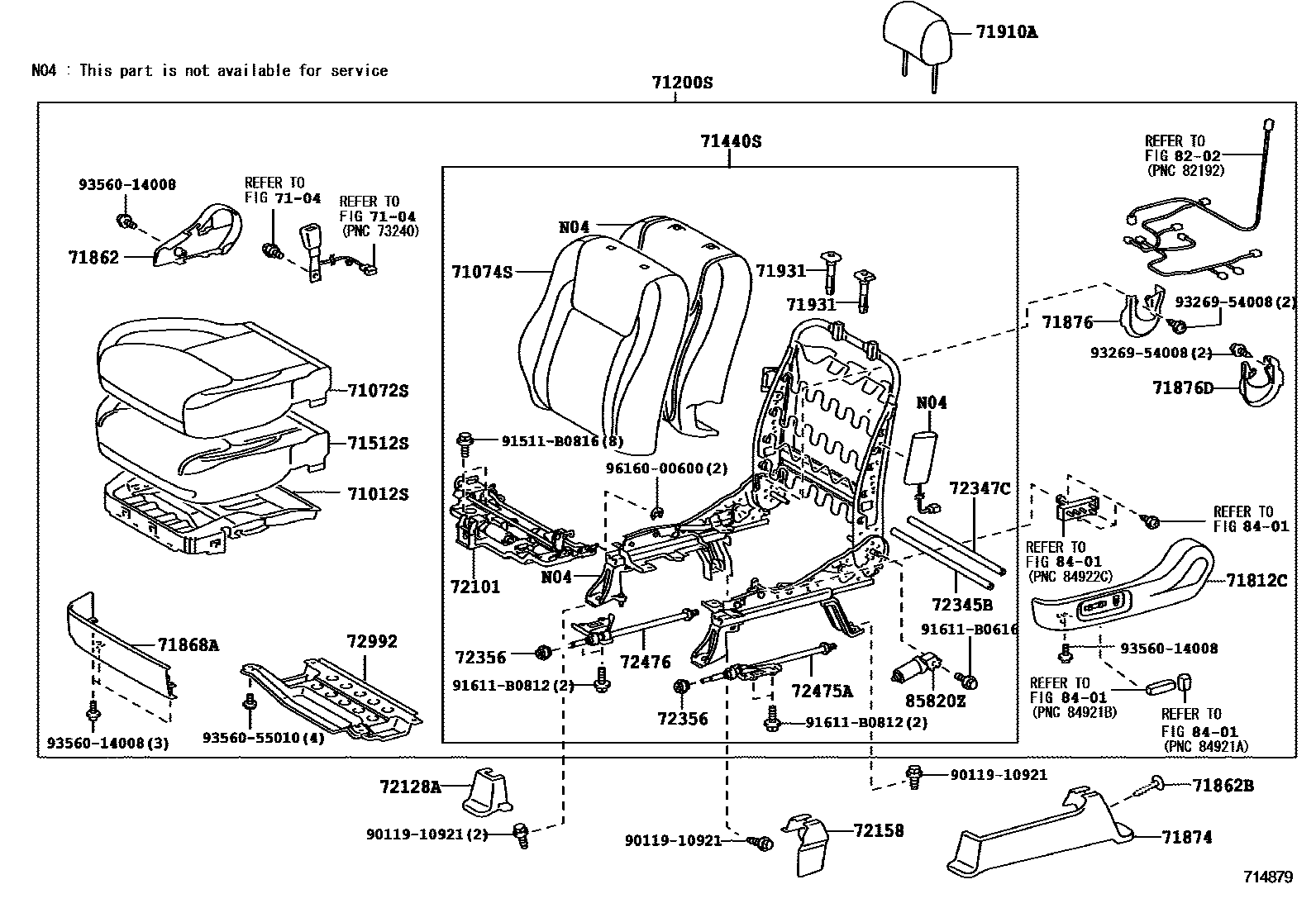

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 23 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-02040 · 71011-02050 · 71011-06060 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-02040 · 71011-02050 · 71011-06050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71502-06020 · 71502-06030 · 71502-06050 · 71511-02090 · 71511-02100 · 71511-06100 · 71511-06120 · 71511-06130 · 71511-06140 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06010 · 71502-06040 · 71511-02090 · 71511-02100 · 71511-06100 · 71511-06120 · 71511-06140 · 71511-06190 · 71511-06200 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06030 · 71551-06050 · 71551-06070 · 71551-06090 · 71551-06110 · 71551-06120 · 71551-06130 |
| 71552S | Front left seat back cushion (for split seats) | 71551-06030 · 71551-06040 · 71552-06030 · 71552-06070 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06060 · 71630-06070 · 71630-06080 · 71630-06130 · 71630-06140 · 71630-06160 · 71630-06170 · 71630-06180 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06040 · 71640-06050 · 71640-06060 · 71640-06070 · 71640-06090 · 71640-06100 · 71640-06120 · 71640-06130 |
| 71811C | Backrest tilt adjuster right cover | 71811-02060 · 71811-06060 · 71811-0A010 |
| 71812C | Left backrest recliner cover | 71812-02060 · 71812-06080 · 71812-0A010 |
| 71861 | Front seat cushion right inner guard panel | 71861-02040 · 71861-0A010 |
| 71862 | Front seat cushion left inner guard panel | 71862-02030 · 71862-0A010 |
| 71867A | Front right seat No. 1 seat cushion inner protection panel | 71867-06020 |
| 71868A | Front left seat No. 1 seat cushion inner protection panel | 71868-06020 |
| 71875A | Right backrest tilt adjuster inner cover | 71876-06060 |
| 71875D | Right backrest tilt adjuster outer cover | 71875-06060 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-06060 |
| 71876D | Left backrest recliner cover | 71875-06060 |
| 72101 | Front seat outer slide rail lower bracket sub-assembly | 72101-06010 · 72101-06011 |
| 72201A | Right seat slide rail handle sub-assembly | 72211-02020 |
| 72201B | Left seat slide rail handle sub-assembly | 72211-02020 |
| 72345A | Seat back recliner connecting tube | 72345-06040 · 72345-06060 · 72345-06090 |
| 72345B | Seat back recliner connecting tube | 72345-06040 · 72345-06060 · 72345-06090 |
| 72347C | Seat back angle connection hook cover | 72347-06030 · 72347-06040 |
| 72356 | Right bracket nut | 72356-06010 |
| 72409 | Height adjustment shaft sub-assembly | 72409-02020 · 72409-02030 |
| 72472 | No. 1 Height Adjuster Lever Pin | 72472-02010 |
| 72475A | Horizontal jack outer screw | 72475-06010 |
| 72476 | Horizontal jack inner screw | 72476-06010 |
| 72750D | Right lumbar support adjuster assembly | 72750-06010 · 72760-12110 |
| 72760D | Left lumbar support adjuster assembly | 72750-02010 · 72760-06020 |
| 72774 | Lumbar support spring guard | 72774-02010 |
| 72991 | Front right seat cushion cover | 72991-06040 |
| 72992 | Front left seat cushion cover | 72991-06040 |
| 85820Y | Electric seat motor assembly | 85820-06040 |
| 85820Z | Electric seat motor assembly | 85820-06050 |
