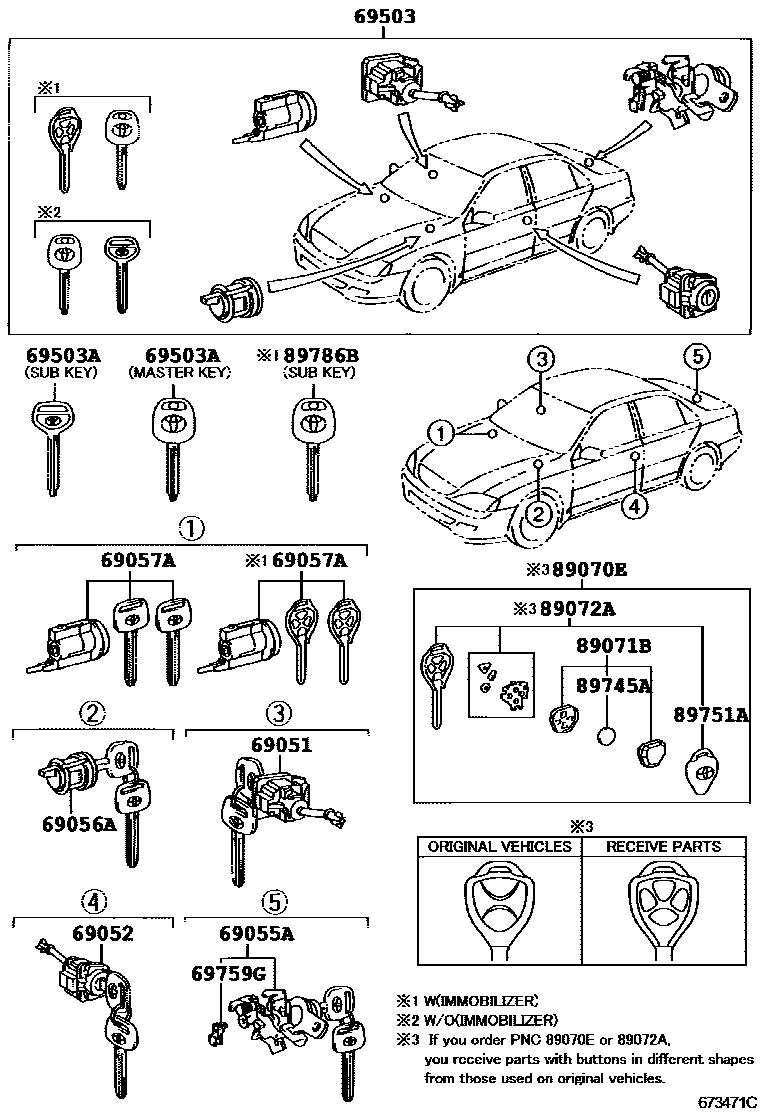

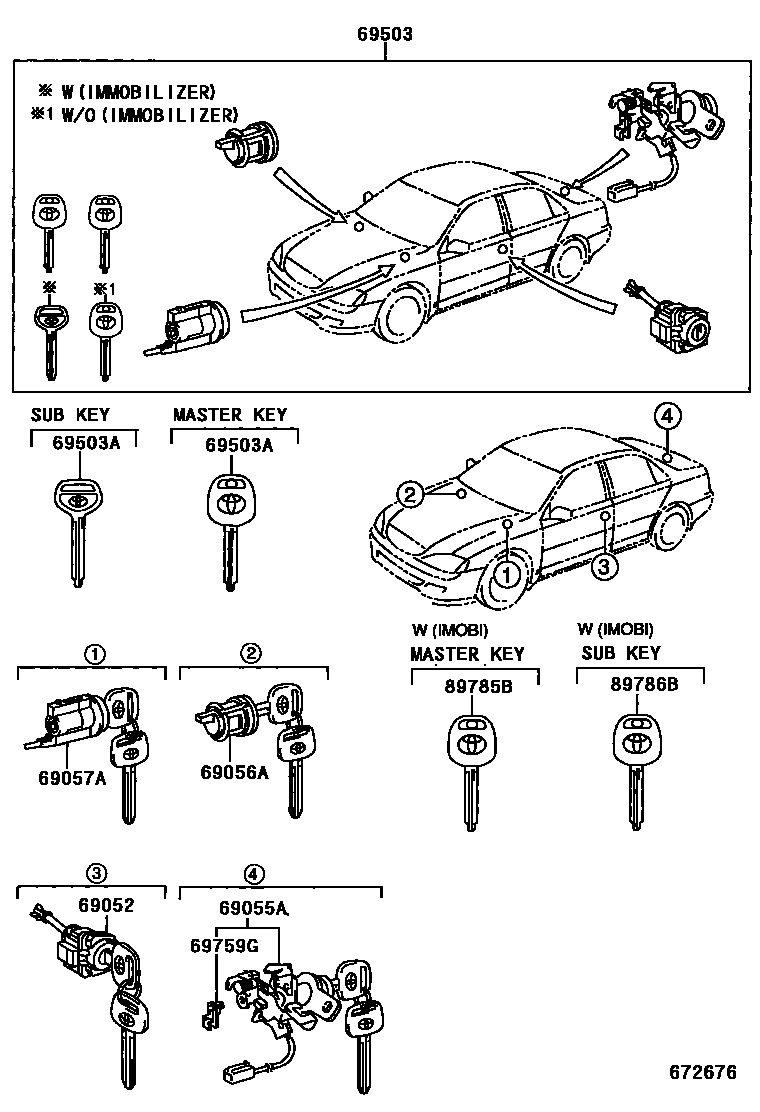

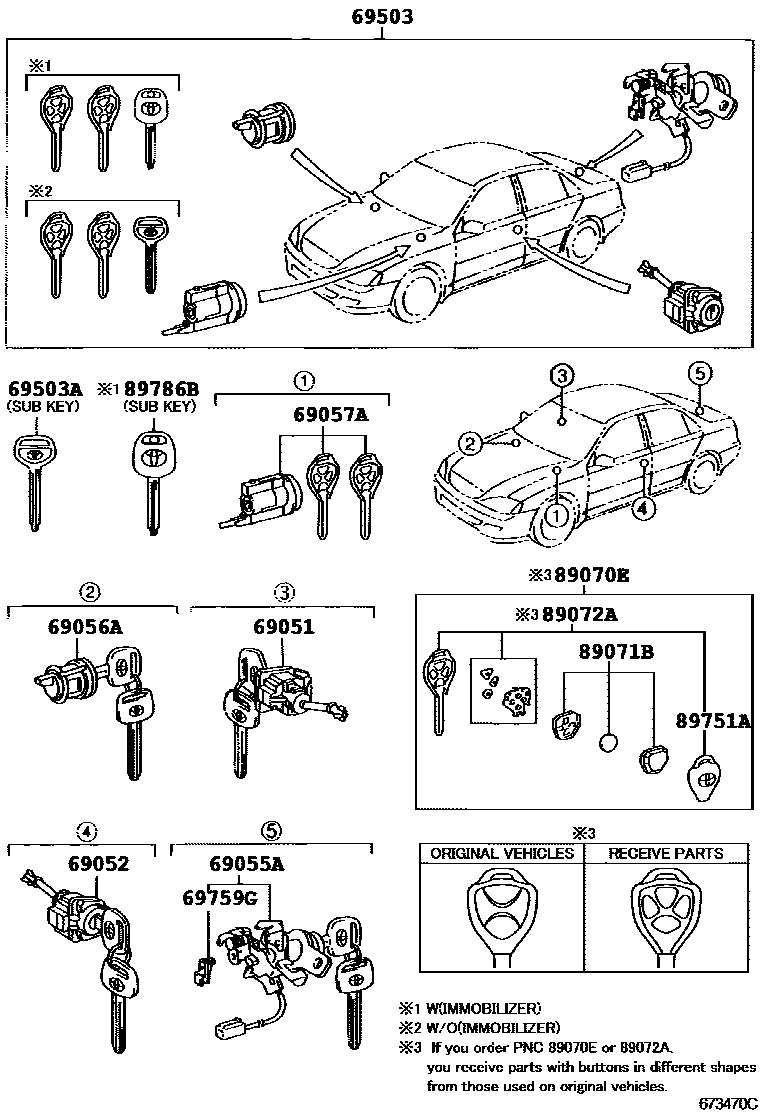

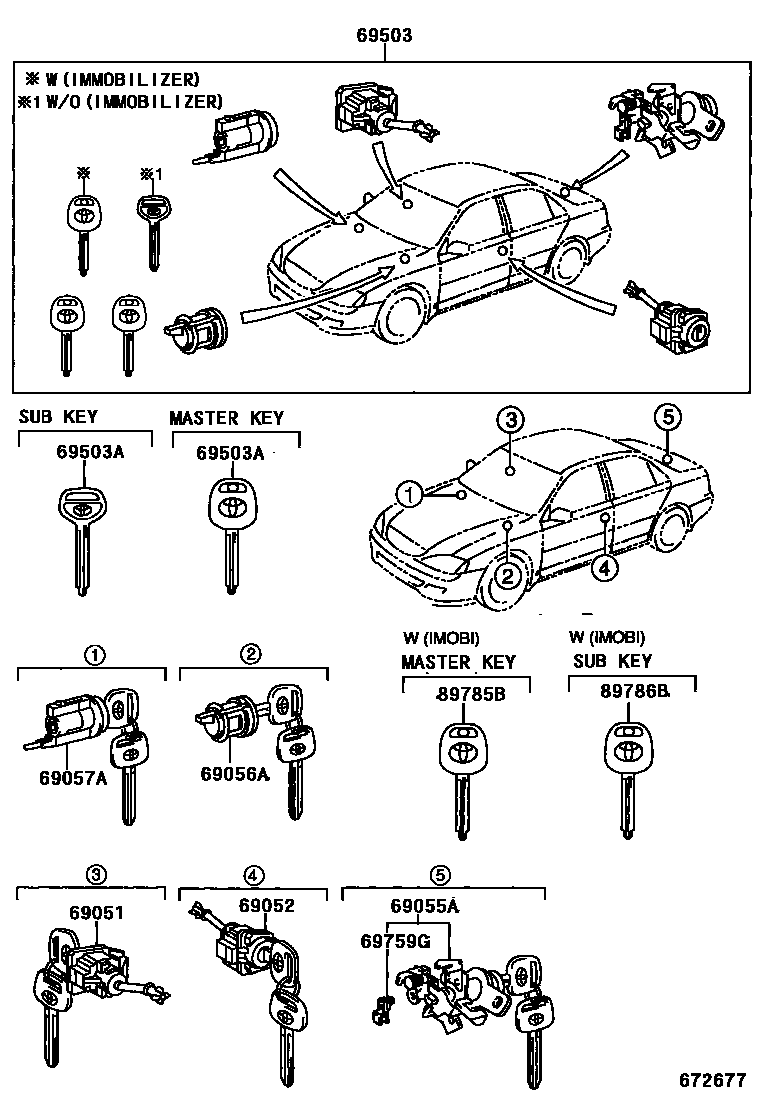

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06030 |
| 69052 | Left door lock cylinder and key assembly | 69052-06020 · 69052-06030 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06030 · 69055-06040 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06020 · 69056-06030 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06030 · 69057-06040 · 69057-06050 · 69057-06060 · 69057-06090 · 69057-06100 · 69057-06110 · 69057-06120 · 69057-06130 · 69057-06140 |
| 69503 | Door lock cylinder components | 69005-06040 · 69005-06050 · 69005-06060 · 69005-06070 · 69005-06130 · 69005-06140 · 69005-06150 · 69005-06160 · 69005-06170 · 69005-06180 |
| 69503A | external tooth key | 90999-00188 · 90999-00199 |
| 69759G | Trunk door lock core buckle | 69759-06020 |
| 89070E | Remote key assembly | 89070-06110 · 89070-06120 · 89070-06130 · 89070-06140 · 89070-06150 · 89070-06160 · 89070-06180 |
| 89071B | Remote key sub-assembly module assembly | 89071-33250 · 89071-71030 |
| 89072A | Remote key shell assembly | 89072-02150 · 89072-02160 · 89072-02250 · 89072-02270 |
| 89745A | Transmitter battery | 89745-71010 |
| 89751A | Transmitter housing cover | 89751-06010 · 89751-06020 · 89751-06030 · 89751-26010 · 89751-33040 |
| 89785B | transceiver key master transmitter | 89785-06020 · 89785-26020 |
| 89786B | transceiver key secondary transmitter | 89786-06020 · 89786-06040 · 89786-08020 · 89786-60050 |
