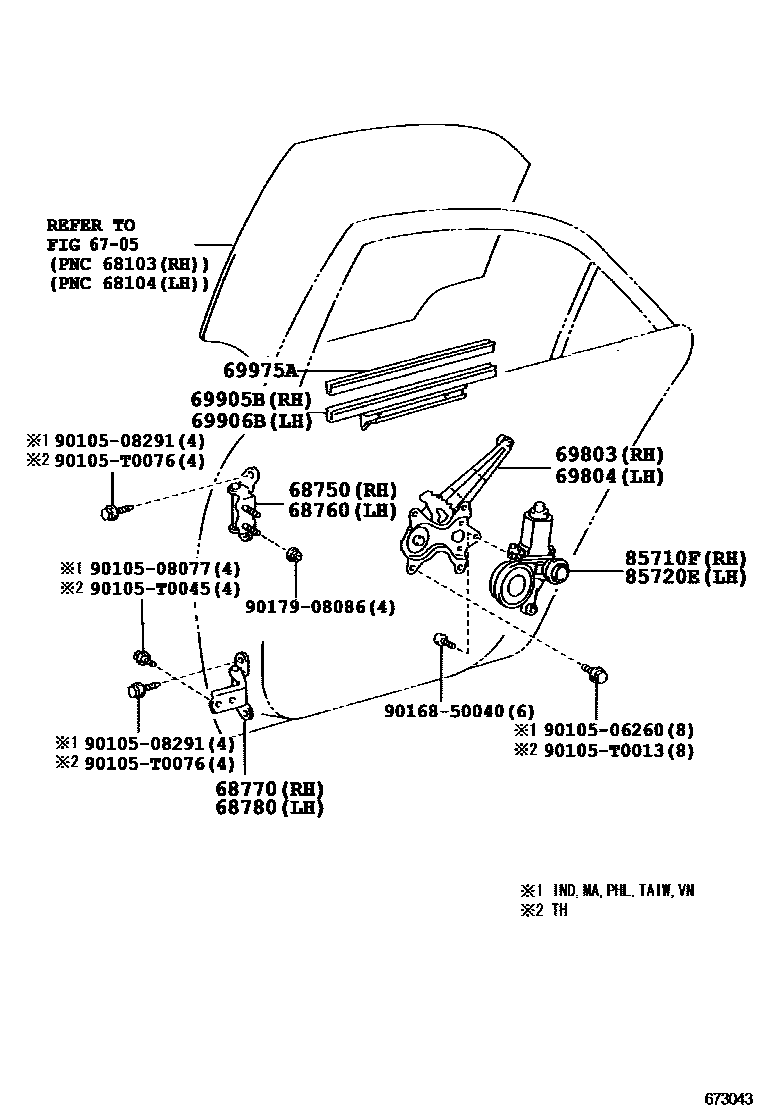

Toyota CAMRY 后门车窗升降器和合页 — Figure 6707
Toyota CAMRY EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-33010 |
| 68760 | Left rear door upper hinge assembly | 68760-33010 |
| 68770 | Right rear door lower hinge assembly | 68770-33030 |
| 68780 | Left rear door lower hinge assembly | 68780-33030 |
| 69803 | Right rear door window lifter sub-assembly | 69803-06030 · 69803-06040 · 69803-33030 |
| 69804 | Left rear door window lifter sub-assembly | 69804-06030 · 69804-06040 · 69804-33030 |
| 69905B | Right rear door glass groove sub-assembly | 69905-33020 |
| 69906B | Left rear door glass groove sub-assembly | 69906-33020 |
| 69975A | Rear door glass channel filler | 69975-33010 |
| 85710F | Right power window lift motor assembly | 85720-06040 · 85720-12280 · 85720-33120 · 85720-33170 |
| 85720E | Left electric window lift motor assembly | 85710-02060 · 85710-12290 · 85710-33130 · 85710-33170 |
