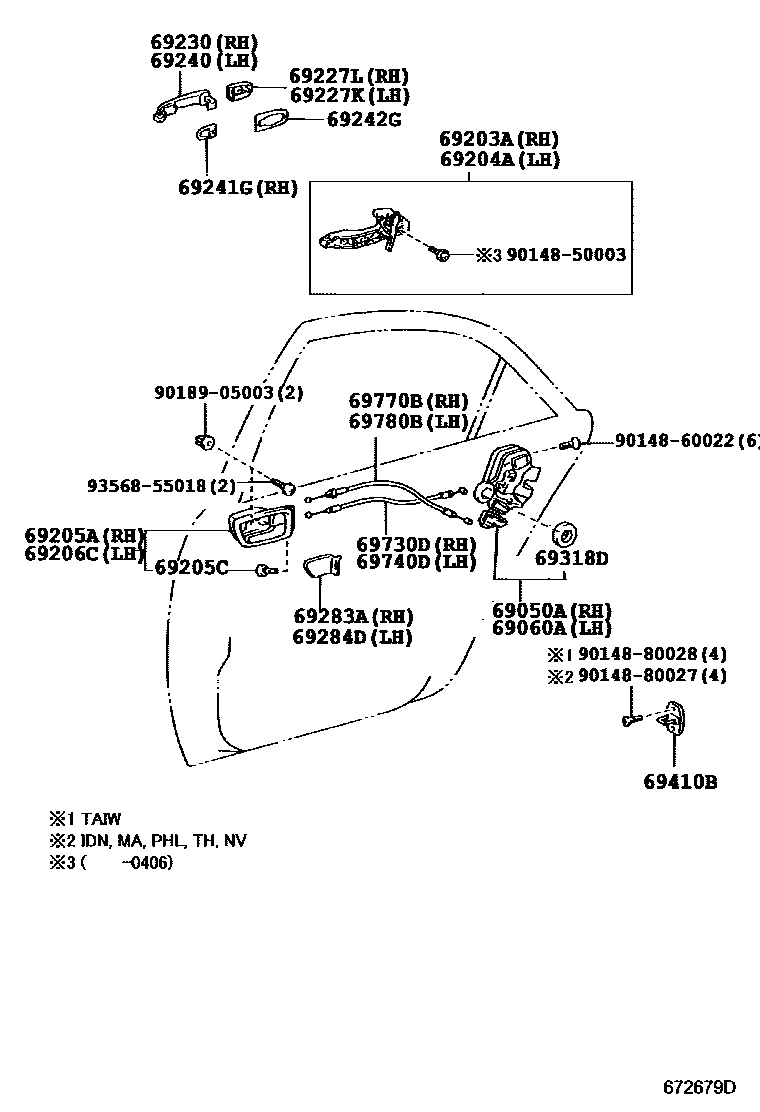

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-06030 · 69050-33071 |
| 69060A | Left rear door lock assembly with motor | 69060-06030 · 69060-33071 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06010 · 69203-06020 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06010 · 69204-06020 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227K | Right rear door outer handle cover | 69227-02140 · 69227-02150 · 69227-02903 · 69227-06030 · 69227-06900 |
| 69227L | Left rear door outer handle cover | 69227-02140 · 69227-02150 · 69227-02903 · 69227-06030 · 69227-06900 |
| 69230 | Right rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06060 · 69210-06900 · 69210-06905 |
| 69240 | Left rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06060 · 69210-06900 · 69210-06905 |
| 69241G | Rear door front exterior handle pad | 69241-06030 · 69241-42020 |
| 69242G | Rear door rear outer handle pad | 69242-06020 · 69242-42010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-06010 · 69410-33010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06020 · 69730-33050 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06020 · 69730-33050 |
| 69770B | Right rear door inner lock cable assembly | 69770-06010 · 69770-33010 |
| 69780B | Left rear door inner lock cable assembly | 69770-06010 · 69770-33010 |
